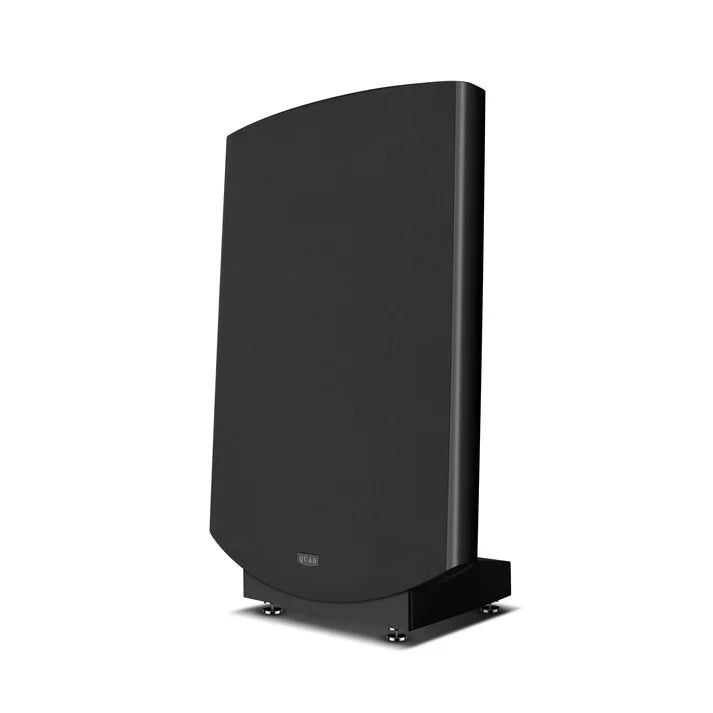

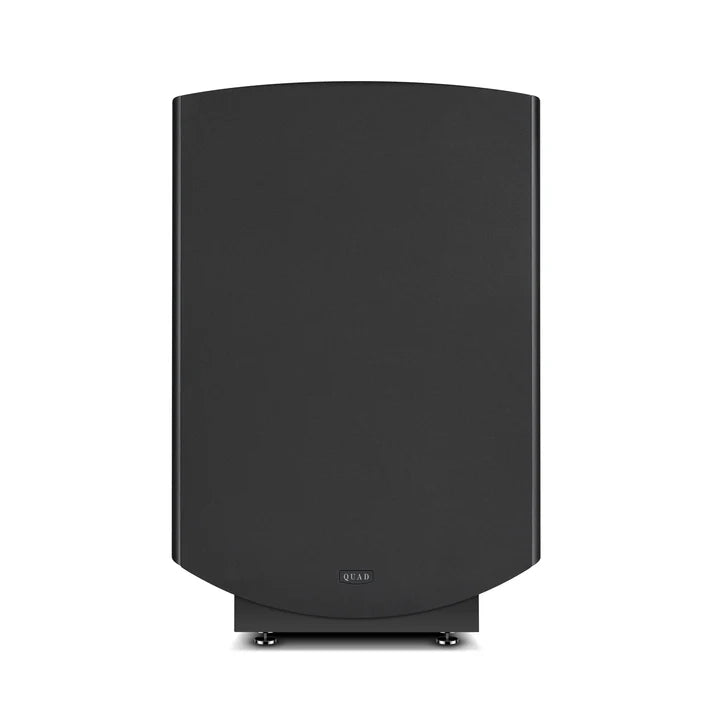

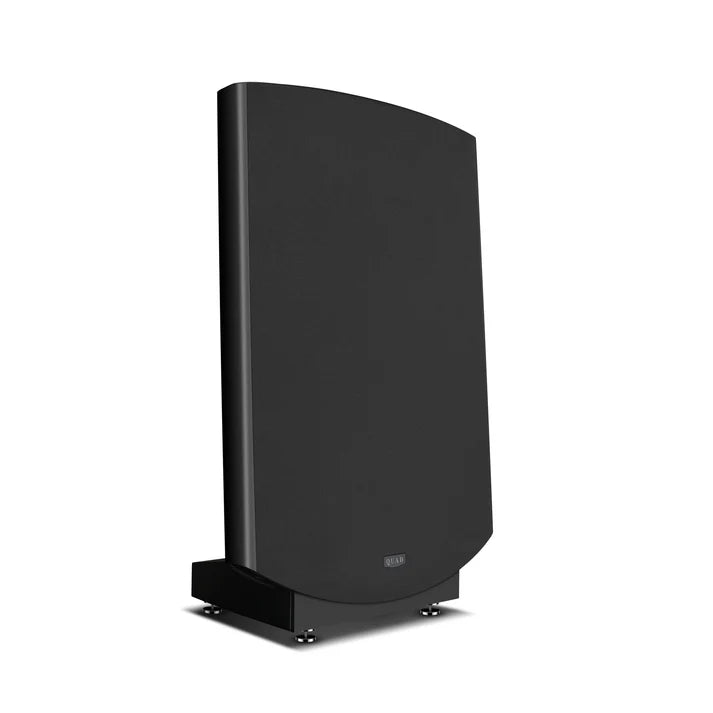

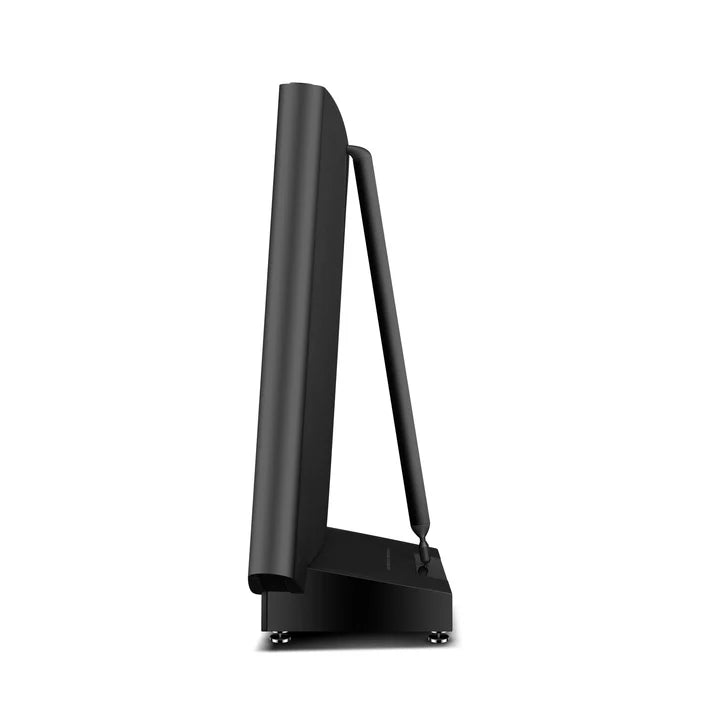

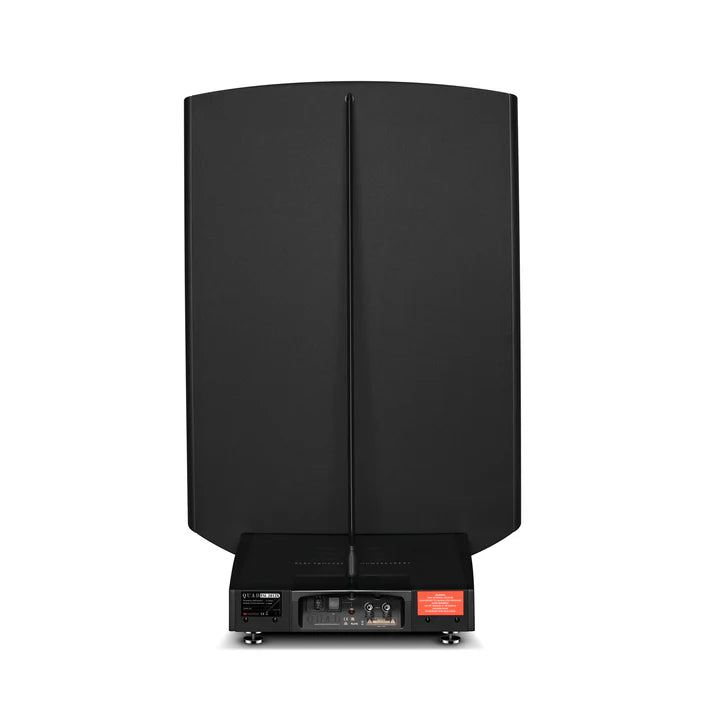

QUAD ESL 2812X Electrostatic Loudspeakers

The QUAD ESL 2812X is a compact electrostatic loudspeaker of the highest order — a four-panel design that shares the identical treble and midrange panels of the flagship ESL 2912X, delivering a level of transparency, resolution and midrange purity that no conventional moving-coil loudspeaker, however accomplished, can approach. At 1,070mm tall, the ESL 2812X brings the full authority of QUAD's flagship electrostatic panel technology into a format that is genuinely practical in the domestic listening environment — a loudspeaker that sets a new standard for what is achievable from a compact electrostatic design, and that transforms every recording in a listener's collection into an experience of renewed and startling immediacy.

The electrostatic principle that the ESL 2812X employs is the same that Peter Walker pioneered in his groundbreaking 1957 loudspeaker — a charged Mylar diaphragm of extraordinary thinness, suspended between perforated metal stators, driven by the full audio signal across its entire surface simultaneously. The Mylar diaphragm is ten times thinner than a human hair — a moving mass so vanishingly low that the ESL 2812X responds to the finest transient detail in the musical signal with an immediacy and accuracy that no moving-coil driver can replicate. The result is the signature QUAD sound: effortlessly natural reproduction with a midrange transparency and three-dimensional presence that places performers directly within the listening environment, with a naturalness and lack of mechanical signature that defines the electrostatic loudspeaker's unique and irreplaceable contribution to the art of high-fidelity reproduction.

ESL-X — A Four-Year Engineering Programme

The ESL-X designation marks the most significant engineering advance in QUAD's electrostatic loudspeaker since the introduction of the ESL-63 — the product of a four-year intensive review of every aspect of electrostatic loudspeaker design and manufacture, led by Paul McConville, the world's foremost authority on QUAD electrostatic loudspeakers, using laser-precision metrology to refine the construction of every panel to a standard of accuracy and consistency that previous manufacturing methods could not achieve. The ESL-X programme has produced advances in three critical areas — the high-voltage power supply, the signal transformer, and the manufacturing process itself — each of which contributes materially and measurably to the ESL 2812X's extraordinary performance.

Modular PCB Architecture

The ESL 2812X's electronic architecture is built around three independent PCB modules — a High-Voltage Multiplier module, a Control and Protection module, and a Low-Voltage Signal module — each housed separately to eliminate the crosstalk and interference that would result from housing these circuits in proximity. The High-Voltage Multiplier operates at 5,250V DC — the operating voltage that QUAD's engineers have determined provides optimal linearity and minimal distortion from the electrostatic panel — and is physically isolated from the sensitive Low-Voltage Signal circuitry by the modular architecture, ensuring that the high-voltage circuits impose no measurable degradation on the audio signal path. The Control and Protection module provides arc detection with visual LED indication — protecting the panels from the arc-over events that can result from high-SPL operation or adverse atmospheric conditions, and ensuring that the ESL 2812X operates with the reliability and longevity that its engineering deserves.

UK-Manufactured Signal Transformers

The signal transformers of the ESL 2812X are custom-designed and manufactured in the United Kingdom to a specification that delivers superior mid-high frequency dynamics with a flat frequency response extending beyond 18kHz — eliminating the flux modulation artefacts at high sound pressure levels that lesser transformer designs introduce, and ensuring that the ESL 2812X's extraordinary panel technology is driven with the signal integrity it requires. The transformer's extended high-frequency response is a direct contributor to the ESL 2812X's exceptional top-end openness and air — a quality that distinguishes it immediately and decisively from every previous QUAD electrostatic design.

Point Source Design

The ESL 2812X employs the concentric ring electrode design pioneered in the legendary ESL-63 — a sophisticated delay line system that causes the audio signal to appear to emanate from a single point in space, rather than from the distributed surface of the panel. This point source behaviour is the foundation of the ESL 2812X's exceptional stereo imaging and three-dimensional soundstage — a precision and accuracy of spatial reproduction that panel loudspeakers lacking this architecture cannot achieve, and that allows the ESL 2812X to recreate the precise spatial relationships between performers and instruments in the recording with a fidelity that is, quite simply, without parallel at its price.

The ESL 2812X is the ideal partner for QUAD's own amplification. The Quad Artera Stereo provides a natural and synergistic match — QUAD's Current Dumping topology ideally suited to the ESL 2812X's demanding impedance characteristics. Those seeking the ultimate in amplification authority will find the Quad Artera Mono monoblocks an outstanding partner, while QUAD's valve amplification — the Quad QII-Forty or Quad QII-Eighty — represents a combination of electrostatic transparency and valve musicality that has defined a listening ideal for generations of serious enthusiasts. The Quad Artera Pre provides preamplification of the highest quality to complete a system worthy of the ESL 2812X's extraordinary resolution.
