Kaleidescape

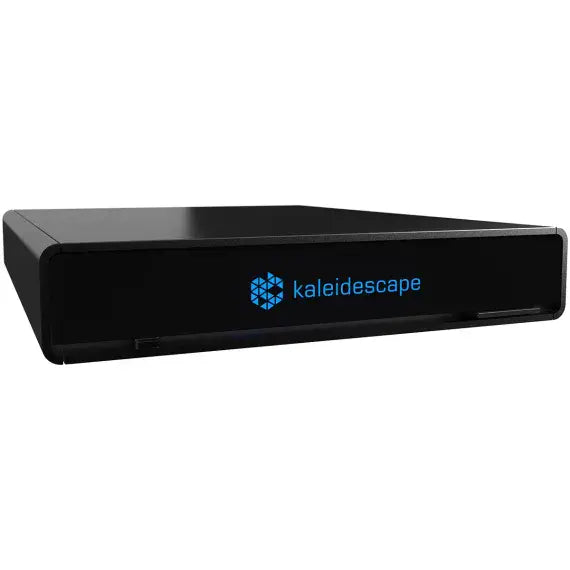

Kaleidescape Strato V Movie Player
Kaleidescape Strato V Movie Player
Available to Order
Kaleidescape Strato V Movie Player
The Strato V is a 4K movie player from Kaleidescape that plays films downloaded from the Kaleidescape movie store, in SDR, HDR10 and Dolby Vision, with lossless multichannel audio. It works on its own, with 960GB of solid-state storage built in, or as one player in a larger system grouped with a Terra Prime movie server.
Kaleidescape films are downloaded before you watch them, not streamed, so the picture never drops in quality when the broadband is busy. Kaleidescape's 4K films average 65 megabits per second against the 8 or so that the leading streaming services use for 4K.
The Strato V plays 4K in standard dynamic range, HDR10 and Dolby Vision, including Dolby Vision low-latency, and upscales HD and SD material to 4K. Output is HDMI 2.1 with HDCP 2.3, and the player switches between 1.78:1 and 2.35:1 automatically, which lets a control system set the screen masking to suit each film.
Sound
Dolby Atmos, Dolby TrueHD, DTS:X and DTS-HD Master Audio are all carried losslessly over HDMI, along with multichannel PCM up to 7.1 channels at 96kHz/24-bit. Coaxial and optical digital outputs carry two-channel PCM up to 96kHz/24-bit.
On its own or in a system
Standalone, the internal 960GB drive holds about ten high-bitrate 4K films. A film downloads in as little as ten minutes over gigabit Ethernet and becomes a candidate for automatic deletion 48 hours after it has been watched; anything you have bought can be downloaded again at any time.
Group the Strato V with a Terra Prime movie server and the player's own storage is switched off in favour of the server's library, and the full Kaleidescape interface opens up, including the covers view and parental controls. A system can have any number of Strato players and up to four servers.
Kaleidescape's control protocol is supported by Josh.ai, Crestron, AMX, Control4 and Savant, and the player can also be controlled by Lutron RA3 and HomeWorks over Ethernet, or by IR and HDMI CEC.
Technical Specifications
| Video output | HDMI 2.1, HDCP 2.3 |
| Resolutions | 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p |
| HDR | Dolby Vision (standard and low-latency), HDR10 (SMPTE ST 2084, 2086) |
| Colour spaces | BT.2020, BT.709, BT.601 |
| Aspect ratios | 1.78:1 and 2.35:1 (CinemaScape), automatic or selectable |
| Audio outputs | HDMI 2.1 (with video); coaxial RCA and TOSLINK digital |
| Audio formats (HDMI) | Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, DTS-HD High Resolution Audio, Dolby Digital, DTS Digital Surround, Dolby MAT PCM, PCM up to 7.1ch 96kHz/24-bit |
| Audio formats (coaxial/optical) | PCM 2ch, up to 96kHz/24-bit |
| Storage | Internal 960GB SSD (approximately 10 Kaleidescape 4K films) |
| Network | Gigabit Ethernet (1000 Base-T) |
| Other connections | USB (for disc cataloguing), 2 x chassis ground |
| Control | Front-panel IR, IR input (3.5mm), HDMI CEC, Kaleidescape control protocol over Ethernet, Lutron RA3 and HomeWorks |
| Power consumption | 13W maximum, 4.9W typical, 0.5W low-power standby |
| Dimensions (W x H x D) | 200 x 39 x 254mm (7.87 x 1.52 x 10.0in) |
| Weight | 1.91kg |
Who Is It For?
The Strato V suits a single cinema room or a living room where a small library is enough, with the option of adding a server later when it isn't. For Kaleidescape's 4K Cinematic format and native 8K playback, look at the Strato K, which costs the same. You can see everything we stock from Kaleidescape in one place.
