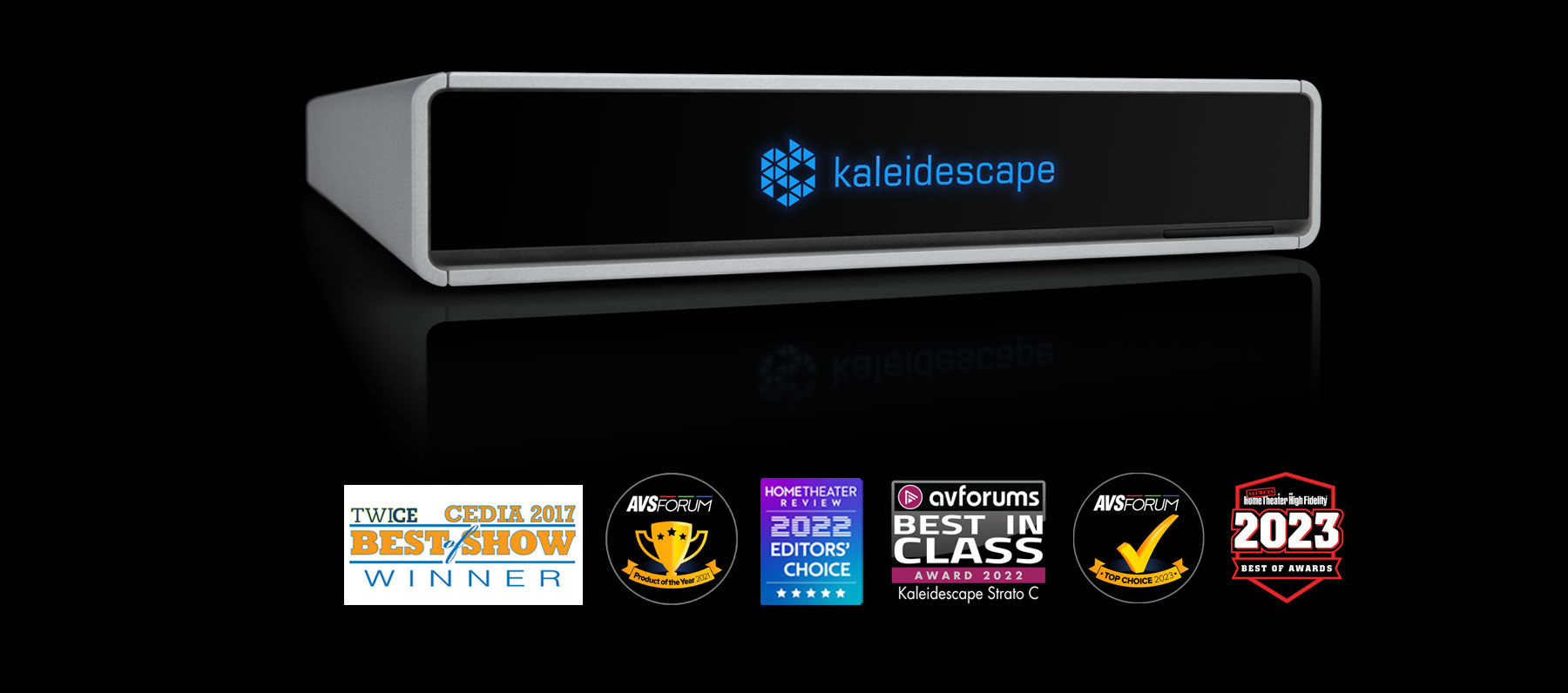

Kaleidescape Strato C Movie Player
Kaleidescape Strato C Movie Player
Available to Order
Kaleidescape Strato C Movie Player
The Strato C is a 4K Ultra HD movie player from Kaleidescape, with HDR10 and lossless multichannel audio. It has no storage of its own: it plays films from a Kaleidescape Terra movie server, or from a Strato player with internal storage, over your home network. That makes it the player for adding further screens to an existing Kaleidescape system.
It plays only films from the Kaleidescape movie store, which are downloaded to local storage before you watch them rather than streamed. Kaleidescape's 4K films average 65 megabits per second against the 8 or so that the leading streaming services use for 4K.
The Strato C plays 4K in standard dynamic range and HDR10 over HDMI 2.0a with HDCP 2.2. It does not support Dolby Vision; for that, look at the Strato V or Strato K. It switches between 1.78:1 and 2.35:1 automatically, so a control system can set the screen masking for each film.
A separate HDMI audio output
What sets the Strato C apart is a second, audio-only HDMI 1.4 output alongside the main video output. It is useful where the display and the AV processor need to be fed separately. Dolby Atmos, Dolby TrueHD, DTS:X and DTS-HD Master Audio are carried losslessly over HDMI, and coaxial and optical outputs carry two-channel PCM up to 96kHz/24-bit.
In a system
A Kaleidescape system can have any number of Strato players and up to four Terra Prime movie servers, so a Strato C can be added in each room that needs one. Its control protocol is supported by Josh.ai, Crestron, AMX, Control4 and Savant, and it can also be controlled by Lutron RA3 and HomeWorks over Ethernet, or by IR.
Technical Specifications
| Video output | HDMI 2.0a, HDCP 2.2 |
| Resolutions | 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p |
| HDR | HDR10 (SMPTE ST 2084 EOTF, SMPTE ST 2086 metadata) |
| Colour spaces | BT.2020, BT.709, BT.601 |
| Aspect ratios | 1.78:1 and 2.35:1 (CinemaScape), automatic or selectable |
| Audio outputs | HDMI 2.0a (with video); HDMI 1.4 (audio only); coaxial RCA and TOSLINK digital |
| Audio formats (HDMI) | Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, DTS-HD High Resolution Audio, Dolby Digital, DTS Digital Surround, Dolby MAT PCM, PCM up to 7.1ch 96kHz/24-bit |
| Audio formats (coaxial/optical) | PCM 2ch, up to 96kHz/24-bit |
| Storage | None; plays content stored on a Terra server or a Strato with internal storage |
| Network | Gigabit Ethernet (1000 Base-T) |
| Other connections | USB (for disc cataloguing) |
| Control | Front-panel IR, IR input (3.5mm), Kaleidescape control protocol over Ethernet, Lutron RA3 and HomeWorks |
| Power consumption | 20W maximum, 17W typical, 0.5W low-power standby |
| Dimensions (W x H x D) | 200 x 39 x 254mm (7.87 x 1.52 x 10.0in) |
| Weight | 1.91kg |
Who Is It For?
The Strato C is for an existing or planned Kaleidescape system that needs another player, particularly where a separate HDMI audio feed solves a problem between the display and the processor. It is not a standalone player: on its own it has nothing to play. For a first Kaleidescape player, start with the Strato V or Strato K. You can see everything we stock from Kaleidescape in one place.
Buying from Martins Hi-Fi
Martins Hi-Fi set up home cinema as well as hi-fi, so we can plan additional Kaleidescape rooms around your network and control system.
