Fyne Audio F5S

The Fyne Audio F5S is the compact standmount of the F500S Series — a speaker that makes an unambiguous statement about what is possible from a 125mm driver in a cabinet of genuinely modest dimensions. Where the F500S standmount uses a 150mm IsoFlare driver in a larger enclosure, the F5S applies the same magnesium dome compression tweeter, the same real wood veneer finish options, and the same BassTrax Tractrix downfiring port philosophy to a 320 × 180 × 260mm cabinet that will sit on a bookshelf, a desktop, or a stand in a room where the F500S would be physically too large. It is not a budget speaker that happens to share a brand name with the rest of the S Series — it is an S Series loudspeaker in a more compact format, and the engineering decisions that define it are the same ones that define every speaker Fyne Audio makes.

The F5S sits in a clear and honest position in the range. The E Series uses titanium dome tweeters and vinyl cabinets. The F5S uses a magnesium dome tweeter and real wood veneer — the same material and finish quality as the F500S. The driver is smaller, the cabinet is smaller, and the bass extension is accordingly more modest. But the IsoFlare point-source geometry — the quality that most directly determines how a speaker images, how it behaves off-axis, and how coherently it presents complex musical information — is identical in principle to the IsoFlare driver in every speaker above it in the range.

IsoFlare Driver Technology

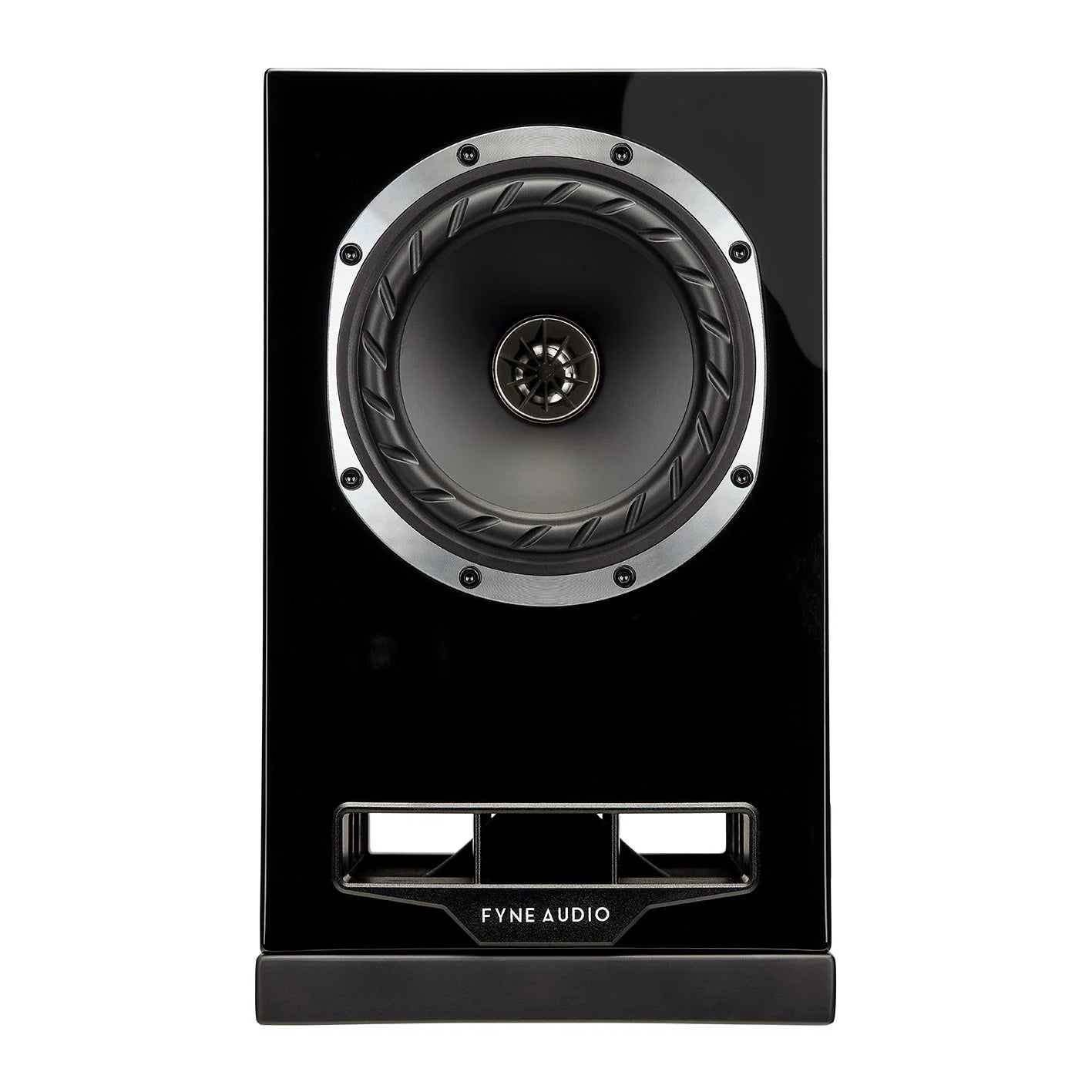

The IsoFlare driver combines the bass/midrange cone and the high-frequency compression tweeter on a shared axis — the tweeter fires from the centre of the bass/midrange cone — so both drivers radiate sound from the same point in space. This point-source behaviour produces consistent time alignment across the listening area and off-axis coherence that a conventional separated-driver arrangement cannot replicate. The imaging stability and tonal consistency that result are the qualities that distinguish a point-source loudspeaker from a conventional two-way design, regardless of price.

In the F5S, the IsoFlare driver is a 125mm multi-fibre cone unit, paired with a 19mm magnesium dome compression tweeter. Magnesium is stiffer and lighter than titanium, which reduces resonance in the critical presence band — a directly audible difference in the resolving character of the tweeter. The crossover hands over at 1.8kHz.

BassTrax and the Downfiring Port System

The downfiring port connects to a BassTrax Tractrix diffuser built into the base of the cabinet. The Tractrix profile maintains a consistent expansion angle as bass energy leaves the port, reducing reflections and smoothing the transition between port output and room. For a compact standmount, the downfiring arrangement gives the F5S better placement flexibility than a conventional rear-ported design of equivalent size — it is substantially less sensitive to the distance between the rear of the cabinet and the wall behind it, and less critical of stand height relative to the floor boundary. Bass extension reaches 45Hz from a 125mm driver in a 320 × 180 × 260mm cabinet — a figure that is a direct consequence of the BassTrax port tuning rather than driver size alone.

Presence Control

A rear-facing presence switch provides ±3dB adjustment between 2.5kHz and 5.0kHz. This allows the F5S to be voiced for different rooms and partnering equipment without external equalisation — a practical feature that is particularly useful in smaller rooms where early reflections can make a speaker sound brighter than it should, or in systems where the partnering amplifier has a naturally forward character in the upper midrange.

Technical Specifications

Who Is It For?

The F5S suits a listener who wants IsoFlare point-source technology with a magnesium dome tweeter in the most compact S Series footprint — for a smaller room, a desktop setup, or an installation where the F500S would be physically too large. The 89dB sensitivity and 8Ω impedance are easy for most integrated amplifiers; 25 watts is a workable minimum in a smaller room. The presence control gives useful flexibility for rooms or systems where the tonal balance needs adjustment without recourse to external equalisation.

For those who want more driver area and bass extension in the S Series standmount format, the Fyne Audio F500S uses a 150mm IsoFlare driver and extends to 45Hz from a larger cabinet. The Fyne Audio Vintage Five is worth comparing for buyers drawn to a heritage aesthetic at a similar price point. Those building a cinema system around the F5S should consider the Fyne Audio F5E LCR as a compact centre channel option — the IsoFlare driver family match is close enough across the E and S Series to make a coherent front stage — and the Fyne Audio SuperTrax as a natural complement for extended high-frequency performance as the system develops.

Buying from Martins Hi-Fi

Martins Hi-Fi has been in Norwich since 1968. Elizabeth Gould runs the business today, and we stock only brands we have heard properly and stand behind. The F5S is available to hear in our Norwich showroom — call ahead and we will have it set up for you.

When you get in touch, you'll be speaking with Dave, Chris and Tim — experienced specialists who can advise on amplifier pairing, stand options, and how the F5S compares with the F500S and the rest of the Fyne Audio standmount range.

Contact us at info@martinshifi.co.uk, call 01603 627010, or WhatsApp on 07554 687137. You can read more about how we work on our Why Martins Hi-Fi page. We are at 85–91 Ber Street, Norwich, NR1 3EY.
