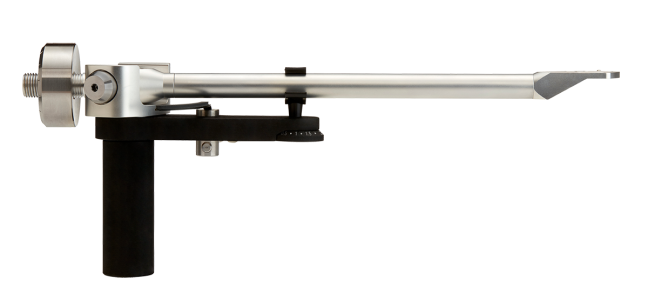

Linn Arko Tonearm

Linn Arko Tonearm

The Arko is Linn's mid-range tonearm for the LP12 — above the Linn Krane Tonearm and below the reference Ekos SE — and it was built around a single engineering principle that has direct consequences for performance: material consistency throughout the arm structure is not a manufacturing convenience but a fundamental decision about how energy behaves in a mechanical system. Every primary structural component of the Arko — arm wand, headshell, and counterweight spindle — is machined from 7075-grade aluminium, the aerospace alloy specified where strength-to-weight ratio, dimensional stability, and consistent resonant behaviour are non-negotiable. The result is a tonearm whose energy management is coherent from cartridge to bearing.

7075 Aluminium — One Material, One Structure

7075-grade aluminium is an aerospace alloy used in aircraft structural components and precision machined parts where the tolerance for incorrect material specification is measured in safety margins. Its properties are well established: high tensile strength, low density, consistent machining behaviour, and a resonant profile that is predictable and manageable within the audio frequency range.

When energy travels through a structure made from dissimilar materials — aluminium to steel to polymer to brass, as in many tonearm designs — it encounters impedance mismatches at each boundary. Some energy passes through; some reflects back; some accumulates at the interface and returns to the cartridge generator as noise. By machining the arm wand, headshell, and counterweight spindle from the same grade of material, Linn ensures energy moves through the Arko's structure in a single consistent mode, without the boundary effects that material variety introduces.

Gimbal Bearing Platform

The Arko uses a gimballed bearing — the proven LP12 geometry that Linn has refined across every tonearm in the range. The stainless-steel through-spindle provides the lateral pivot, and the bearing assembly is designed for the lowest possible friction throughout its full range of motion in both planes, allowing the cartridge to track groove modulations freely without the bearing imposing resistance the stylus must overcome.

The headshell is machined with weight-reduction pockets — material removed with precision to lower headshell mass without compromising rigidity at the cartridge mount. Lower headshell mass reduces effective mass contribution from that end of the arm, improving the match between arm effective mass and cartridge compliance.

Kendo Pairing — Material Coherence Beyond the Arm

The Linn Kendo cartridge body is machined from the same 7075-grade aluminium as the Arko's structural components. This extends the material consistency principle beyond the tonearm and into the cartridge — creating a mechanical continuum from cartridge body through headshell to arm wand. Linn's own measurements confirm reduced resonance when Arko and Kendo are used together compared to other cartridge pairings. This is a measurable physical result of coherent material design, not a manufacturer's recommendation made for commercial convenience.

Where It Fits in the LP12 Range

The Arko is the correct arm for LP12 owners at Kore sub-chassis level and above. It combines with the Linn Karousel Bearing Kit and Kendo cartridge to define one of the most coherent mid-level LP12 builds currently available.

For those on a Linn LP12 Majik Turntable looking to move forward from the Krane, the Arko is the direct next step — one that delivers a meaningful and immediately audible improvement in resolution, instrument placement, and low-level detail. The combination of Arko, Kore, Karousel, and Kendo is where its capabilities are most fully expressed.

Technical Specifications

Linn does not publish effective length or effective mass figures for the Arko. Confirm current specifications with Linn or at point of installation.

Who Is It For?

The Arko is for LP12 owners who have outgrown the Krane and want a genuine step forward in performance — cleaner detail retrieval, better instrument placement, improved low-level resolution — without committing to the Ekos SE's price point. It is the natural partner for the Kendo cartridge, and the arm of choice for a Kore-level build. For those building towards a Linn LP12 Selekt Turntable level system, the Arko combined with Kore, Karousel, and Kendo represents a thoroughly considered and coherent upgrade path where every component has been designed with the others in mind.

Buying from Martins Hi-Fi

Martins Hi-Fi has been in Norwich since 1968. Elizabeth Gould runs the business today, and we stock only brands we have heard properly and stand behind.

The Arko requires professional installation — arm collar alignment, cartridge mounting, and suspension balance all need to be set correctly for the upgrade to perform as intended. We carry out the full installation on our LP12 service bench and will not return a deck until every parameter is correctly set. If you are considering the Arko as part of a broader upgrade — alongside a Kore sub-chassis, Karousel bearing, or Kendo cartridge — speak to us first about the correct sequence and the most effective route to the build you are targeting.
