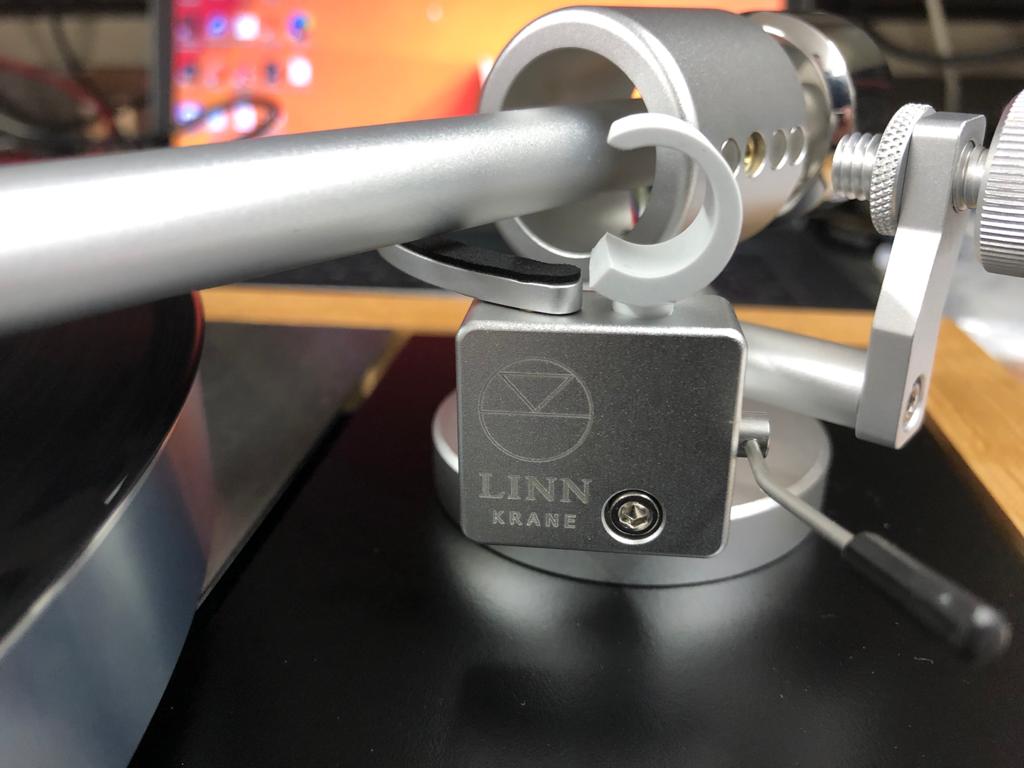

Linn Krane Tonearm

Linn Krane Tonearm

The Krane is Linn's tonearm for the LP12 Majik — a static-balanced design hand-assembled from precision aluminium and stainless steel components, and the tonearm that brings the Sondek LP12 ecosystem's entry point into correct engineering alignment. It is not a generic arm fitted to a price point; it is a Linn-designed component with Linn's own effective length and offset angle geometry, built to work correctly with all Linn cartridges and to integrate coherently with the Karousel bearing and the other components of the LP12 Majik build. Where the tonearm's job is to hold the cartridge in the correct geometric relationship to the groove and allow it to track without interference from bearing friction or structural resonance, the Krane addresses each of those requirements by design.

Static-Balanced Design — Tracking Force by Counterweight

The Krane uses a static-balanced arm design — tracking force is set by counterweight position rather than spring tension. This is the correct approach for accurate groove tracking: a spring-loaded anti-skate or downforce mechanism introduces a force whose behaviour changes with arm position and record warps, whereas a correctly positioned counterweight applies a consistent vertical force regardless of the arm's position across the record. Static balance is the design choice of every serious tonearm at every price level, and its presence in the Krane means the LP12 Majik's tracking geometry is correctly implemented from the outset.

Anti-skating is controlled via an easily accessible magnetic mechanism on the side of the tonearm — a design that provides repeatable adjustment without the variability of thread-and-weight systems, and without requiring the arm to be moved from its rest to make the adjustment.

Bearing Assembly — Low Friction, Long Life

The Krane's vertical bearing uses a polished Tungsten and Sapphire interface — two materials chosen for their hardness, their resistance to wear, and the extremely low friction coefficient their polished surfaces present to one another. Tungsten and Sapphire do not wear against each other in the way softer bearing materials do, which means the friction and rotational mass characteristics of the Krane's vertical bearing remain consistent over the arm's service life rather than degrading as the bearing surfaces bed in or wear.

The horizontal bearing assembly uses dual ceramic bearings — again, a material choice made for longevity and low friction rather than cost minimisation. Ceramic bearings offer lower friction and greater dimensional stability than steel equivalents, and their resistance to corrosion means their performance is unaffected by the humidity variations a domestic environment will produce over decades of use.

Headshell Geometry — Alignment Precision

The Krane uses a three-point headshell — the mounting interface that provides correct Linn alignment geometry and compatibility with all Linn cartridges and most third-party designs. An adjustable headshell design ensures effective length is absolutely precise for proper cartridge alignment and performance: the headshell can be positioned to set the correct overhang for the cartridge being used, so the geometric relationship between stylus, groove, and the bearing pivot point is maintained at the optimum across the record surface.

A laser-etched scale provides accurate and repeatable VTA (vertical tracking angle) adjustment — the angle at which the cantilever meets the groove. VTA affects the tonal balance and detail retrieval of a cartridge in ways that are audible but difficult to measure without reference marks; the laser-etched scale on the Krane means that a correctly established VTA setting can be returned to reliably if the arm is disturbed or the cartridge replaced. Azimuth adjustment is also provided, combined with a fixed offset angle to ensure perfect alignment of the cartridge and stylus.

5-Pin DIN Connection — Linn System Integration

The Krane uses a 5-pin DIN cable connection — the standard for Linn tonearm cables, ensuring correct electrical integration with the full range of Linn tonearm cables and the Urika internal phono stage. The 5-pin DIN is a lower-noise connection topology than phono plugs at the signal levels a moving coil or moving magnet cartridge generates, and its use in the Krane maintains the signal integrity established by the cartridge generator through to the phono stage input.

Who Is It For?

The Krane is the correct tonearm for the LP12 Majik — the starting point for the LP12 journey, and a more considered starting point than the word "entry" usually implies. It is also available as a standalone upgrade for existing LP12 owners whose tonearm is no longer performing correctly, or who are building an LP12 Majik-level system from individual components. Combined with the Linn Karousel Bearing Kit — which is fitted as standard to the LP12 Majik and available separately for earlier decks — the Krane provides a coherent, correctly specified mechanical foundation for serious vinyl replay.

For those developing their LP12 beyond the Majik level, the Linn Arko Tonearm is the natural next step — a 7075-grade aluminium gimballed arm that represents a meaningful advance in bearing precision and arm tube construction above the Krane. The Linn LP12 Majik Turntable shows the Krane in its complete system context, and the Linn LP12 Selekt Turntable and Linn Klimax LP12 Turntable demonstrate where the same architecture leads.

Buying from Martins Hi-Fi

Martins Hi-Fi has been in Norwich since 1968. Elizabeth Gould runs the business today, and we stock only brands we have heard properly and stand behind.

The Krane requires correct installation and alignment — overhang, azimuth, VTA, tracking force, and anti-skate all need to be set precisely for a tonearm of this design to perform as intended. We carry out full tonearm installation and setup on our LP12 service bench and will not return a deck until every parameter is verified. If the Krane is part of a broader LP12 build or upgrade, speak to us first about the correct sequence and the components that will work with it most effectively.

When you get in touch, you'll be speaking with Dave and Chris — experienced specialists who can advise on this product and your whole system.

Contact us at info@martinshifi.co.uk, call 01603 627010, or WhatsApp on 07554 687137. You can read more about how we work on our Why Martins Hi-Fi page. We are at 85–91 Ber Street, Norwich, NR1 3EY.
