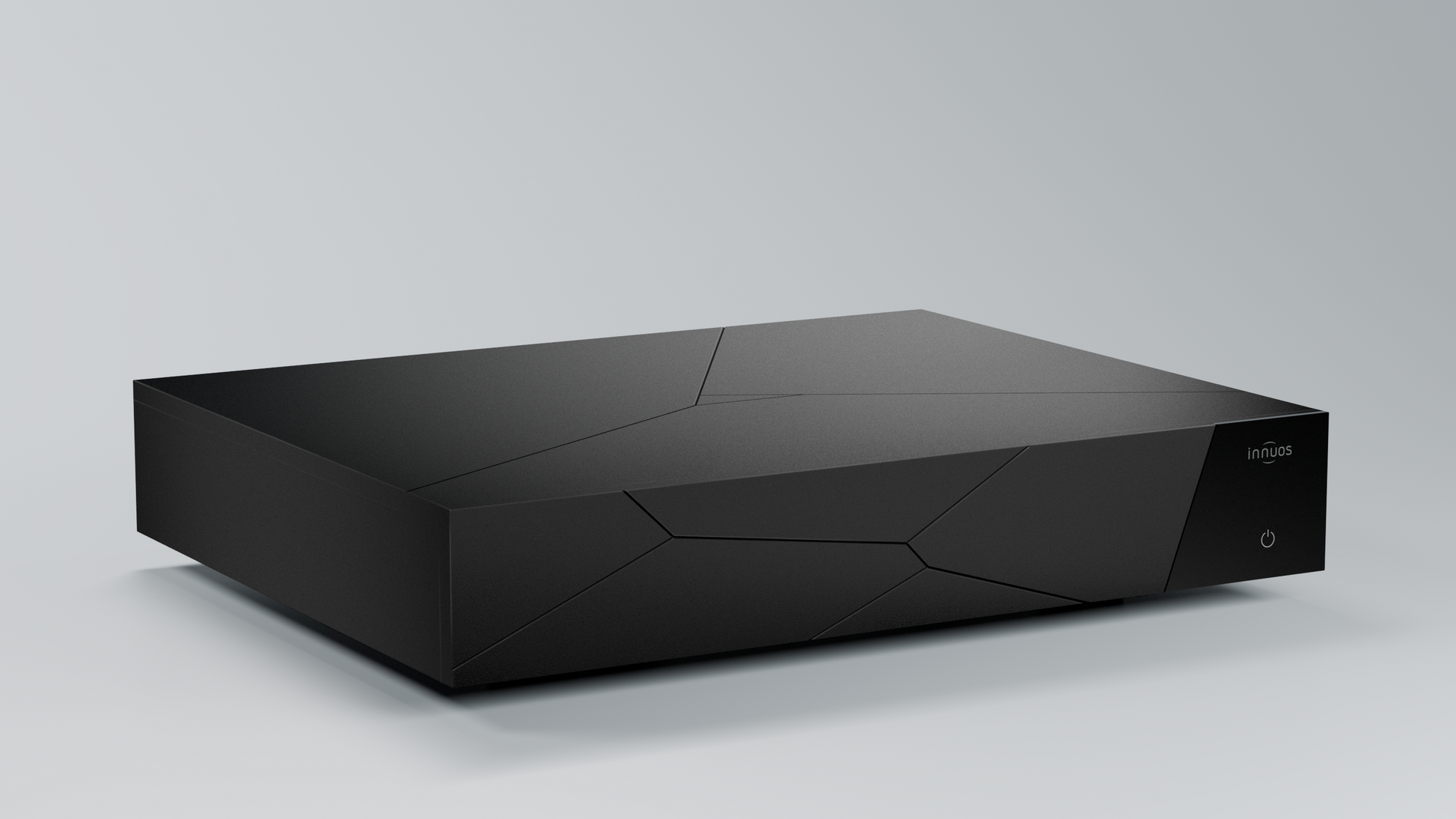

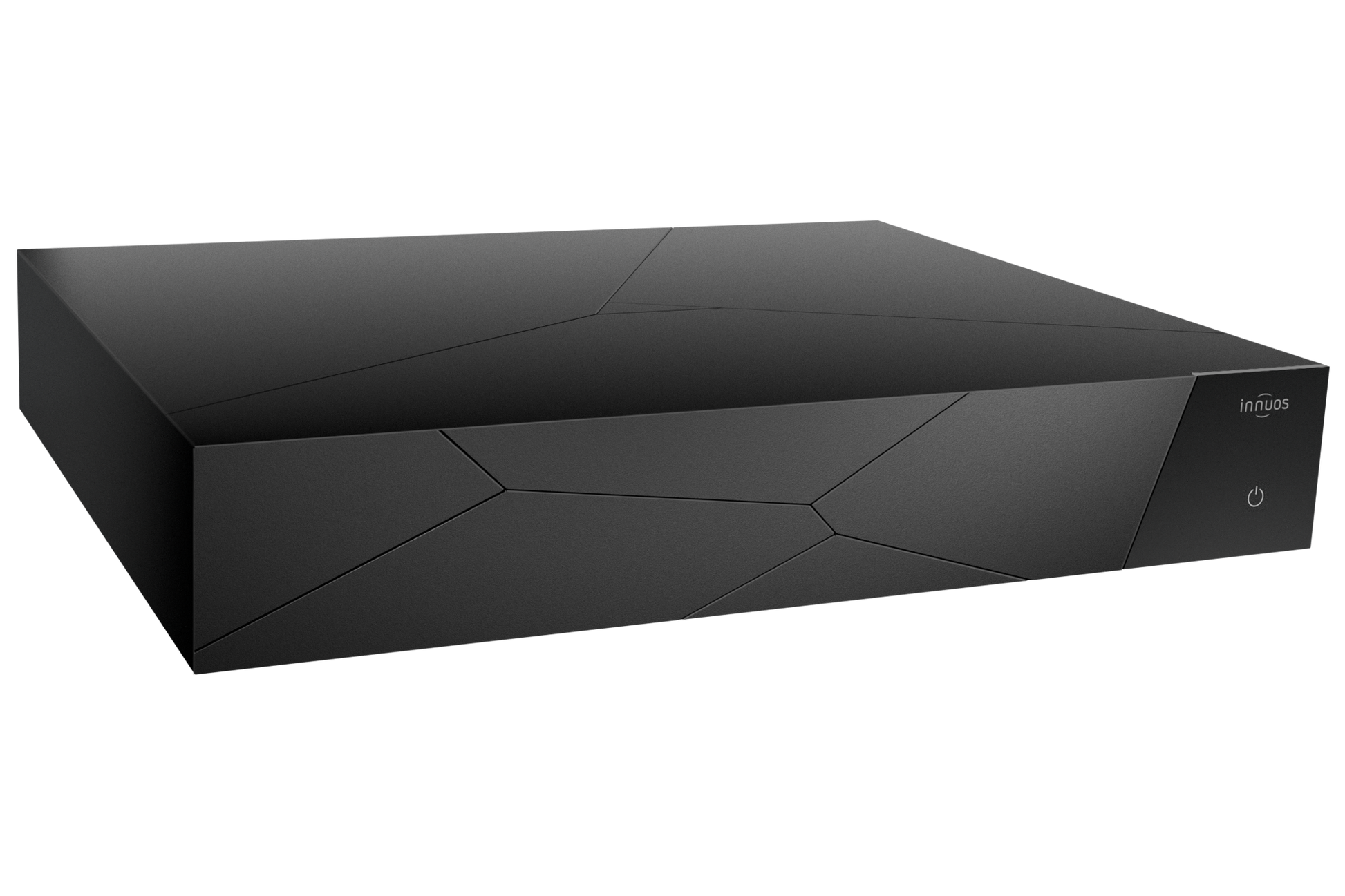

Innuos Stream3 - Bond with Your Music on a Deeper Level

Reference-Grade Audio Excellence

The Stream3 is Innuos' new top-performance Hi-Fi music streamer and server, designed for those who demand reference-grade performance. Whether you pair it with a world-class DAC or prefer an elegant all-in-one solution, Stream3 is the ultimate foundation for your high-fidelity journey.

As a flagship streamer – also fully capable as a server with optional storage and CD ripping via external USB optical drive – the Stream3 is the defining element of your system. It delivers an uncompromised, pristine signal, meticulously timed and free of sonic artifacts, allowing your DAC to perform at its absolute best, revealing the full depth, texture, and emotion of every note. For those who embrace simplicity, its intuitive, streamlined architecture provides effortless access to your entire music library.

Engineered for Audio Perfection

Equipped with state-of-the-art clocking, ultra-low noise power architecture, and a premium 10mm thick CNC-machined bead-blasted and anodized aluminum chassis, the Stream3 is further enhanced by Innuos' in-house developed software for complete control over your digital audio experience.

The Stream3 introduces an expansive modular design built for those who, in the pursuit of perfect sound, are willing to move to a level of advanced versatile and flexible architecture. Choose the optimized Digital Output Module that best suits your needs and take your streaming quality to unprecedented heights.

Key Features

ARC6-CX Linear Power Supply Unit

Hear the difference of high-end power architecture with the integrated ARC6-CX module, combining 132,000μf Mundorf capacitance, active rectification, and CX power regulation onto a single module. This greatly reduces impedance and supplies ultra-clean power to the system, sourced from a large 300VA toroidal transformer and medical-grade AC filtering to further reduce noise.

Premium Chassis Construction

Housed in 10mm thick, CNC-machined aluminum, the Stream3 chassis provides comprehensive vibration dampening and shielding in an elegant design. The inclusion of a 4mm grounding port allows for even further possibility in noise reduction, revealing greater levels of detail. Available in both black and silver finishes.

Optional PhoenixDAC Module

Transform the Stream3 into a truly high-end fully integrated streamer with the inclusion of the PhoenixDAC module. This adds direct XLR & RCA analog outputs from a premium internal digital-to-analog conversion stage, powered independently by its own accompanying power supply exclusively designed in partnership with Dr. Sean Jacobs.

Flexible Storage Options

Add M2 NVMe SSD storage to create a home for all your digital files and enjoy enhanced library management features in the Sense app with the full scope of a music server. Choose from 1TB, 2TB, or 4TB of factory pre-fitted storage – or simply add your own.

Powerful Performance

Experience a smooth and responsive system thanks to the new Stream series mainboard, utilizing 13th Gen Intel Quad-Core processing and 8GB of industrial-grade DDR5 RAM. This fast yet efficient platform exceeds 200% faster processing than its predecessor. Benefit from a low-latency system with the OS carried on a dedicated TLC power-loss protected SSD, featuring Real-Time Kernel technology derived from the ZEN Next-Gen series.

Advanced Connectivity

The Stream3 is ready for the latest in connectivity, equipped with USB-C for high-speed USB drives, DACs, or for charging smart devices. Want to rip CDs to the internal storage? Add your own USB optical drive and begin ripping in seconds through the intuitive customized ripping engine. Connect to super-fast network speeds through the new 2.5Gb Ethernet ports, with a bridged 'Streamer' output to connect another network device.

Customizable Output Modules

The Stream3 comes with a range of optional output modules, allowing you to choose the one that best suits your system requirements while ensuring optimal audio performance:

Standard DAC Board (Coming Soon)

• RCA analog output, plus optical and coaxial SPDIF outputs
• Supports PCM up to 24bit/192KHz

Performance DAC Board (Coming Soon)

• Latest AKM DAC chip and high-grade TCXO clocks
• Supports PCM up to 32bit/768KHz and Native DSD
• Independent power supplies for digital and analog stages
• High-quality gold-plated RCA connectors

PhoenixDAC Board (Coming Soon)

• Dual Mono AKM DAC Chips with OCXO Clock plus FemtoClocks for Audio
• Supports PCM up to 32bit/768KHz and Native DSD
• Independent Power Supply for Digital and Analog Stages
• High-Quality Gold-plated RCA and XLR Connectors

PhoenixUSB Board

• Regenerated and reclocked USB signal to your Class 2 USB DAC for greatly increased sound quality
• High-precision 3ppb 24MHz OCXO clock for improved timing and signal integrity
• Ultra-low noise LT3045 linear regulators for each independent voltage
• Provides a pristine 5V line for the USB connection on your DAC

SPDIF Board

• Superior SPDIF Coaxial, Optical and AES outputs for your DAC
• Supports PCM up to 24bit/192KHz
• Optimized power supply for ultra-low noise
• High-quality gold-plated connectors

PhoenixI2S Board

• Bypass conversion stages with a direct connection straight to your DAC chip
• 3ppb 24MHz main clock, with two premium FemtoClocks
• HDMI connector with 8 pin-configurations
• Ensures maximum audio resolution compatibility up to DSD1024

Innuos Sense App

The in-house developed Sense app delivers optimal music playback with comprehensive features for library management and playback control.

The Stream3 is more than just a streamer; it's a portal to a world where music transcends the physical realm. Experience a private concert in your home, where every note weaves a personal narrative and the artist's soul resonates with yours.
