Gold Note

Gold Note PSU-10 Evo

Gold Note PSU-10 Evo

£1,200.00

Contact Us for purchase options:

01603 627010 info@martinshifi.co.uk

In stock

Gold Note
Colour
View full details

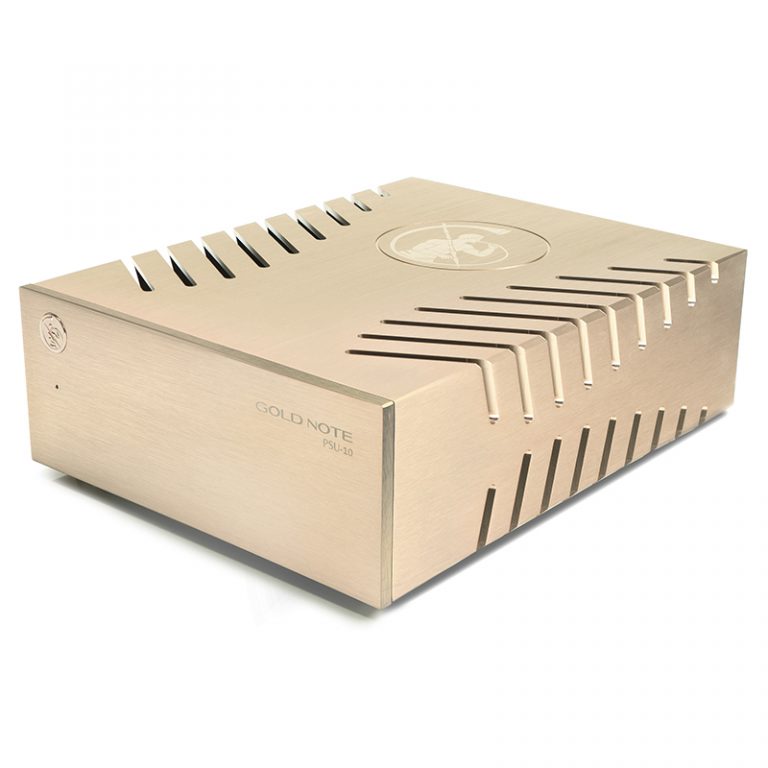

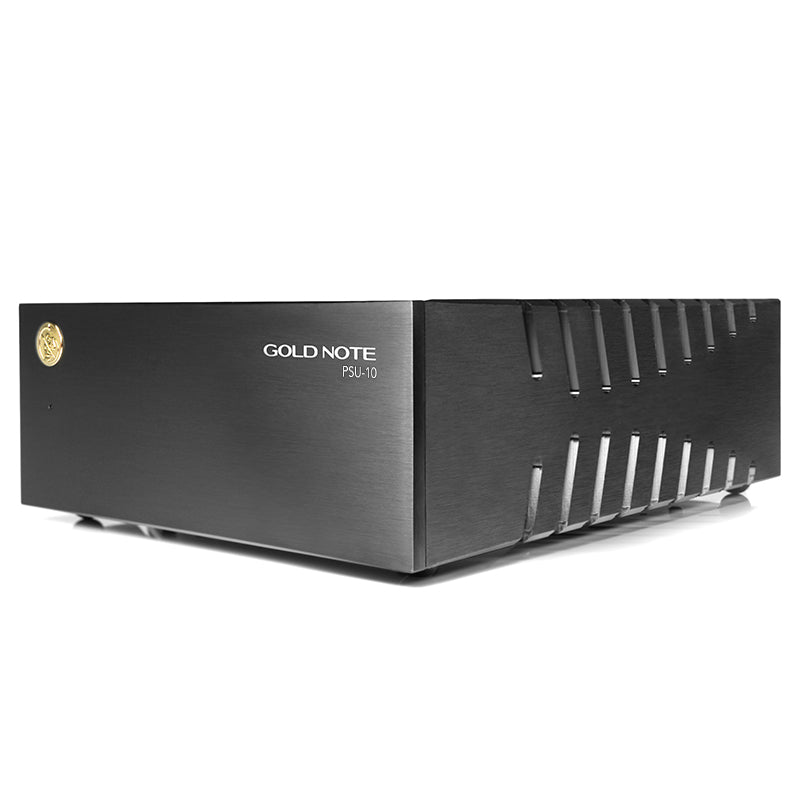

Gold Note PSU-10 Evo

The PSU-10 is designed to enhance the performance of the Gold Note PH-10 phono stage. The PSU features a 4-transformer power supply stage enhanced with ultra-low-noise voltage regulators and a Dual Choke Hybrid inductive filter design.

This proprietary technology perfectly filters the current to eliminate interference and electrical noise from the AC power system thus achieving the ideal working environment for the PH-10 to perform at its best. The results are improved realism and finer details as well as control, delivering a more sophisticated sound.

EXTERNAL INDUCTIVE POWER SUPPLY FOR PH-10 PHONO STAGE

The special external power supplies have been designed to enhance your Gold Note system and are part of the modular design of the Gold Note creations.

All the special external power supplies have been developed with a Super Inductive Dual Choke hybrid design. They feature an inductive filter on the analogue stage and a dual choke design powered by a double inductor driving both the negative and positive high-current stages.

The Gold Note proprietary Dual Choke design perfectly filters the signal voltages to eliminate any interference and electrical noise from the AC power system.

With their massive power supply they provide a shield from the AC power grid. By achieving complete insulation, an ideal working environment is created for the electronics to perform at their best.

The large and ultra-clean power generated enhances noise reduction, greater dynamic, better resolution and finer audio details guaranteeing the best realism and musicality.

Dedicated to the PH-10 phono stage, the PSU-10 features a 4 power



TECHNICAL FEATURES

Four rail audio grade power supply

Four ultra low noise voltage regulator



MAXIMUM VARIATION OF OUTPUT VOLTAGE

0,05 %



LINE NOISE REJECTION

>80dB



COMMON MODE NOISE REJECTION

>80dB



FULL POWER RESPONSE TIME

<2,5µsec



POWER

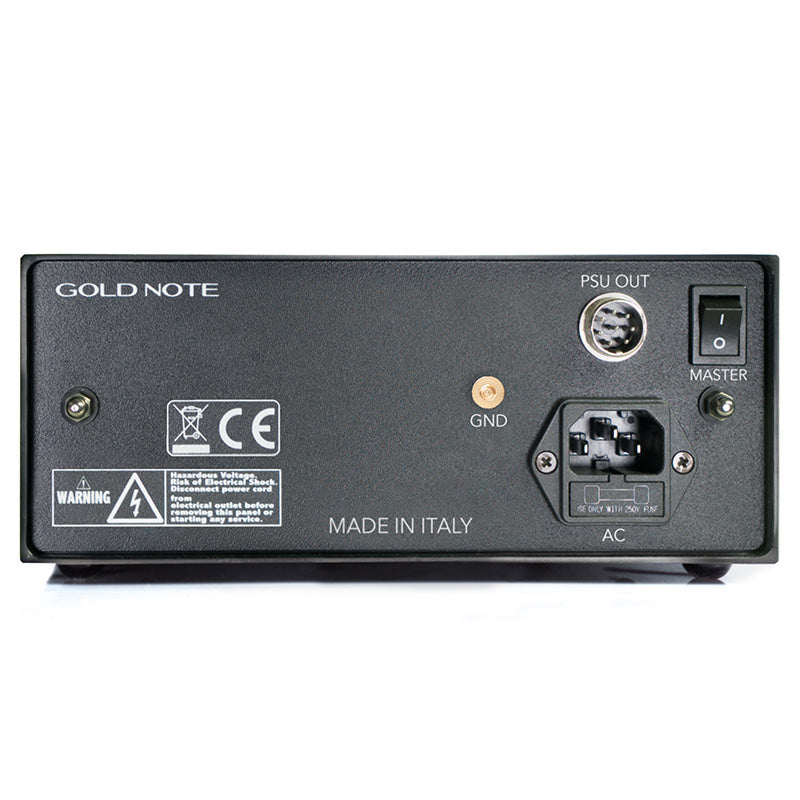

Power Supply: 100V – 120V / 220V – 240V with automatic selection

Power consumption: 25W

Dynamic power: >50W

Standby power: <1W

Fuse 0,5A T



DIMENSIONS AND WEIGHT

Dimensions: 200mm W 80mm H 260mm D

Weight: 3Kg net, 4Kg boxed



FINISHES

Brushed Aluminium available in Black, Silver, or Gold
