Vitus SCD-025 CD Player and DAC Mk.II
Vitus SCD-025 CD Player and DAC Mk.II
Available to Order

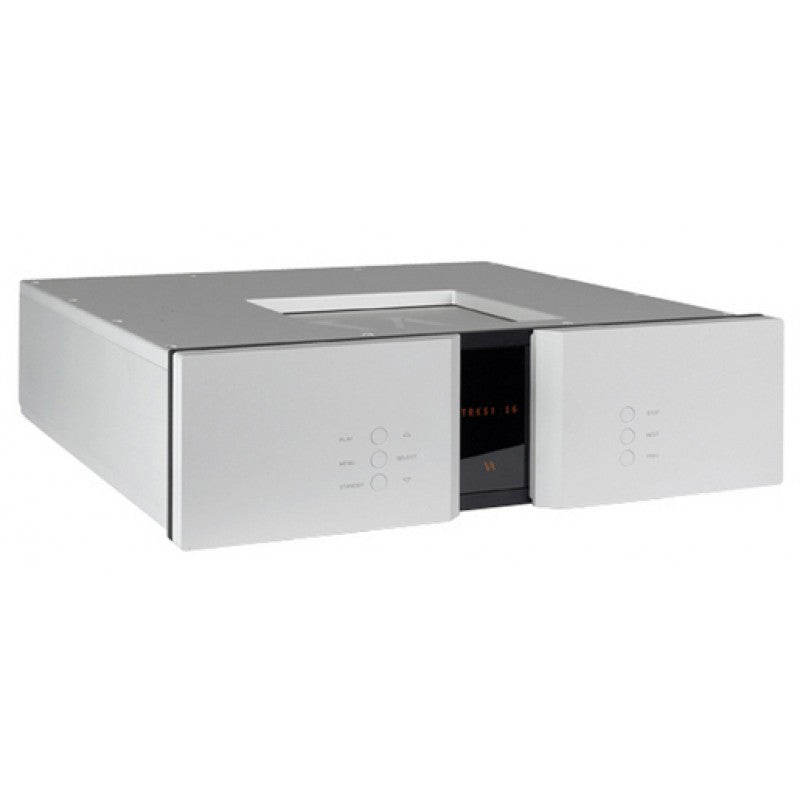

Vitus SCD-025 Mk.II CD Player and DAC
The SCD-025 Mk.II is Vitus Audio's Signature Series CD player and DAC — a single-chassis digital source whose design brief was precise and uncompromising: produce analogue-quality sound from a digital signal. Vitus used their own Masterpiece MP-P201 phono stage as the sonic reference during development. The result is a machine that functions as a complete digital hub, accepting USB, AES/EBU, and S/PDIF alongside the CD transport.
The CDPro 8 Transport
Vitus selected the SUOS CDPro 8 drive for its robust construction and reliable performance, then went further — mounting it in a double suspension system to isolate the mechanism from external vibration and reduce reliance on internal error correction. Reading a disc more consistently means fewer corrections; fewer corrections means closer contact with the original data.
Sample Rate Conversion and the DAC Stage
The Engineered Q8 sample rate converter brings incoming digital to 384kHz, minimising jitter in the process. Two AD1955 DAC chips run in mono mode — one per channel — a configuration that keeps left and right signal paths entirely separate and extracts the maximum resolution from each.
The Analogue Output Stage
The analogue stage is drawn directly from Vitus Audio's amplifier designs — not an afterthought, but a deliberate transplant of the same circuit philosophy that defines their separate amplification. The power supply is divided into four discrete sections: one for the drive, one for the digital stage, and two independent supplies for the left and right analogue channels. This separation is foundational to lowering the noise floor and achieving the quiet, composed backgrounds Vitus are known for.
Connectivity
The SCD-025 Mk.II accepts USB (up to 384kHz and DSD128), AES/EBU via XLR, and S/PDIF via RCA on the input side. Digital audio outputs cover AES/EBU (XLR) and S/PDIF (RCA) at up to 192kHz/24-bit. Analogue outputs are balanced XLR and single-ended RCA, both at 80Ω impedance.
Technical Specifications
| Specification | Detail |
|---|---|
| Drive Mechanism | SUOS CDPro 8 in double suspended system |
| Master Clock | 24.576 MHz ±5 ppm |
| Sample Rate Converter | Engineered Q8 |
| DAC | 2× AD1955 — mono mode |
| USB Input | 1× USB B — up to 384kHz + DSD128, 24-bit |
| AES/EBU Input | 1× XLR — up to 192kHz, 24-bit, 110Ω |
| S/PDIF Input | 1× RCA — up to 192kHz, 24-bit, 75Ω |
| Digital Output | 1× XLR (AES/EBU) / 1× RCA (S/PDIF) — 192kHz, 24-bit |
| Analogue Output (XLR) | 1× balanced (L+R), 80Ω |
| Analogue Output (RCA) | 1× unbalanced (L+R), 80Ω |
| Frequency Response | +800kHz (XLR and RCA) |
| Signal-to-Noise Ratio | >110dB @ 1kHz |
| THD + Noise | <0.01% |
| Power Consumption — Standby | <1W |
| Power Consumption — Operation | 45W |
| Dimensions | 135mm (H inc. feet) × 435mm (W) × 428mm (D) |
| Weight | 26kg |
| Body Material | Aluminium |
| Finishes (standard) | Pure White, Jet Black, Warm Silver |
| Finishes (popular unique) | Titanium Orange, Dark Champagne, Titanium Grey |
Who Is It For?
The SCD-025 Mk.II is for the listener with a serious CD collection who wants to hear what the format can genuinely do — and for those building an all-digital front end who want a single, authoritative source component. It pairs naturally with Vitus Audio amplification: the Vitus RI-101 MK2 for a more focused Vitus system, or the Vitus SIA-030 Integrated Amplifier for the full Signature Series experience. Those considering a dedicated linestage will find the Vitus Audio SL-103 Balanced Linestage a natural partner.
