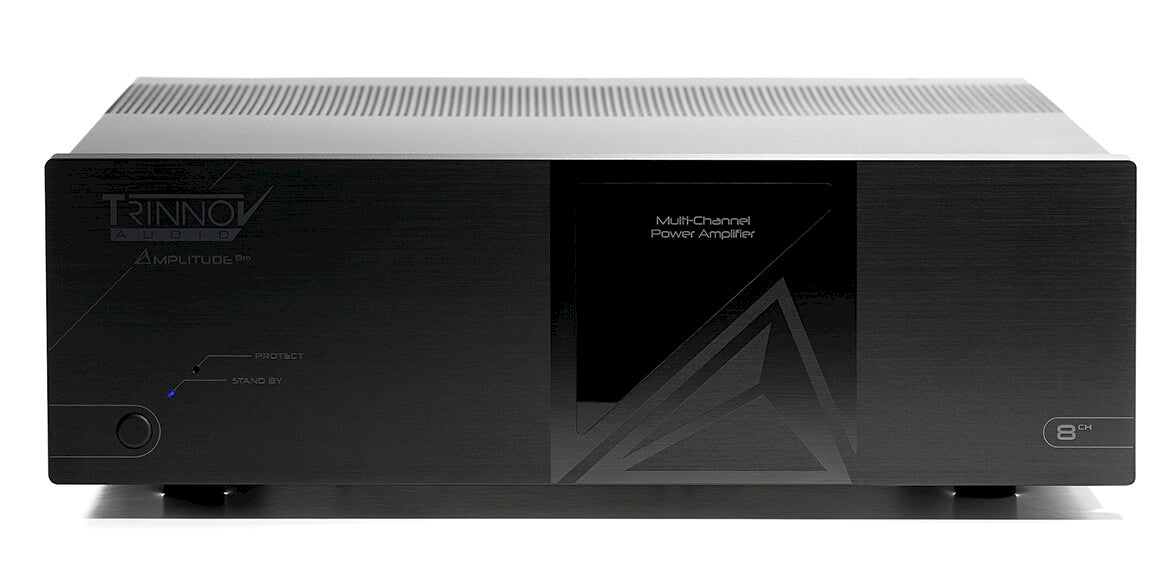

Like its big brother the Trinnov Amplitude8, the Trinnov Amplitude8m is designed to deliver spectacular performance in a luxury home theater but at a fraction of the price. Using the Hypex N-Core Class D output module, each of the eight channels can deliver up to 300 watts RMS at 4Ω.
The amplification stage, features the industry’s lowest-distortion and noise specifications, and what little noise there are remains frequency independent with a Signal to Noise Ratio : >120dB referenced to full power. The importance of this trait cannot be over-estimated in a theater that may have twenty or thirty speakers in a single room. If each of those speakers were producing even a small amount of noise, it would rapidly become noticeable and unacceptable. This scenario never arises with The Amplitude8m
INTELLIGENT POWER
Our amplifiers use microprocessor control for turn-on delay and feature an automatic AC power recognition and configuration system. The amplifiers not only recognize whether they are hooked up to 117V or 230V nominal power, they automatically self-configure.
The Amplitude8M also incorporates a new “sleep” circuit.
SLEEP CIRCUIT
The Amplitude8m incorporate a new “sleep” circuit.
When the amplifier stays idle for a period of more than 10 minutes, power is removed from the output modules and a front-panel LED begins to flash.
As soon as an input signal is detected again on any channel, normal playback operation resumes instantaneously.
LOWEST NOISE
Like the Amplitude8, the 8m features the industry's lowest-distortion and noise specifications to date. The importance of this trait cannot be over-estimated in a theater that may contain twenty or thirty speakers in a single room. If each of those speakers were producing even a small amount of noise, it would rapidly become noticeable and disruptive. This scenario never arises with The Amplitude8m.
PRISTINE DYNAMIC RENDERING
MOVIE EXPERIENCE
Experience audiophile-grade sound reproduction in your home theater with zero background noise during the most quiet scenes of the movie. You also get the finest sound quality and realism on music and movies alike, even at high volumes.
AUDIO POWER & GAIN
Power Output (8Ω, 20-20kHz 0.05% THD+N):200 Watts RMS x 8
Power Output (4Ω, 20-20kHz 0.05% THD+N):300 Watts RMS x 8
Gain:19dB (Test window 18.6 to 19.6dB, centre is 19.1dB)
AUDIO PERFORMANCE
Frequency Response:+0, -0.5 dB, 5 Hz to 20kHz, load independent
Damping Factor:>800 20Hz to 20kHz
Signal to noise ratio:-120 dB referenced to rated output
Crosstalk:< 90dB
Intermodulation Distortion:Less than 0.05%

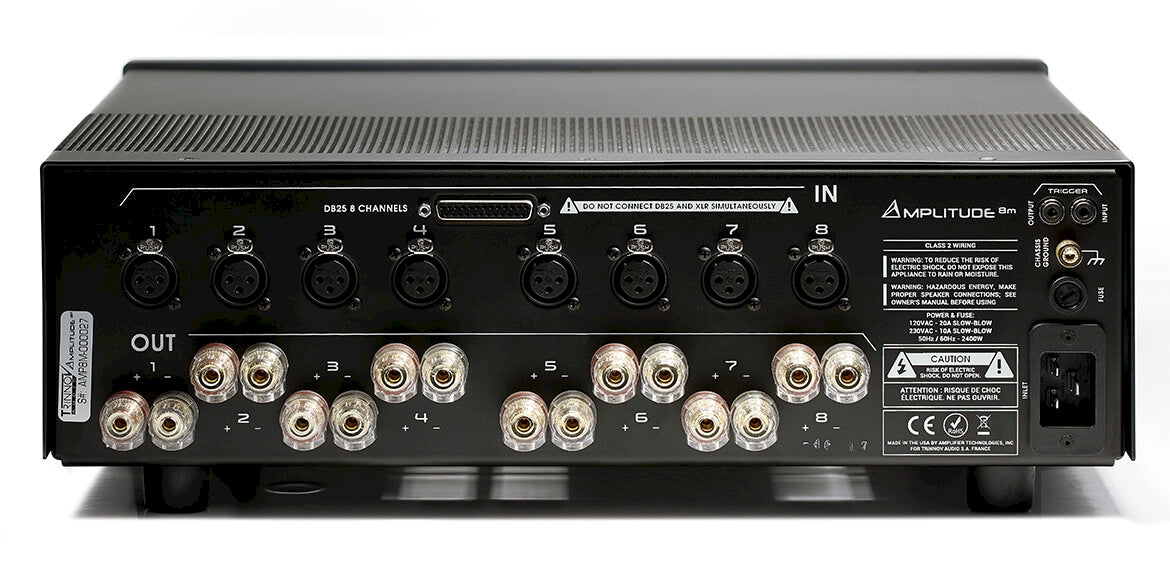

AUDIO INPUTS & OUTPUTS
Input Connectors:1x Balanced (XLR) per channel
Input Polarity:Pin 2 +ve, Pin3 -ve (for non-inverting output)
Input Impedance:47 kΩ, each phase
Input Sensitivity:???
Output Connectors:1x 5 way binding post per channel
POWER SUPPLY
Power Requirement:117V / 230V 50/60 Hz AC (auto select)
Power Consumption:<0.5W Standby, <80W idle, <40W Sleep, Max 2kW
Power Input:IEC C20
Mains Fuse:20A (117V) / 12.5A (230V) both slow blow
12V Trigger:1x in, 1x out (mini-jack TS)
WEIGHT & DIMENSIONS
Dimensions (W x H x D) mm, including rack ears:482 x 132 x 433
Dimensions (L x H x P) inches, including rack ears:19” x 5 2/8” x 17”
Shipping box dimensions (W x H x D) cm:61 x 61 x 42
Weight:29.8kg / 65.5 lbs
Shipping weight / volume:36kg / 0.156 M3
WARRANTY
Standard Warranty:5 year
Transferable: YES
