The new 2023 version of the Taiko Audio SGM Extreme now included USB and network cards as standard.
The Taiko Audio SGM Extreme is a State of the Art Music Server designed to deliver the most realistic sounding / live reproduction from stored music files and streaming music from Qobuz and Tidal.

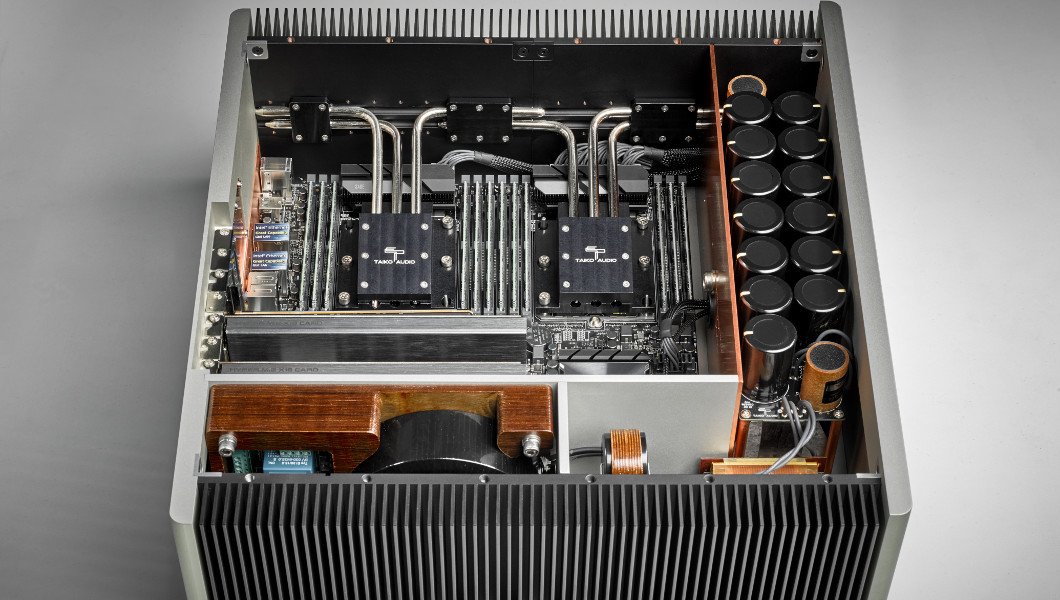

The hardware architecture is a dual multicore CPU’s running under a Taiko Audio custom assembled operating system built from the ground up using the Windows 10 components designed for industrial controller applications with SOTA process schedulers. All data and software storage is non SSD, and utilizes non-SATA, non-volatile solid-state storage modules.
The Taiko Audio SGM Extreme is powered by a linear power supply with choke regulation and a large capacitor bank utilizing the highest audiophile-grade Dueland and Mundorf capacitors.
Music files can be stored in the internal storage up to 24 TB or in a NAS (Network-attached Storage)
The standard software suite is Roon with the delivery of the data stream to JPlay which delivers the data stream to the USB controller.
Specifications
-Dual Intel Xeon Scalable 10 core – 20 thread CPU’s for 20 cores – 40 threads in total
-Twelve 4Gb custom order industrial memory modules for 48Gb in total
-Standard storage provisons include 280Gb of PCIe Intel Optane storage for the operating system, 2TB of PCIe storage for music files. Music storage can be increased in 2TB increments up to a maximum of 24TB

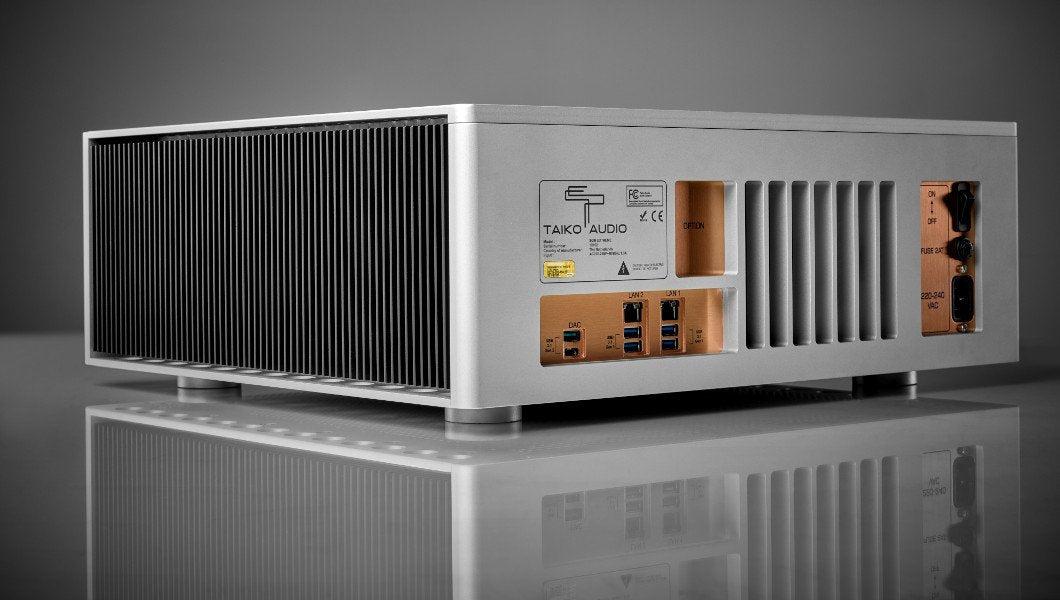

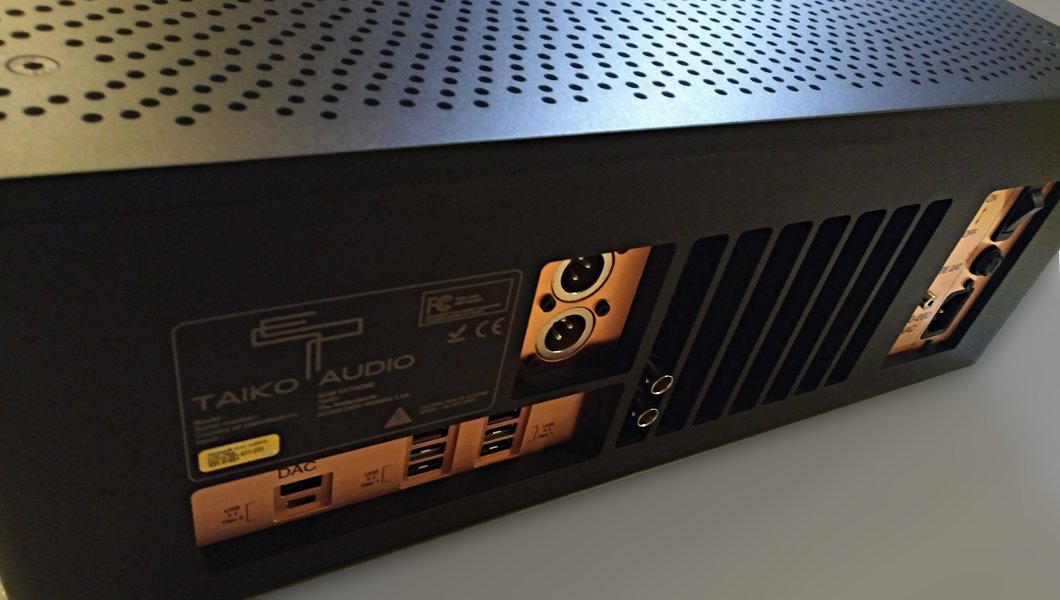

-External connections consist of 5 USB ports, 2 copper Rj45 ethernet ports, 1 fiber SFP open slot ethernet port, 1 VGA port. SPDIF, AES/EBU single, dual or quad wire optionally available.
-No compromise linear powersupply, 400VA transformer, Lundahl chokes, 700.000uF of Mundorf and Duelund capacitors
-CNC machined hybrid copper / aluminium / “panzerholz” chassis. Completely passive cooled for fanless operation
-Custom Windows 10 Enterprise LTSC 2019 OS, Roon and Jplay playback software
-Dimensions 483*455*180mm including feet
-Weight: 42Kg / 93lbs
