    T+A PDT 3100 HV CD/SACD Transport

    £13,966.00
    Tax included. Shipping calculated at checkout.
    DESCRIPTION +

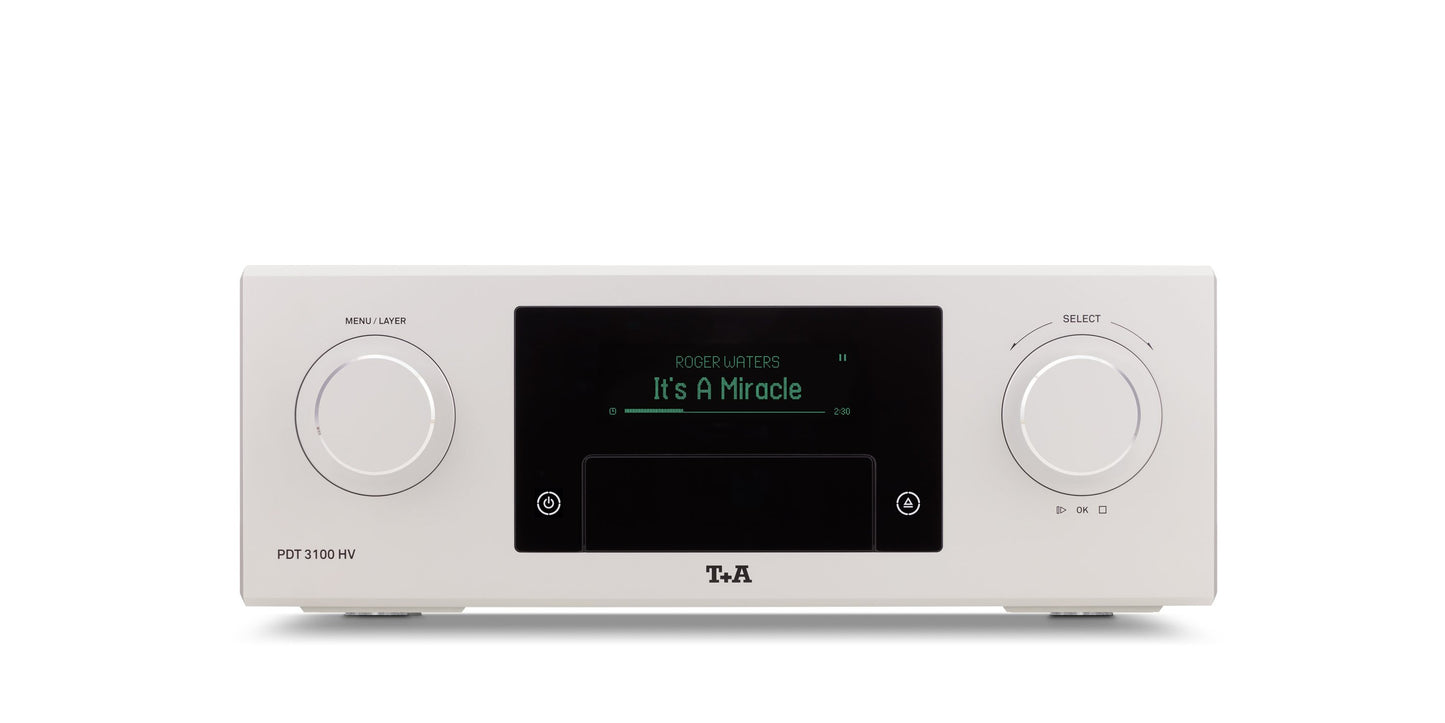

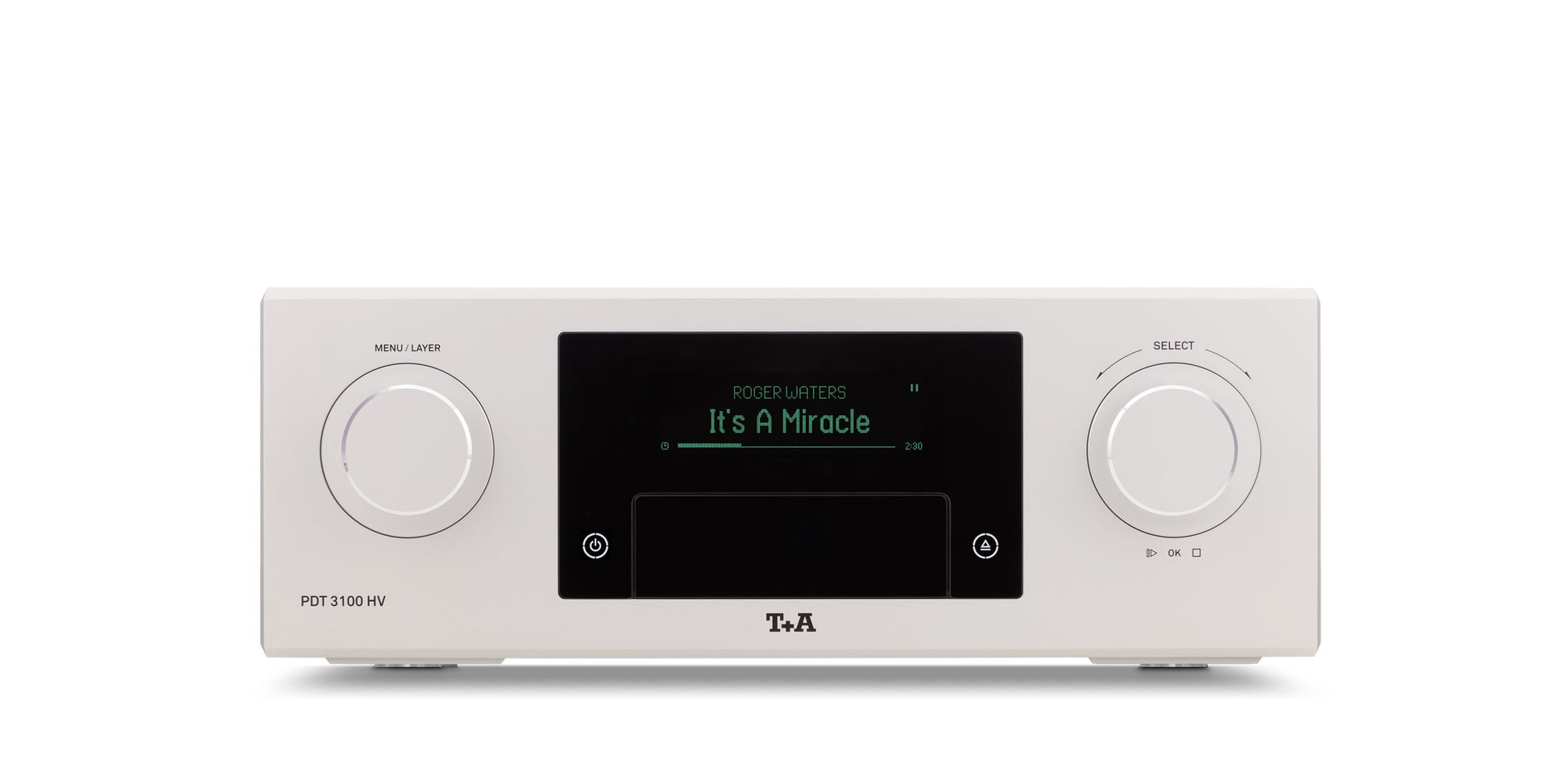

    T&A PDT 3100 HV CD/SACD Transport

    Available at Martins Hi-Fi


    The Reference CD/SACD Transport

    The PDT 3100 HV is a purist CD / SACD mechanism wich does not feature supplementary integral digital sources or converters. It has been developed uniquely and exclusively for the uncompromising task of reading SACD and CD, and is fitted with a new decoder / drive mechanism which we have developed from the ground up. This mechanism reads and decodes CD and SACD without error and to the very highest standards of quality. The mechanism is integrated into a heavy drive unit manufactured to rigidly high standards, designed to shield and isolate it completely. The mechanical system is extremely refined.

    Technology

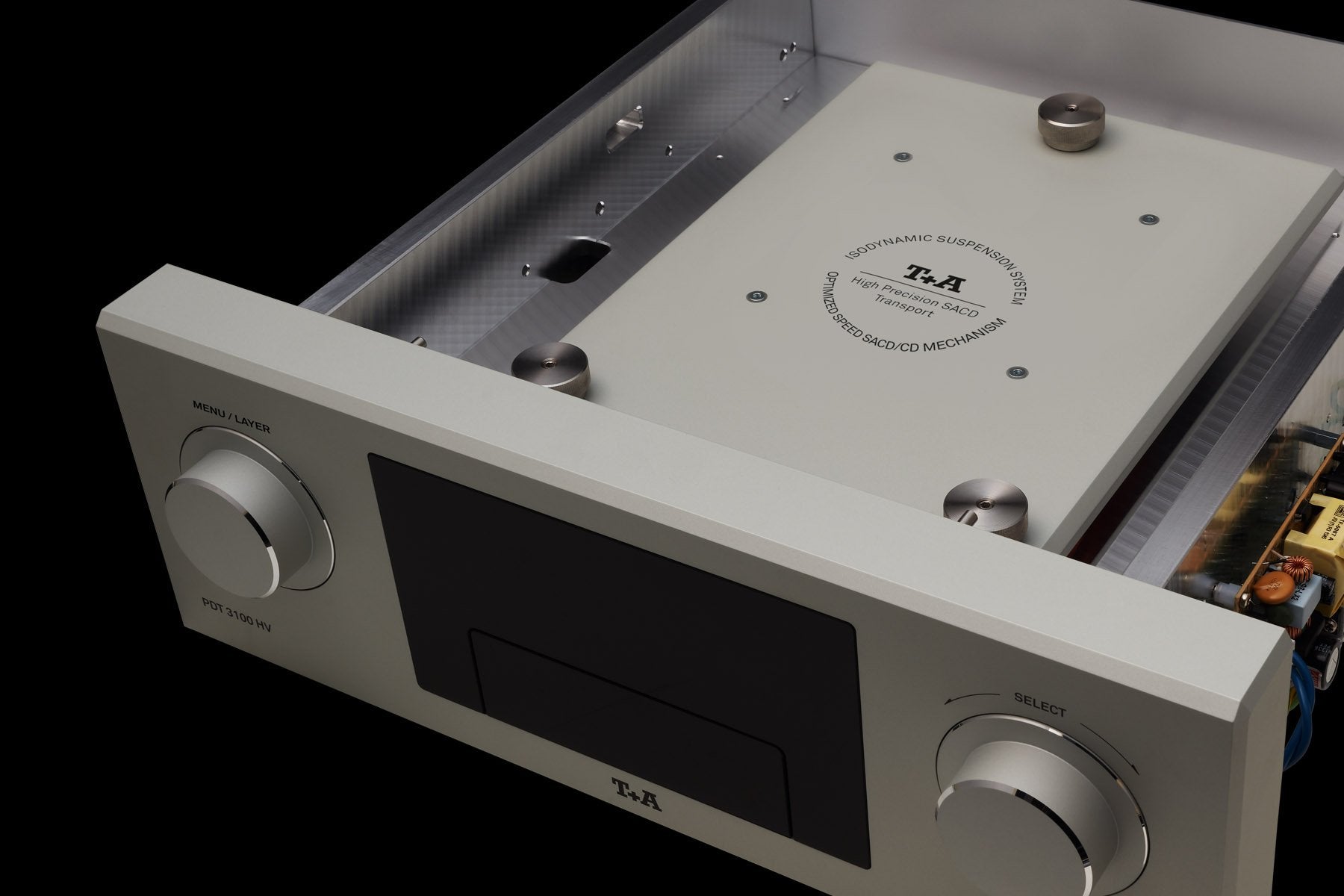

    The core of the PDT 3100 HV is the new, modern decoder / disc mechanism, which we have developed specifically for audio applications. It features the latest processors, lasers, high-performance motors and other components, all designed to provide the optimum conditions for perfect, error-free disc reading characteristics. This unit is fully shielded, and housed in a very substantial aluminium case machined from solid aluminium, designed to prevent any form of interaction between the moving parts of the mechanism and the remainder of the player. This entire disc mechanism block is mounted on just two close-tolerance linear bearings, which in turn are suspended from a thick carrier plate; the latter is fixed to the central case plate at only three points. This design ensures that the whole mechanism is completely isolated from the heavy external housing.







    SPECIFICATION +
    Disc loader unit
    Linearbearing guided mechanism carrier block. Machined out of one 25 mm thick Aluminum block. Heavy, shielded subchassis with 3-point suspension and resonance decoupling.
    Drive mechanism
    High precision linear tracking drive. Double lasersystem for CD and SACD. Optimized Speed.

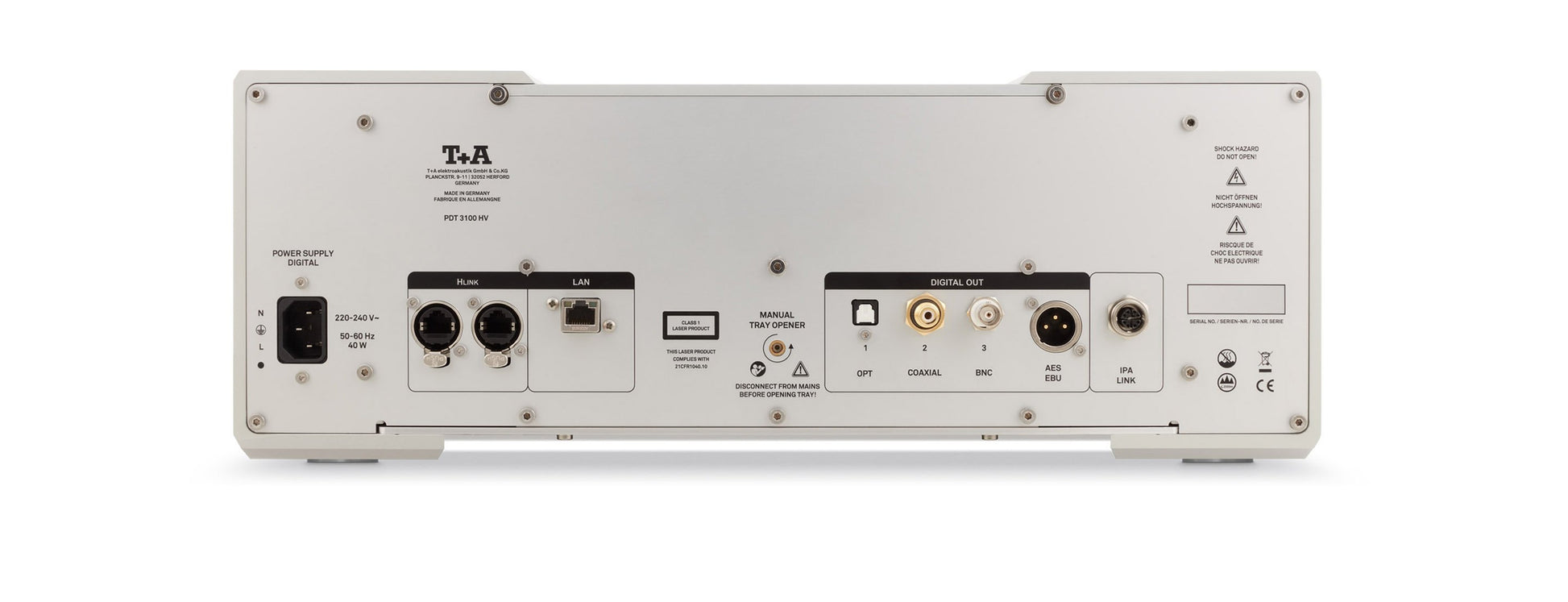

    Outputs
    AES-EBU, BNC, Coax, TOS-Link, High-Res IPA Link for SDV/SD 3100 HV



     Full specs visit T&A
