SME M2 Series Tonearms
SME M2 Series Tonearms
In stock

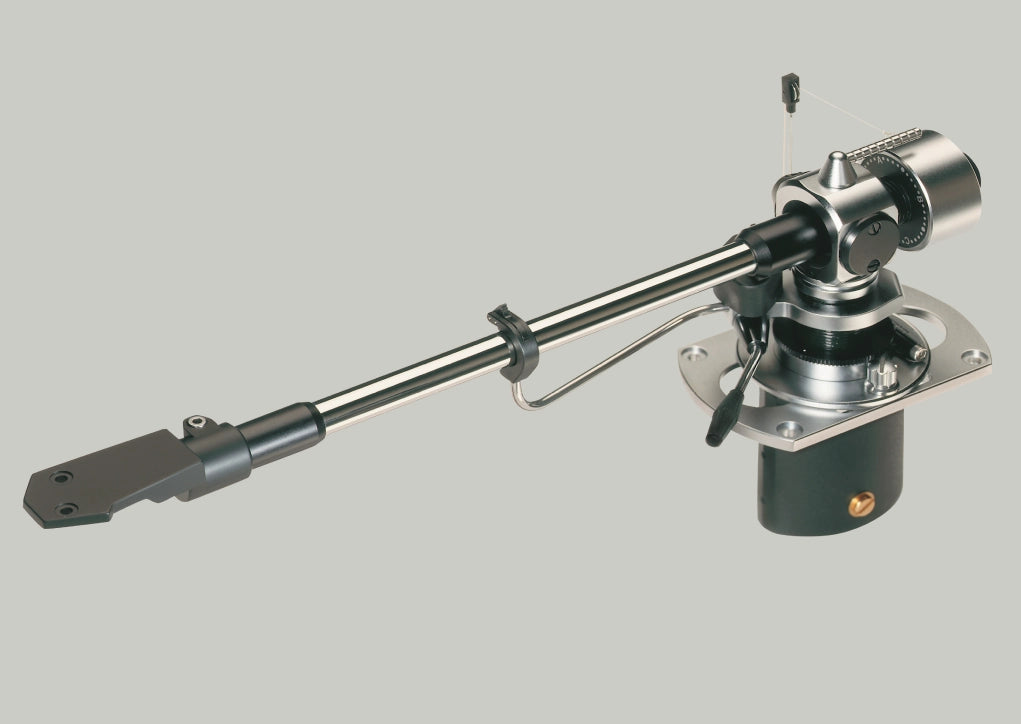

SME M2 Series
An internally damped precision tonearm of highly polished stainless steel provides sparkling uncoloured reproduction offering pivot-stylus dimensions covering virtually all turntable requirements.
The M2 Series tonearm is available in 9, 10 & 12 inch versions and offers at reasonable cost, meticulous build quality with all the most important features including lightweight stainless steel tonearm, detachable magnesium headshell with azimuth adjustment, tungsten balance weight, superb quality ball race bearings and a level of stiffness and rigidity to suit all types of cartridge.
These precision made tonearms embody well tried SME principles and are suited to a broad range of cartridges including those of medium and low compliance.
The headshell is pressure die-cast in magnesium for lightness and rigidity. A collet of ingenious design affords ‘one-piece’ rigidity and allows azimuth correction to be made before final tightening.
| Series M2 Dimensions | Series M2-9 | Series M2-10 | Series M2-12 |
|---|---|---|---|
| A – Distance from pivot to stylus | 232,20 mm | 239,30 mm | 308,80 mm |
| B – Distance from pivot to turntable centre | 215,40 mm | 222,0 mm | 295,60 mm |
| C – Cartridge fixing centres | 12,70 mm | 12,70 mm | 12,70 mm |
| F – Overhang | 17,80 mm | 17,30 mm | 13,21 mm |
| G – Height above mounting surface | 87,0 mm max 63,0 mm min |
87,0 mm max 63,0 mm min |
87,0 mm max 63,0 mm min |
| Note: Spacer P1, part no. 3823/IV is required when the turntable surface is more than 41.30mm above the surface on which the arm is mounted | |||
| H – Height of record surface above mounting surface | 67,40 mm max 43,40 mm min |
67,40 mm max 43,40 mm min |
67,40 mm max 43,40 mm min |
| J – Depth below mounting surface | 46,0 mm | 46,0 mm | 46,0 mm |
| K – Radial clearance for balance weight | 51,0 mm | 51,0 mm | 51,0 mm |
| + – Tracking adjustment | 12,7 mm | 12,7 mm | 12,7 mm |
