    Rel HT/1205

    £699.00
    Tax included. Shipping calculated at checkout.
    DESCRIPTION +

    HT/1205

    SERIE HT

    HT/1205 home theater subwoofer delivers a brand new 500W Class D power amplifier design, coupled to a 12” (300mm) long travel driver to deliver extremely high output in an attractive design. HT is a powerhouse for dedicated high powered home theater applications, that will also transform the gaming experience and partners nicely with active wireless speakers.

    PERFORMANCE HOME THEATER

    Serie HT is designed specifically to answer the challenge of creating affordably priced, exceptionally dynamic, pure home theater powered subwoofers. The HT/1205 is the ideal combination of a lightweight, modern 12” CarbonGlas™ (300mm) driver coupled to a powerful 500W Class D amplifier that runs cool, producing extraordinary dynamics. Internally, we developed specially adapted home theater input filters that produce extremely flat bass down in the 20’s.


    We set out to build the loudest, relatively compact 12” unit available for pure home theater use, and at truly attractive pricing. You’ll be the judge of how well we accomplished that goal, but critics are already lining up for reviews. We believe the HT/1205 is destined to become a modern classic with svelte cabinet dimensions finished in an attractive, yet purposeful line grained black aluminum-look and topped by a 12mm thick beautifully polished top that serves to damp vibrations on the critical top surface of the cabinet.


    For REL owners already enjoying our Reference, Serie S and T/i subwoofers designed for both 2-channel and theater use, the HT/1205 is designed to supplement their system’s .1/LFE output to produce extremely high output for chest rumbling home theater special effects.

    WARN THE NEIGHBORS, IT'S MOVIE NIGHT

    500 Watts: To accomplish our single-minded goal of exceedingly high output for large-scale theater applications requires a special amplifier. Our NextGen5 Class D amplifier frees up interior space whilst running cool; this results in more cabinet volume and that translates into louder and deeper bass. 500 watts means the driver never is allowed to starve for power ensuring a long running, reliable design. Within HT-1205’s input filter, we designed in specific inverse filtering to permit our CarbonGlas driver to extend much deeper than traditional designs.

    SPECIFICATION +
    TYPE

    Closed box, front-firing driver

    ACTIVE DRIVER SIZE & MATERIAL

    12 in., 300mm long-throw, CarbonGlas™ cone structure, inverted carbon fibre dust cap, steel chassis

    PASSIVE RADIATOR SIZE & MATERIAL

    NA

    LOW FREQUENCY EXTENTION

    -6dB at 22 Hz

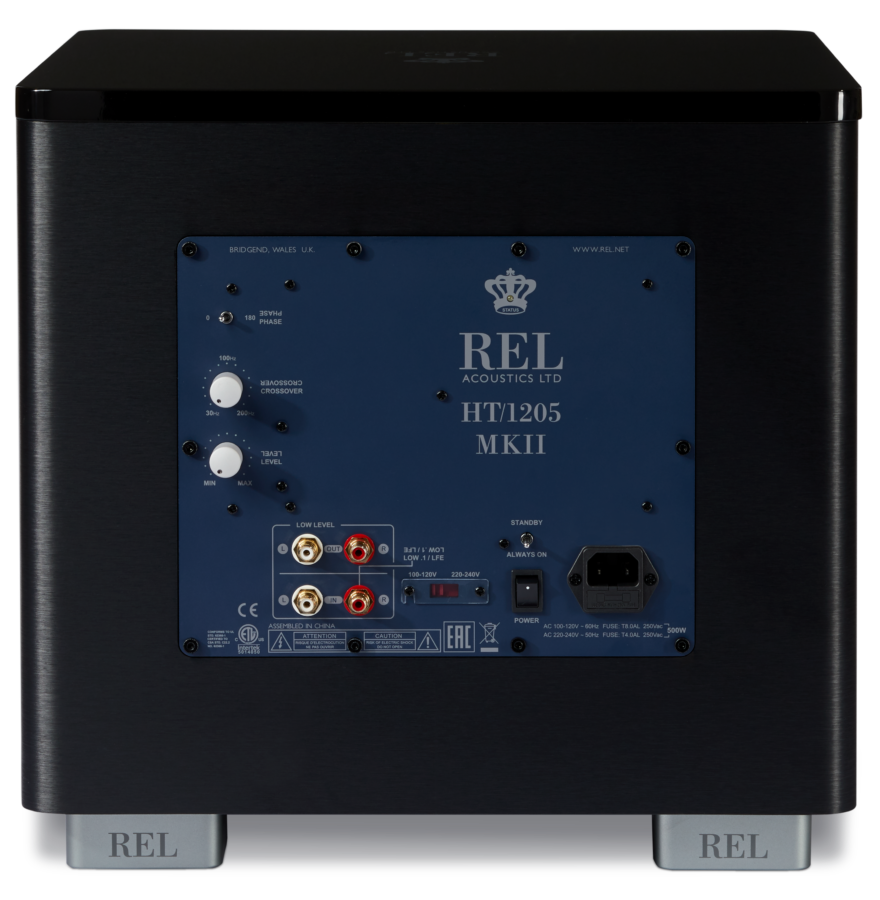

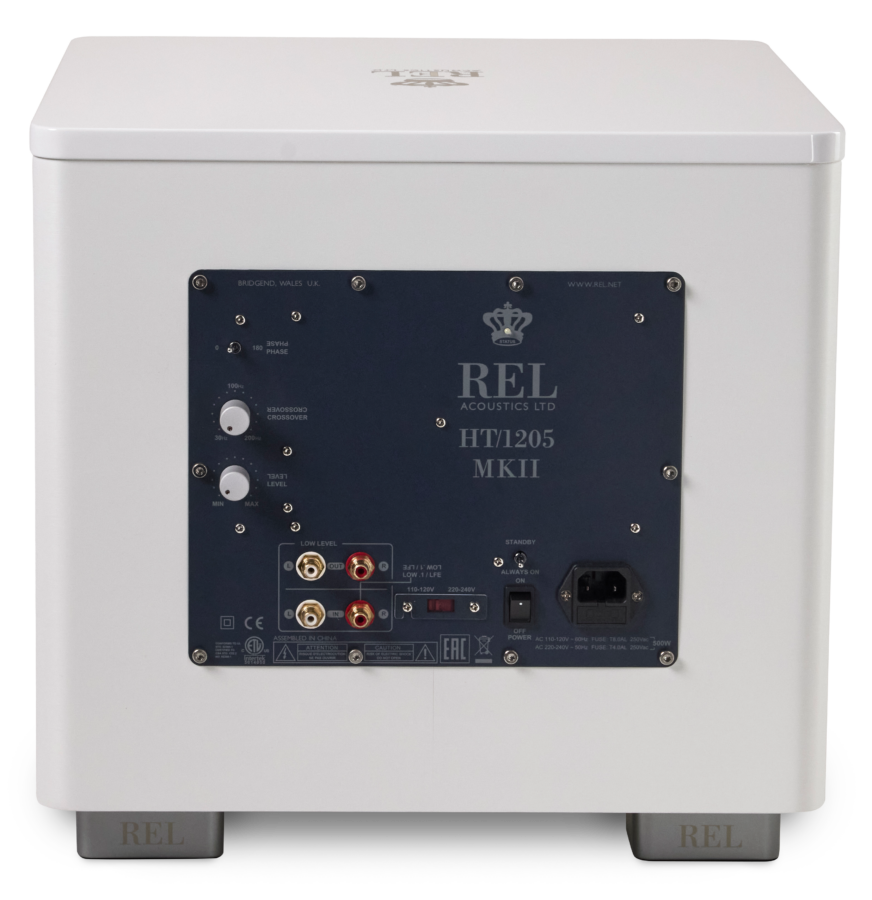

    INPUT CONNECTORS

    Dual purpose Low Level stereo RCA or LFE RCA

    OUTPUT CONNECTORS

    Daisy Chain Low Level stereo RCA or LFE RCA

    POWER OUTPUT

    500 watts (RMS)

    AMPLIFIER TYPE

    NextGen5 Class D

    WIRELESS CAPABILITY

    HT Air Wireless (Optional), Zero Compression Single Large Scale Integrated Chip

    Protection System

    FULLY ELECTRONIC SET SAFE

    Yes

    D.C. FAULT

    Yes

    OUTPUT SHORT

    Yes

    MAINS INPUT VOLTAGE

    220-240 volts, 110-120 volts for certain markets

    FUSES

    8 Amp semi delay 230 or 115 volts operation

    Dimensions

    W X H X D

    15 x 16 x 15.7 in. (376 x 405 x 399 mm)

    NET WEIGHT

    38 lbs. (17.2 kg)

    FINISH

    Line Grained Black Composite

    Supplied Accessories

    MAINS LEAD

    Yes

    NEUTRIK SPEAKON

    NA

    INTERCONNECT

    No
