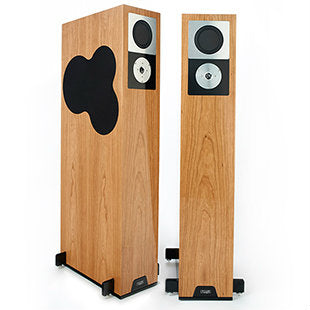

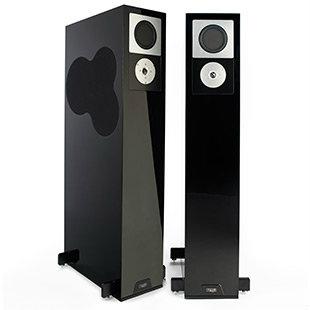

    Rega RS-10 Loudspeaker

    Tax included. Shipping calculated at checkout.

    The Rega RS-10’s have been designed to integrate perfectly into any system. Initially designed to complete our reference range, the RS10’s provide the perfect partner for the Isis CD player, Osiris amplifier, and RP10 turntable.

    The RS-10 loudspeaker system offers the user the ability to adjust its performance to suit different locations via our ‘environment match’ adjustment feature. We have pioneered the integration of a BMR unit with the unique Rega ‘dual driver bass system’ and a completely new and exclusive Rega-designed tweeter to create a very special and unique loudspeaker that offers unparalleled control levels balance and dynamics.

    Rega RS-10 Details

    The RS-10 loudspeaker uses a BMR (Balance Mode Radiator) to handle the majority of the audible music spectrum.

    The BMR design concept was conceived as a full-range driver handling all musical frequencies from the bass through to treble with a single driver and no crossover. This concept works remarkably well and produces musical transparency normally associated with electrostatic loudspeakers. However, no concept is perfect and a single BMR can only produce limited bass output and some people may prefer more precise musical images. Most loudspeaker systems have a crossover point for the mid-range driver and tweeter between 2kHz and 3kHz.

    This can upset the vocal region with distortion and phase shift. It is also where the human ear is most sensitive. Therefore with the use of the BMR unit, Rega has been able to design a crossover point above the most critical range. The high-frequency capability of the BMR, has allowed the two units to integrate to 6 kHz. This gives massive improvements in sound quality with greater clarity and detail in the music. Rega has pioneered the integration of a BMR with the unique Rega dual driver bass system and a completely new and unique Rega designed and UK manufactured tweeter.

    The high frequency sound of a BMR is so good that the quality level of any normal tweeter will not combine with it. This is why Rega felt compelled to design a new and unique tweeter that would complement the BMR unit. This new tweeter, the ZRR-10, uses Rega’s ZRR (Zero Rear Reflection) technology combined with an unparalleled production technique that allows the silk dome to be assembled directly onto the front plate thus eliminating a major source of unwanted vibration. Each tweeter is meticulously hand assembled at Rega’s factory in the UK and incorporates a copper Faraday ring that extends the tweeter's frequency response up to 23kHz by lowering inductance of the voice coil.

    Speaker Crossover;

    Crossover: Multiple high voltage parallel polypropylene capacitors with iron dust and air core inductors / Average impedance 6 Ohms.


    Crossover frequencies:

    • Bass to Mid 300Hz
    • Mid to High Frequency 6kHz
    • ZRR-10 tweeter unit sensitivity 88dB
    • 8 layer 125mm bass drive unit - 75Hz
    • 8 layer 200mm bass drive unit - 40Hz /Bi-wireable
    • Bi-ampable – Yes

    Cabinet construction and finish:

    • Available in High gloss Cherry, Piano Black or Walnut
    • 25mm thick high density cabinet, 1/4 wave transmission line design

    Cabinet dimensions:

    • H 1005mm x D 440mm x W 200mm
    • 300mm foot print.

    Weight per speaker: 38Kg.

    Power handling figures are quoted as a guide.

    Amplification between 30w and 500w can be used safely depending on the quality of amplification.
