QUAD Platina Stream | Network Music Streamer | Martins Hi-Fi

Stream everything. Compromise nothing.

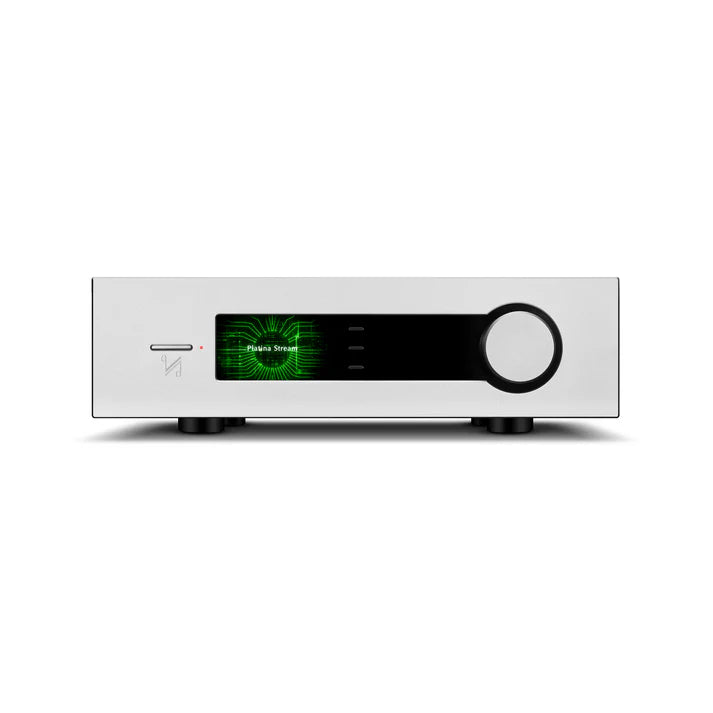

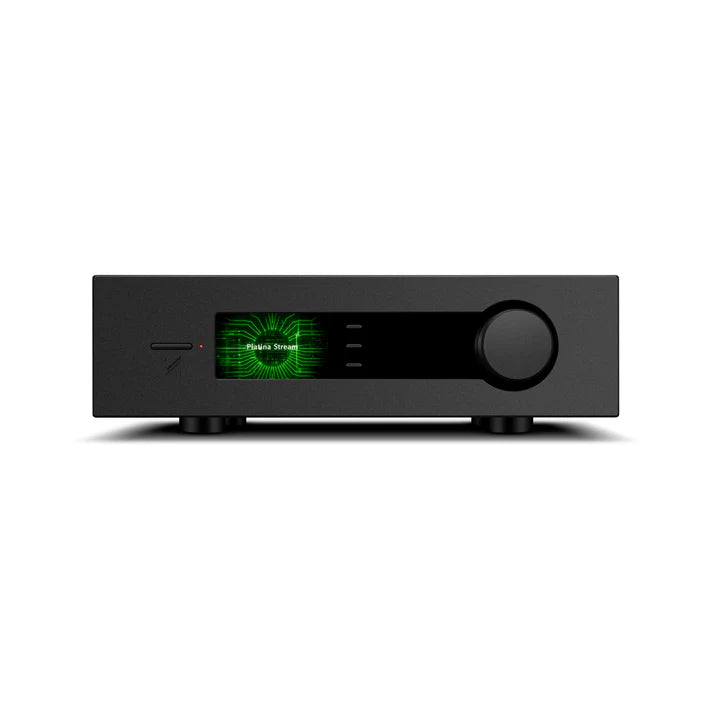

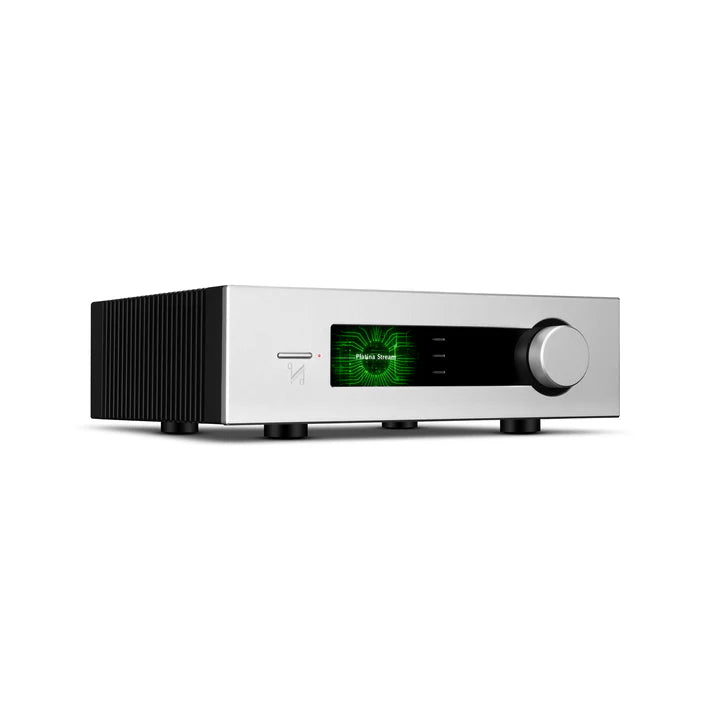

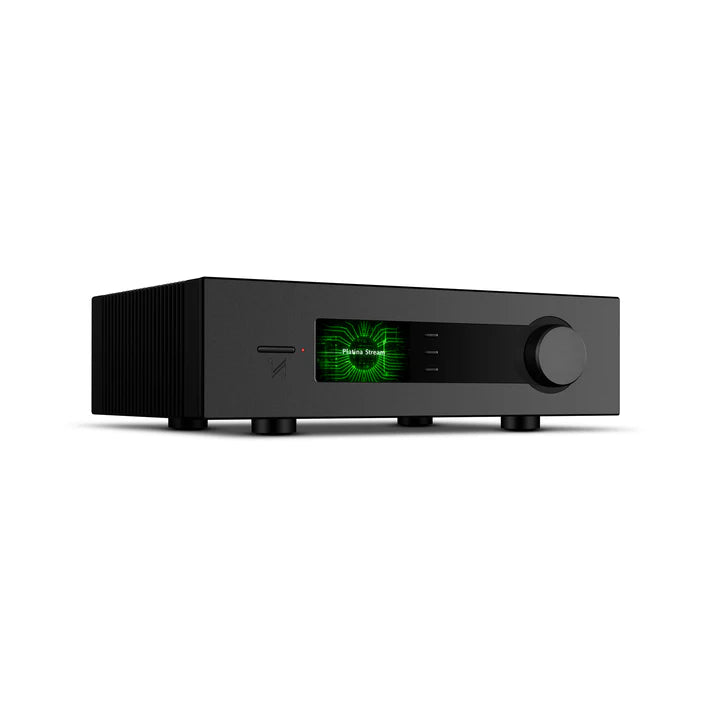

The QUAD Platina Stream brings nine decades of audio excellence into the streaming age. This flagship network player combines QUAD's renowned musical integrity with comprehensive streaming capabilities and a state-of-the-art ES9038 Pro DAC. Connect to your favourite services, access your digital library, and experience music with breathtaking clarity through any system.

Features & Benefits

ES9038 Pro Reference DAC

The flagship ESS Sabre ES9038 Pro eight-channel DAC delivers class-leading performance with dual precision master clocks for vanishingly low jitter. Process PCM up to 768kHz and native DSD512 with exceptional linearity. Every source, from Spotify streams to high-resolution files, sounds remarkably lifelike and engaging.

Complete Streaming Ecosystem

Native integration with Spotify Connect, Tidal Connect, Qobuz Connect, and TuneIn Radio means you control playback directly from your preferred apps. Full Roon Ready certification, AirPlay 2, and UPnP support ensure compatibility with virtually any streaming workflow. Access everything from one elegant device.

QUAD Platina App Control

Purpose-built iOS and Android app transforms your device into an intelligent command centre. Lightning-fast indexing catalogues network shares, USB drives, and streaming services into one unified library. Create playlists on the fly, build custom folders, and search your entire collection instantly with intelligent real-time results.

Quad-Core Processing Power

A Quad ARM Cortex-A53 processor running at 1.8GHz per core provides exceptional computational muscle. Fast library handling, instant album art caching, and rock-solid playback control even with massive collections. Navigate thousands of albums without lag or hesitation.

Dual-Band Network Performance

Connect via Gigabit Ethernet for ultimate stability or dual-band Wi-Fi (2.4/5GHz) for flexible placement. The robust network architecture ensures uninterrupted, bit-perfect playback whether streaming high-resolution files or managing multi-room audio. No dropouts, no buffering, just music.

Flexible System Integration

Balanced XLR and RCA analogue outputs deliver reference-grade signal quality to any amplifier. Digital outputs (optical and coaxial) preserve the pure digital stream for external DACs. The high-performance onboard conversion means you can connect directly to any system with stunning results.

Intelligent Display Interface

The 4.3-inch IPS display (800x480) offers multiple viewing modes: artwork-centred for visual browsing, data-rich for technical monitoring, or classic VU meters for nostalgic appeal. Full menu navigation, multi-language support, and adjustable brightness including complete dimming for late-night sessions.

Technical Specifications

Digital Specifications

• DAC Chip: ESS ES9038 Pro 32-bit
• Supported Formats: FLAC, WAV, AIFF, ALAC, DSD (DSF/DFF), MP3
• PCM Support: 44.1kHz - 768kHz
• DSD Support: DSD64, DSD128, DSD256, DSD512 (Native)
• Master Clocks: Dual precision clocks for low jitter
• Gapless Playback: Yes

Streaming Capabilities

• Native Services: Spotify Connect, Tidal Connect, Qobuz Connect, TuneIn Radio, Plex
• Protocols: Roon Ready, AirPlay 2, UPnP/DLNA
• Network: Gigabit Ethernet, Wi-Fi 802.11 a/b/g/n/ac (2.4/5GHz)
• Processor: Quad ARM Cortex-A53 @ 1.8GHz per core
• Control: iOS/Android app, remote control, front panel

Analogue Output

• Output Level: 0 - 2.05Vrms (variable)
• Output Impedance: 120Ω
• THD: <0.001% (1kHz @ 2.05Vrms)
• Signal-to-Noise: >116dB RCA, >120dB XLR (A-weighted)
• Frequency Response: ±0.5dB (20Hz - 20kHz)

Digital Output

• Connections: 1 x Coaxial, 1 x Optical
• Output Level: 500 ±50mVpp
• Output Impedance: 75Ω
• Max Sample Rate: 192kHz/24-bit
• Frequency Response: -0.01dB (20Hz - 20kHz)

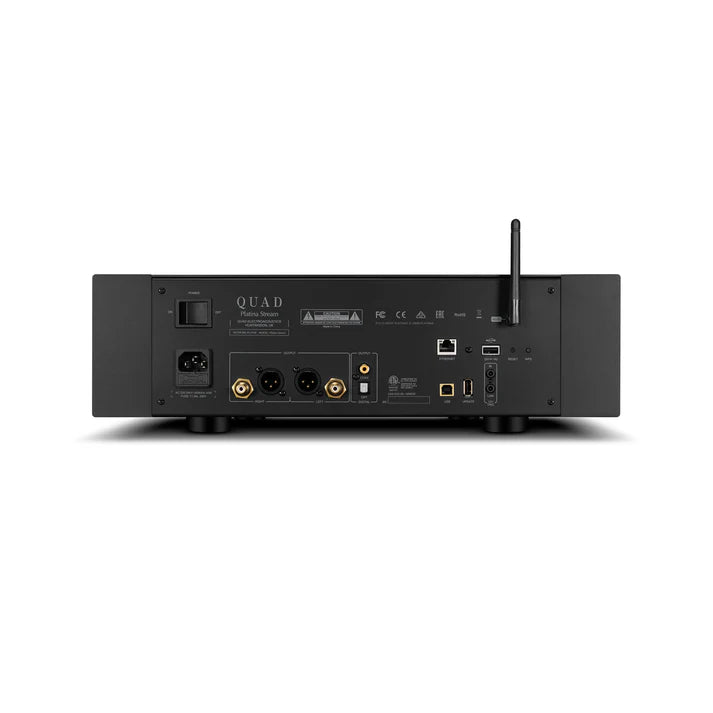

Connectivity

• Digital Inputs: USB-B (PC), Network streaming
• Analogue Outputs: 1 x RCA (pair), 1 x XLR (pair)
• Digital Outputs: 1 x Optical, 1 x Coaxial
• Storage: USB HDD support (FAT32, exFAT, NTFS)
• Control: 2 x 12V trigger (in/out)

Physical Specifications

• Display: 4.3" IPS LCD (800 x 480 pixels)
• Dimensions: 445 x 134.5 x 348mm (W x H x D)
• Weight: 11.8kg
• Construction: Metal chassis, side-mounted heatsinks
• Finish: Black or Silver anodised
• Power Requirements: 220-240V or 100-120V (50/60Hz)
• Standby Power: <0.5W
