PrimaLuna EVO 200 Valve Preamplifier
PrimaLuna EVO 200 Valve Preamplifier
Please contact us for stock availability
PrimaLuna EVO 200 Valve Preamplifier
The Heart of Your High-End Audio System

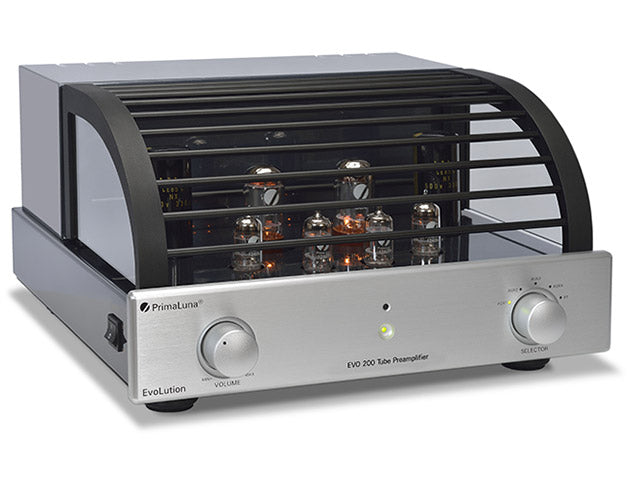

The PrimaLuna EVO 200 preamplifier is a testament to old-world craftsmanship merged with modern audio engineering. Each unit is meticulously hand-built by skilled technicians who share your passion for extraordinary sound reproduction. The result is not just an audio component, but an heirloom-quality instrument designed to deliver musical enjoyment for decades.
The Valve Advantage: Musical Purity Without Compromise
At the heart of the EVO 200 lies its exceptional valve-based design featuring four premium 12AU7 valves and two 5AR4 rectifier valves. This configuration delivers the legendary midrange magic that valve enthusiasts cherish whilst maintaining impressive technical specifications:
- Frequency Response: 28 Hz – 43 kHz (+/- 1 dB), extending to 14 Hz – 92 kHz (+/- 3 dB)
- Signal-to-Noise Ratio: 93 dB (100 dB A-weighted)
- Total Harmonic Distortion: Less than 0.5% @ 2V
- Output: 2V per channel with a 10 dB gain
Unlike mass-produced solid-state equipment, the EVO 200 recreates your music with a three-dimensional soundstage, organic tonal qualities, and emotional impact that digital processing simply cannot replicate.
Premium Components Throughout
PrimaLuna refuses to compromise on component quality. The EVO 200 features:
- Point-to-Point Wiring: Meticulous hand-wiring using premium Swiss silver wire for superior signal integrity
- Custom Transformers: Expertly-designed toroidal and EI-frame transformers, fully encapsulated for minimal noise
- Motorised ALPS Volume Control: The finest volume control for perfect channel tracking
- Audiophile-Grade Capacitors: Nichicon and DuRoch polypropylene and tinfoil capacitors throughout the signal path
- Gold-Plated Connections: Ceramic valve sockets and panel-mounted RCA sockets ensure optimal signal transfer
- Heavy-Gauge Chassis: Five-coat, hand-rubbed finish on a fully vented steel chassis that eliminates resonance
Versatile Connectivity for Your System
The EVO 200 seamlessly integrates into any high-end audio system with:
- 4 Stereo RCA Inputs: Connect all your source components
- Dedicated Home Cinema Input: Integrate with your home cinema system
- Dual RCA Outputs: Drive multiple power amplifiers or subwoofers
- Tape Output: Perfect for recording your vinyl collection
Advanced Technology for Protection and Longevity
PrimaLuna engineers have incorporated several proprietary technologies to ensure reliability:
- SoftStart™ Technology: Gradually powers valves to prevent thermal shock and extend valve life
- Power Transformer Protection (PTP™): Thermal protection circuit prevents transformer damage
- 100% Shielded Phonostage Compartment: Optional PhonoLogue EVO MM phonostage can be installed in a fully shielded compartment for optimal noise performance
Optional Upgrade Path
For vinyl enthusiasts, the EVO 200 can be equipped with the optional PhonoLogue EVO moving magnet phonostage. This high-performance module installs directly into the shielded compartment, maintaining signal integrity whilst adding superb vinyl playback capabilities.
Specifications
| Feature | Specification |
|---|---|
| Model | EVO 200-3 |
| Output | 2V / CH |
| Frequency Response | 28 Hz – 43 kHz +/- 1 dB, 14 Hz – 92 kHz +/- 3 dB |
| THD | < 0.5% @ 2V |
| S/N Ratio | 93 dB (100 dB A weighted) |
| Input Impedance | 220 kOhm |
| Input Sensitivity | 620 mV for rated output at maximum volume |
| Gain | 10 dB |
| Power Consumption | 51 Watts |
| Weight | Net: 18 kg (39.6 lbs), Shipping: 22 kg (48.4 lbs) |
| Dimensions | 405 x 365 x 205 mm (15.9" x 14.4" x 8.1") (L x W x H) |
| Shipping Dimensions | 577 x 468 x 315 mm (22.7" x 18.4" x 12.4") (L x W x H) |
| Inputs | 4 pairs Stereo RCA, 1 pair Home Cinema Input |
| Outputs | 1 pair RCA Tape, 2 pairs Stereo RCA |
| Valve Complement | 2 x 5AR4, 4 x 12AU7 |
| Output Impedance | 2800 Ohm |
| Remote Control | Heavy metal slim remote included |
Expert Setup and Support
Our team of audio specialists is available to help you integrate the PrimaLuna EVO 200 into your system. We offer personalised valve matching services and can provide recommendations for component pairing to achieve the absolute best performance from your investment.
Customer Experiences
"After upgrading to the EVO 200, I'm rediscovering my entire music collection. The soundstage depth and instrumental textures are simply breathtaking." — James T., Verified Owner
"The build quality surpasses components costing twice as much. This preamplifier delivers performance that competes with units at much higher price points." — Michael R., Verified Owner
Why Choose PrimaLuna?
For over two decades, PrimaLuna has been dedicated to creating valve audio components that combine the emotional engagement of vintage valve designs with modern reliability and performance. Each PrimaLuna component is built with fanatical attention to detail, using only premium components that meet or exceed military specifications.
Warranty and Support
The EVO 200 includes a comprehensive 2-year warranty covering both parts and labour, with extended coverage available. Our dedicated customer support team provides expert assistance throughout your ownership experience.
