Michi X3 Series 2 Integrated Amplifier

The Michi X3 Series 2 Integrated Amplifier offers an unparalleled listening experience with musical refinement, and breathtaking detail. Digital audio is rendered utilizing aprecision 8-channel ESS SABRE ES9028PRO DAC configured to dedicate 4 channels each to the left and right recorded tracks lowering the noise floor, reducing distortion, and creating an expansive, wide soundstage.

The elegant industrial design of the Michi X3 Series 2 fits comfortably in any living space while still producing a robust350 watts from your favorite music sources including Analog RCA and XLR Balanced, Moving Magnet Phono, aptX™ HD Wireless Bluetooth, Coaxial, Optical. The PC-USB input supports PCM (32-bit 384kHz) and Quad DSD (11.2MHz)music files with full MQA hardware decoding up to 24-bit384kHz.

The Michi X3 Series 2 is built for music lovers and audiophiles alike with every aspect of its design, engineering, and manufacturing meticulously refined to deliver exceptional performance. An oversized in-house manufactured toroidal transformer powers isolated digital, analog, and high current amplifier circuits further reducing electrical noise and interference.

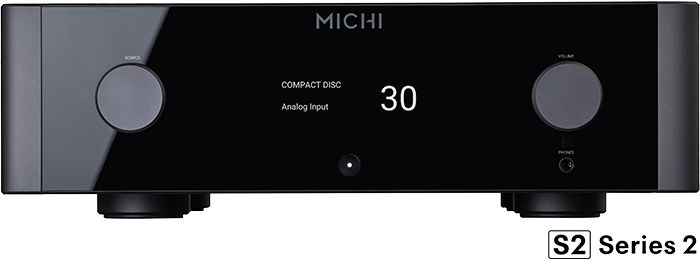

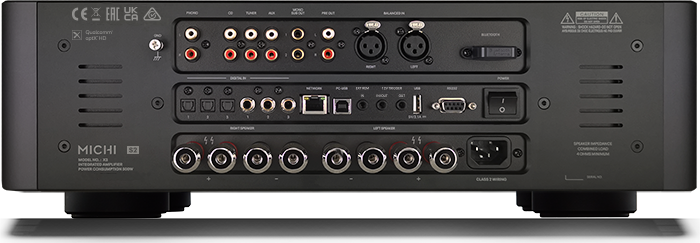

Operation and setup of the X3 Series 2 is done with ease utilizing the included custom Michi IR remote, front panel controls and large graphic display. Dual Michi engineered platinum plated speaker binding posts allow bi-wire and traditional speaker connections. A full size ¼” (6.35mm) front panel headphone connection is available for private listeningsessions.RS232 and Ethernet connections ensure simple connection with automation and control systems.
Specifications


 Maximum Power Output

350 watts/channel (4ohms)

Continuous Power Output

200 watts/channel (8 ohms)

Total Harmonic Distortion

<0.008%

Intermodulation Distortion

<0.03%

Frequency Response

Phono Input

Line Level Inputs



20 Hz-20k Hz (+0Db, +0.4 Db)

10 hZ-100K Hz (+0 dB,

Damping Factor

350 (20Hz - 20 kHz, 8 Ohms)

Input Sensitivity / Impedance

Phono Input (MM)

Line Level Inputs (RCA)

Line Level Inputs (XLR)



60 mV

3.5 V

5.5V

Input Overload

Phono Input (MM)

Line Level Inputs (RCA)

Line Level Inputs (XLR)



60 mV

3.5 V

5.5 V

Preamplifier Output Level / Impedance

1.9 V / 100 ohms

Tone Controls

Bass

Treble



±10 dB at 100 Hz

±10 dB at 10k Hz

Signal to Noise Ratio

(IHF "A" weighted)

Phono Input

Line Level Inputs





80 dB

102 dB

Channel Separation

Phono Input

Line Level Inputs



>55 dB

>55 dB

Digital Section

Frequency Response

20 Hz - 20k Hz (0±0.4 dB)

Signal to Noise Ratio

(IHF "A" weighted)

102 dB



Input Sensitivity/Impedance

0 dBFs / 75 ohms

Preamplifier Output Level

1.3 V (at -20dB Volume Position)

Coaxial/Optical Digital Signals

SPDIF LPCM (up to 192kHz 24bit)

PC-USB

USB Audio Class 1.0
(up to 96kHz 24-bit)
USB Audio Class 2.0
(up to 384kHz 24-bit)*
*Driver installation required
DSD and DoP support
MQA and MQA Studio support
Roon Tested

Power Requirements

Europe

USA



230 V, 50 Hz

120 V, 60 Hz

Power Consumption

500 watts

Standby Power Consumption

Normal

Network Wakeup



<0.5 watts

<2 watts

BTU (4 ohms, 1/8 power)

1303 BTU/h

Dimensions (W x H x D)

485 x 150 x 452 mm

19" x 6" x 17 3/4"

Front Panel Height

132mm / 5 1/4"

Weight (net)

28.9 kg, 63.7 lb

Finish

Black
