Rotel
Michi P5 Series 2
Michi P5 Series 2
Michi P5 Series 2
Introducing the Rotel Michi P5 Series 2 Preamplifier, the ultimate choice for music enthusiasts and audiophiles looking for an unmatched audio experience. Custom engineered with twin 8-channel high precision ESS SABRE ES9028PRO Digital to Analog converters specially adapted to MONO mode, the P5 Series 2 provides redundant signal processing by 8 DAC circuits per channel.
This multi-DAC solution is all about performance and extracts exceptional details and nuances of the music presented on an exceptionally wide sound stage. Dual-shielded, in-house manufactured toroidal transformers drive 16 independent power supplies isolating all critical circuits. The result is an ultra-quiet noise floor and extremely low distortion levels.

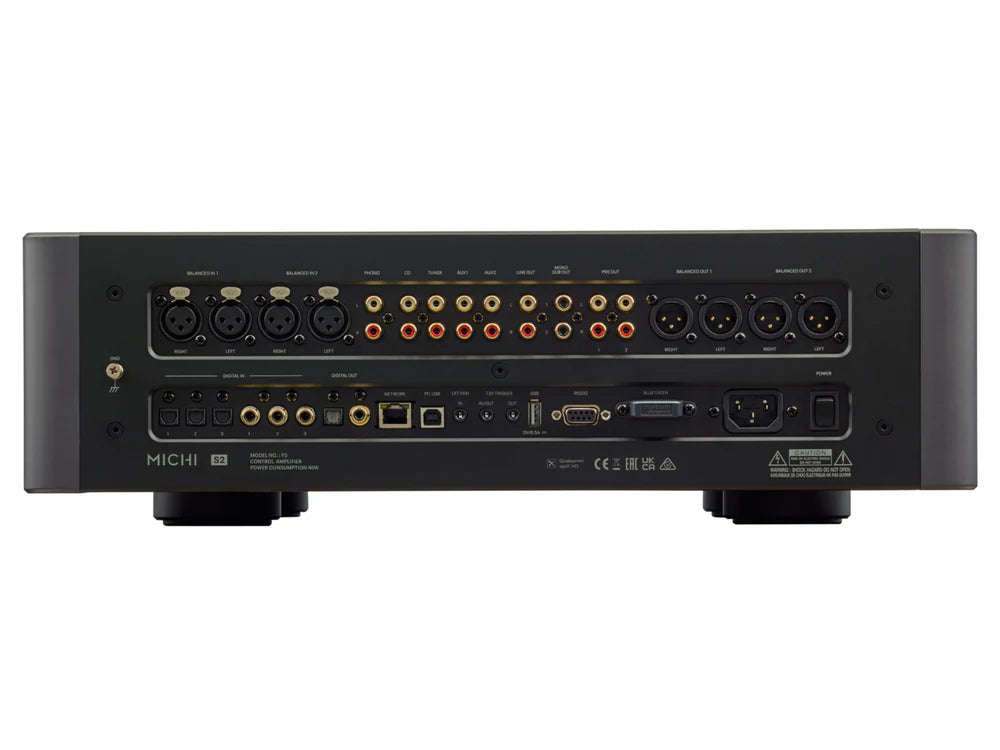

The breathtaking performance of the Michi P5 Series 2 immerses you in your music like never before, precisely renderingevery note, and enveloping you in sound.The Michi P5 Series 2 connects to all your favourite music sourcesincluding Analog RCA and XLR Balanced, Moving Magnet andMoving Coil Phono, aptXTMHD Wireless Bluetooth, Coaxial andOptical. The PC-USB input supports PCM (32-bit 384kHz)and Quad DSD (11.2MHz) music files and full MQA hardwaredecoding up to 24-bit 384kHz.

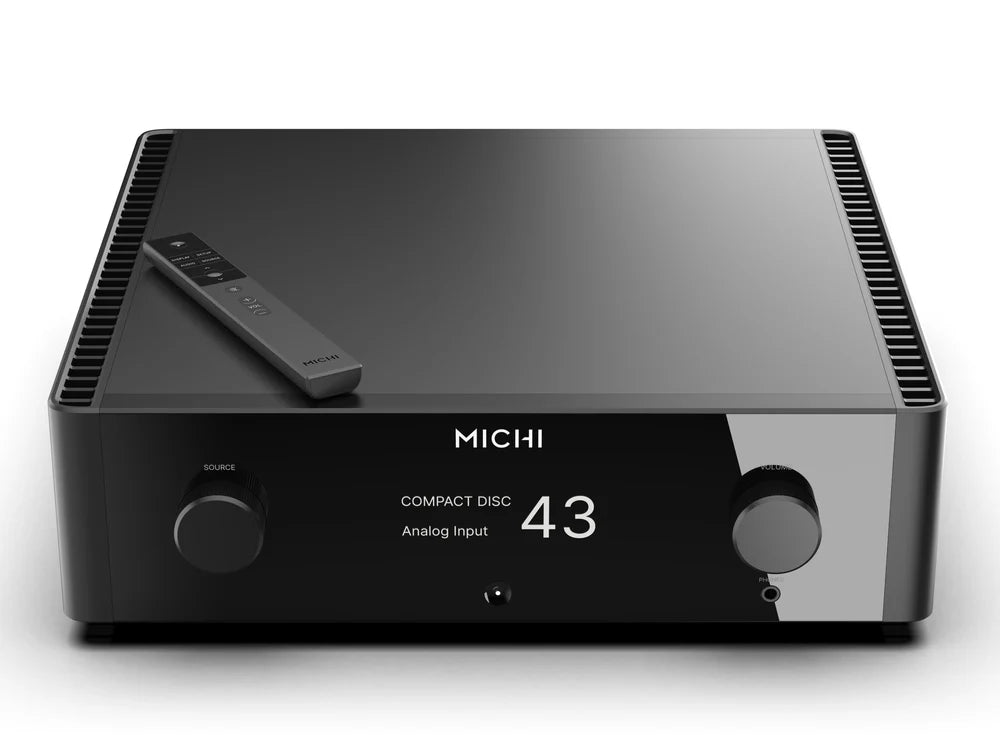

The elegant, understated industrial design of the Michi P5 Series 2 is manufactured to the highest standards of quality as befits itsflagship position in the Michi line.A high-resolution graphic display, front panel controls, IR remote,and headphone output ensure seamless setup and operation.RS232 and Ethernet connectivity support all popular controlsystems.The Michi P5 Series 2 Preamplifier continues to deliver on theMichi promise of acoustic elevation to even the most discerningof audiophiles.Michi, expectations amplified.
Specifications
|
Total Harmonic Distortion |
<0.002% |
| (20Hz-20kHz) | |
|
Intermodulation Distortion |
<0.002% |
| (60 Hz : 7 kHz, 4:1) | |
|
Input Sensitivity/ Impedance |
|
|
Phono Input (MM) Phono Input (MC) Line Level Inputs (RCA) Line Level Inputs (XLR) |
2.5 mV / 47k ohms 250 uV / 100 ohms 160 mV / 47k ohms 250 mV / 100k ohms |
|
Input Overload |
|
|
Phono Input (MM) Phono Input (MC) Line Level Inputs (RCA) Line Level Inputs (XLR) |
199 mV 22 mV 12 V 12 V |
|
Output Level |
|
|
Line Level (RCA) Line Level(XLR) |
1 V / 470 ohms 2 V / 100 ohms |
|
Frequency Response |
|
|
Phono Input Line Level Inputs |
20 Hz-20kHz (0 ±0.3 dB) 10 Hz-100kHz (0 ±0.3 dB) |
|
Tone Controls |
|
|
Bass Treble |
±10 dB at 100Hz ±10 dB at 10kHz |
|
Signal to Noise Ratio (IHF "A" weighted) |
|
|
Phono Input Line Level Inputs |
80 dB 116 dB |
|
Channel Separation |
|
|
Phono Input Line Level Inputs |
> 55 dB > 85 dB |
|
Digital Section |
|
|
Frequency Response |
20Hz - 20kHz (0 ± 0.3 dB Max) |
|
Signal to Noise Ratio (IHF “A” weighted) |
100 dB |
|
Input Sensitivity/Impedance |
0 dBFs / 75 ohms |
|
Digital Output |
0.75V, Peak to Peak |
|
Load Impedance |
75 Ohms |
|
Coaxial/Optical Digital Signals |
SPDIF LPCM (up to 192kHz 24 bit) |
|
PC-USB |
USB Audio Class 1.0 |
|
Power Requirements |
|
|
Europe USA |
230 Volts, 50 Hz 120 Volts, 60 Hz |
|
Power Consumption |
40 watts |
|
Standby Power Consumption |
|
|
Normal Network Wakeup |
< 0.5 watts < 2 watts |
|
BTU (4 ohms, 1/8 power) |
87 BTU/h |
| Dimensions (W x H x D) |
485 x 150 x 452 mm 19" x 6" x 17 3/4" |
|
Front Panel Height |
132 mm / 5 1/4" |
|
Weight (net) |
22.9 kg, 50.5 lb |
|
Finish |
Black |
