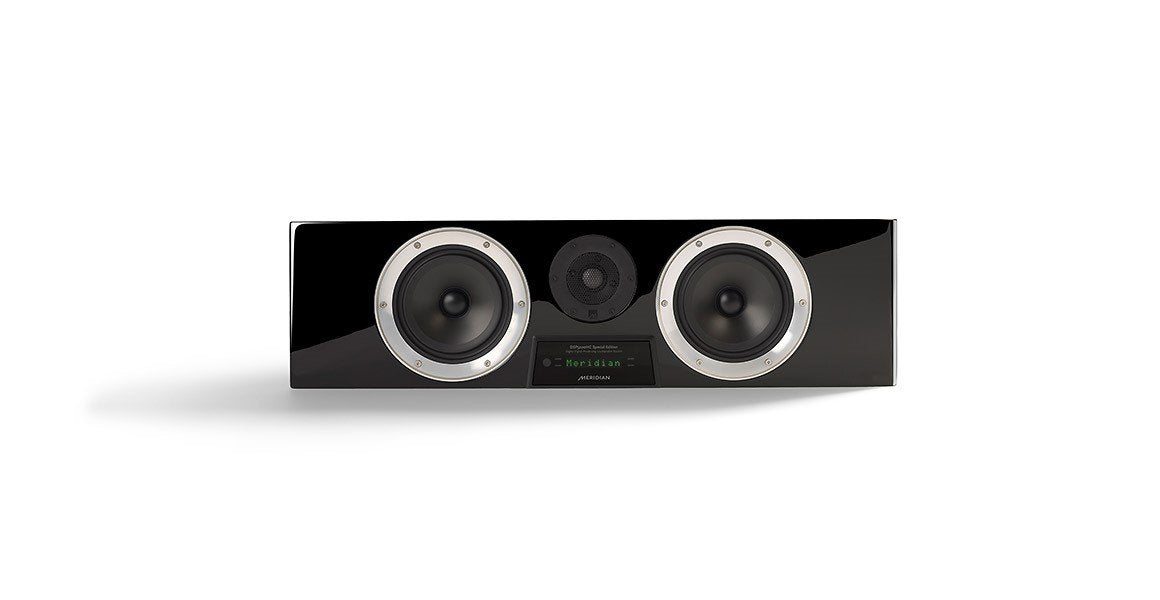

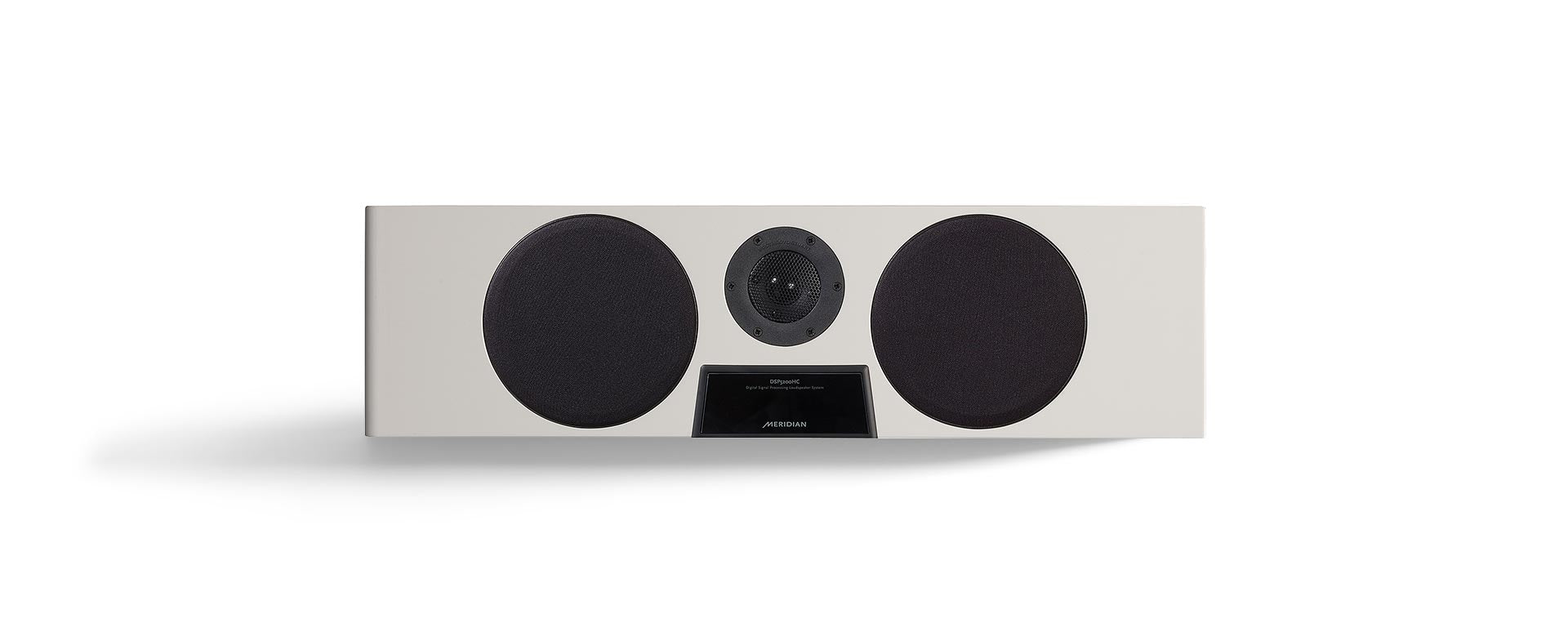

    Meridian DSP5200.2 HC/ VC

    £4,250.00
    Tax included. Shipping calculated at checkout.
    DESCRIPTION +

    The DSP5200.2HC provides full range playback in a horizontal centre channel package. Built by hand in the UK, each Meridian DSP5200.2HC is a Digital Active loudspeaker which uses Digital Signal Processing (DSP) technology. This ingenious, yet elegant design means that the loudspeaker enclosure contains the entire system’s electronics including its amplification. With all the features of the freestanding DSP5200.2, the DSP5200.2HC provides full range playback in a horizontal centre channel package.

    The DSP5200.2HC is ideal for mounting on a shelf, under a large-screen TV, or behind an acoustically-transparent projection screen and in partnership with other Meridian free standing or in-wall loudspeakers. The DSP5200.2HC features unique Centre Elevation adjustment technology which raises the centre image for the perfect movie experience.

    SPECIFICATION +

    Technical Details

    AUDIO INPUTS
    Meridian Speakerlink (RJ45) & S/PDIF digital input, 32kHz–96kHz sampling rates at up to 24 bit with MHR support (phono) and Meridian BNC Comms

    AUDIO OUTPUTS
    1x RJ45 with balanced digital audio and control for 2nd loudspeaker.

    PERFORMANCE
    Peak SPL: 116dB at 1m (music material)

    Noise less than 15dB spl. Overall distortion typically <0.02% at any frequency or level

    Frequency response In room within 3dB: 35Hz - over 20kHz

    AMPLIFIERS
    3 x 75w (225 w)

    BASS DRIVERS
    2 x 160mm polypropylene long throw bass drivers

    MID DRIVERS
    160mm x 1

    ALUMINIUM TWEETER
    1 x 25mm Meridian piston in short horn, aluminium dome with silver voice-coil.

    DSP SPECIFICATION
    1 x Freescale 56367 running at 150MHz

    2 x 24-bit Multi-bit delta-sigma DACs with 128x oversampling

    Active bass/mid crossover - minimum-phase at 2.6kHz.

    Bass protection Response correction for the whole system
    User tone controls

    Analogue/digital volume and phase controll

    DISPLAY
    Eight-character display with system lights, can be blanked

    DIMENSIONS / WEIGHT
    HEIGHT: 201mm [7.9in]

    WIDTH: 735mm [29in] (Max at base)

    DEPTH: 267mm [10.5in] (At deepest point)

    WEIGHT: 35kg [77.1lbs]

    POWER
    100-125; 200-250V AC 50-60Hz

    20VA standby; 600VA max
