    Mark Levinson № 536

    £15,999.00
    Tax included. Shipping calculated at checkout.
    DESCRIPTION +

    Nº536

    The pursuit of perfect amplification is a well-known theme in high-end audio. New technologies present new approaches, while looking to the past provides inspiration for the future. It was in that spirit that the Mark Levinson® № 536 amplifier was developed: a design advised by the traditions and art of classic Mark Levinson amplifier designs, and with a specific target sound: a deep, expansive soundstage, accurate image placement, extended low bass response with good pitch definition, and detailed high frequencies free from “etching.” To that end, the Mark Levinson engineering team started with the following requirements:

    - Harmonic distortion <0.02% at 1kHz and <0.2% at 20kHz - Bandwidth extending from 0.2Hz to 120kHz, and beyond if possible - Critically damped square wave response, with leading and trailing edges free of any slewing artifacts, and a slew rate of at least 100V/µs - Maximized open-loop linearity and bandwidth, with global negative feedback in the range of 12-20dB and without nested feedback loops

    This fully differential, fully discrete, monaural Pure Path amplifier drives virtually any loudspeaker effortlessly for impeccable imaging, musicality, and openness. A direct-coupled signal path; a highly linear, low-feedback design; and voltage gain and drive stages operating in class A, are joined by the modern system integration capabilities provided by Ethernet, RS-232, and USB for monitoring and network control. Housed in a 6000-series aluminum chassis, like all Mark Levinson equipment, the № 536 is designed and handcrafted in the USA.



    FEATURES +
  • Pure Path discrete, direct coupled, fully balanced, monaural signal path
  • Expansive, fine imaging, extended low frequency response/pitch, and natural high frequencies
  • Painstakingly optimized, little negative feedback, bandwidth, slewing, and open-loop linearity
  • Fully differential class-AB architecture, operates in class A for most listening conditions
  • Rated for 400wpc into 8 ohms, 800wpc into 4 ohms, with 2-ohm stability
  • Custom-designed, low noise toroid with separate secondary windings for each output stage
  • 6000-series aluminum chassis, extremely high precision, exceedingly low tolerances

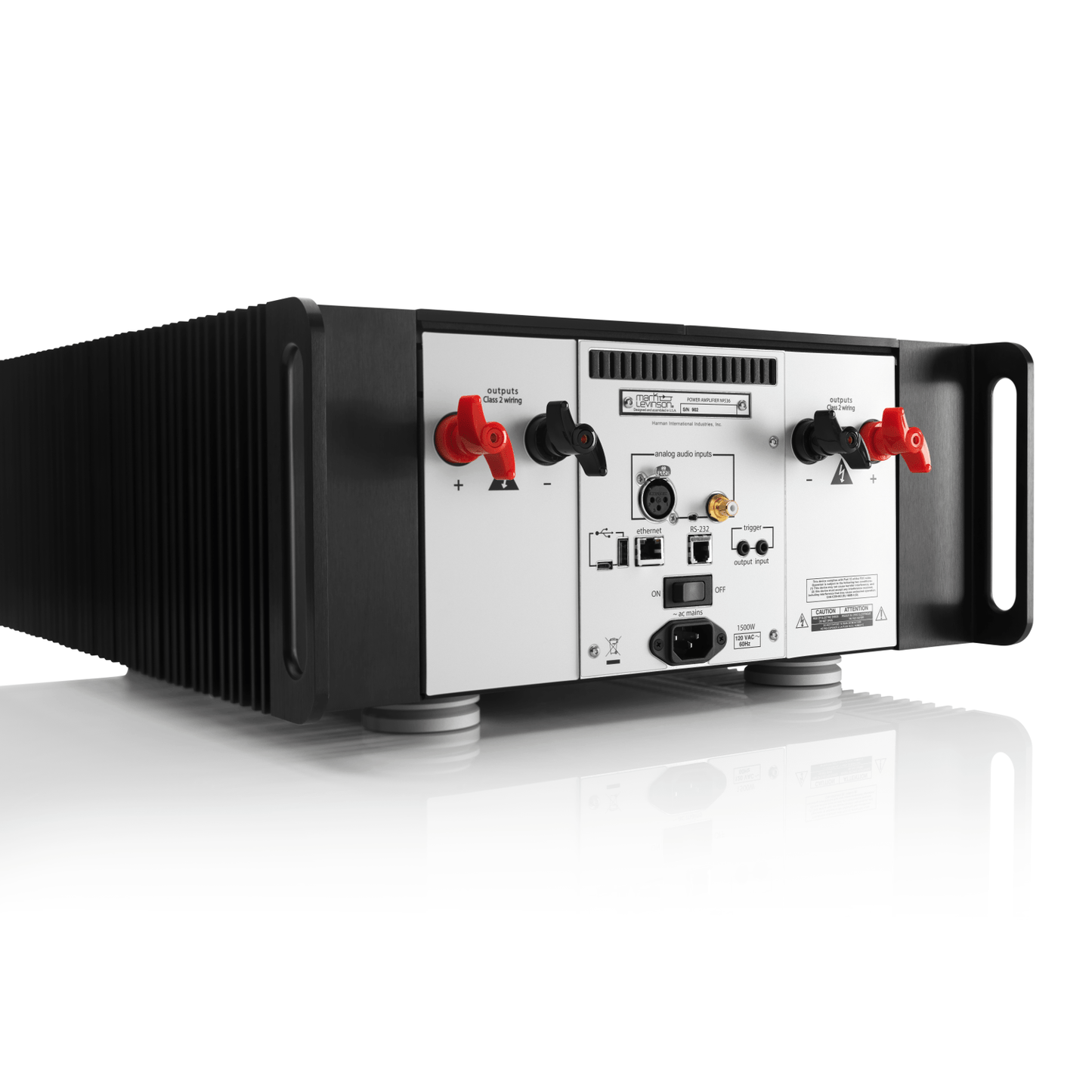

  • System-integration connectivity: Ethernet, IP, RS-232, triggers, web monitoring and control
  • Designed and handcrafted in the USA
