KEF Reference 4C Meta

    £7,480.00
    Tax included. Shipping calculated at checkout.
    DESCRIPTION +

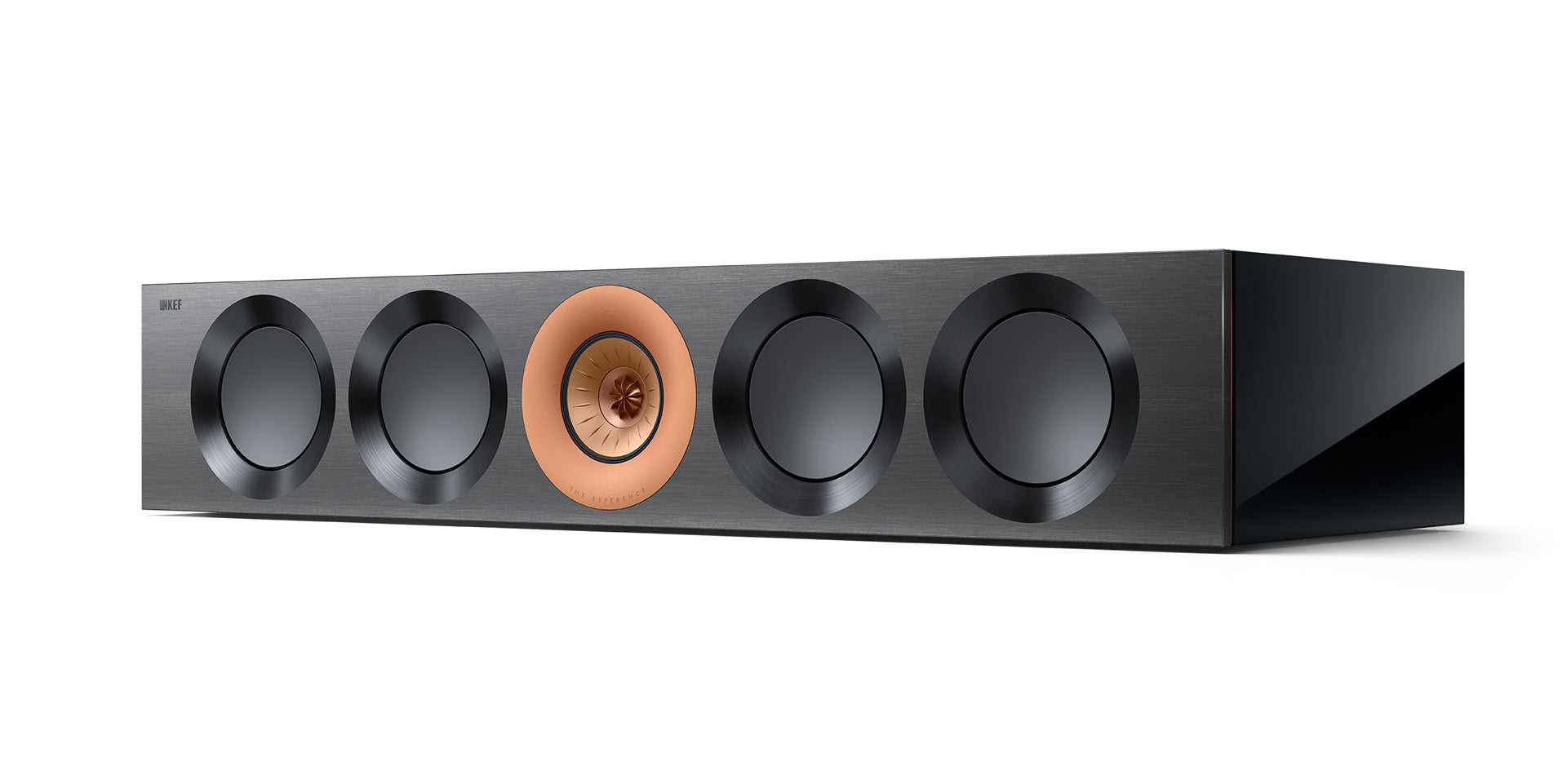

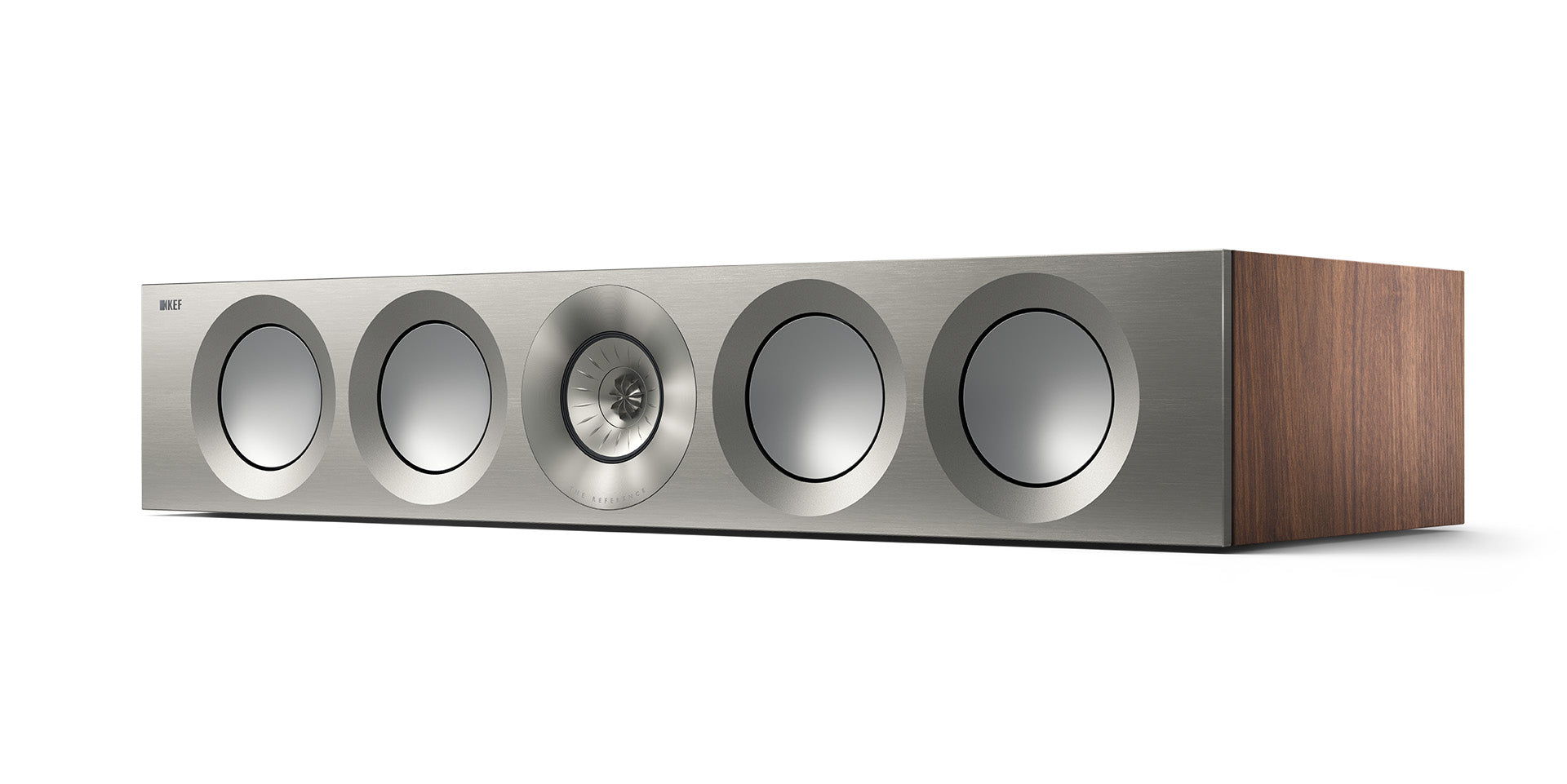

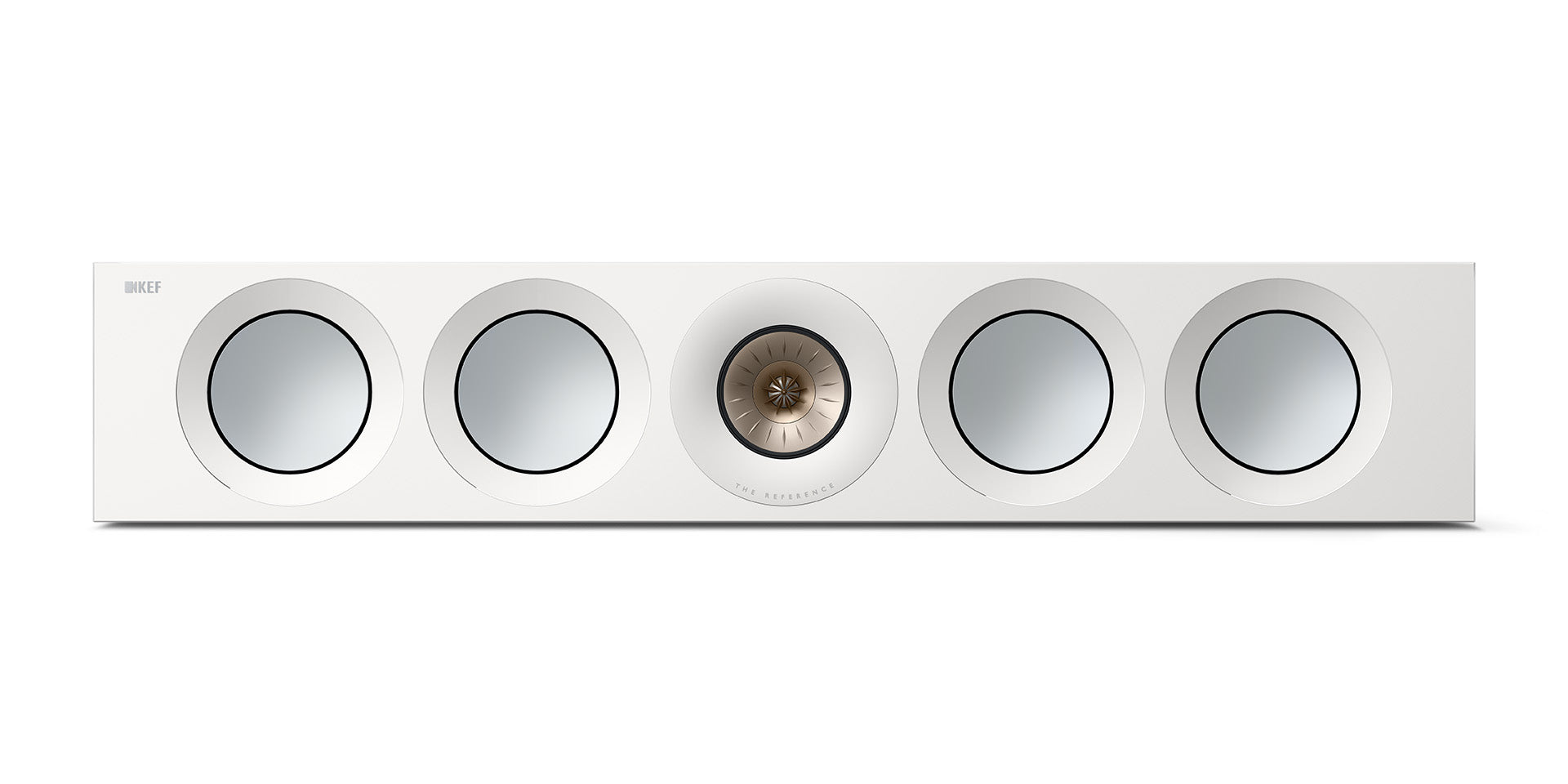

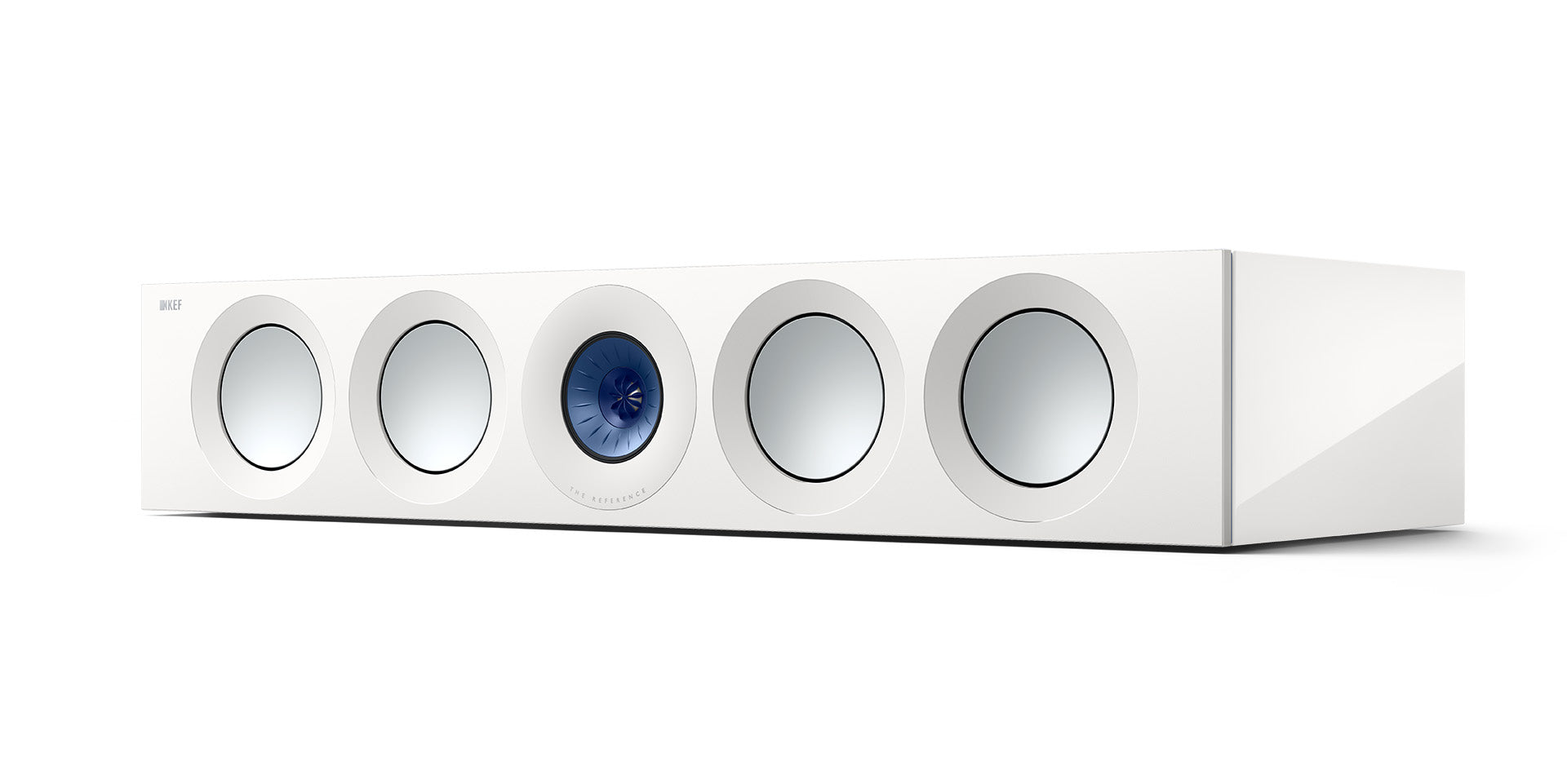

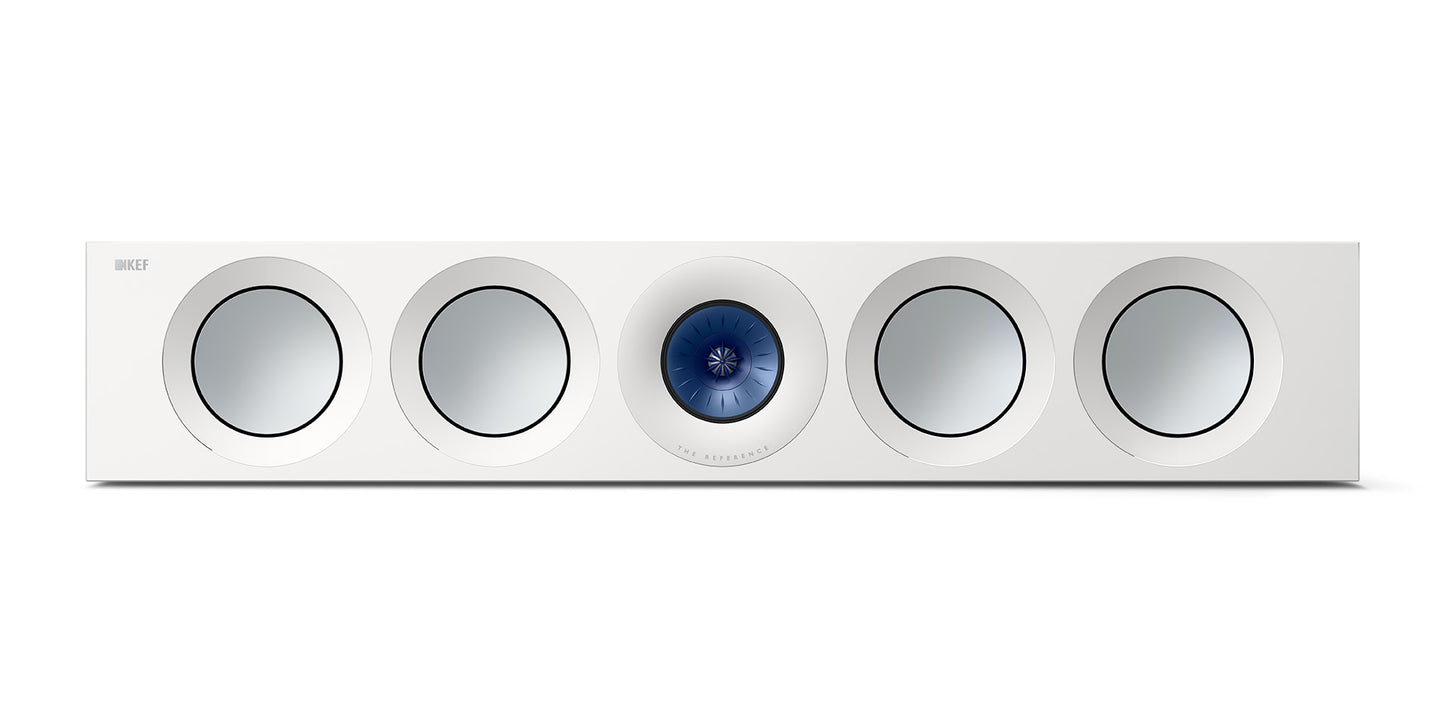

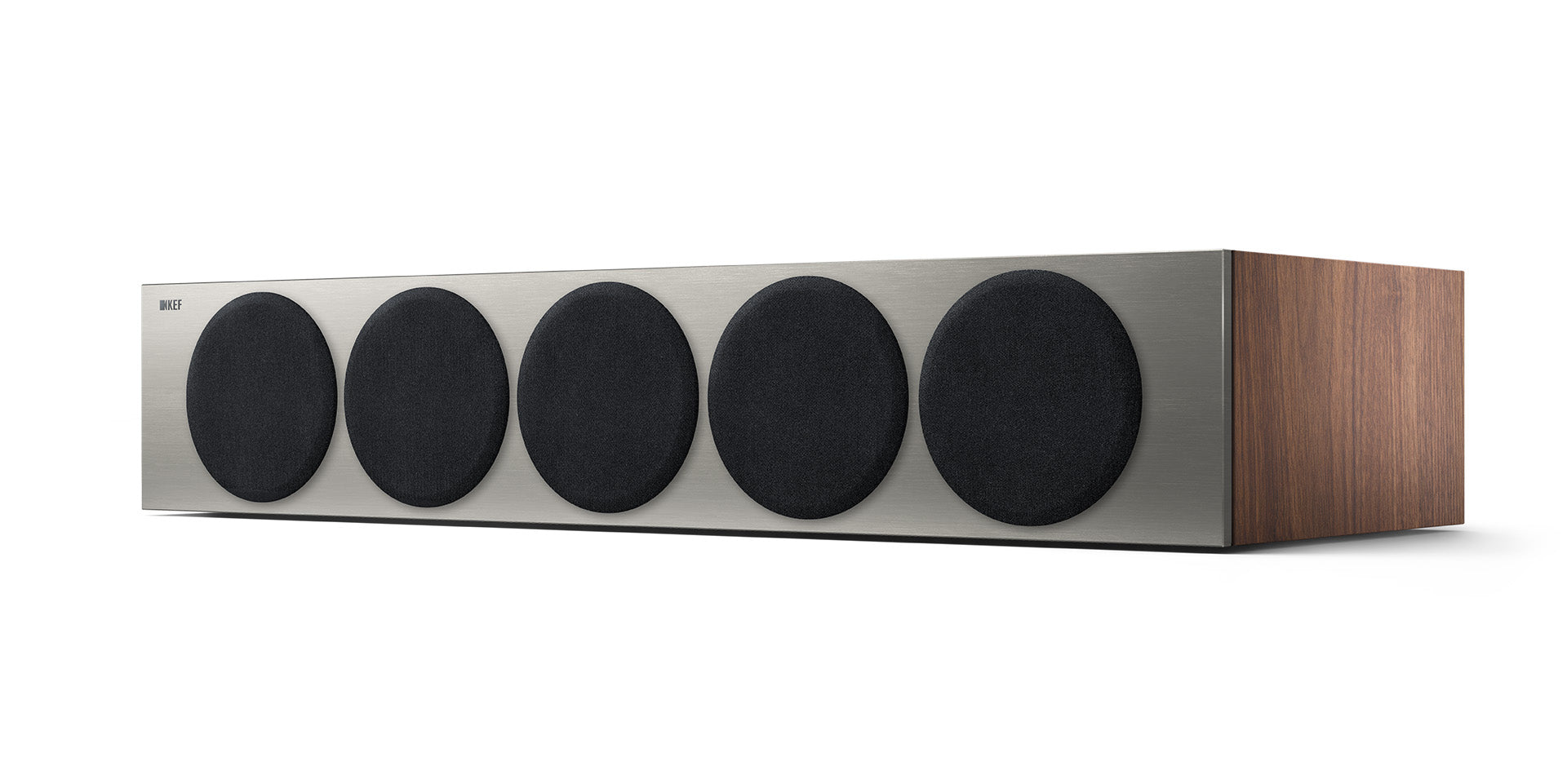

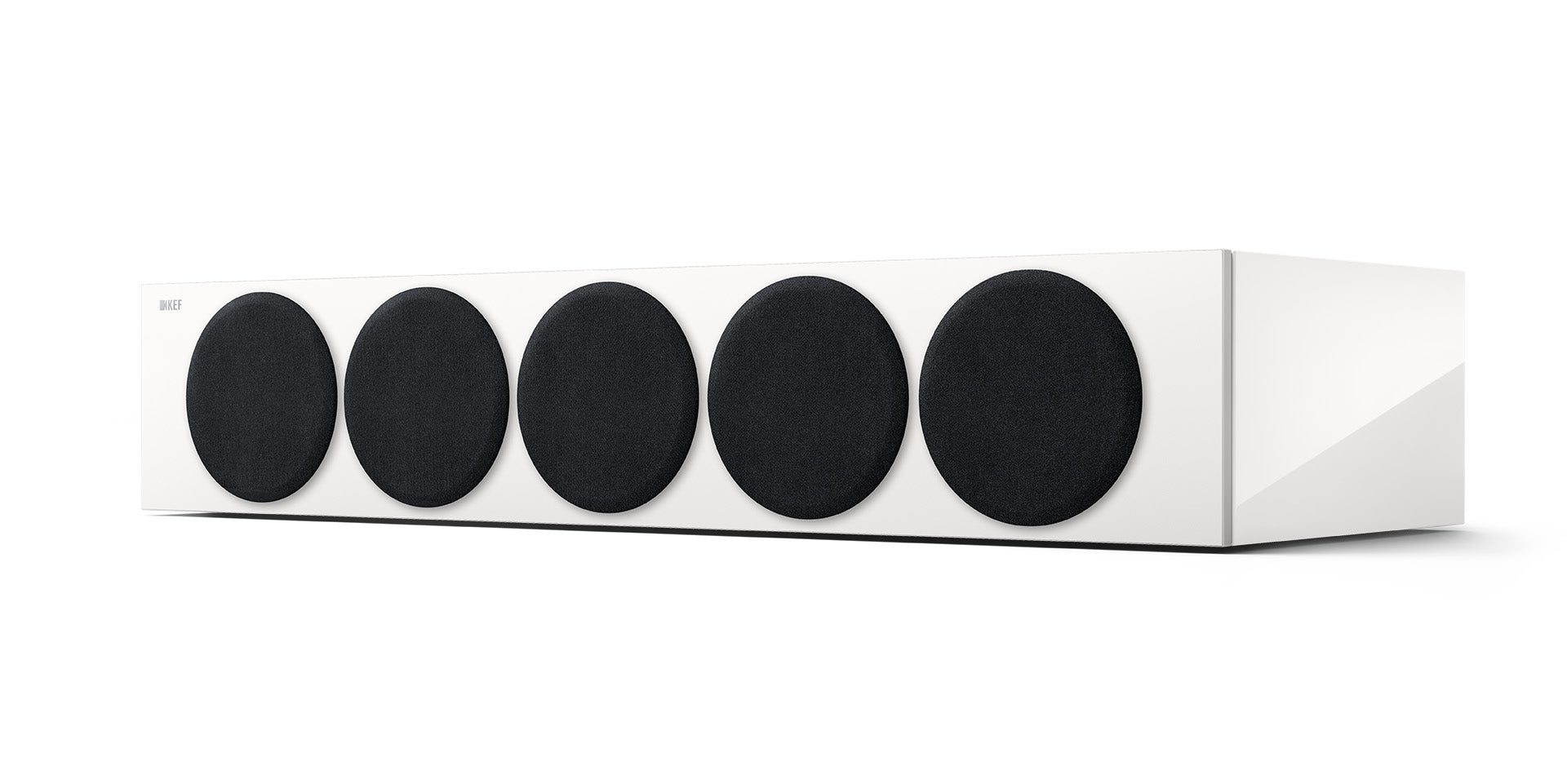

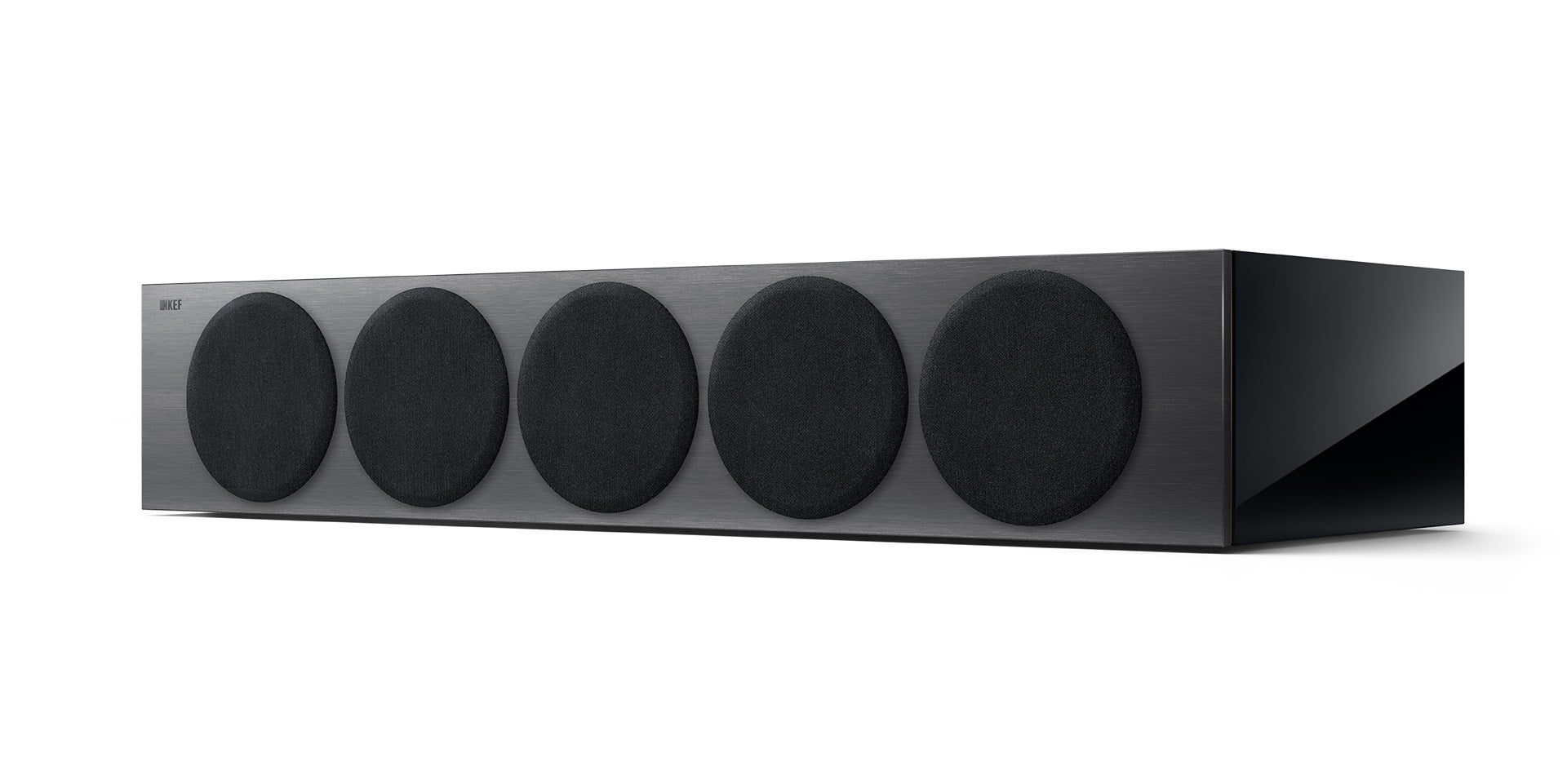

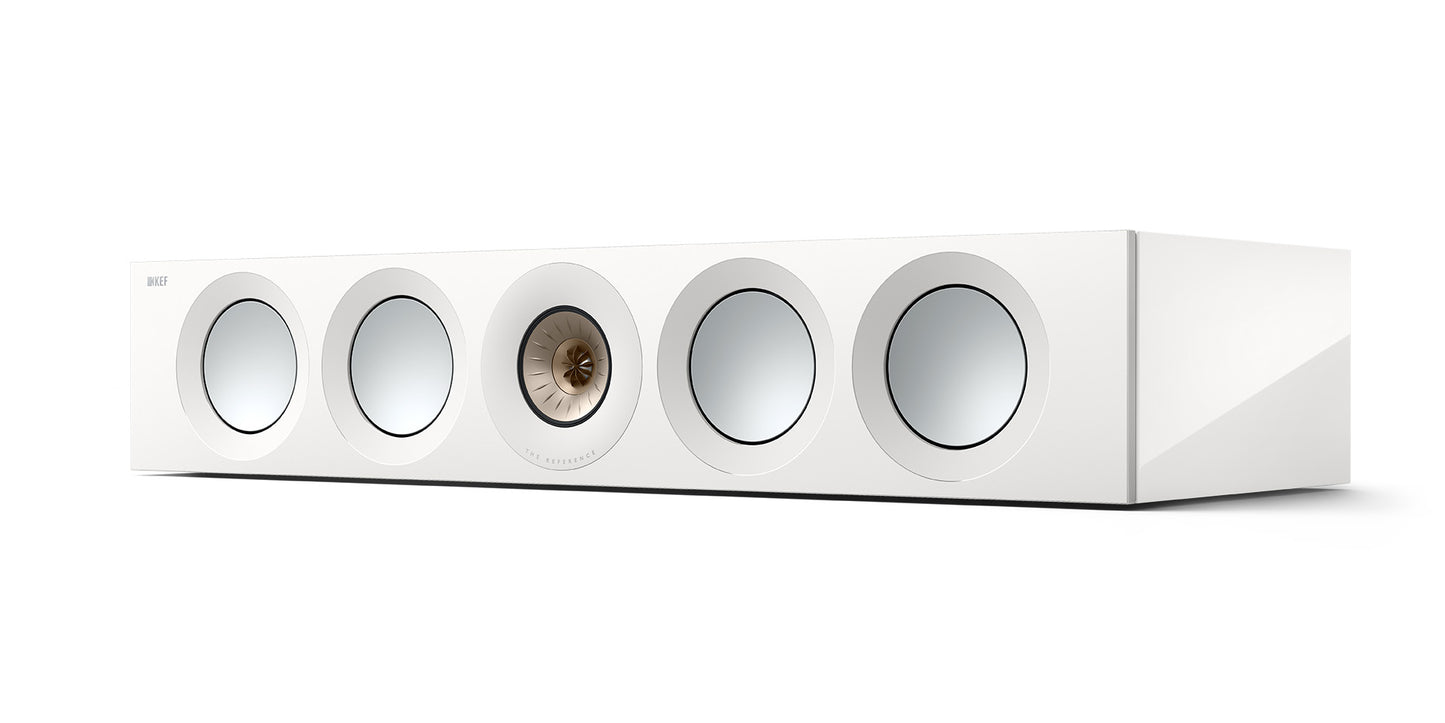

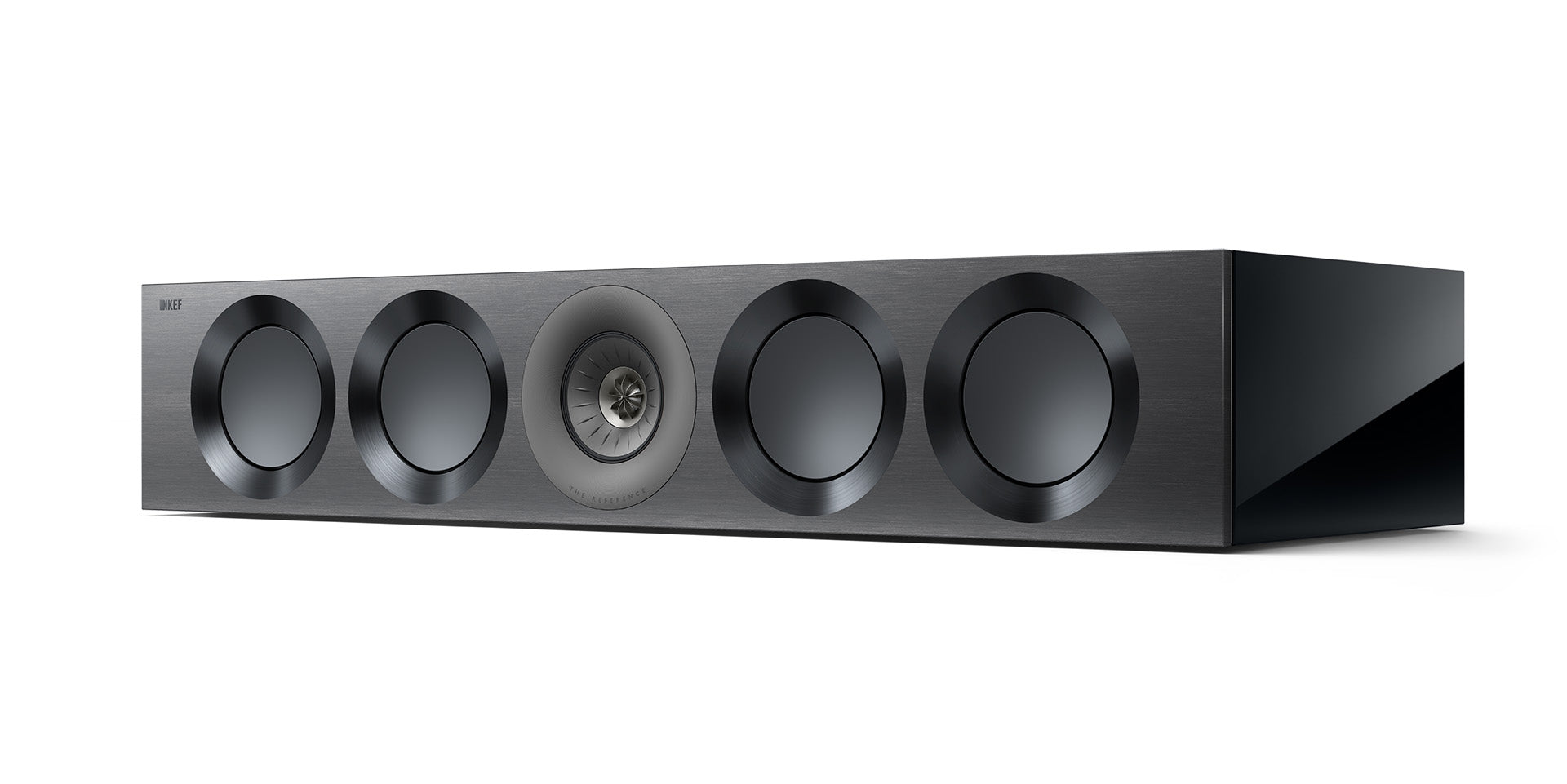

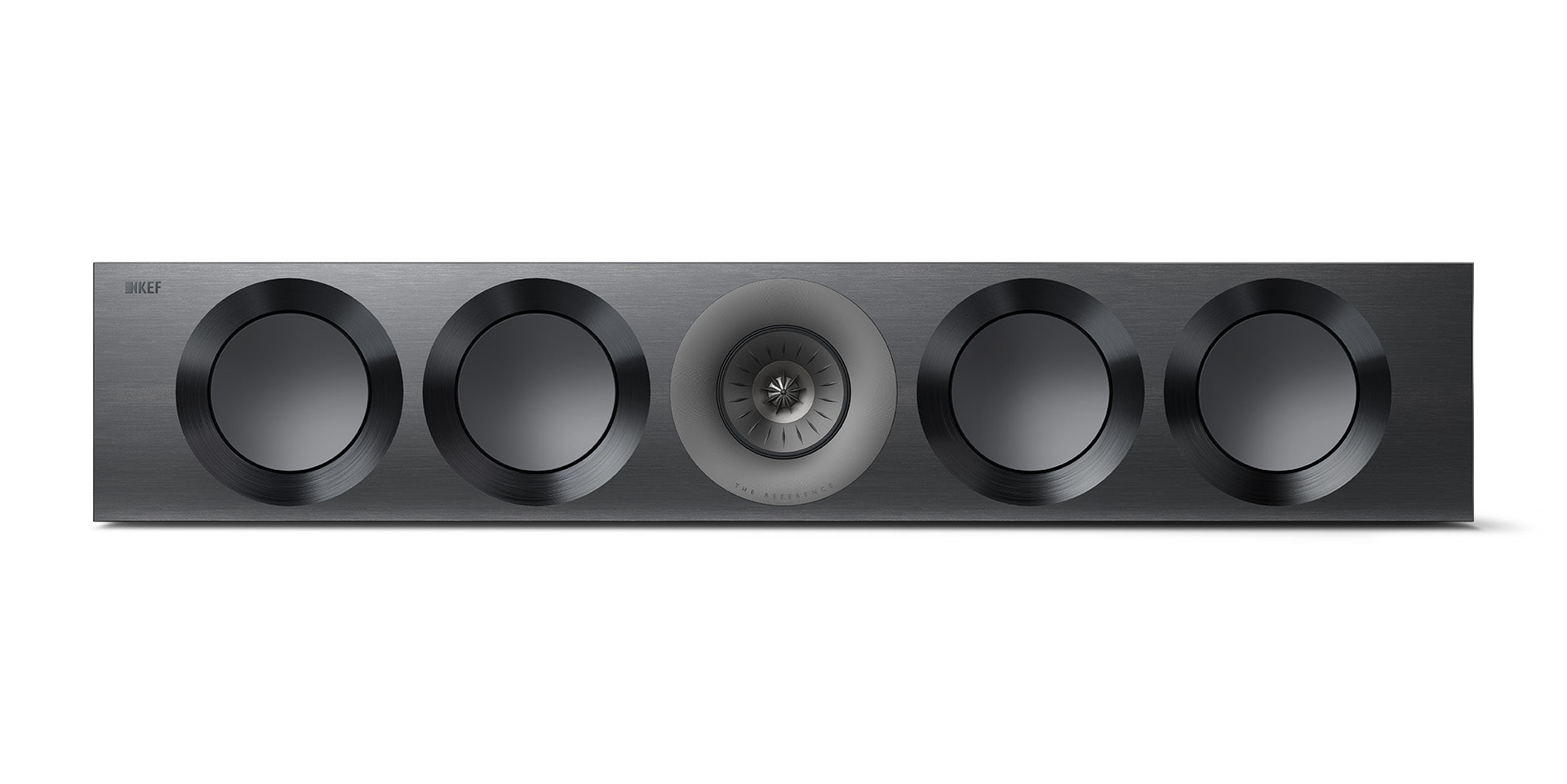

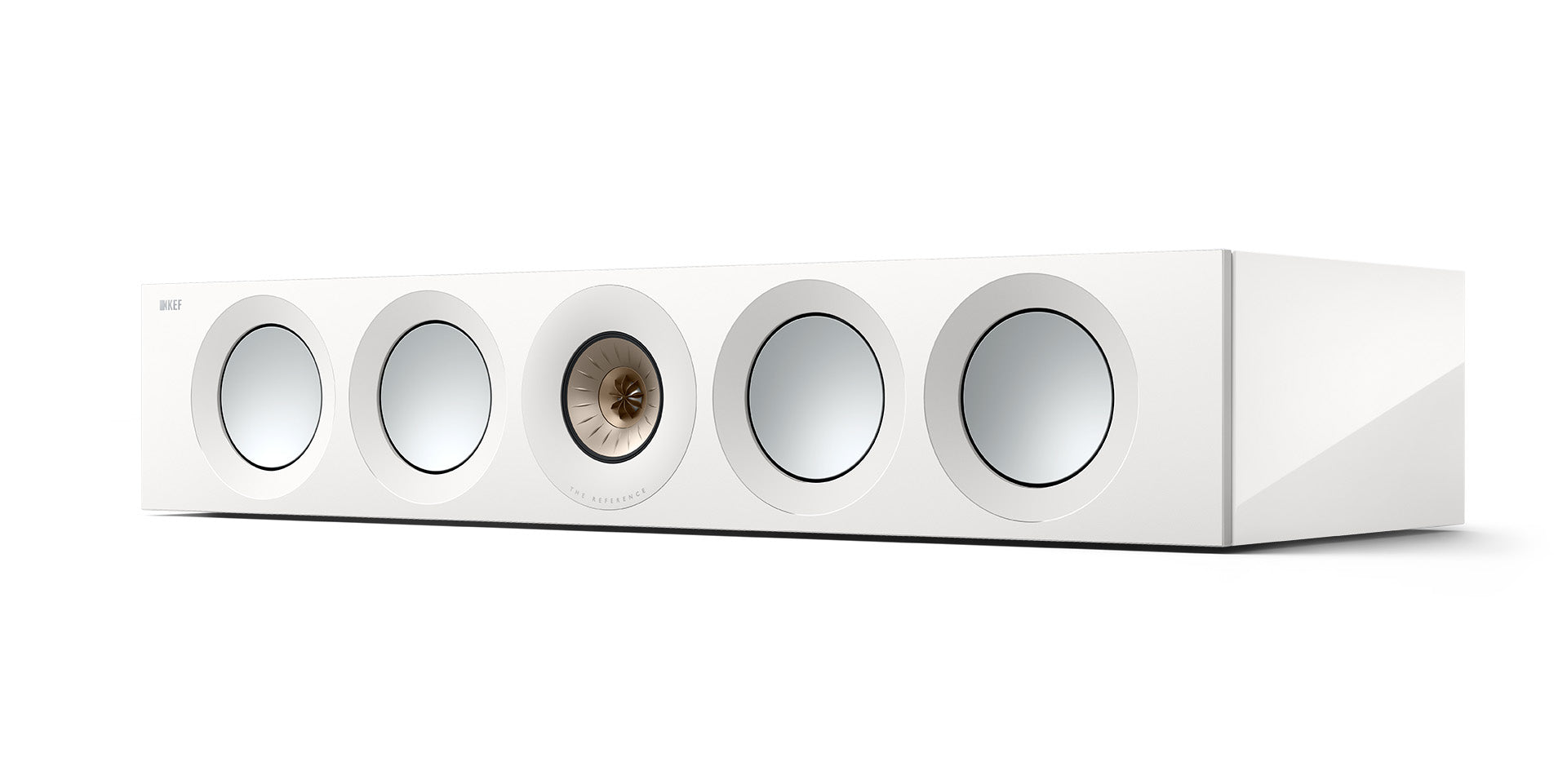

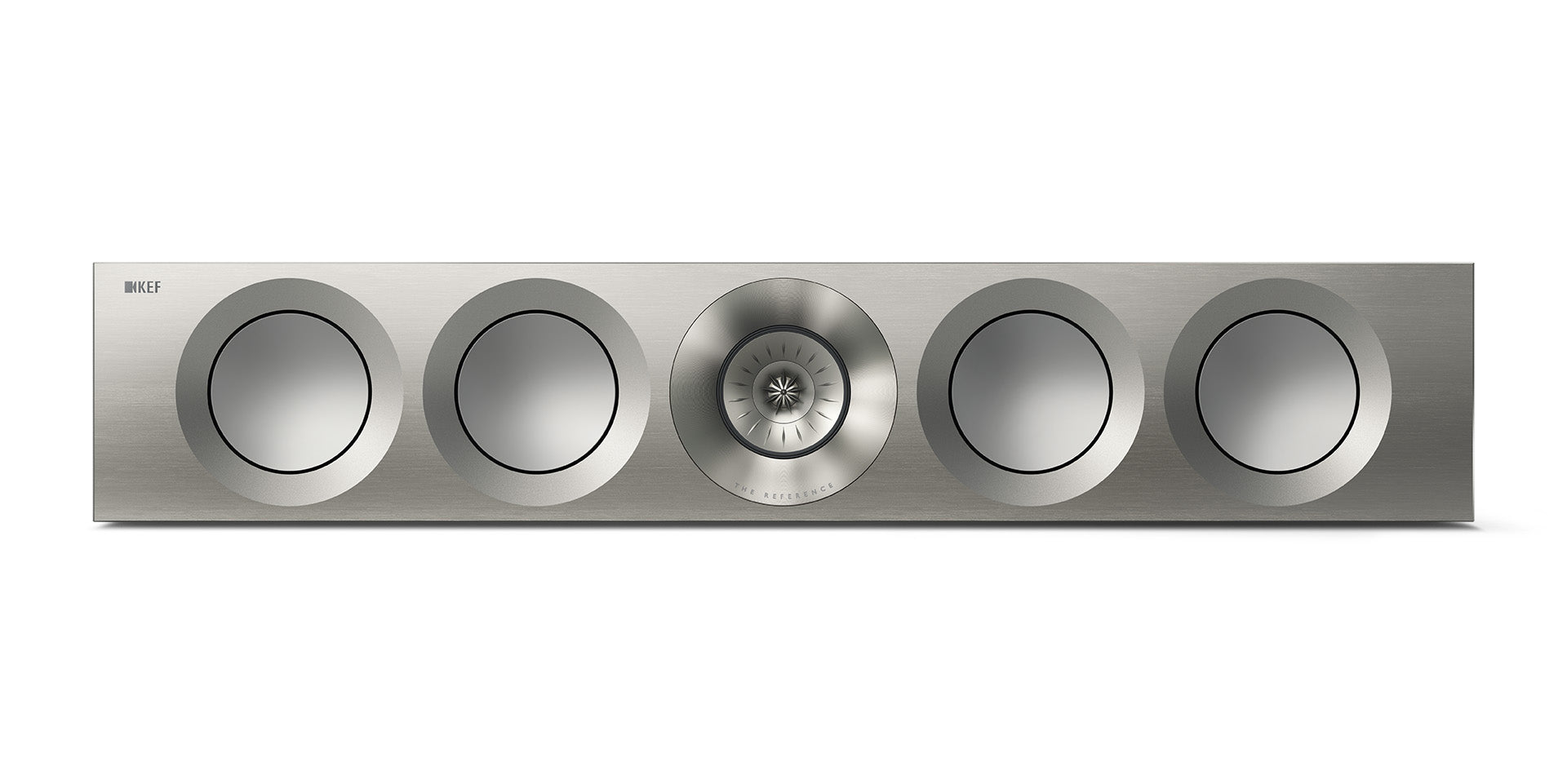

    KEF Reference 4C Meta

    The benchmark of centre loudspeakers



    For movie lovers looking for total immersion, Reference 4 Meta is the last word in absolute quality. Featuring four bass drivers and 12th generation Uni-Q® driver array with MAT™, this centre speaker (can be used as Left-Centre-Right speaker) is a revelation for clarity, detail and emotional depth.



    KEF's Reference 4c Meta combines breath-taking accuracy with spatial precision, if you want the cinematic experience look no further.

    Spatially precise, stunningly clear and with a dynamic range that takes rapid transitions in its stride the REFERENCE 4c is the ultimate choice for those wanting to get lost in the action.

    Revolutionary sound absorption with MAT

    A truly revolutionary tool in the KEF acoustic armoury, Metamaterial Absorption Technology (MAT) is a highly complex maze-like structure, where each of the intricate channels efficiently absorbs a specific frequency.

    When combined, the channels act as an acoustic black hole, absorbing 99% of the unwanted sound that comes from the rear of the tweeter, eliminating the resulting distortion and providing a purer, more natural acoustic performance.

    A result of joint development with the Acoustic Metamaterials Group, using MAT breaks completely new ground in loudspeaker design, and once again demonstrates KEF’s unrelenting passion for developing new technologies to improve your listening experience. Metamaterials are specially developed structures that use existing materials in such a way that they exhibit new, desirable properties that are simply not found in naturally occurring substances.

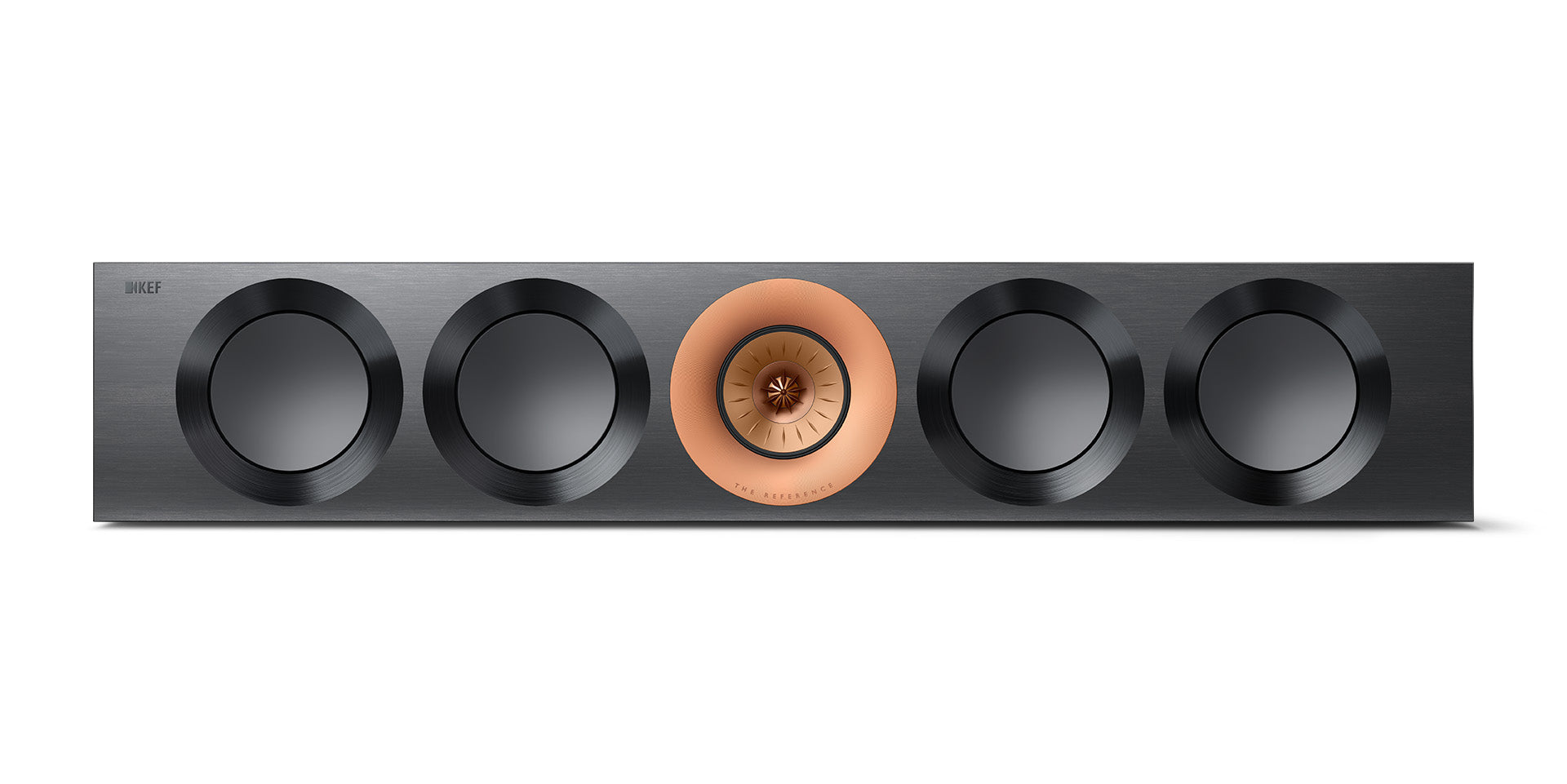

    12th Generation Uni-Q with MAT™ delivers

    The 12th generation Uni-Q with MAT in The Reference is a bespoke driver array engineered to deliver pristine performance across this exceptional range of loudspeakers. It’s the result of decades of accumulated in-house knowledge and the application of cutting-edge simulation and analysis tools. The developments are many and all play a part in The Reference’s pristine performance.

    As a starting point, KEF engineers re-engineered the tweeter gap damper to maximise the space at the back of the tweeter for the new metamaterial absorber. Optimising the cavity shape and strategically placing two rings of porous material effectively tame the resonances and imperfections, thus greatly improving detail and clarity.

    A new ultra-low distortion midrange motor design uses a copper ring embedded into the motor gap to minimise inductance and variation of inductance with coil position. This lowers the midrange THD and reduces thermal compression, leading to improved efficiency.

    The Uni-Q driver array is fully decoupled to prevent unwanted vibrations from muddying the sound. A new flexible decoupling chassis is designed to reduce vibration and remove coloration. It ensures that any vibration generated by the mid and high-frequency motor system is not transmitted to the loudspeaker cabinet.

    SPECIFICATION +

    WEIGHT

    45.2kg (99.6lbs)



    H X W X D WITH GRILLE AND TERMINAL

    H x W x D with grille, terminal & plinth :
    205 x 1090 x 470 mm (8.1 x 42.9 x 18.5 in.)



    DESIGN

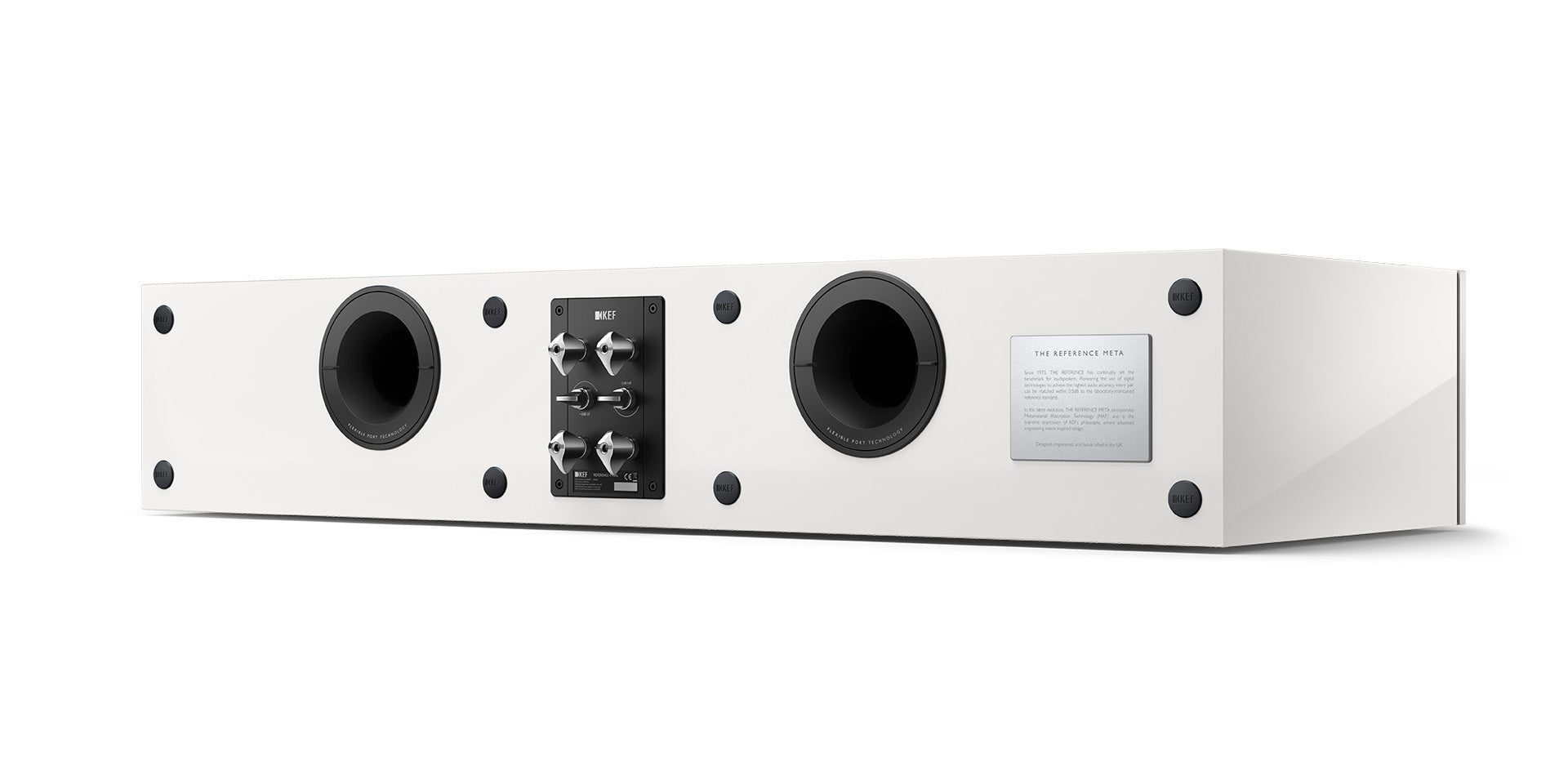

    Three-way bass reflex



    UNIT MEASUREMENT

    Piece



    FREQUENCY RANGE

    Typical in room bass response: 33Hz (-6dB)
    Free Field - Short port: 43Hz - 45kHz (-6dB)
    Free Field - Long port: 40Hz - 45kHz (-6dB)



    FREQUENCY RESPONSE

    48Hz - 35kHz (±3dB)

    HARMONIC DISTORTION

    2nd & 3rd harmonics (90dB, 1m)
    <0.5% 40Hz – 100kHz
    <0.2% 200Hz – 10kHz



    MAXIMUM OUTPUT

    116dB (peak sound pressure level at 1m with pink noise)



    AMPLIFIER CLASS

    50-400 W



    SENSITIVITY

    90dB (2.83V/1m)



    NOMINAL IMPEDANCE

    8 Ohms (min.3.2Ohms)


    DRIVE UNITS

    Uni-Q driver array:
    HF: 25mm (1in.) vented aluminium dome
    MF: 125mm (5in.) aluminium
    Bass units
    LF: 4 x165mm (6.5in.) aluminium



    CROSSOVER FREQUENCIES

    350Hz, 2.8kHz
