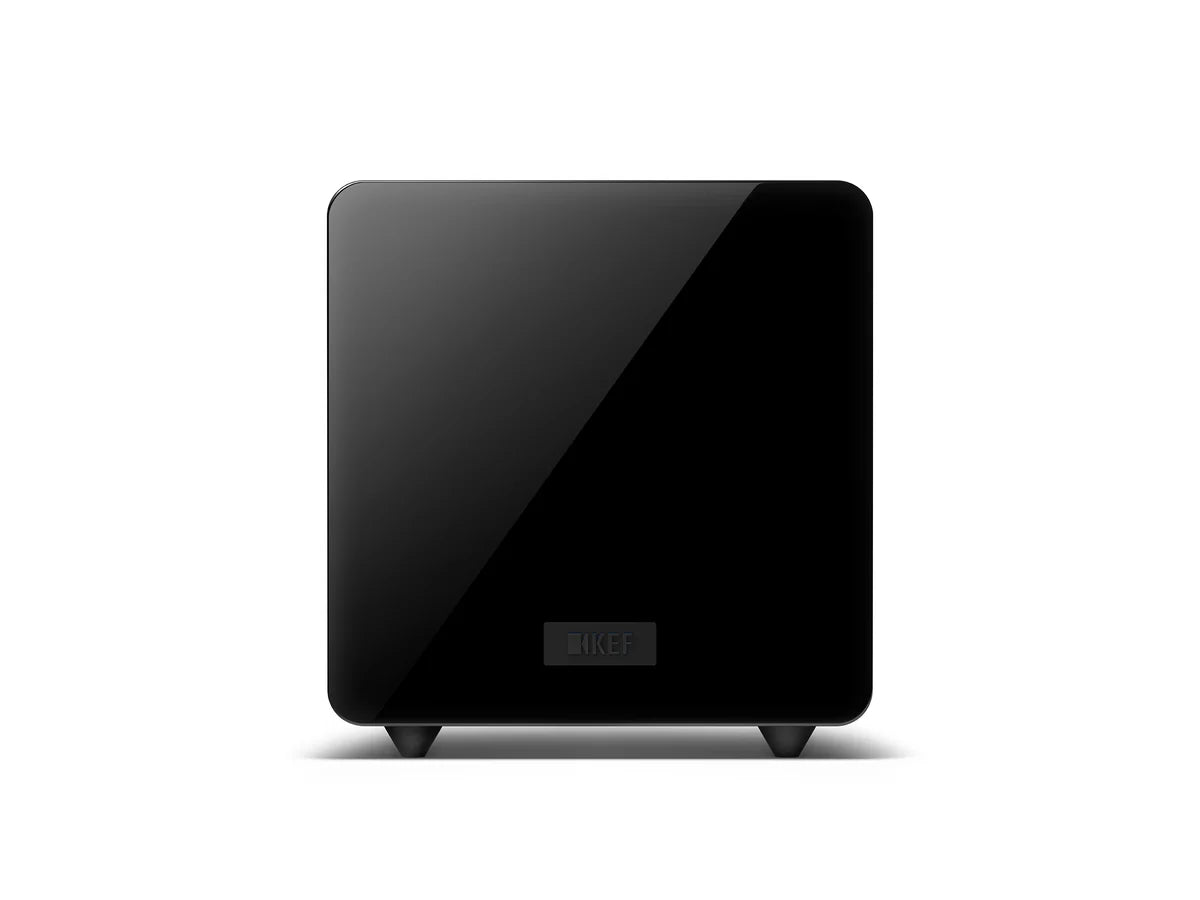

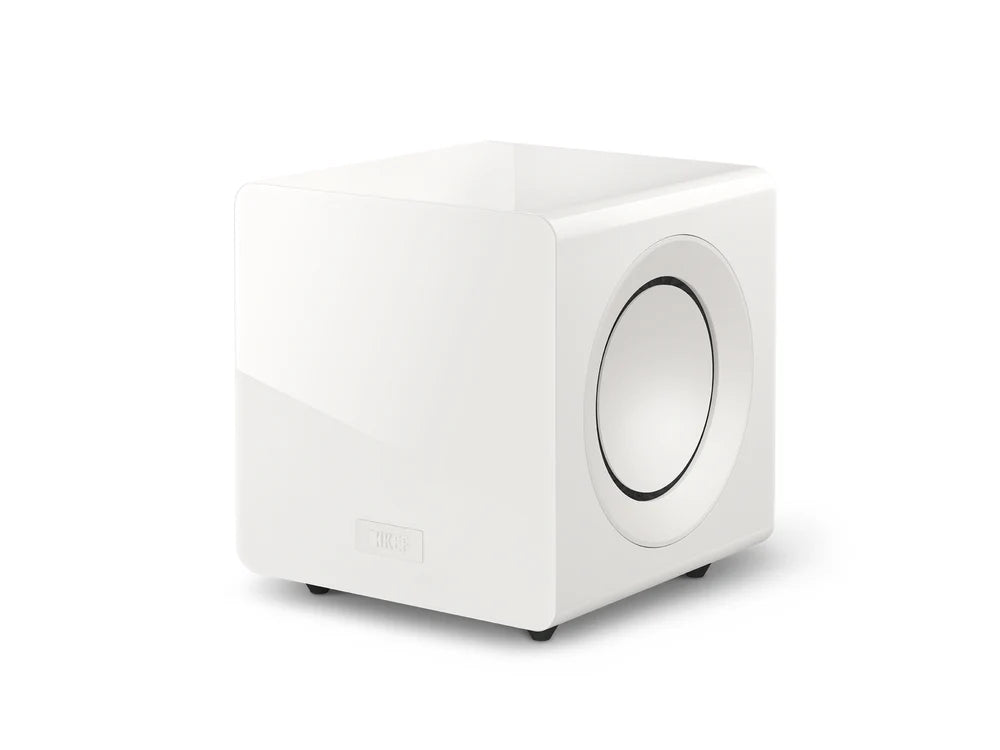

KEF KC92 Subwoofer

The KEF KC92 is the senior subwoofer in KEF's dedicated bass system range — a force-cancelling, sealed-cabinet design that redefines what is achievable from a compact subwoofer enclosure, delivering a maximum output of 110 dB and a frequency response that reaches 11 Hz at its lower boundary, from a cabinet measuring just 352.5 × 330 × 360.5 mm. Powered by 1,000W of dedicated Class D amplification — two channels of 500W, one per driver — and governed by KEF's Music Integrity Engine DSP platform, the KC92 is the correct choice for larger rooms, more demanding cinema systems, and listeners who require deep, controlled, accurate bass reproduction that keeps pace with the speed and resolution of the main speakers it supports.

Force-Cancelling Driver Array

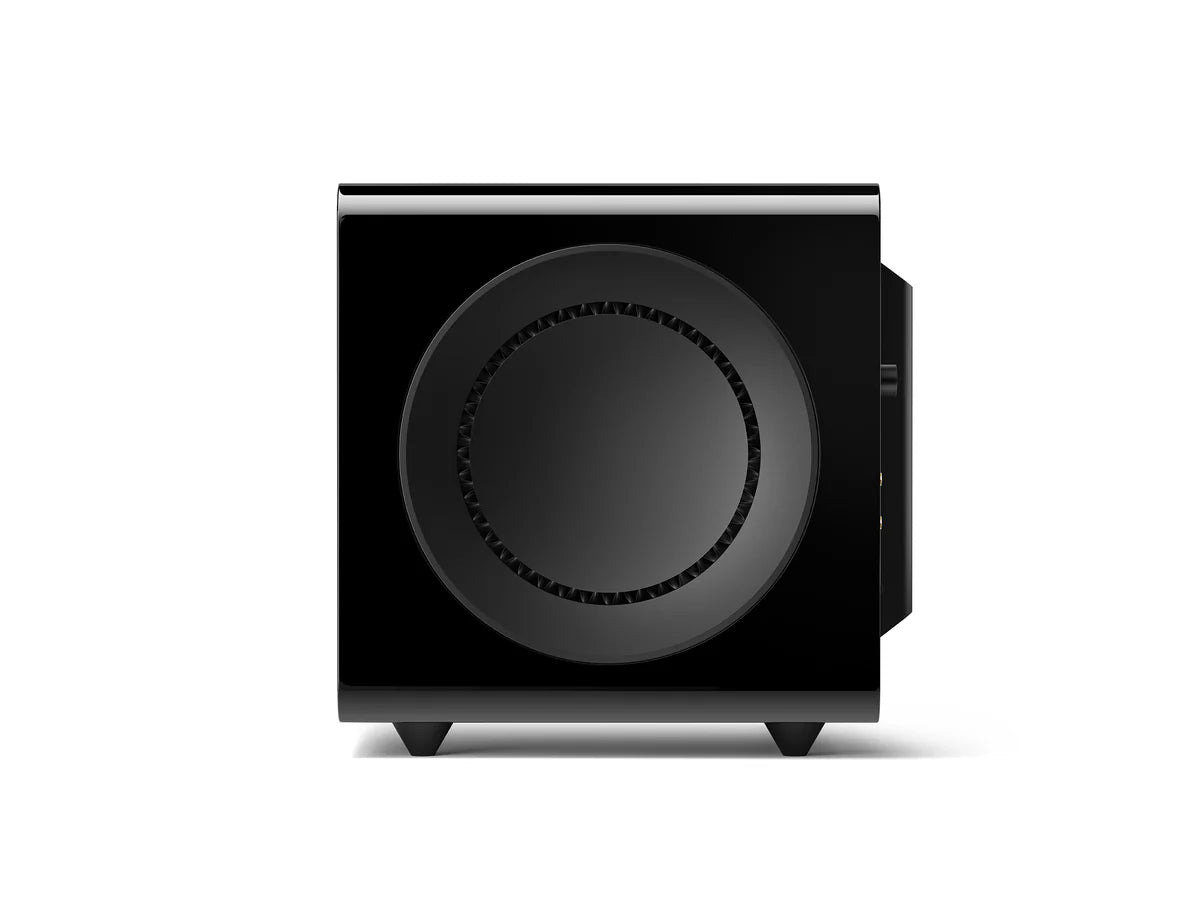

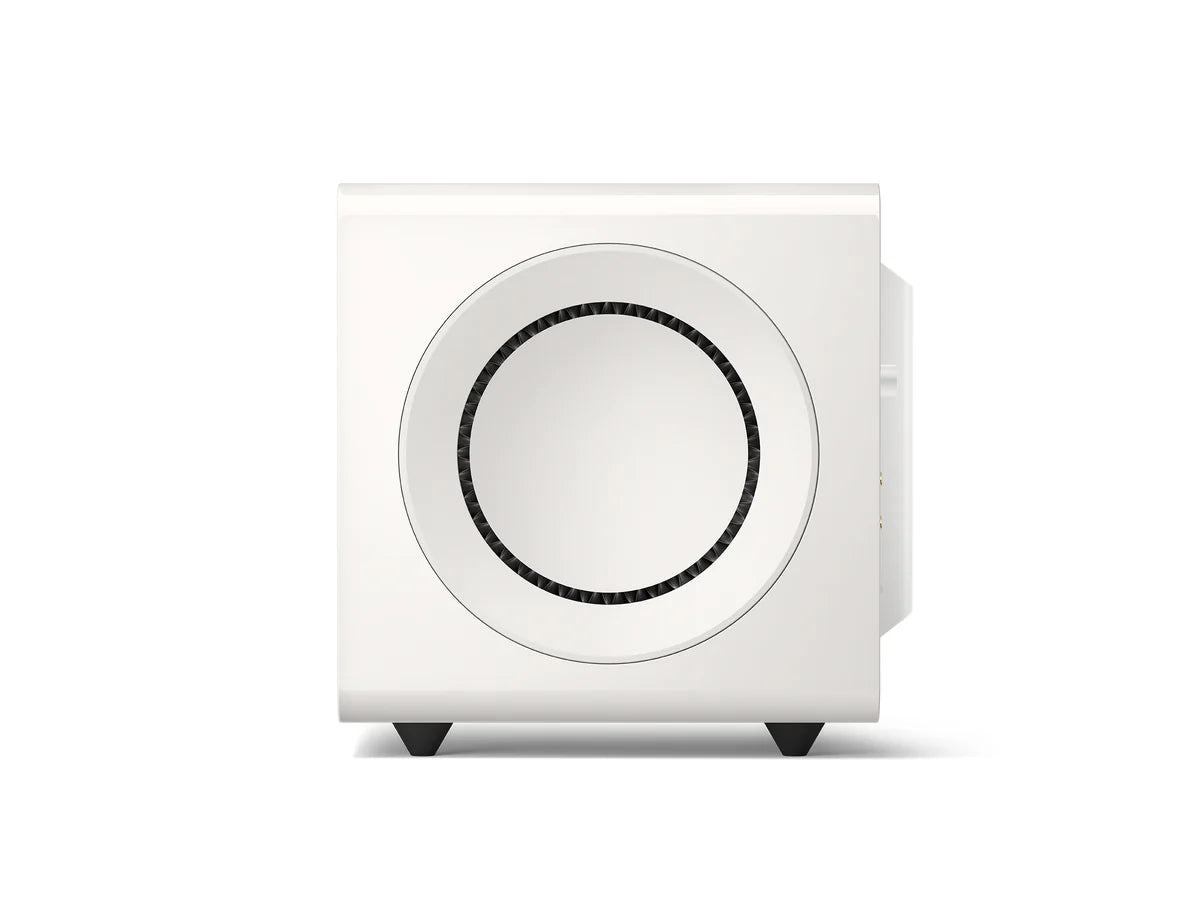

The KC92 is built around two 9-inch woofers mounted back-to-back within a sealed acoustic suspension cabinet — a hybrid aluminium and paper cone construction on each driver, with an oversized motor system and a vented voice coil design for sustained high-excursion performance. Mounting the drivers in direct opposition means that the equal and opposite mechanical forces generated by each driver cancel those of its partner — the cabinet experiences no net reactive force, regardless of output level. This eliminates the vibration that would otherwise travel through the floor or supporting furniture and introduce coloration into the system's overall presentation. It also provides the mechanical stability that allows the KC92 to reach 110 dB maximum SPL from a sealed enclosure of this size — a combination of output and compactness that force-cancellation uniquely enables.

Each driver is equipped with KEF's P-Flex Surround — a patent-pending, origami-inspired pleated surround design that maintains consistent performance and structural integrity at the extreme excursion levels that deep bass reproduction demands. Conventional surrounds can deform under sustained high-pressure operation at the limits of their travel; P-Flex is engineered specifically to resist deformation throughout the KC92's full dynamic range.

Music Integrity Engine

KEF's Music Integrity Engine — MIE — is the proprietary DSP architecture that coordinates every aspect of the KC92's performance. The MIE manages crossover operation, bass extension, dynamic control, and room placement equalisation in a single unified processing layer rather than applying corrective DSP after the signal has already been processed — ensuring that every adjustment is made with complete knowledge of the system's operating state. The variable low-pass filter operates from 40 to 140 Hz at 24 dB per octave, with an LFE input for dedicated cinema subwoofer channel processing.

iBX — Intelligent Bass Extension — is integrated within the MIE architecture. iBX continuously monitors the drivers in real time, analysing the input signal to allow the KC92 to play louder and maintain dynamic composure at any listening level without over-excursion. The result is a subwoofer that can sustain deep bass at high output levels with a consistency and control that conventional bass reflex subwoofers of equivalent or greater size cannot match — because the sealed, force-cancelling design and real-time driver monitoring work together as an integrated system rather than as separate, independent components.

KEF SmartConnect automatically optimises gain for mono or stereo input — ensuring that the KC92 performs correctly regardless of whether it is connected as a single mono subwoofer or as one of a stereo or dual-subwoofer pair.

Room Placement and Control

Five room placement EQ presets — Room, Wall, Corner, Cabinet, and Apartment — adjust the KC92's response to account for boundary reinforcement at different positions. Each preset applies a tuned filter profile that compensates for the specific acoustic effect of the relevant placement scenario — not a crude bass cut, but a precisely calibrated correction that allows the KC92 to perform correctly regardless of where the constraints of a room demand it be placed.

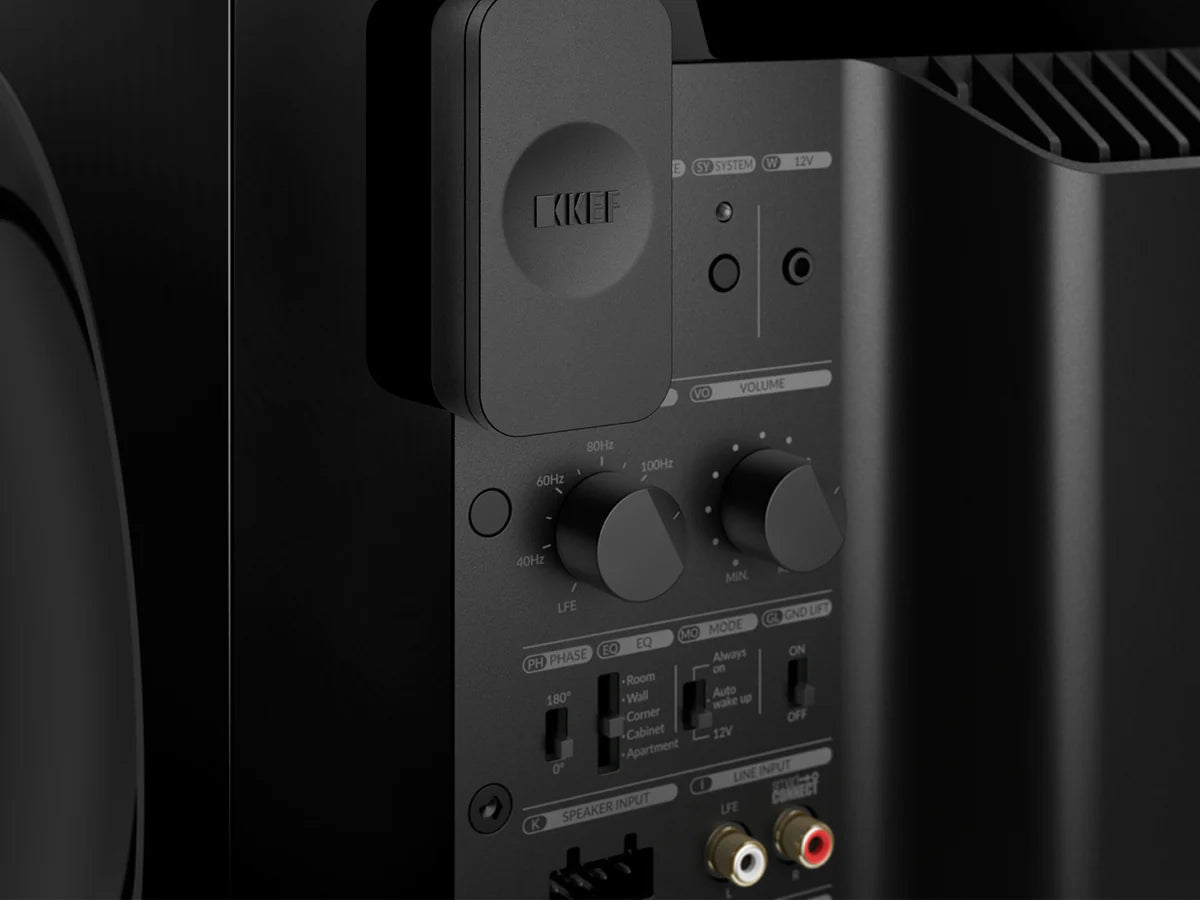

Physical controls include a level control, phase switch (0° / 180°), variable low-pass filter, ground lift, and power mode selection — Always On, Auto music sense, or 12V Trigger wake-up. A USB-C service port is provided for firmware updates.

Connectivity

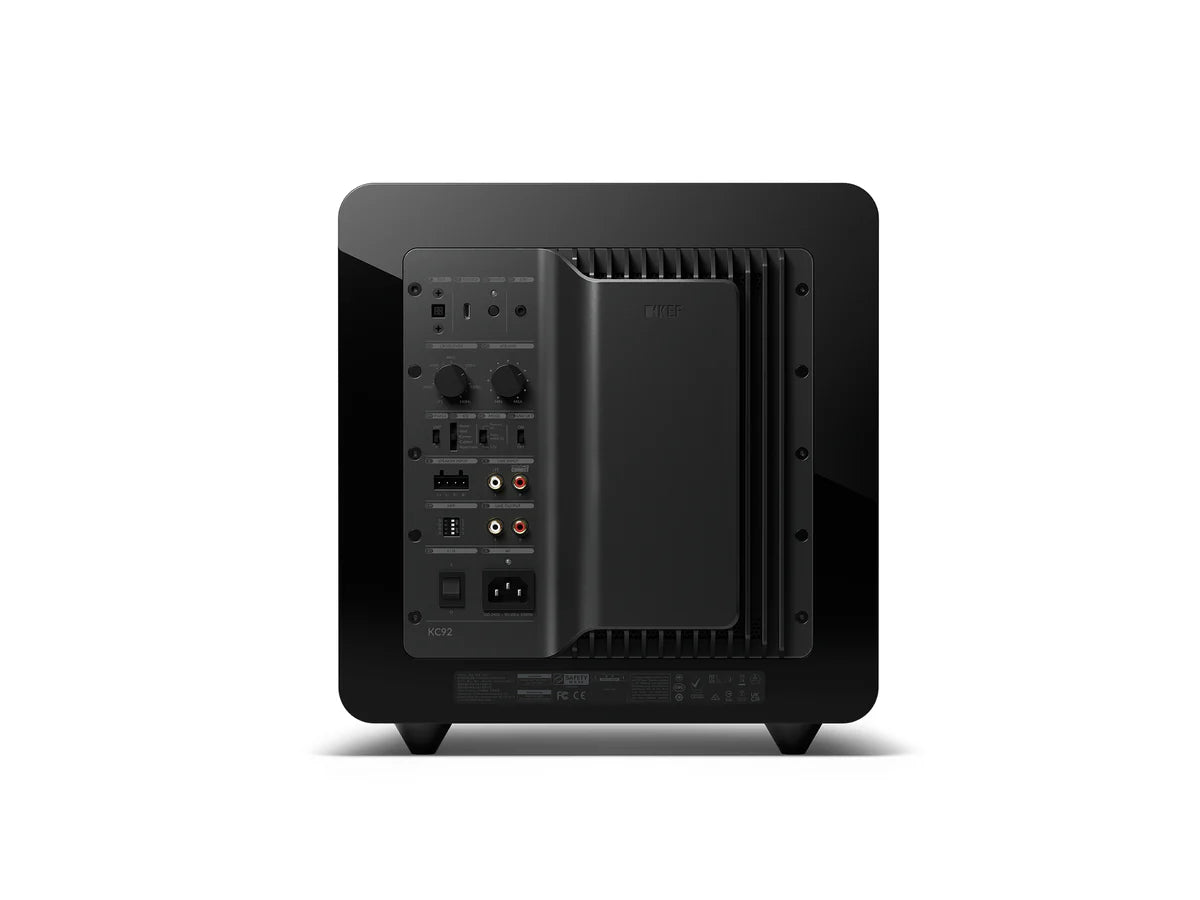

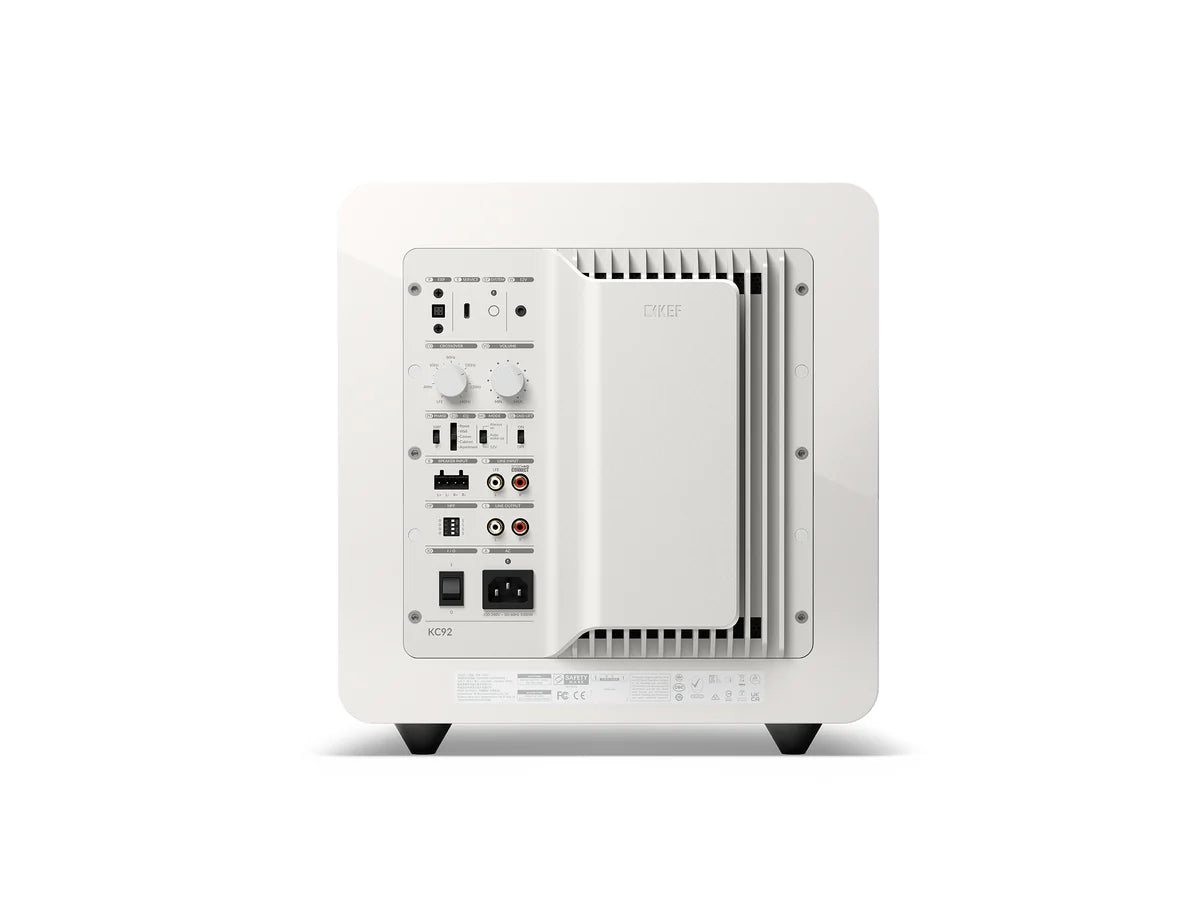

Connection options are comprehensive: stereo or dual-mono unbalanced RCA phono inputs, speaker-level inputs via the supplied Euroblock connector, a stereo or dual-mono RCA line output with built-in variable High Pass Filter (40–120 Hz), a 12V trigger input, and an expansion port for the optional KW1 Wireless Subwoofer Adapter. The KW1 allows the KC92 to operate without a signal cable from the amplifier — practical when the acoustically correct placement and the nearest equipment rack are not in the same part of the room. The KEF KC62 — KEF's smaller force-cancelling subwoofer — shares the same wireless ecosystem, making a dual-subwoofer wireless configuration entirely straightforward. For those wishing to maximise bass output further still, the KSK92 Stacking Kit allows up to three KC92 units to be stacked together.

Technical Specifications

Who Is It For?

The KC92 is the right choice for larger listening rooms where the KEF KC62 would be working at its limits, or for home cinema installations where sustained high output at genuinely deep frequencies is a non-negotiable requirement. It also suits music listeners who need a subwoofer that keeps pace with fast, complex bass lines without smearing or dynamic compression — the force-cancelling design, sealed cabinet, and Music Integrity Engine combine to give it the speed, control, and composure that ported subwoofers of similar or greater size typically cannot match. For those building a complete KEF system, the KC92 pairs naturally with the KEF R11 Meta and KEF R7 Meta floorstanders, and represents the correct bass foundation for any system anchored by the KEF Blade Meta in a room that demands the very last word in low-frequency performance.
