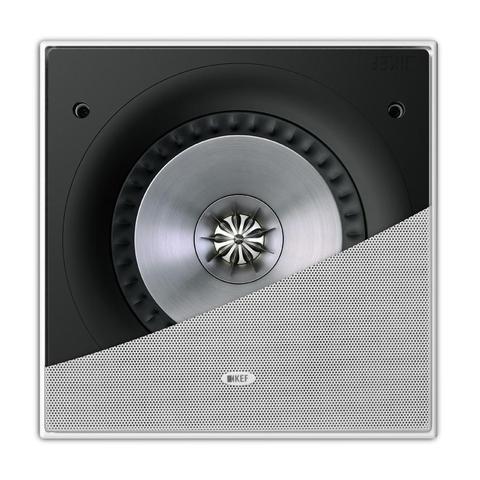

KEF Ci200RS-THX

The KEF Ci200RS-THX is a THX Ultra2 certified in-wall loudspeaker from KEF's Ci-R Series — a range that brings the acoustic engineering principles of KEF's Reference floorstanding loudspeakers to the demands of custom installation. The Ci200RS-THX takes its name from, and its acoustic character directly from, the KEF R Series — and it delivers that heritage in a flush-wall format designed for LCR and surround roles in the most ambitious Extreme Home Theatre installations. It is a loudspeaker that refuses the compromises ordinarily associated with architectural audio — combining the output capability and tonal accuracy of a traditional box speaker with a form factor that disappears entirely into the room.

Uni-Q Driver Array with Tangerine Waveguide

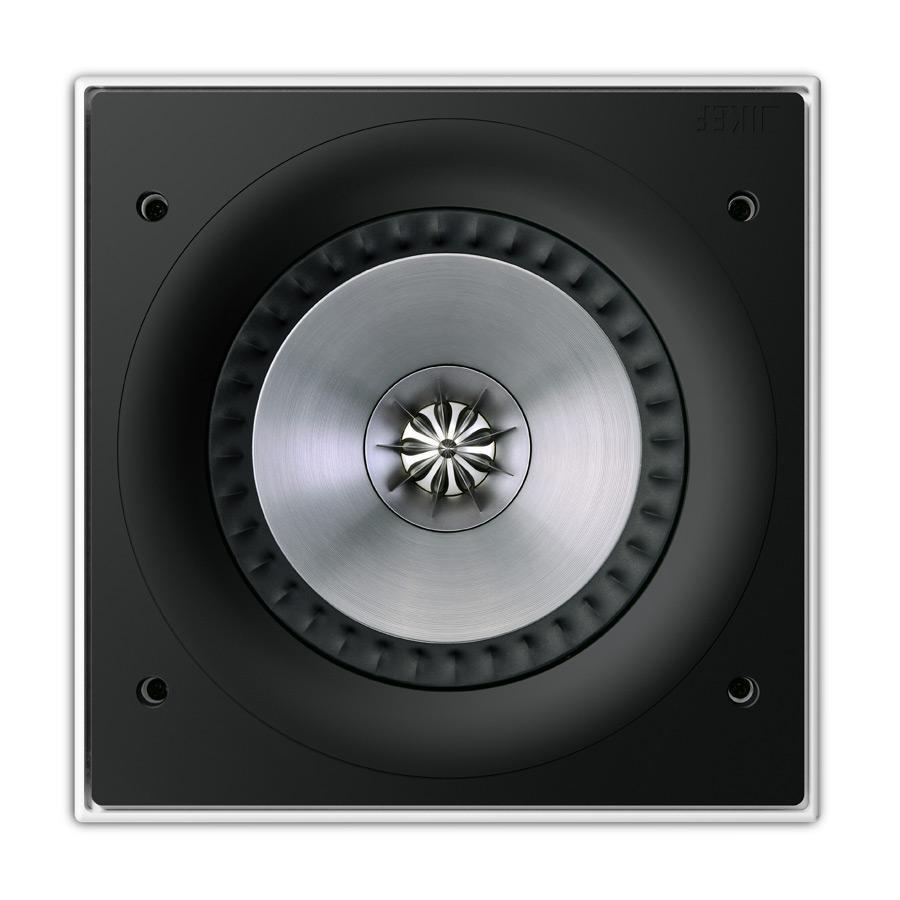

At the heart of the Ci200RS-THX sits KEF's Uni-Q driver array — a 38 mm vented aluminium dome tweeter mounted at the acoustic centre of a 200 mm woofer, forming a concentric point-source arrangement that ensures high and mid-range frequencies radiate from precisely the same point in space. This coincident geometry produces a soundstage of exceptional stability and width — a quality of particular importance in a wall-mounted loudspeaker, where the relationship between speaker and listener is fixed by the architecture of the room. KEF's patented tangerine waveguide manages high-frequency airflow across the dome, ensuring even and natural dispersion throughout the listening space and maintaining consistent tonal balance across a wide listening angle.

The tweeter's 39 mm voice coil is coupled to the vented aluminium dome, delivering the dynamic headroom and high-frequency extension — to 28 kHz — that a THX Ultra2 certified loudspeaker demands. The 200 mm woofer features a massive magnet assembly and Z-flex surround — a surround geometry engineered to maximise linear excursion whilst minimising distortion — providing the low-frequency authority to reach 33 Hz in open-backed installation conditions and the dynamic capability to generate up to 106 dB peak SPL at one metre.

THX Ultra2 Certification

The Ci200RS-THX carries THX Ultra2 certification — the highest standard of THX certification available for home cinema loudspeakers. THX Ultra2 certification demands that a loudspeaker meet stringent performance criteria across frequency response, output capability, imaging quality, and distortion — standards derived from the professional studio monitoring environment in which film soundtracks are finalised. A THX Ultra2 certified system recreates the tonal balance of the filmmaker's final mix in the listening room with complete fidelity, ensuring that dialogue is natural and intelligible, that action sequences carry genuine impact, and that the full emotional intensity of the soundtrack is communicated without compromise. The Ci200RS-THX achieves this standard in a fully flush-wall installation — providing the best of both worlds: THX reference performance from a speaker that integrates seamlessly with any room décor.

IP64 Rating and Installation Flexibility

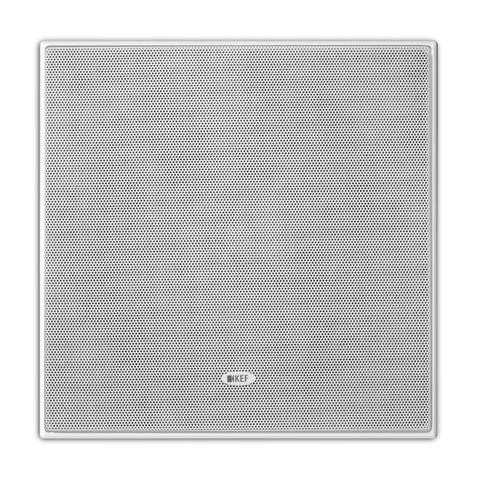

The Ci200RS-THX carries an IP64 rating — certified dust-tight and resistant to water splashing from any direction. This rating extends the Ci200RS-THX's application beyond the dedicated cinema room into environments where moisture resistance is a requirement, including covered outdoor areas and bathroom or kitchen installations where acoustic performance without compromise is demanded. The safety loop construction, magnetic grille, ultra-thin bezel, and paintable white grille ensure that installation is straightforward and the finished result is entirely discreet.

The optional RIF200S rough-in frame is available separately for new-build or renovation installations where the speaker position must be fixed before finishing work is complete.

Technical Specifications

Who Is It For?

The Ci200RS-THX is the correct choice for an Extreme Home Theatre installation where LCR or surround channels at THX Ultra2 standard are required in a fully flush-wall format — or wherever IP64-rated acoustic performance is needed beyond the dedicated cinema room. It integrates naturally within the Ci-R Series ecosystem alongside the KEF Ci3160RLb-THX in-wall subwoofer for fully architectural bass, and the KEF Ci200RR-THX for in-ceiling surround channels. For the ultimate front-stage performance in a custom installation, the KEF Ci5160REF-THX represents the pinnacle of KEF's architectural loudspeaker engineering. Those building a complete Ci-R Series system should also consider the KEF Ci3160RL-THX for front-stage in-wall channels.
