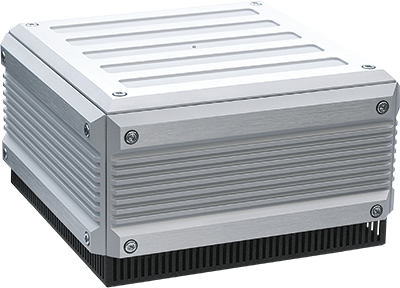

The new EVO3 Titan is a progression of IsoTek’s original multi-award winning design. Whilst utilising the unique Direct-Coupled© technology, the circuit has been radically updated. EVO3 Titan offers the ultimate high current/ power conditioner in the smallest form factor.
- Removes both Common Mode and Differential Mode mains noise.
- RFI reduction 82dB (50 ohms standard), down to 5Hz frequency range.
- Unique nine-stage conditioning network in a series parallel configuration, that delivers extremely low-impedance and high-current power. An increase of 20% Differential Mode and 600% Common Mode filtering compared to the original GII Titan. 50% of the 40A Super Titan circuit reconfigured to 20A.
- KERP© (Kirchoff’s Equal Resistance Path) ensures equal resistance and equal power delivery across all outlets.
- 112,500A of instantaneous protection, featuring IsoTek’s unique sequential protection system with earth fault protector.
- Internal wiring; solid core silver plated PCOCC with FEP virtually an air dielectric.
- Two independent outlets deliver 4,600W continuous power with 25,000W transient ability (supply permitting).
