    Innuos ZEN MK3 1TB

    £1,898.00
    Tax included. Shipping calculated at checkout.
    DESCRIPTION +

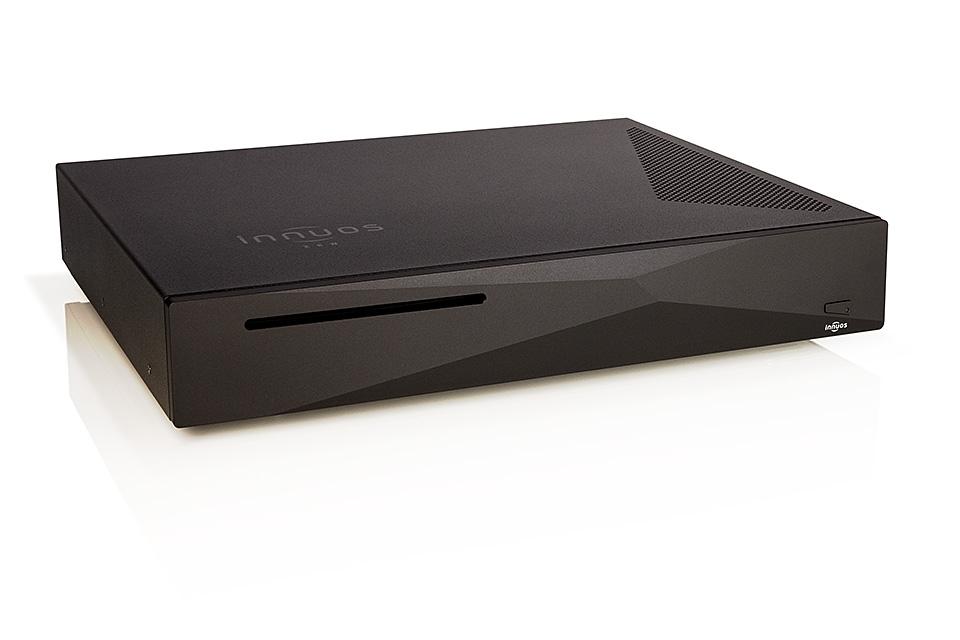

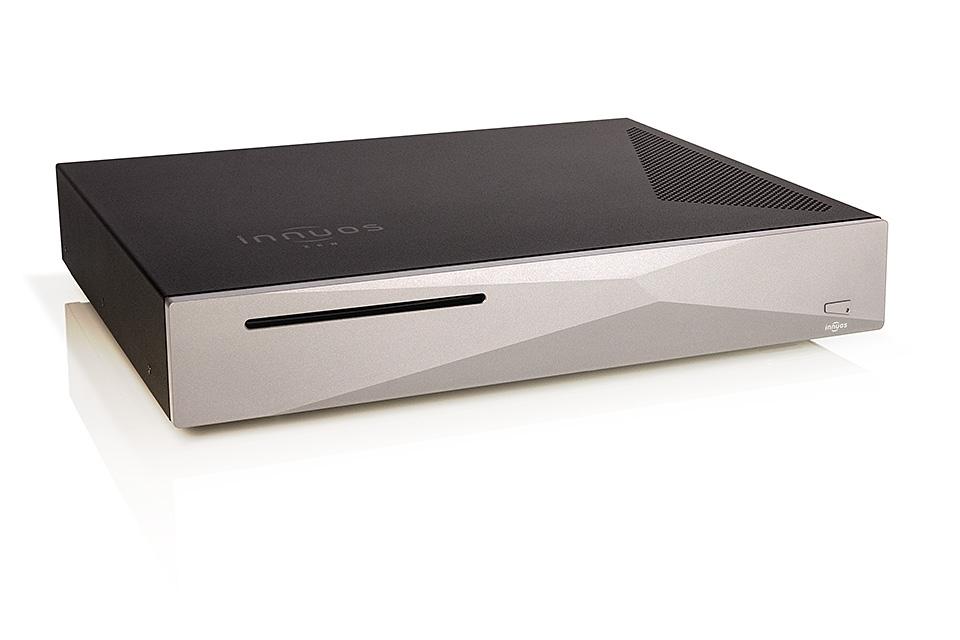

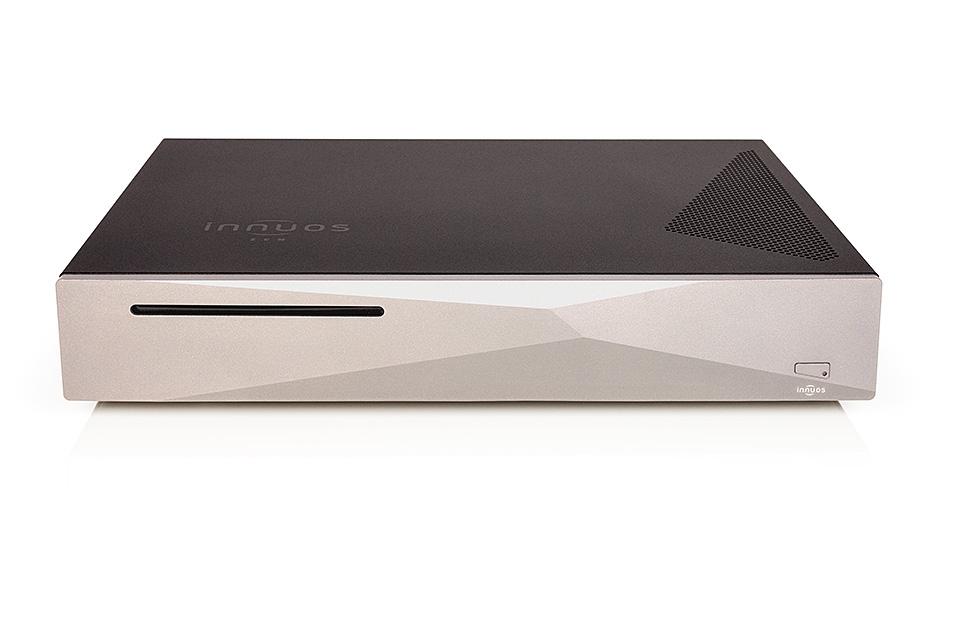

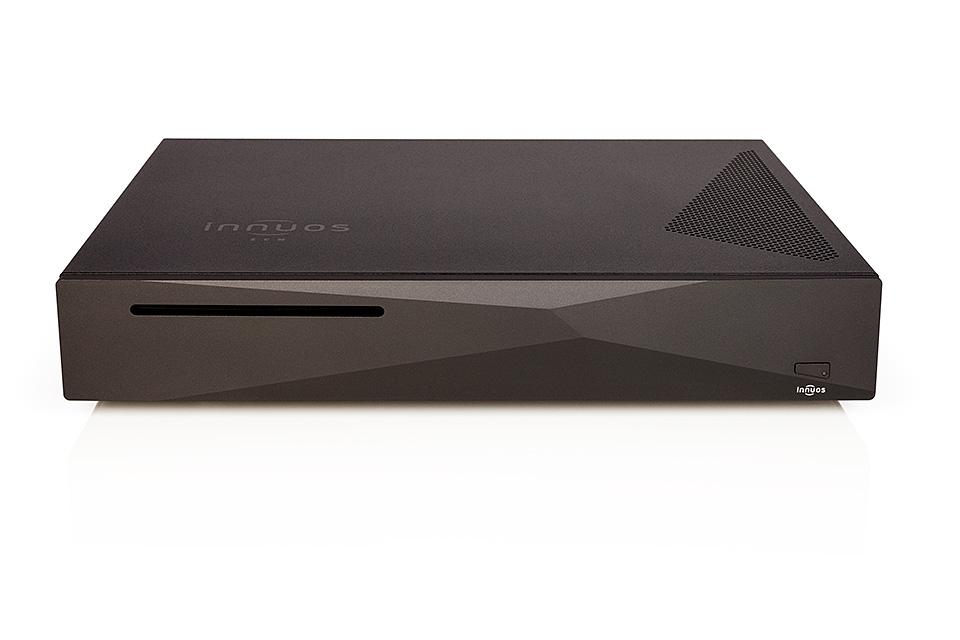

    Innuos Zen MK3 1TB

    The new ZEN Mk3 Music Server Series brings in exciting new improvements in sound quality based on trickle-down technology from our award-winning ZENith SE:

    • Custom motherboards with custom firmware on all servers
    • Analogue (RCA) and Digital outputs (Optical/Coaxial) to the ZENmini
    • New Dual-Linear PSU design for the ZEN and Triple-Linear PSU with Mundorf Caps for the ZENith, both designed by Dr. Sean Jacobs
    • Asymetrical Anti-Vibration feet for the ZEN and ZENith based on the ZENith SE

    Dual-Linear Power Supply
    The ZEN ensures a cleaner digital signal by reducing power noise. Through a dual-linear power supply, designed by Dr. Sean Jacobs, with ultra-low noise regulator design, Nichicon MUSE Capacitors and medical-grade mains filter, your music opens up and reveals new levels of realism.

    Custom Motherboard
    Our own custom-made Innuos motherboard is completely reworked for optimised audio performance. Sources of EMI have been removed and internal clocks optimised, resulting in a "blacker" music background and enhanced realism.

    Ultra-low Noise Streamer Output
    Dual-ethernet ports with isolation transformers provide an ultra-low noise network connection for your streamer, removing noise from the path and improving sound quality on all network audio.

    Anti-vibration Treatment
    New asymmetrical isolation feet derived from our award-winning ZENith SE plus added chassis treatment help to combat harmful vibration that affect a clean audio signal.

    In-Memory Playback
    Now with twice the memory of the Zen Mk2, the new Zen MK3 has 8GB RAM with 4GB dedicated memory. Music is loaded directly to memory for playback so that it doesn’t engage the hard drive, improving sound quality.

    FEATURES +
    • New Custom Motherboard with reduced EMI
    • Dual-Linear Power Supply with ultra-low noise
    • regulators and Nichicon MUSE Capacitors
    • Asymmetrical isolation feet inspired by the ZENith SE
    • Medical-Grade Mains Filter
    • Dual Ethernet Ports for LAN and Streamer
    • with dedicated isolation transformers
    • 8GB RAM with 4GB In-Memory playback
    • Ultra-low Noise USB Audio Output
    • New Generation Quad-core Intel CPU
    SPECIFICATION +



    AUDIO OUTPUTS

    Digital Output USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA
    Coaxial S/PDIF up to 24bit/192KHz
    Optical S/PDIF up to 24bit/192KHz
    Analogue Output RCA Analogue up to 24bit/192KHz


    CONNECTIVITY

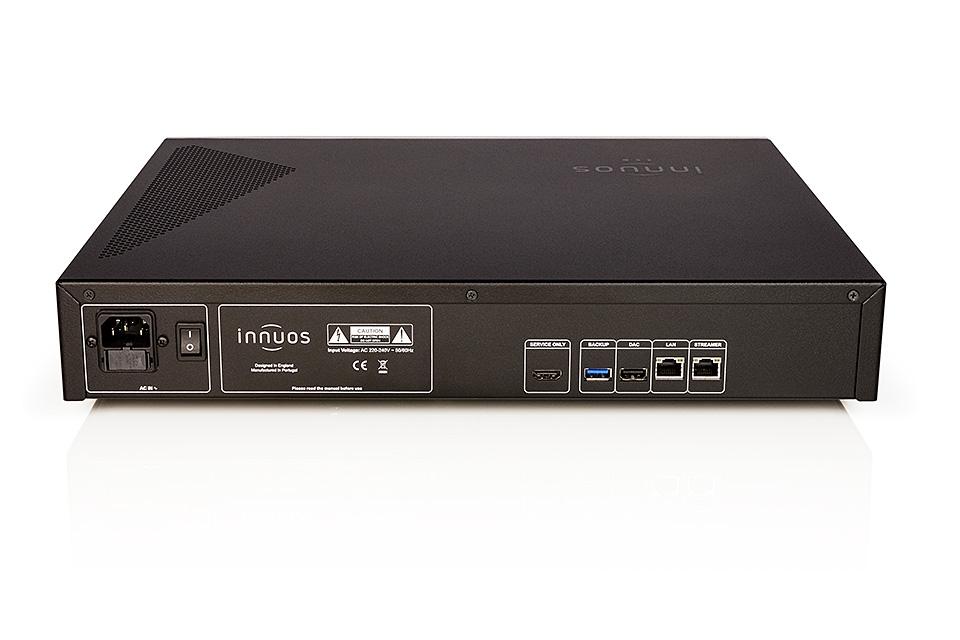

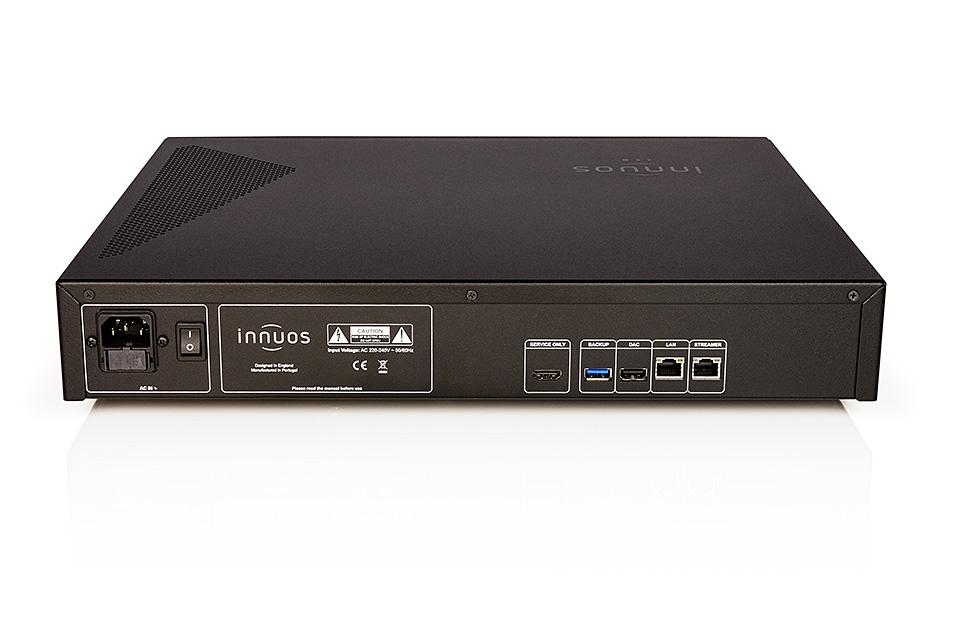

    Ethernet 2 x rear panel RJ45 – Bridged Gigabit Ethernet
    USB 4x USB 3.0


    FORMATS

    CD Formats Red Book
    Disc Compatibility CD, CD-R, CD-RW
    Audio format for stored CDs FLAC (zero compression), WAV
    Audio Formats Supported for streaming and playing WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA on supported DACs


    SAMPLE RATES

    Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs
    Bit Depths 16bit, 24bit, 32bit


    USER CONTROL INTERFACES

    Web Interface Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers
    Mobile App for iPhone/iPad, Android and Windows 10


    HARDWARE

    CD/DVD drive TEAC Slot-loading drive
    Hard Drive 1TB WD Red HDD
    CPU Intel Quad Core N4200
    Memory 4GB DDR3


    STREAMING AND CD STORAGE

    UPnP/DLNA Integrated UPnP Server
    Streaming Services Qobuz, Spotify Connect, Tidal, Internet Radio
    Roon Compatibility Roon Core and Roon Bridge
    Average CD Storage Time 5 minutes
    CD Metadata FreeDB, MusicBrainz, Discogs, GD3
    Compatible Music Systems Sonos Multi-room Wireless Music System
    DLNA/UPnP compatible streamers
    USB DACs complying to USB Audio Class 2
    USB DACs supporting DSD over DoP protocol
    Selected USB DACs supporting Native DSD


    REQUIREMENTS

    Network Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates
    Network router with at least one available ethernet port
    Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal
    Recommended App (USB Connection Only) iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)


    POWER

    Mains Supply Low ripple Power Adapter, 12V 5A, CEC Level V efficiency
    Power Consumption 10W when idle, 15W peak


    PHYSICAL

    Dimensions 74 x 214 x 240 mm (H x W x D)
    Weight 4,5 Kg
    In the box Innuos ZENmini Mk3 1TB Music Server
    AC/DC Power Adapter
    Mains Cable
    2m Ethernet Cable
    Getting Started leaflet
