Fyne Audio

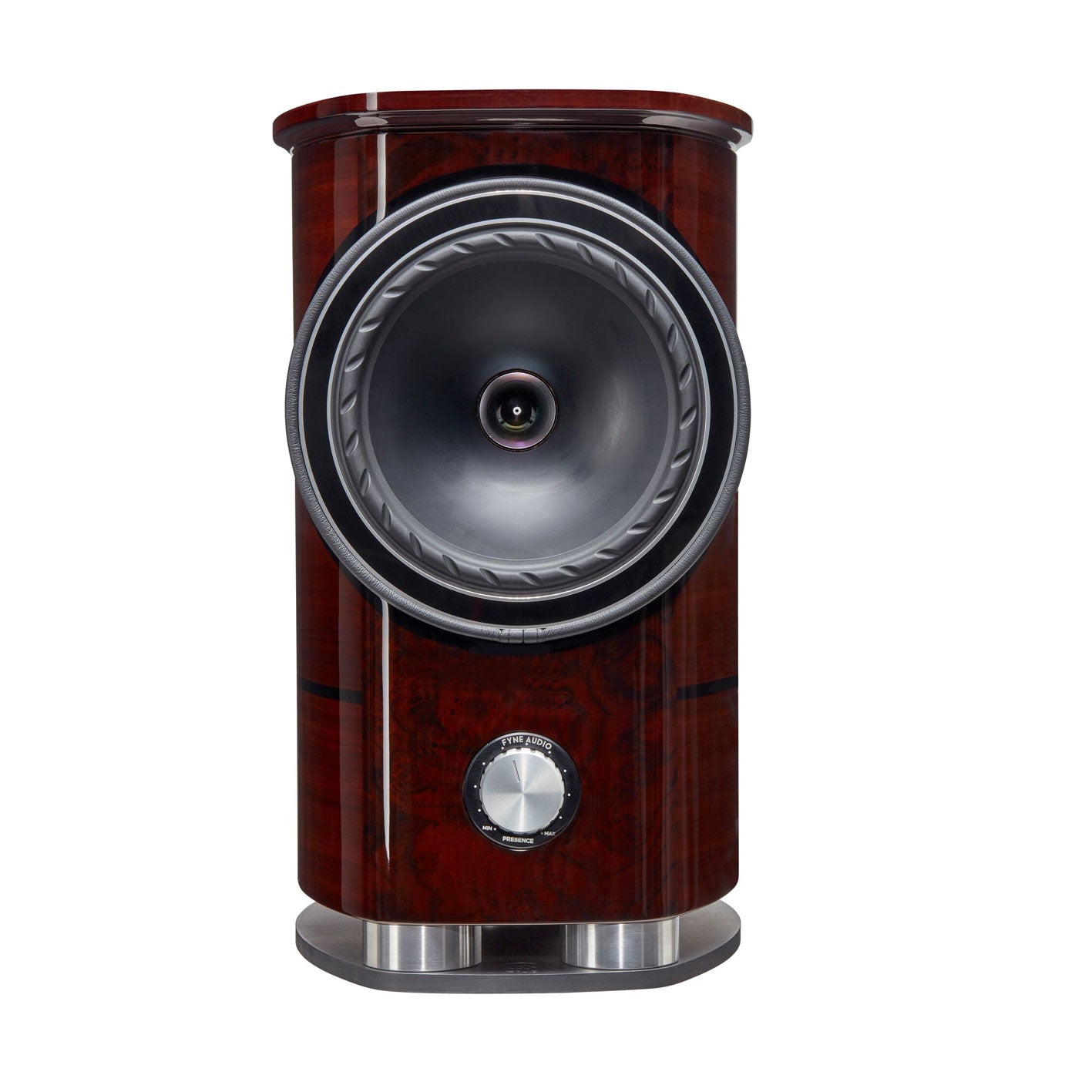

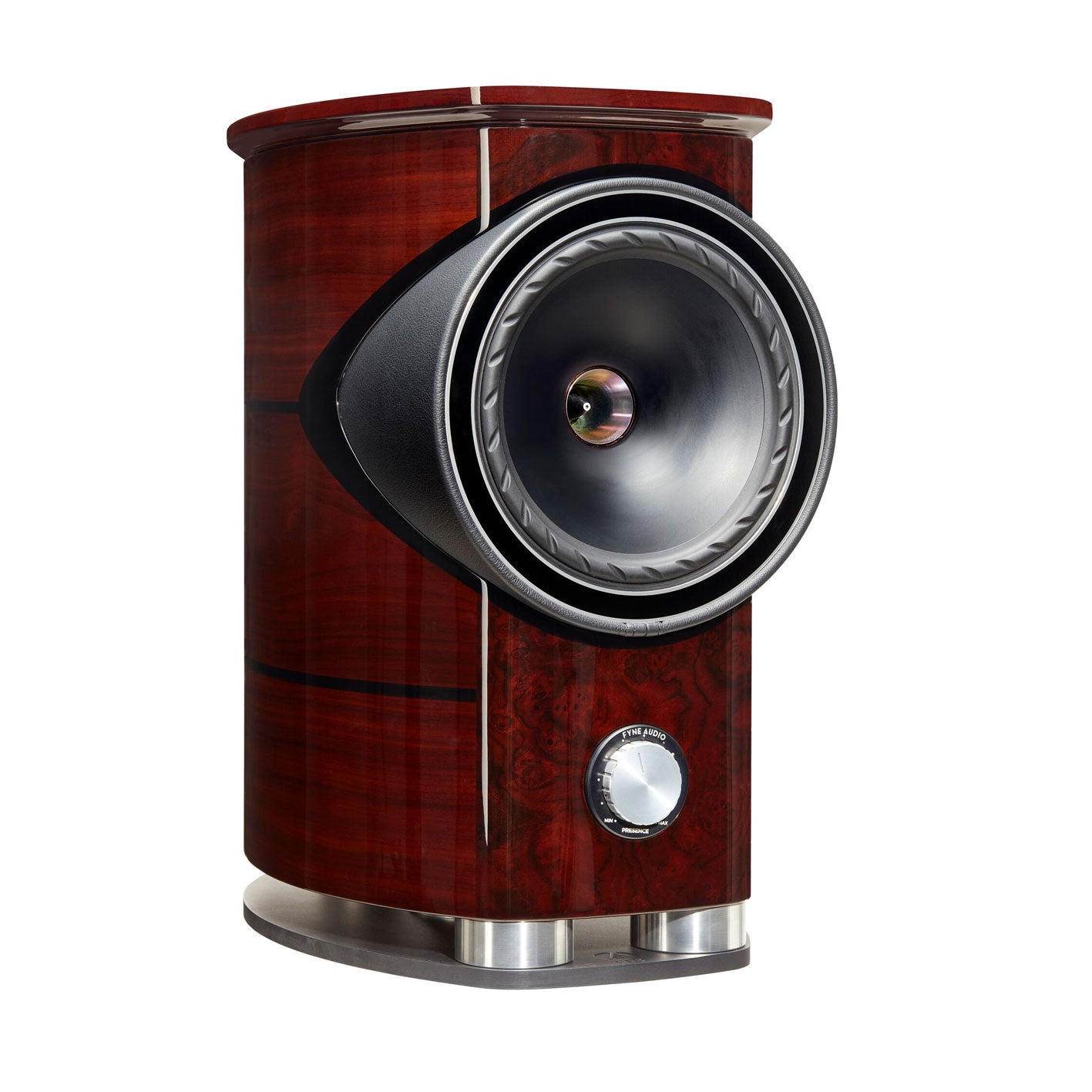

Fyne Audio F1-8
Fyne Audio F1-8
Available to Order
IsoFlare Point Source Driver
At the heart of the F1-8 is a 200mm IsoFlare driver: a single chassis combining a multi-fibre bass/midrange cone and a 25mm magnesium dome compression tweeter at the same acoustic point. The FyneFlute surround — Fyne Audio's own profiled surround geometry — works in combination with the ferrite magnet system to control pistonic movement and maintain consistency across the driver's operating range. The crossover hands over at 1.8kHz, using a second-order low-pass and first-order high-pass design with deep cryogenic treatment applied to the crossover components.
BassTrax Tractrix Diffuser
The F1-8 uses a downwards-firing port loaded with Fyne Audio's BassTrax Tractrix diffuser — a flared, mathematically derived port geometry that reduces turbulence and maintains bass extension into the low-to-mid thirties. The cabinet earns its right to sit on a dedicated stand rather than a shelf.
Presence Adjustment
The F1-8 includes a user-adjustable Presence control, spanning 2.5kHz to 5.0kHz at ±3dB.
Bi-Wiring and Finish
The crossover is configured for bi-wiring. The F1-8 is finished in Piano Gloss Walnut, and the cabinet accepts both the Fyne Audio S-Trax and Fyne Audio SuperTrax stands from Fyne Audio's range.
Technical Specifications
| System Type | 2 way, downwards firing port, with BassTrax Tractrix diffuser |
| Recommended amplifier power (Watt RMS) | 30 - 180 |
| Peak power handling (Watt) | 360 |
| Continuous power handling (Watt RMS) | 90 |
| Sensitivity (2.83 Volt @ 1m) | 91dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 33Hz - 34kHz |
| Drive unit complement | 1 x 200mm IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm magnesium dome compression tweeter, ferrite magnet system |
| Crossover frequency | 1.8kHz |
| Crossover type | Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Deep Cryogenically Treated |
| System adjustments | Presence (2.5kHz - 5.0kHz) +/- 3dB |
| Dimensions - HxWxD | 470 x 280 x 441mm (18.5 x 11.0 x 17.4") |
| Net Weight - Each | 15.2kg (33.5lbs) |
| Finishes | Piano Gloss Walnut |
| S-Trax Position (from cabinet front edge) | 69mm (2.7") |
| SuperTrax Position (from cabinet front edge) | 45mm (1.8") |
