Ortofon 2M Red Cartridge
Ortofon 2M Red Cartridge
Available to Order

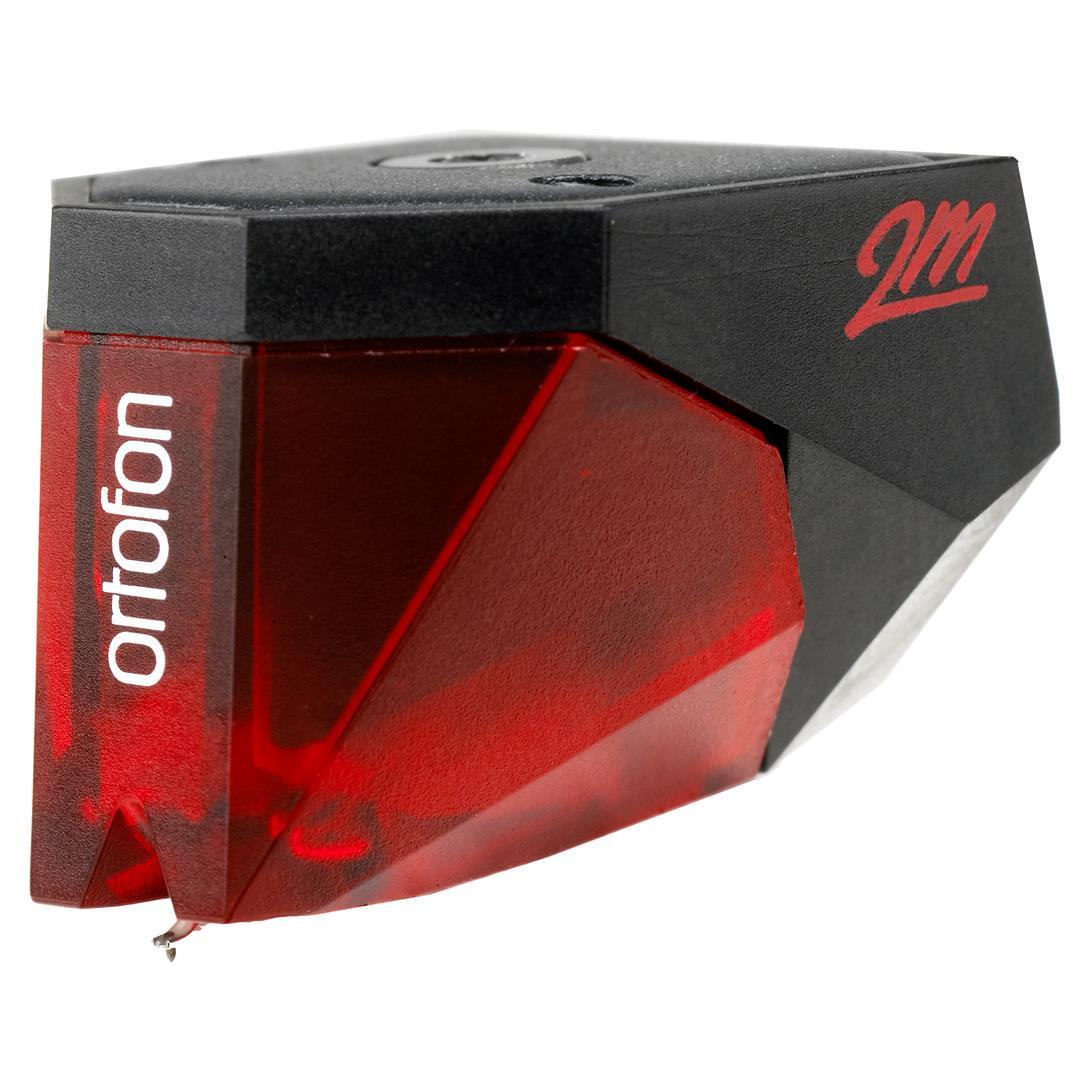

Ortofon 2M Red
The 2M Red is Ortofon's entry-level moving magnet cartridge in the 2M series, and it makes an immediate case for itself as the natural first step into quality analogue replay. It uses a standard elliptical diamond stylus mounted on an aluminium cantilever — a pairing that Ortofon have refined across decades of cartridge manufacture, and one that offers a broad, forgiving compatibility with the widest range of turntables and tonearms on the market today.
Elliptical Diamond Stylus
The 2M Red uses an elliptical diamond stylus with a tip radius of r/R 8/18 μm, mounted on an aluminium cantilever. The coil system uses quad-coils with split pole pins and OFC wire. Output voltage is 5.5 mV at 1 kHz, 5 cm/sec. Recommended load resistance is 47 kOhm and recommended load capacitance is 150–300 pF.
The cartridge body is constructed from a combination of polymer and aluminium, finished in the 2M series' characteristic black and red. At 7.2 g it shares its weight and body dimensions with every other model in the 2M range.
The 2M Series
The 2M series comprises seven models — Red, Blue, Bronze, Black, Black LVB 250, 78, and Mono — each sharing the same body format in three configurations: standard top-mount, Verso bottom-mount, and Premounted for direct fitting to S-shaped arms with universal mount. The 2M Red is available in all three configurations.
Technical Specifications
| Specification | Value |
|---|---|
| Output voltage at 1 kHz, 5 cm/sec | 5.5 mV |
| Channel balance at 1 kHz | 1.5 dB |
| Channel separation at 1 kHz | 22 dB |
| Frequency response 20 Hz – 20 kHz | +3/–1 dB |
| Tracking ability at 315 Hz | 70 μm |
| Compliance, dynamic, lateral | 20 μm/mN |
| Stylus type | Elliptical diamond |
| Stylus tip radius | r/R 8/18 μm |
| Cantilever material | Aluminium |
| Coil system | Quad-coils with split pole pins and OFC |
| Coil wire material | OFC Wire |
| Tracking force range | 1.6–2.0 g (16–20 mN) |
| Tracking force, recommended | 1.8 g (18 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 1.3 kOhm |
| Internal inductance | 700 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 150–300 pF |
| Cartridge body material | Polymer and aluminum |
| Cartridge colour | Black/Red |
| Cartridge weight | 7.2 g |
| Premounted cartridge weight | 16.7 g |
Who Is It For?
The 2M Red is the right starting point for anyone setting up their first quality turntable, or for anyone upgrading from a budget cartridge who wants a meaningful step forward without the complication of a moving coil setup. Those ready to step further up the 2M range should consider the Ortofon 2M Blue — which uses a nude elliptical stylus for a meaningful gain in resolution — or, for those considering the move to moving coil, the Ortofon Quintet Blue MC. The Ortofon Quintet Bronze sits further up the MC range for those thinking ahead.
