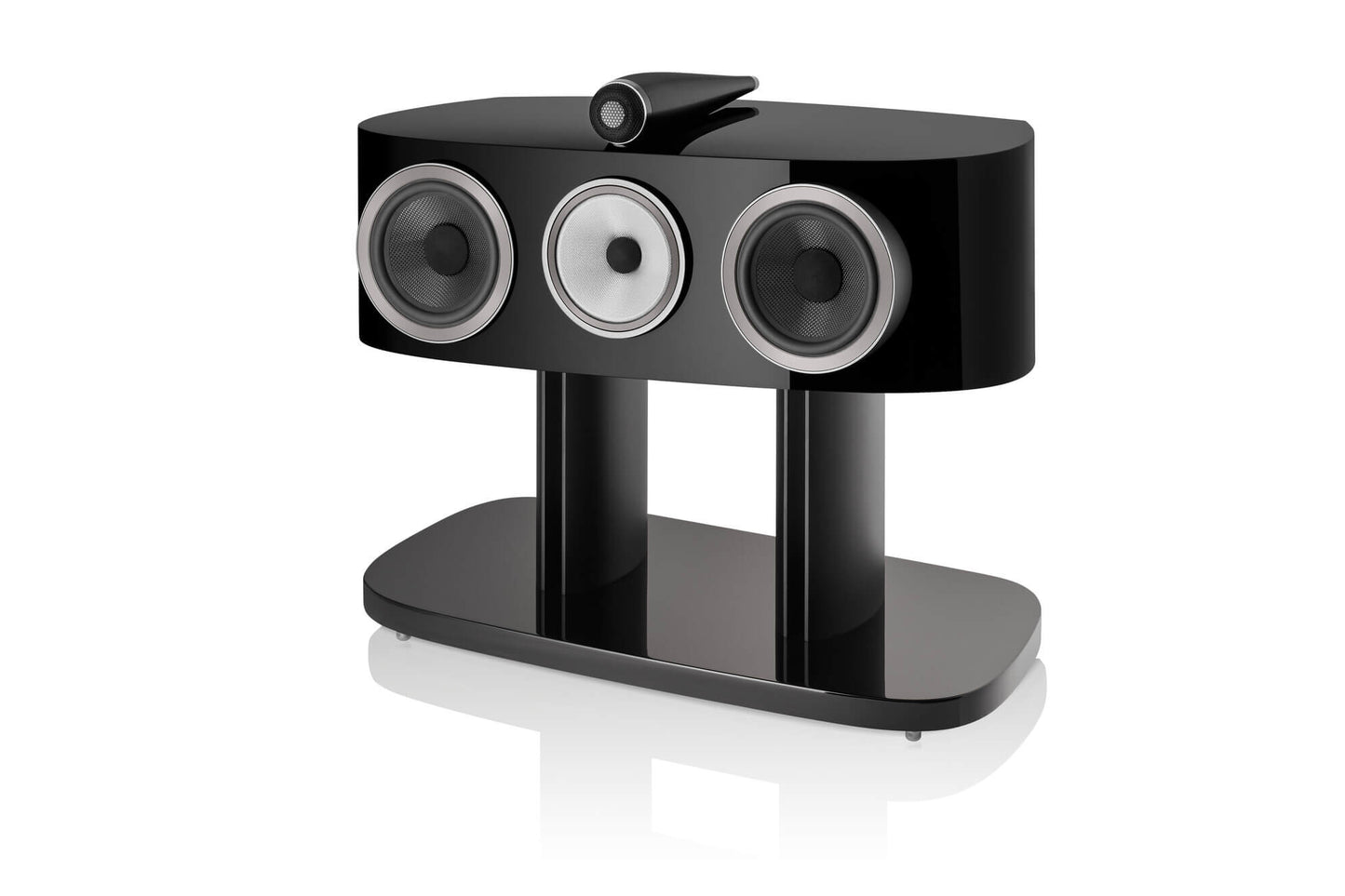

Bowers & Wilkins HTM82 D4

For Theatre systems based on the more compact 803 D4 or 804 D4, the HTM82 D4 center-channel speaker !s the perfect solution. Its midrange drive unit is ideally sized to match its siblings and item ample output will ensure a seamless listening experience.

One of our most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond dome tweeter is the perfect combination of low mass, exceptional stiffness, and outstanding accuracy. It captures detail other tweeters leave behind.

Introduced as a huge revolutionary change in 2015 and now a fundamental part in every Ioudsseaker we make. The Continuum cone has exceptionally low noise, ensuring outstanding resolution without coloration.

The B&W HTM82 D4 will be on demonstration at Martins HI-Fi and we will also be hosting a future event. If you wish to book a private demonstration please contact us via the chatbox, call 01603 627010 or email info@martinshifi.co.uk

 Technical Features

• Diamond tweeter
• Solid body Tweeter-on-Top
• Continuum™ cone FST
• Anti-Resonance plug
• Biomimetic Suspension#
• Matrix™
• Aerofoil™ cone bass units
• Flowport

Description

• 3-way vented-box system

Drive Units

• 1x ø25mm (1in) diamond dome high-frequency
• 1x ø130mm (5in) Continuum cone FST midrange
• 2x ø165mm (6.5in) Aerofoil cone bass units

Frequency Range

• 3Hz to 35kHz

Frequency Response (+/-3dB from reference axis)

• 45kHz to 28kHz

Sensitivity (on-axis at 2.83Vrms at 1m)

• 89db

Harmonic Distortion

• 2nd and 3rd harmonics (90dB, 1m on-axis)
• <1 % 100Hz – 20kHz
• <0.4% 100Hz – 20kHz

Nominal Impedance

• 8Ω (minimum 3.0Ω)

Recommended Amplifier Power

• 50W – 200W into 8Ω on unclipped programme

Max Recommended Cable Impedance

• 0.1Ω

Dimensions

• Height: 281mm
• Width: 715mm
• Depth: 369mm

Net Weight

• 25.15kg

Finishes

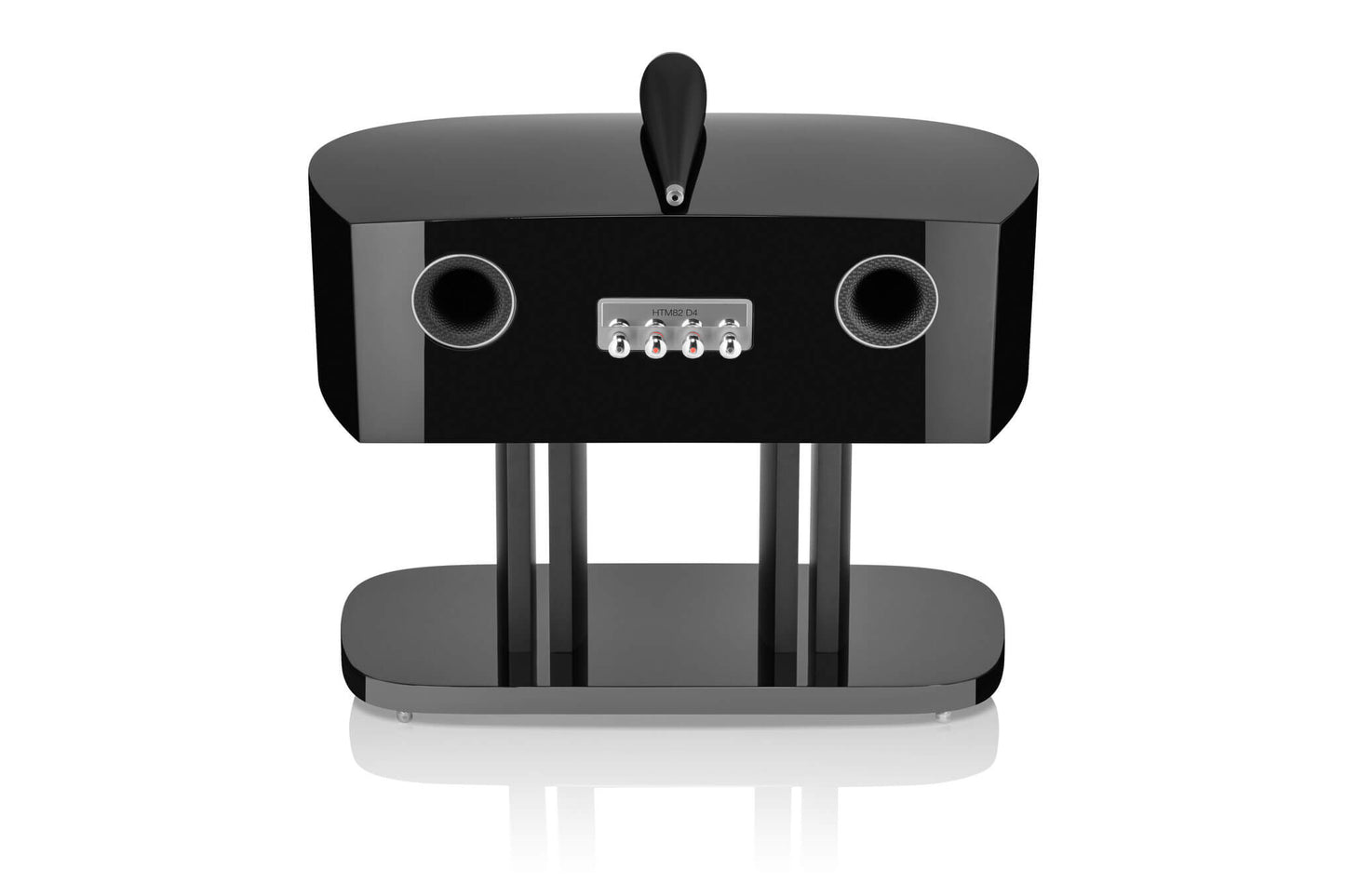

• Cabinet Gloss Black with  Black Grille

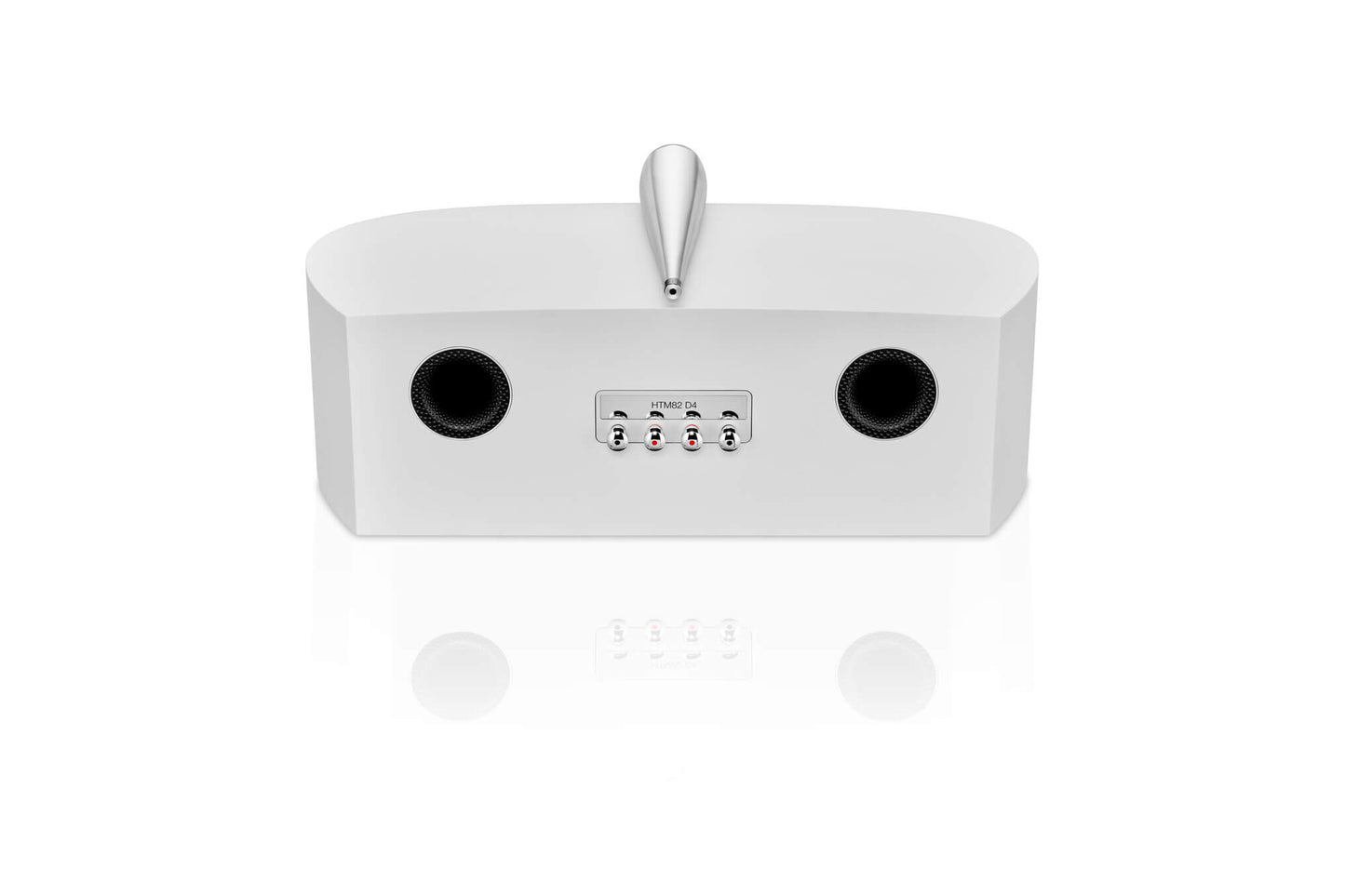

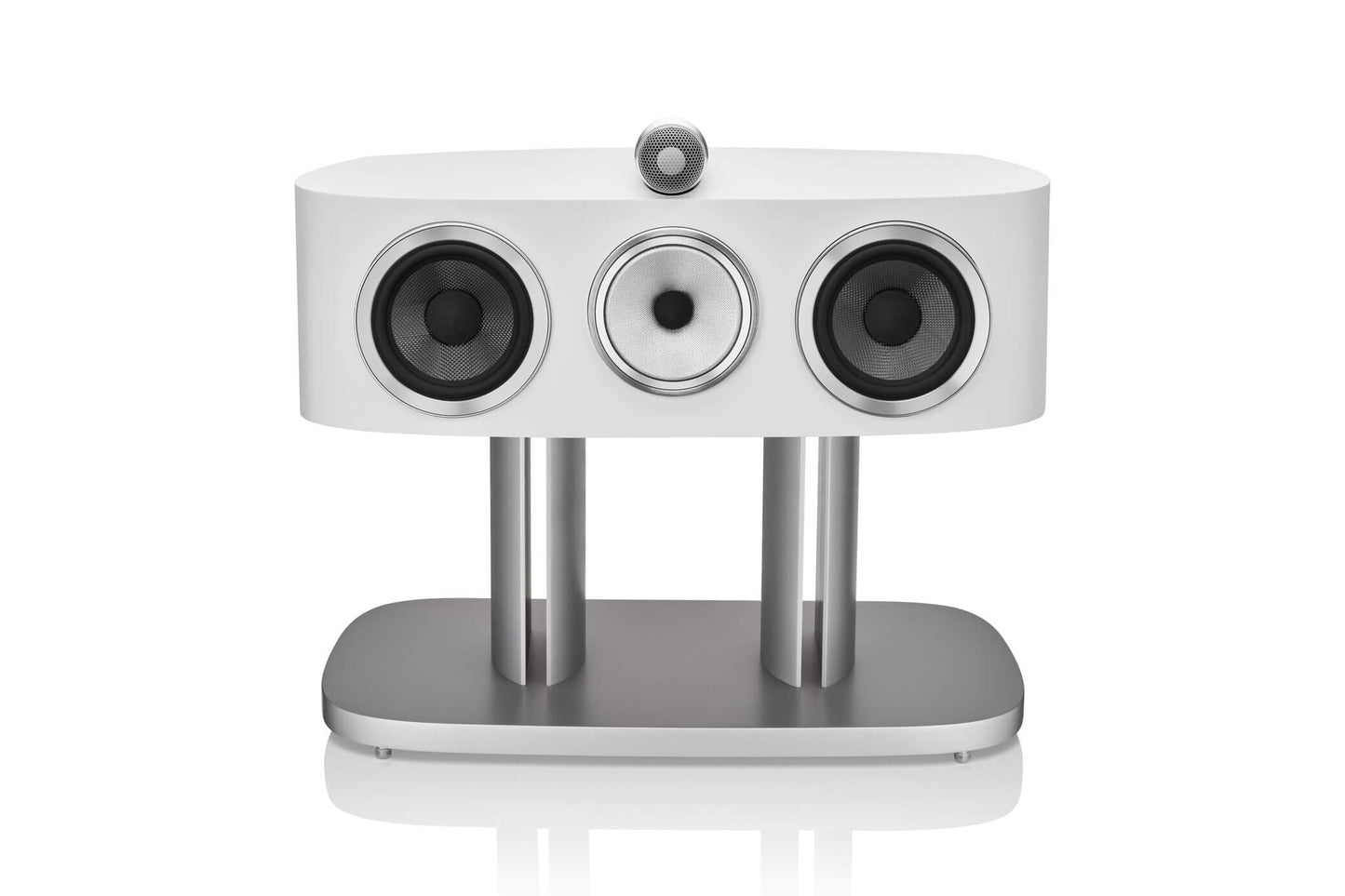

• Cabinet White with Grey Grille
