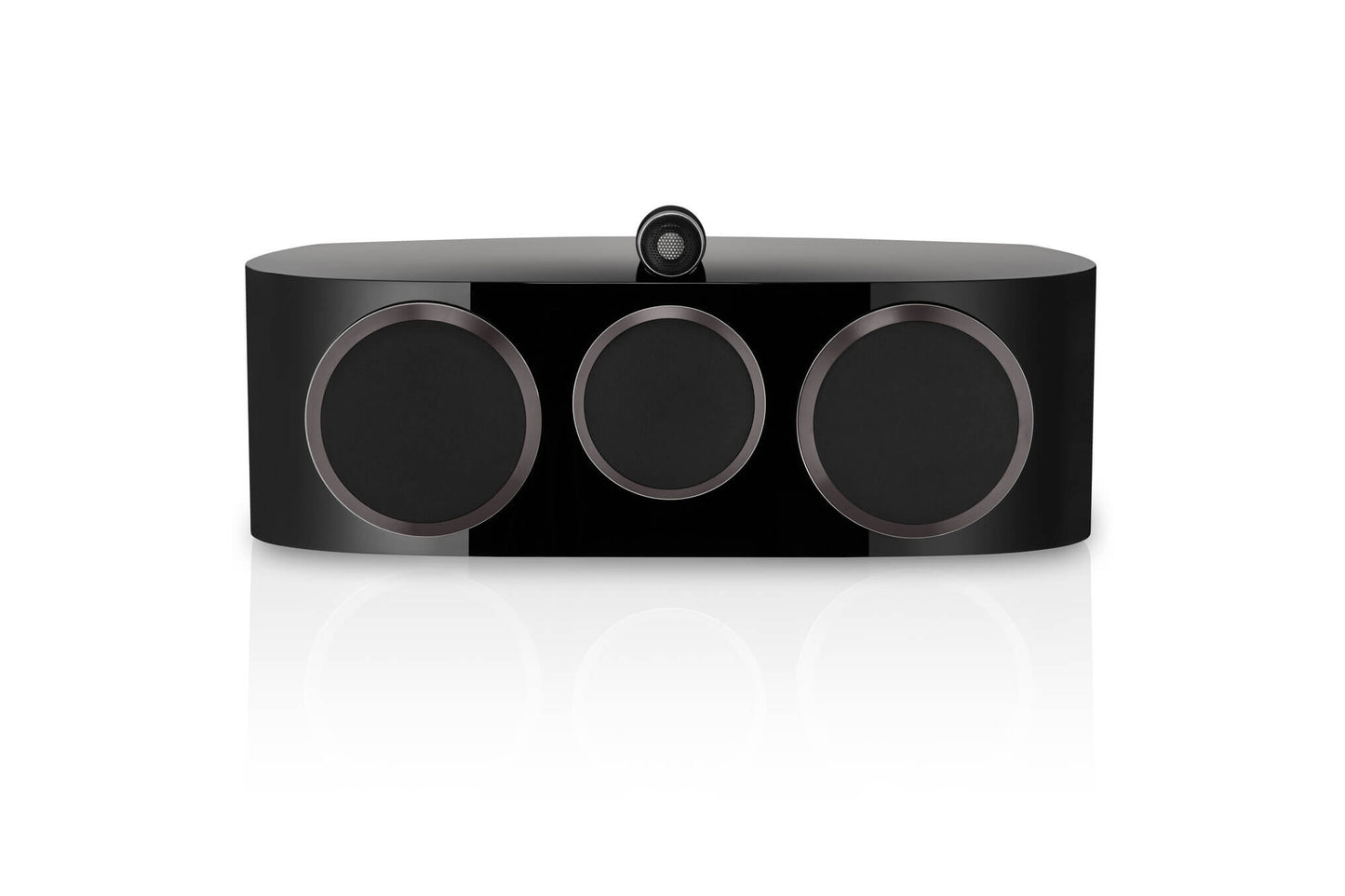

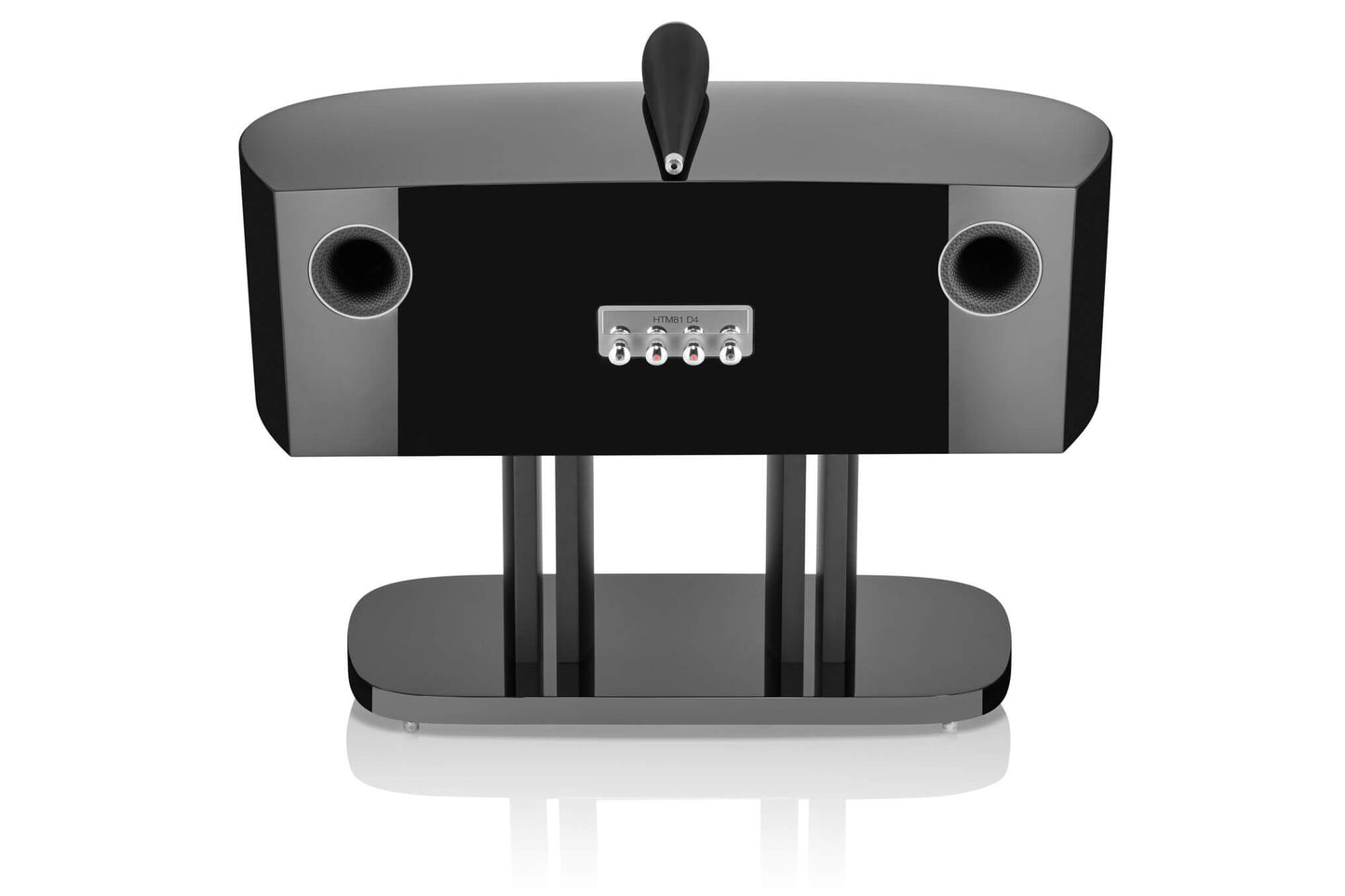

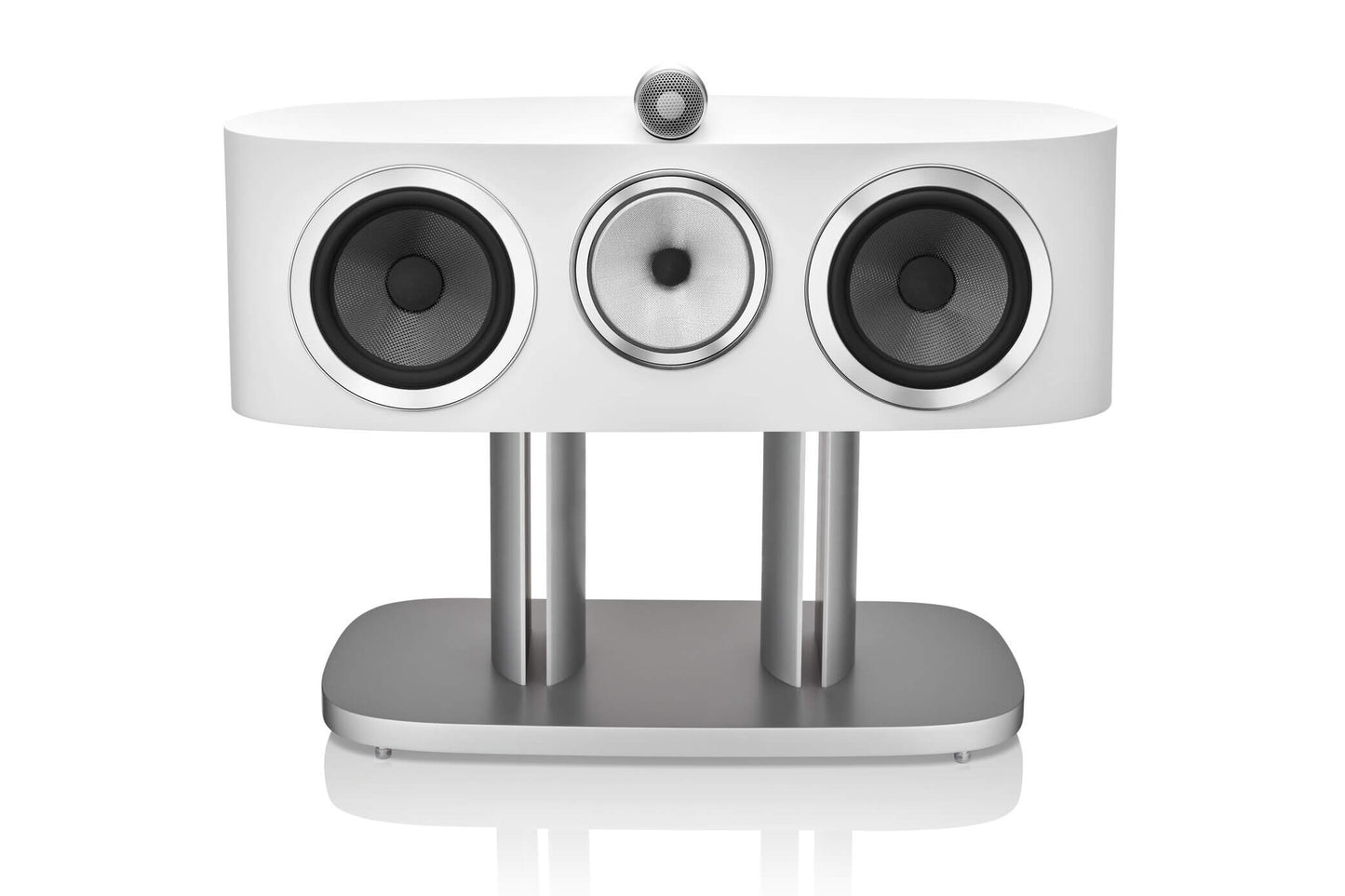

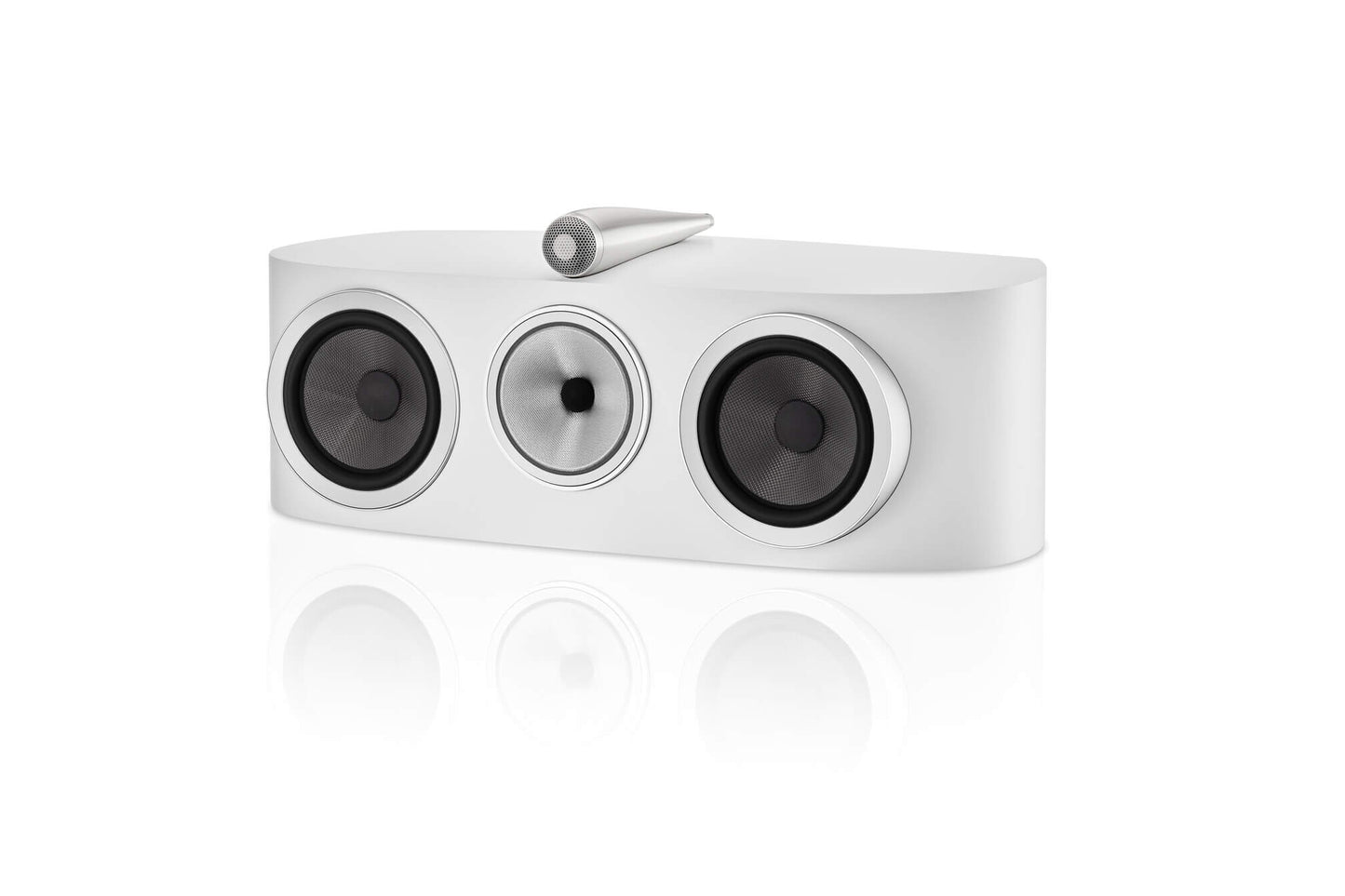

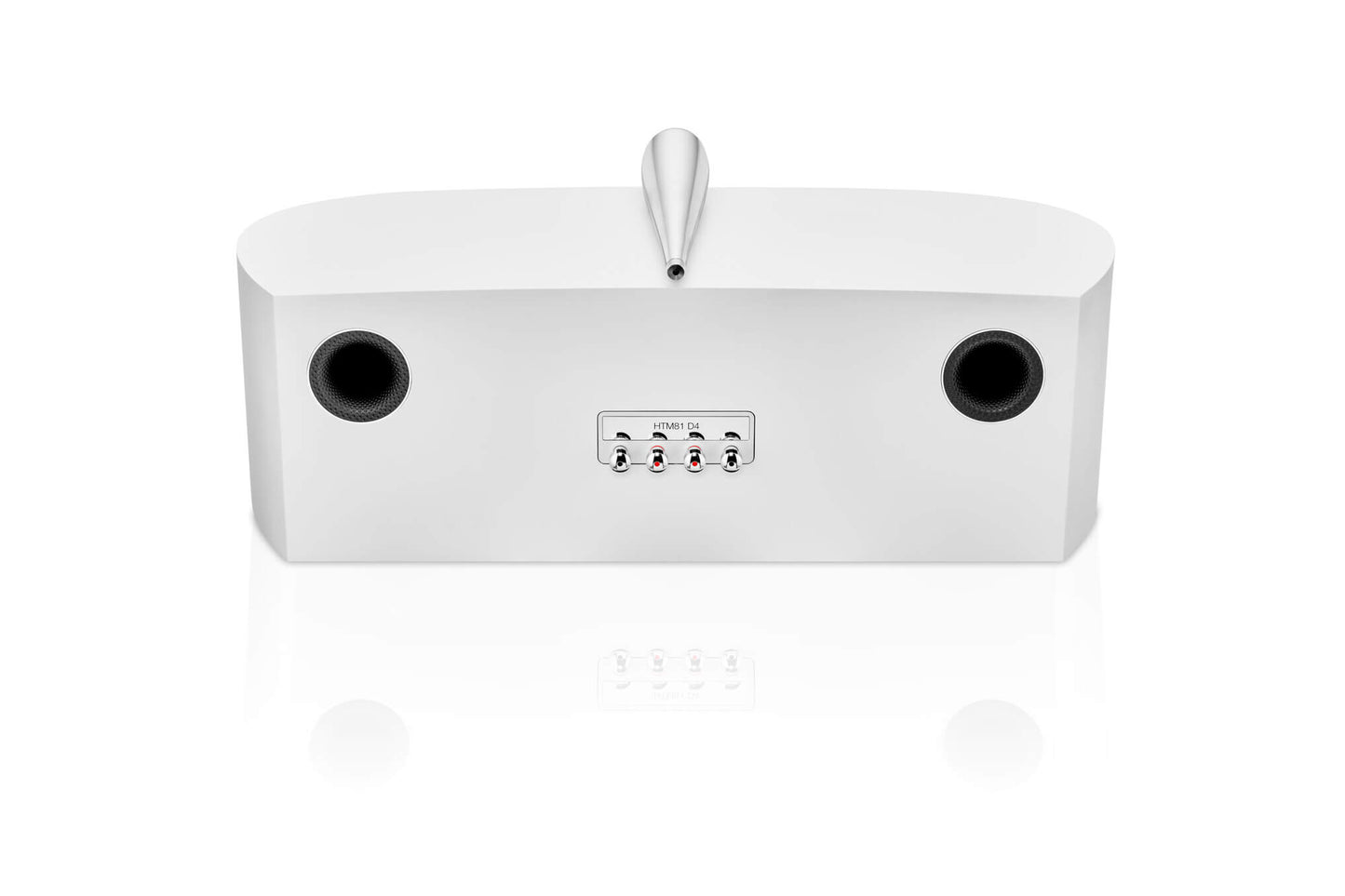

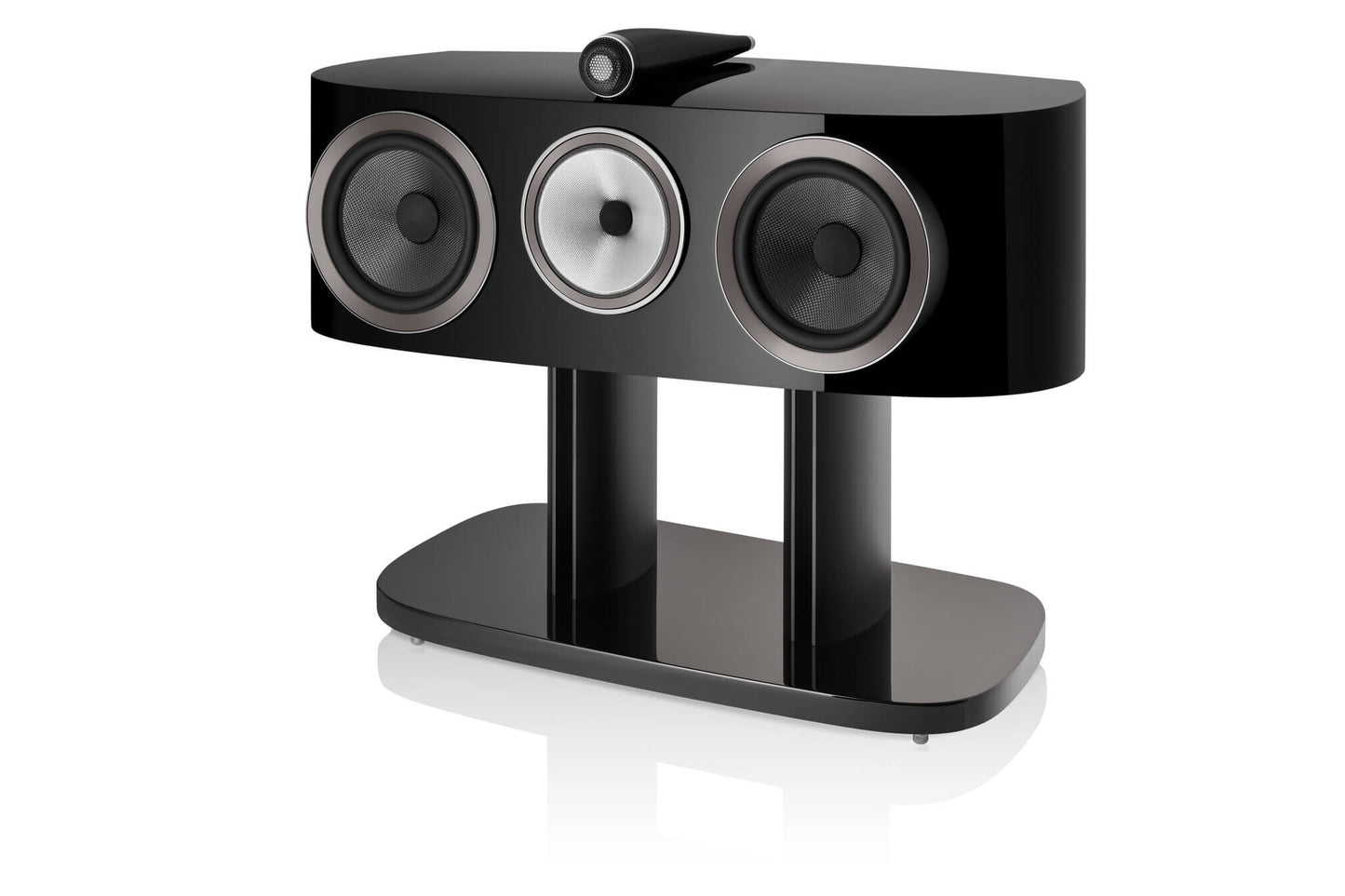

Bowers & Wilkins HTM81 D4

Our largest center-channel speaker is designed to be the perfect partner for the 801 D4 or 802 D4. Small wonder, then, that it’s such a powerful performer, with a sound that perfectly matches the quality of its illustrious stablemates.

Inside HTM81 D4, B&W uses a stiff, aluminum enclosure designed to maximise the performance of the midrange drive unit. It Provides a controlled location point for the midrange decoupling and prevents unwanted air leakage into the surrounding cabinet.

B&W Aerofoil bass cone technology remains an outstanding solution to the conundrum of combining low mass and high stiffness., thanks to its carbon-fiber skin and variable-profile foam core. Now, we have added the foam Anti-Resonance PIug for lower distortion and even cleaner bass.

The B&W HTM81 D4 will be on demonstration at Martins HI-Fi and we will also be hosting a future event. If you wish to book a private demonstration please contact us via the chatbox, call 01603 627010 or email info@martinshifi.co.uk

 Technical Features

• Diamond tweeter
• Solid body Tweeter-on-Top
• Continuum™ cone FST
• Anti-Resonance plug
• Biomimetic Suspension#
• Matrix™
• Aerofoil™ cone bass units
• Flowport

Description

• 3-way vented-box system

Drive Units

• 1x ø25mm (1in) diamond dome high-frequency
• 1x ø150mm (6in) Continuum cone FST midrange
• 2x ø200mm (8in) Aerofoil cone bass units

Frequency Range

• 20Hz to 35kHz

Frequency Response (+/-3dB from reference axis)

• 28kHz to 28kHz

Sensitivity (on-axis at 2.83Vrms at 1m)

• 90db

Harmonic Distortion

• 2nd and 3rd harmonics (90dB, 1m on-axis)
• <1 % 80Hz – 20kHz
• <0.3% 100Hz – 20kHz

Nominal Impedance

• 8Ω (minimum 3.0Ω)

Recommended Amplifier Power

• 50W – 500W into 8Ω on unclipped programme

Max Recommended Cable Impedance

• 0.1Ω

Dimensions

• Height: 334mm
• Width: 847mm
• Depth: 371mm

Net Weight

• 32.20kg

Finishes

• Cabinet Gloss Black with  Black Grille
• Cabinet White with Grey Grille
