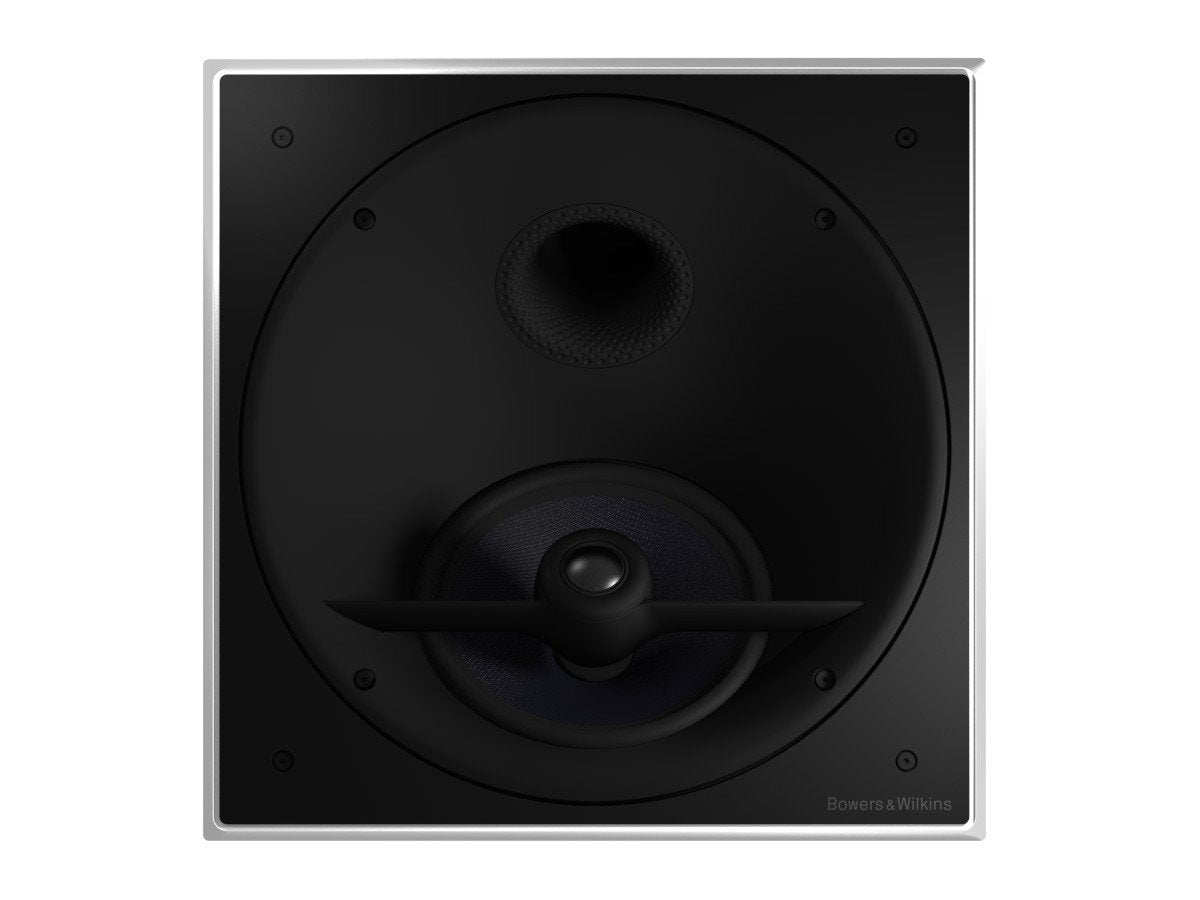

CCM8.5 is a two-way in-ceiling loudspeaker, which offers high-quality acoustics in an incredibly discreet package.
It features a Carbon Braced Tweeter and a single 7inch bass/mid Kevlar driver, with anti-resonance plug. All the drive units are located in a continuously rotatable central baffle, which allows for the custom installation version of ‘toeing in’ the loudspeaker.
Description 2-way in ceiling loudspeaker
Drive Units 1x 25mm (1in) Aluminium Carbon BracedTweeter with Nautilus Tube Aluminium Tweeter ‘wing’ allows time alignment
1x 180mm (7in) woven blue Kevlar cone bass/midrange driver with anti-resonance plug Continuously rotatable mini-baffle allows “toe-in” Flowport
Frequency range (-6dB) 35Hz - 40kHz
Power handling 120W
Impedance 8 (minimum 3.3)
Frame outer 351mm x 351mm (13.8in x 13.8in)
Cut-out 331mm x 331mm (13in x 13in)
Cut-out allowance 8mm (0.31in)
Protrusion 8mm (0.31in)
Back box 701mm x 343mm x 177mm (27.6in x 13.5in x 6.9in)
