    Bowers & Wilkins 805 D4

    Tax included. Shipping calculated at checkout.

    Bowers & Wilkins 805 D4

    This is not just another speaker range. Each new generation of 800 Series Diamond is a landmark event for Bowers & Wilkins. This is a B&W benchmark, an icon; the most advanced range of loudspeakers, B&W knows how to make. The 800 Series Diamond is everything Bowers & Wilkins know, and everything we are.

     Technical features

    • Diamond tweeter
    • Solid-body Tweeter-on-Top
    • Continuum cone bass/mid
    • Anti-Resonance plug
    • Matrix™
    • Flowport

    The 805 D4 stand-mount loudspeaker is the most compact model in the 800 Series Diamond range, but it’s still packed with advanced technologies, including that all-important Diamond dome tweeter and Solid Body Tweeter- on-Top. It's proof positive that small can still be beautiful.

    Our iconic Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system, creating an even more free and open sound with high frequencies. As before, the carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.

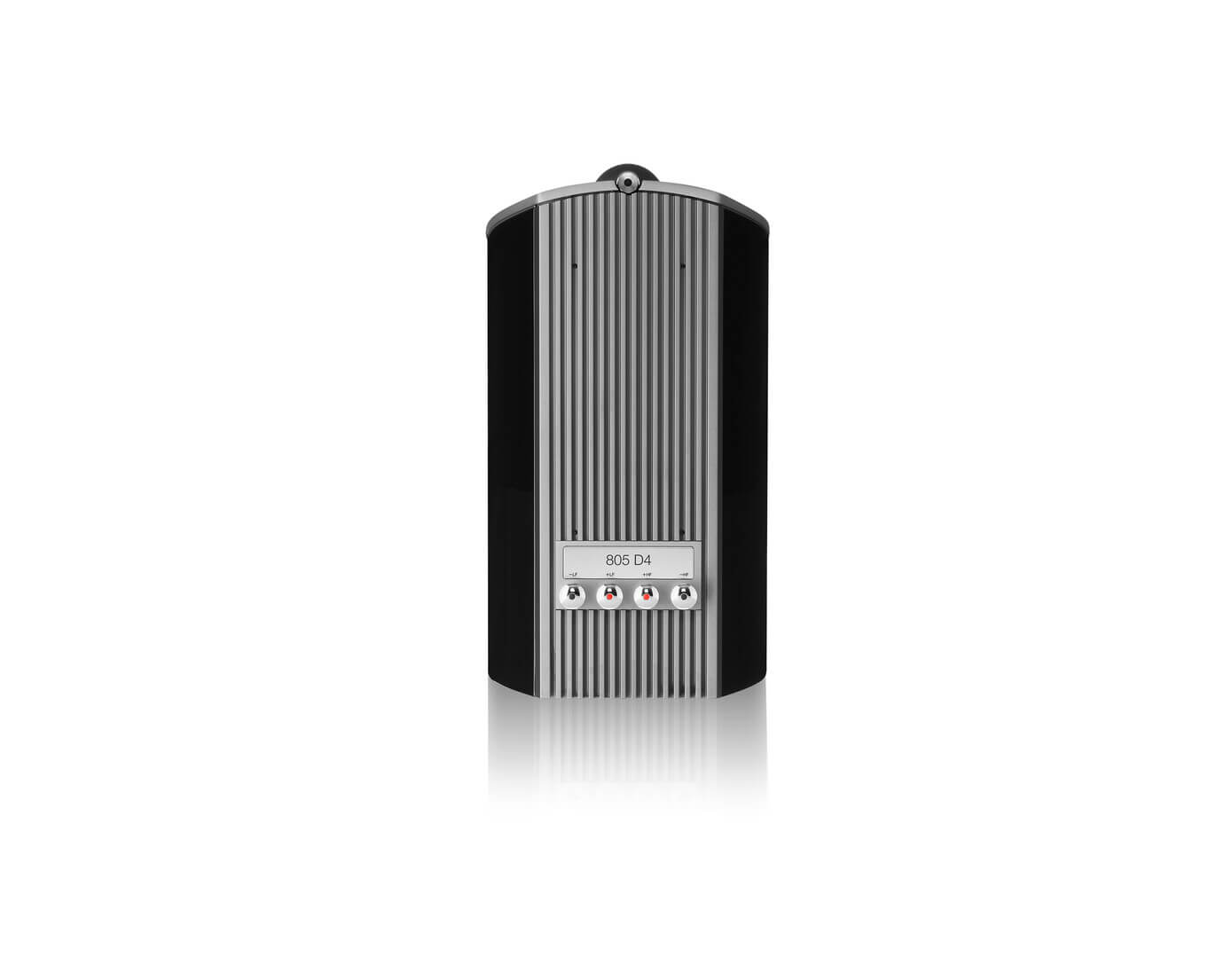

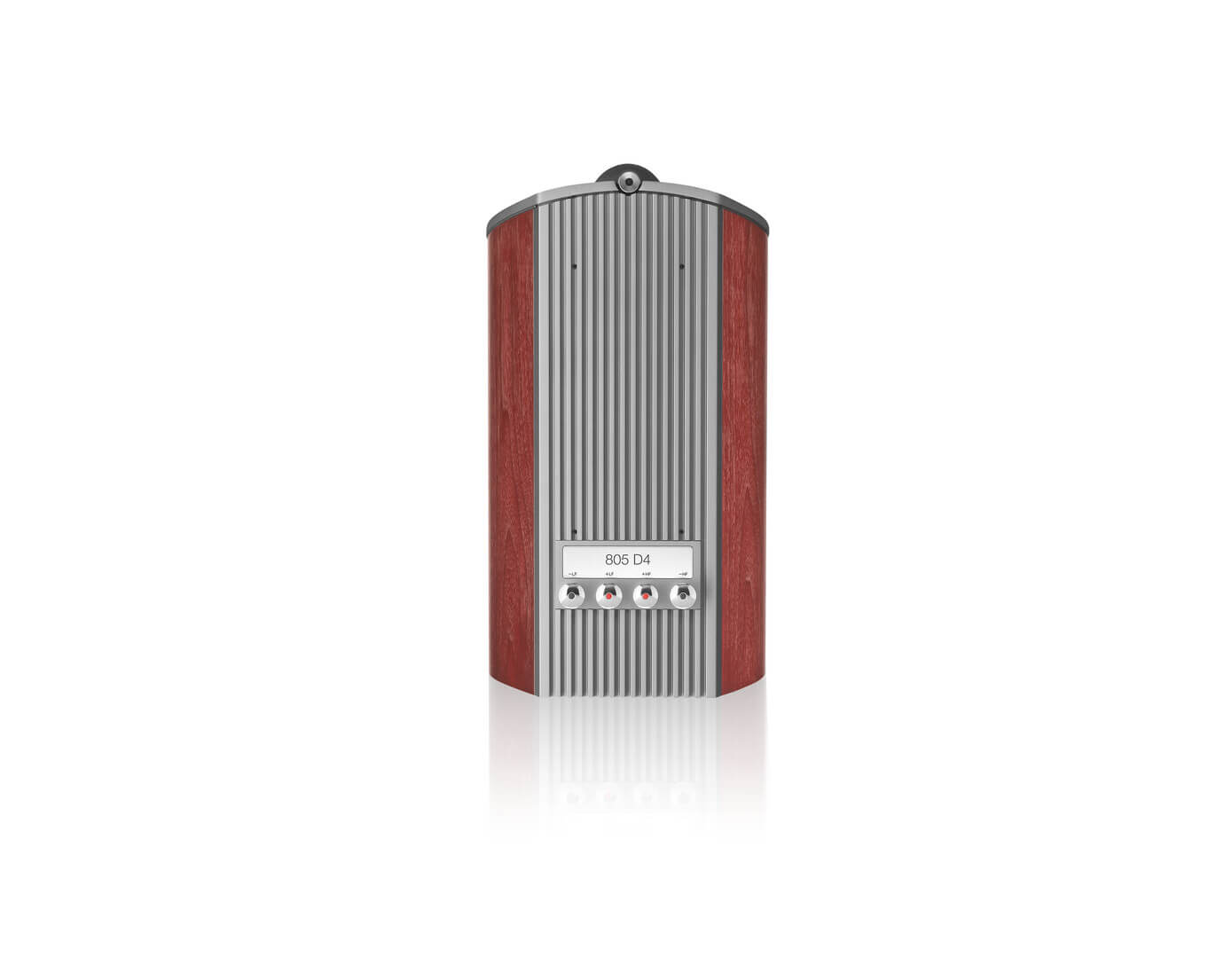

    All stereo models in the new range now use rear-mounted crossover designs mounted on stiff aluminum spines. This isolates the sensitive capacitors from the effects of air pressure within the enclosure.

    The B&W 805D4 will be on demonstration at Martins HI-Fi and we will also be hosting a future event. If you wish to book a private demonstration please contact us via the chatbox, call 01603 627010 or email info@martinshifi.co.uk




    Technical Features

    • Diamond tweeter
    • Solid-body Tweeter-on-Top
    • Continuum cone bass/mid
    • Anti-Resonance plug
    • Matrix™
    • Flowport


    • 2-way vented-box system

    Drive Units

    • 1x ø25mm (1in) diamond dome high-frequency
    • 1x ø165mm (6.5in) Continuum cone bass midrange

    Frequency Range

    • 34Hz to 35kHz

    Frequency response (+/-3dB from reference axis)

    • 42Hz to 28kHz

    Sensitivity (on axis at 2.83Vrms at 1m)

    • 88dB

    Harmonic Distortion

    • 2nd and 3rd harmonics (90dB, 1m on axis)
    • <1 % 90Hz – 20kHz
    • <0.3% 120Hz – 20kHz

    Normal Impedance

    • 8Ω (minimum 3.0Ω)

    Recommended Amplifier Power

    • 50W – 120W into 8Ω on unclipped programme

    Max Recommended Cable Impedance

    • 0.1Ω


    • Height: 440mm
    • Width: 240mm
    • Depth: 373mm


    • 36.85kg

    Cabinet Finishes

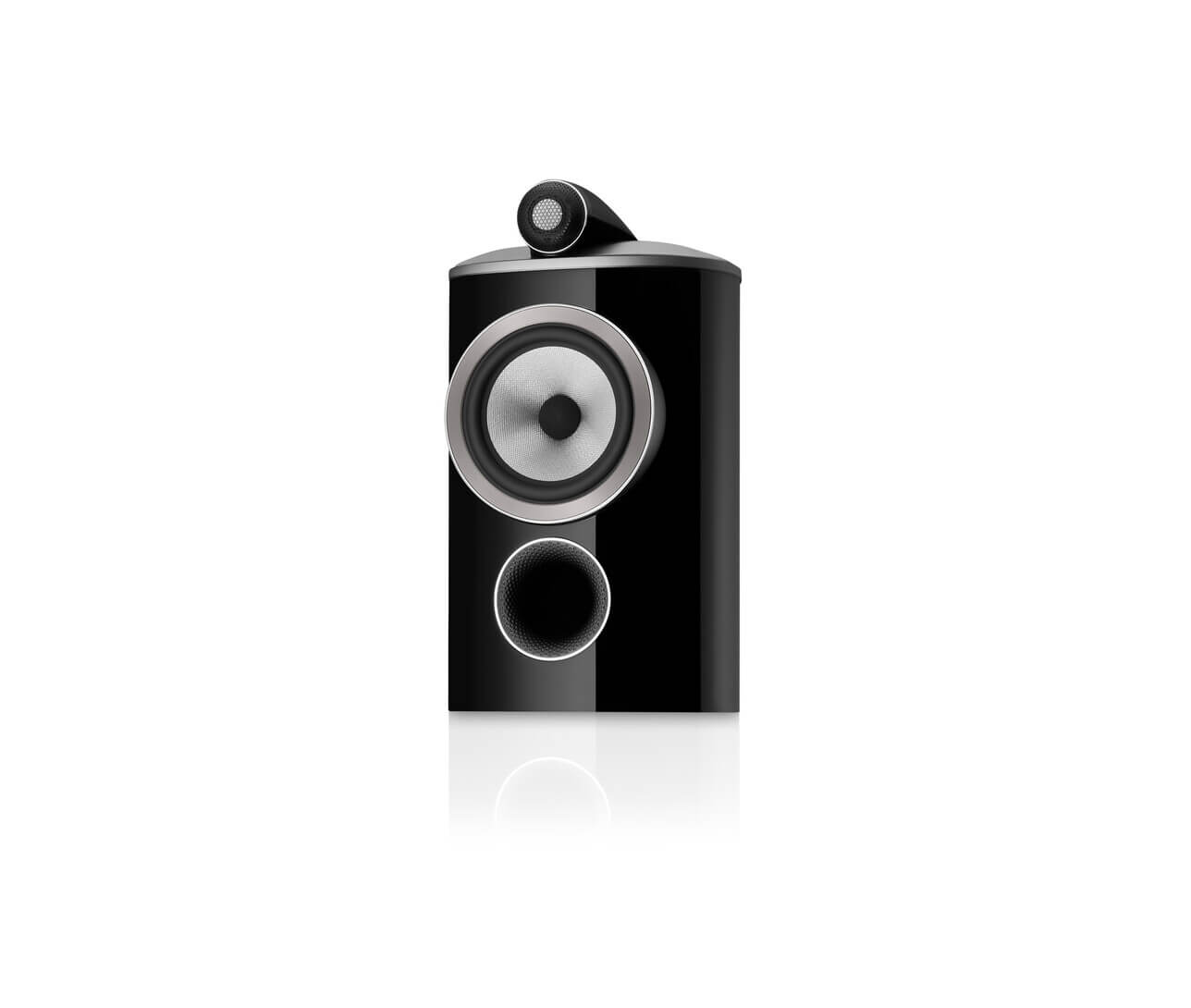

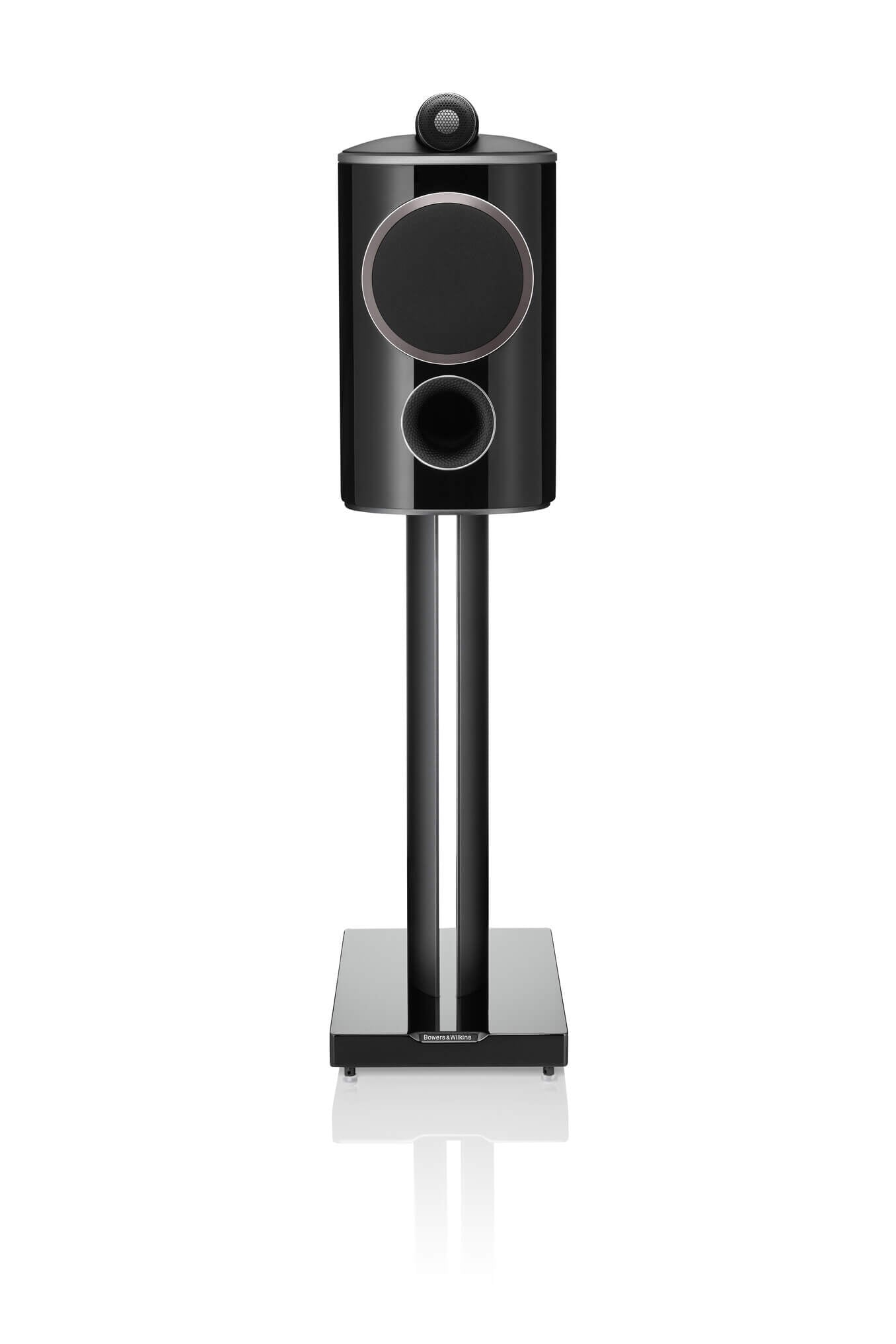

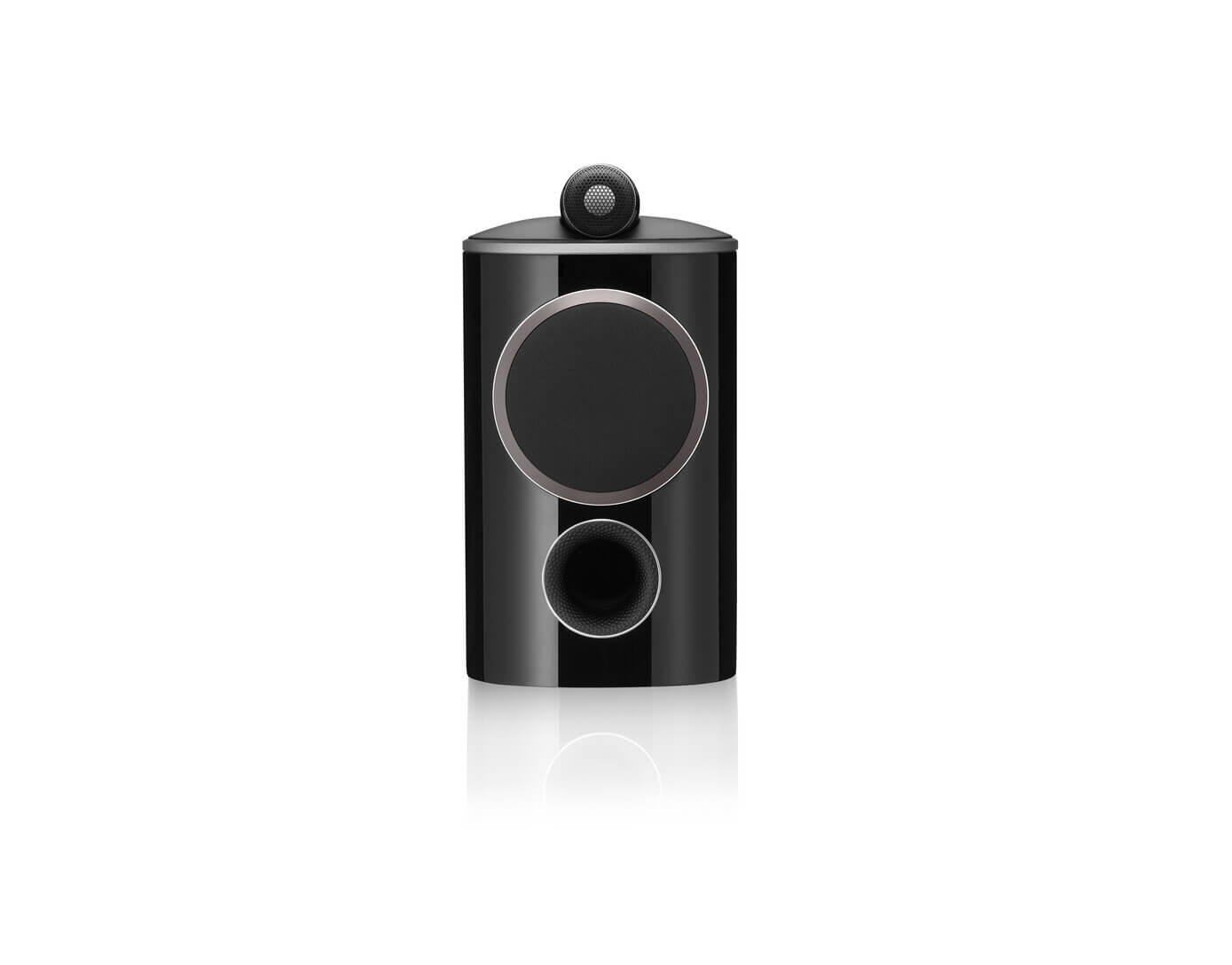

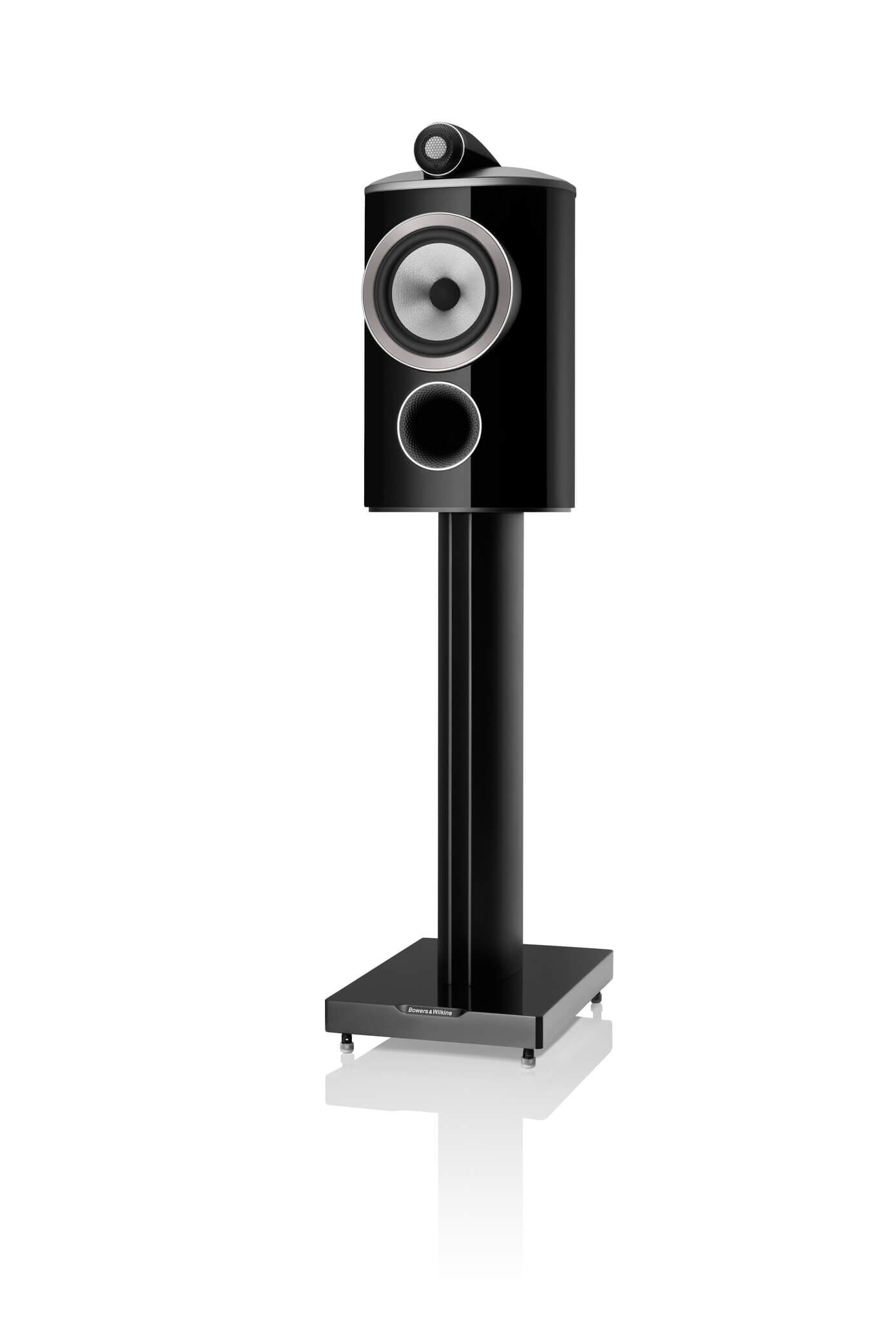

    • Gloss Black

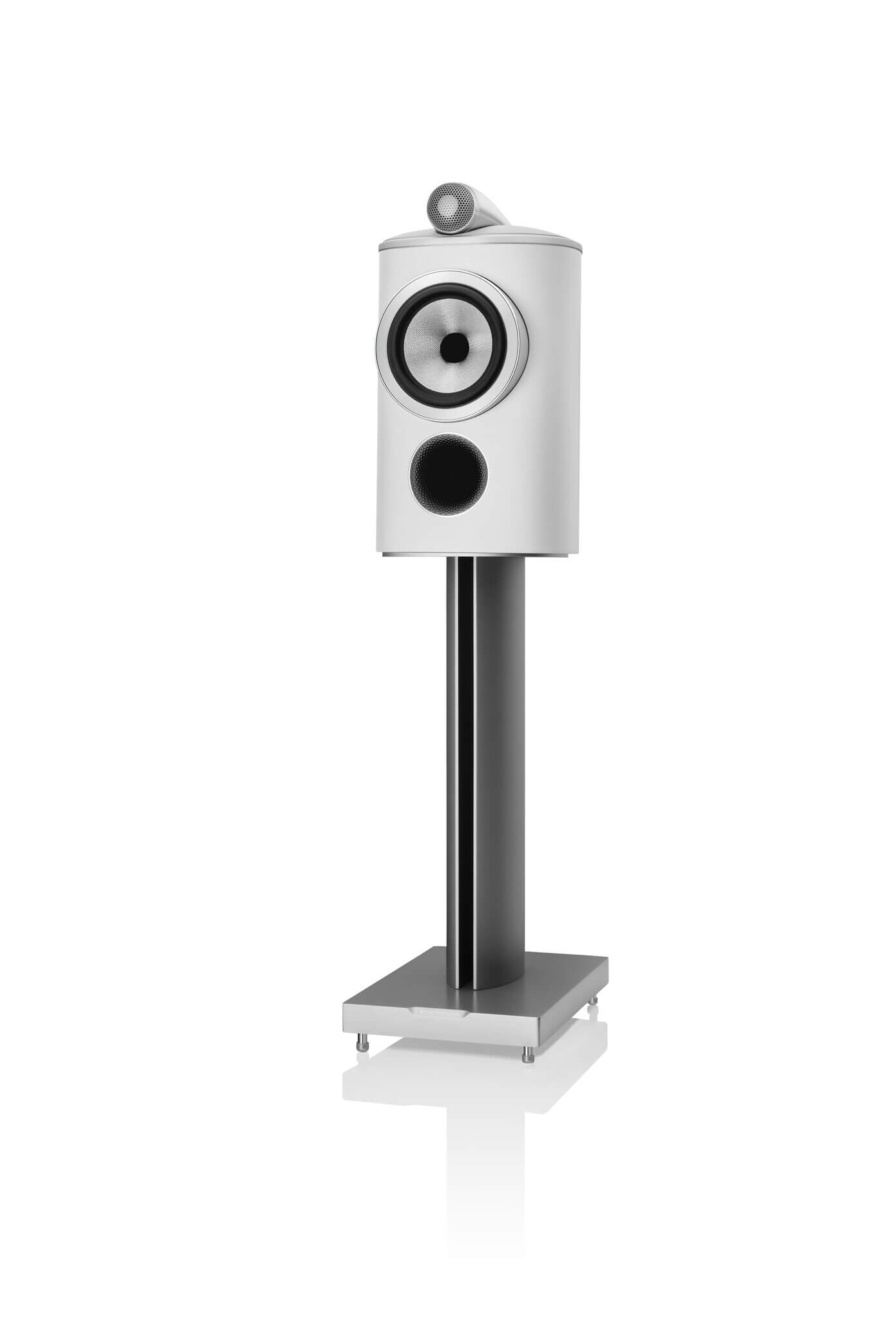

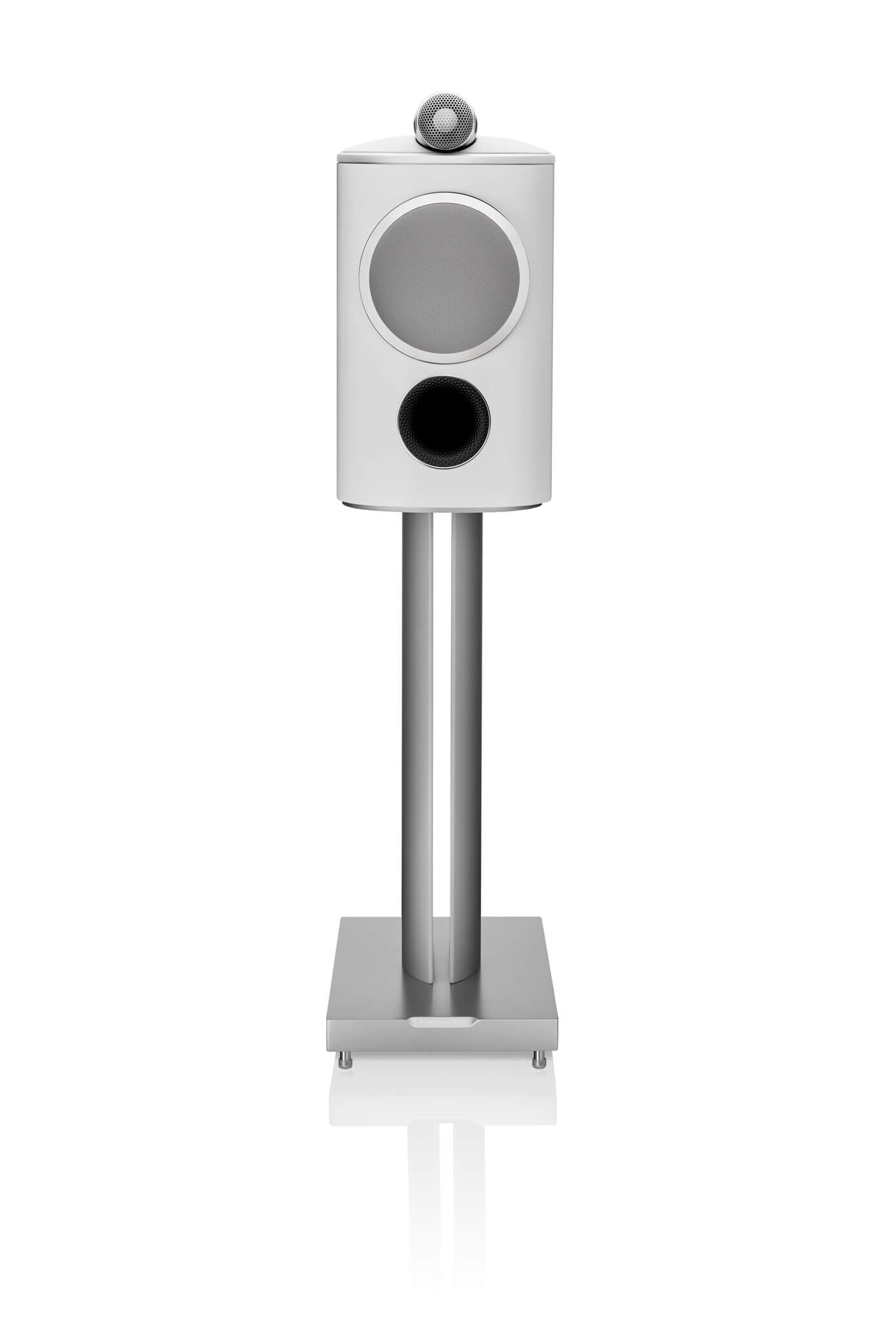

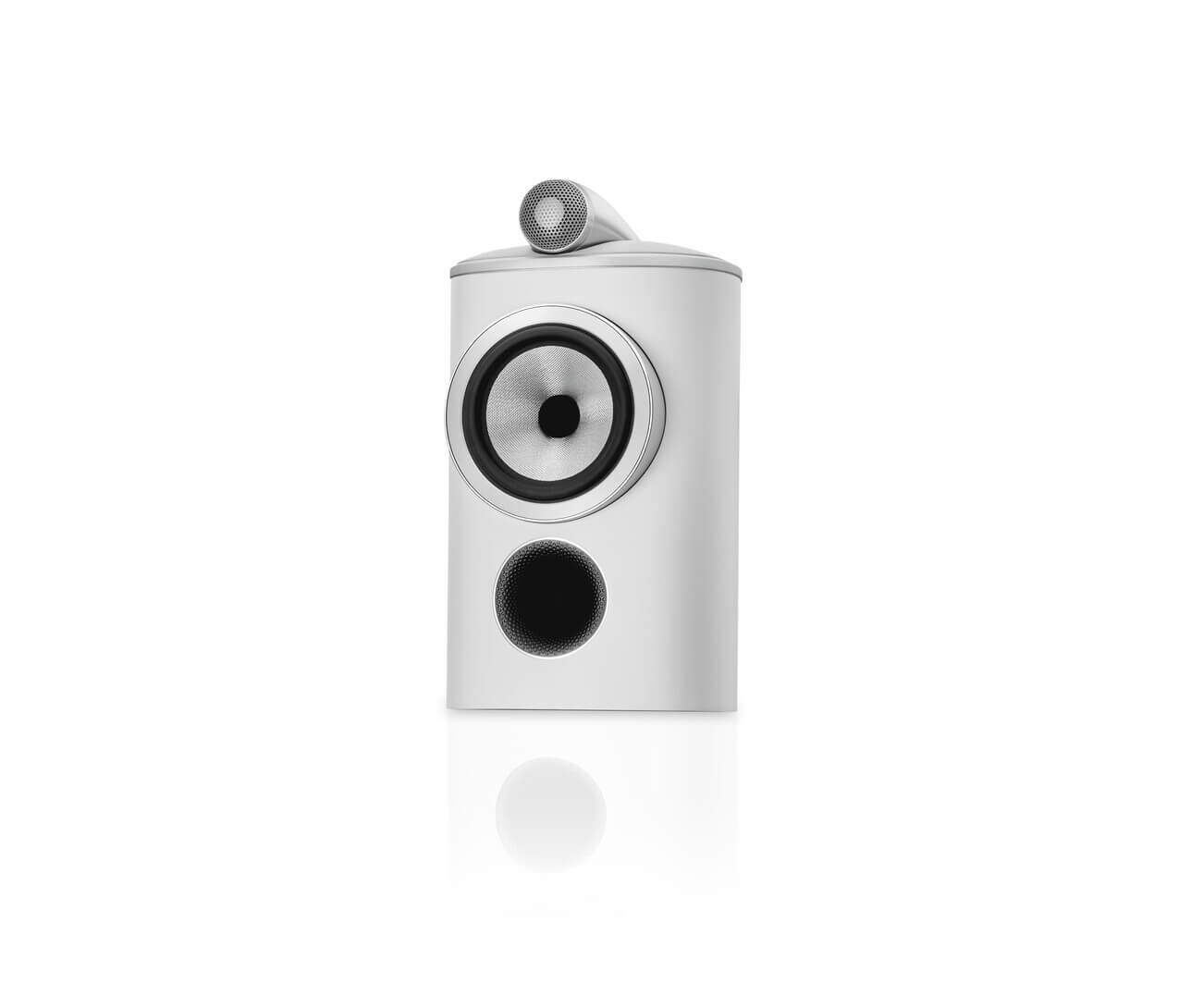

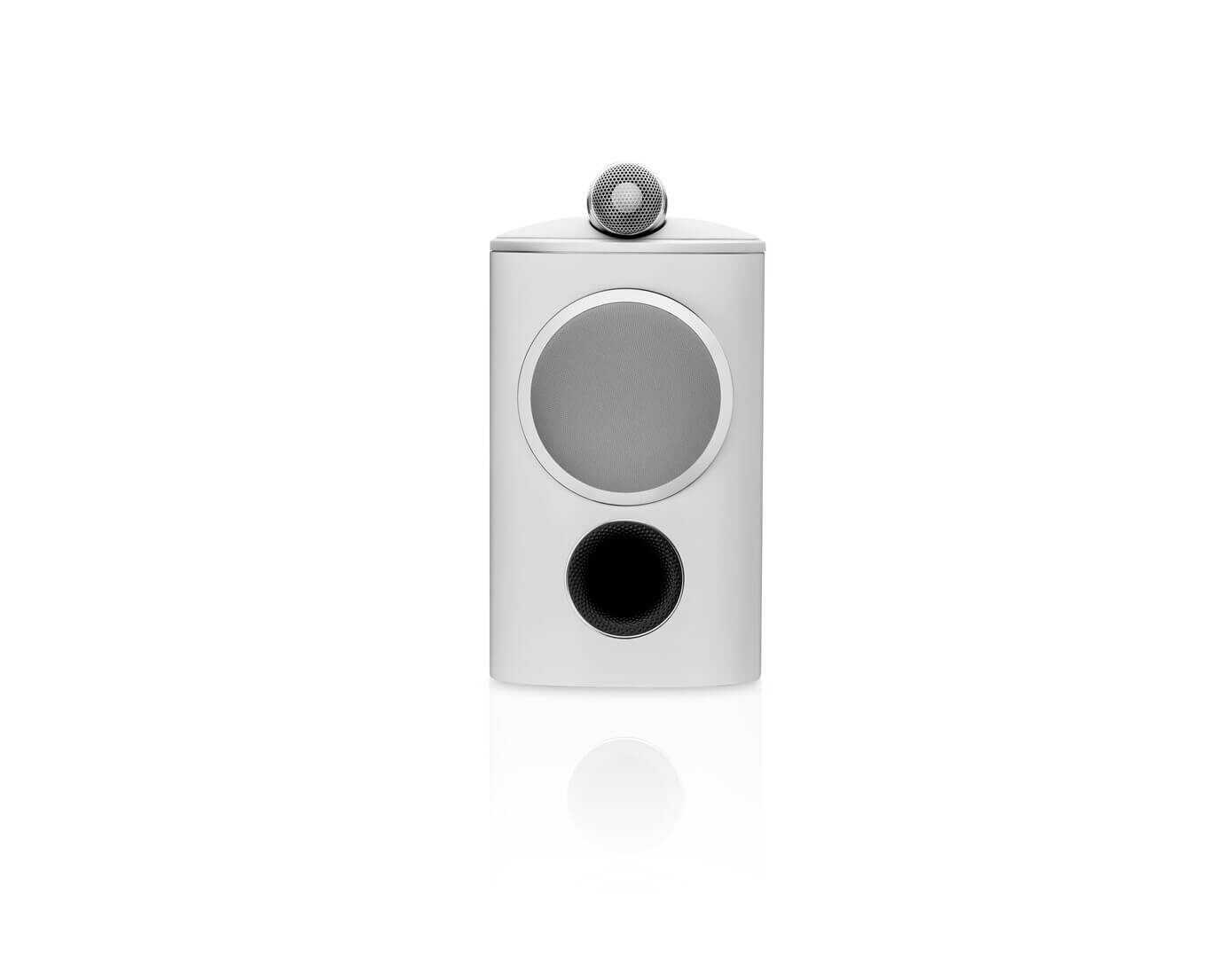

    • White

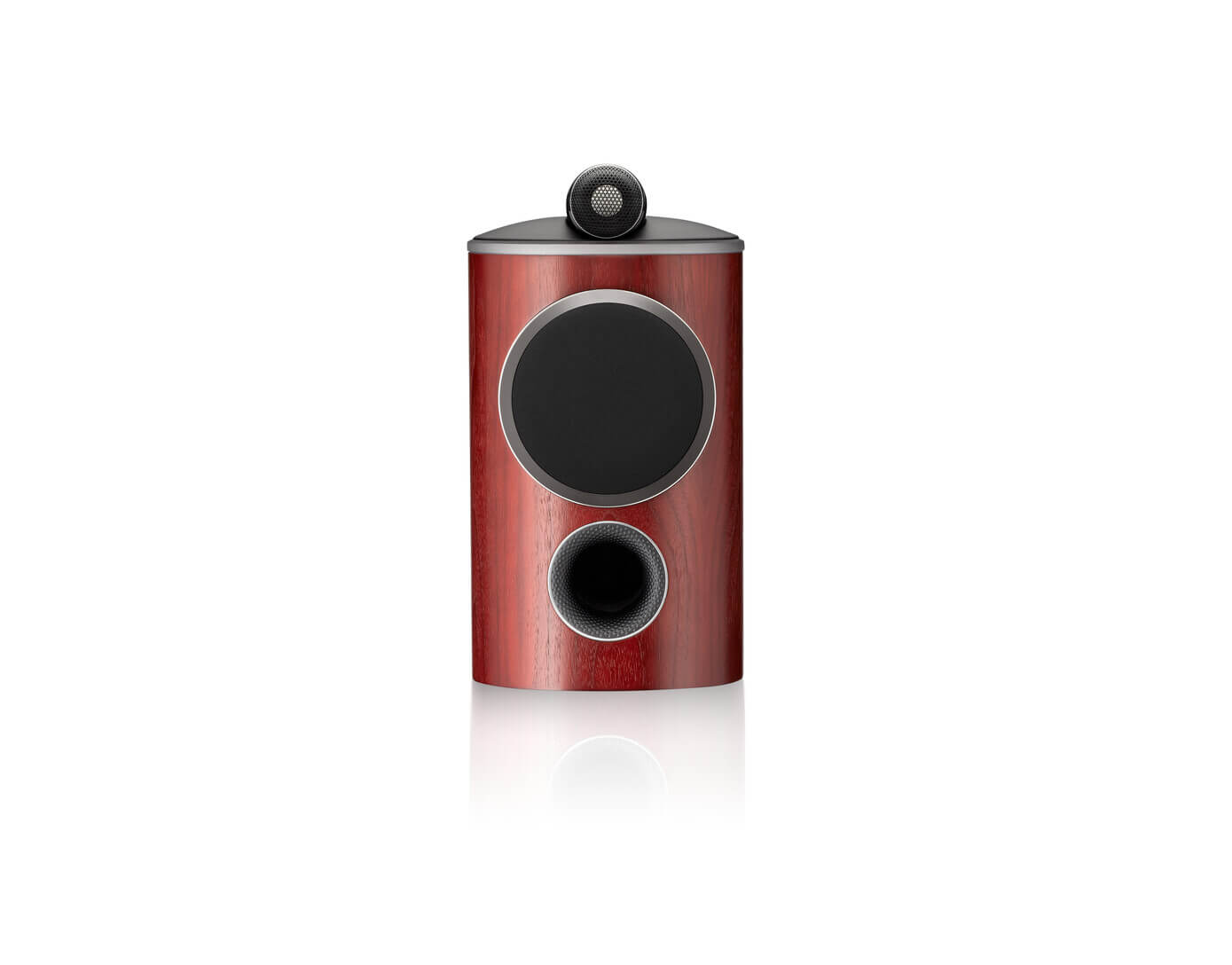

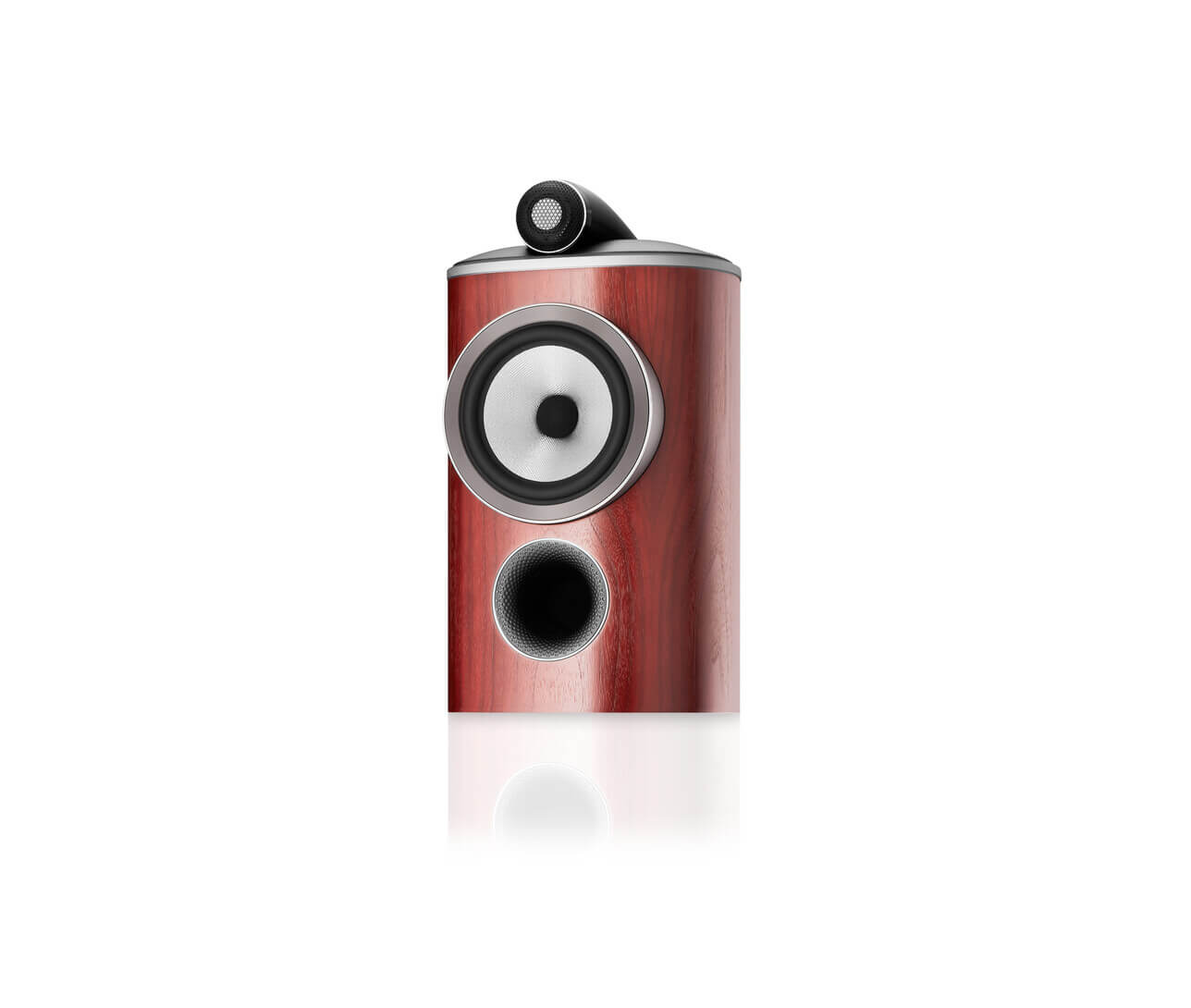

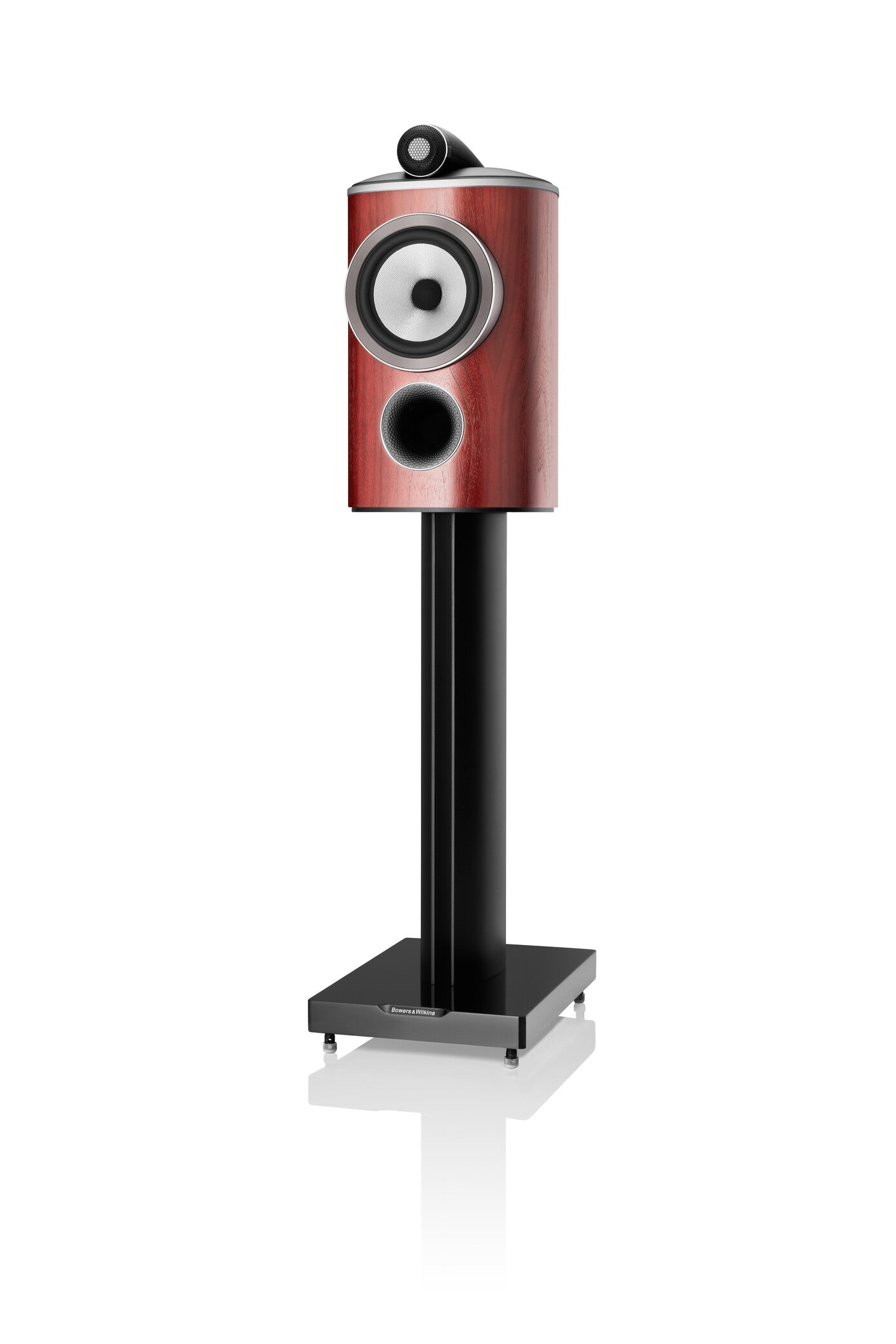

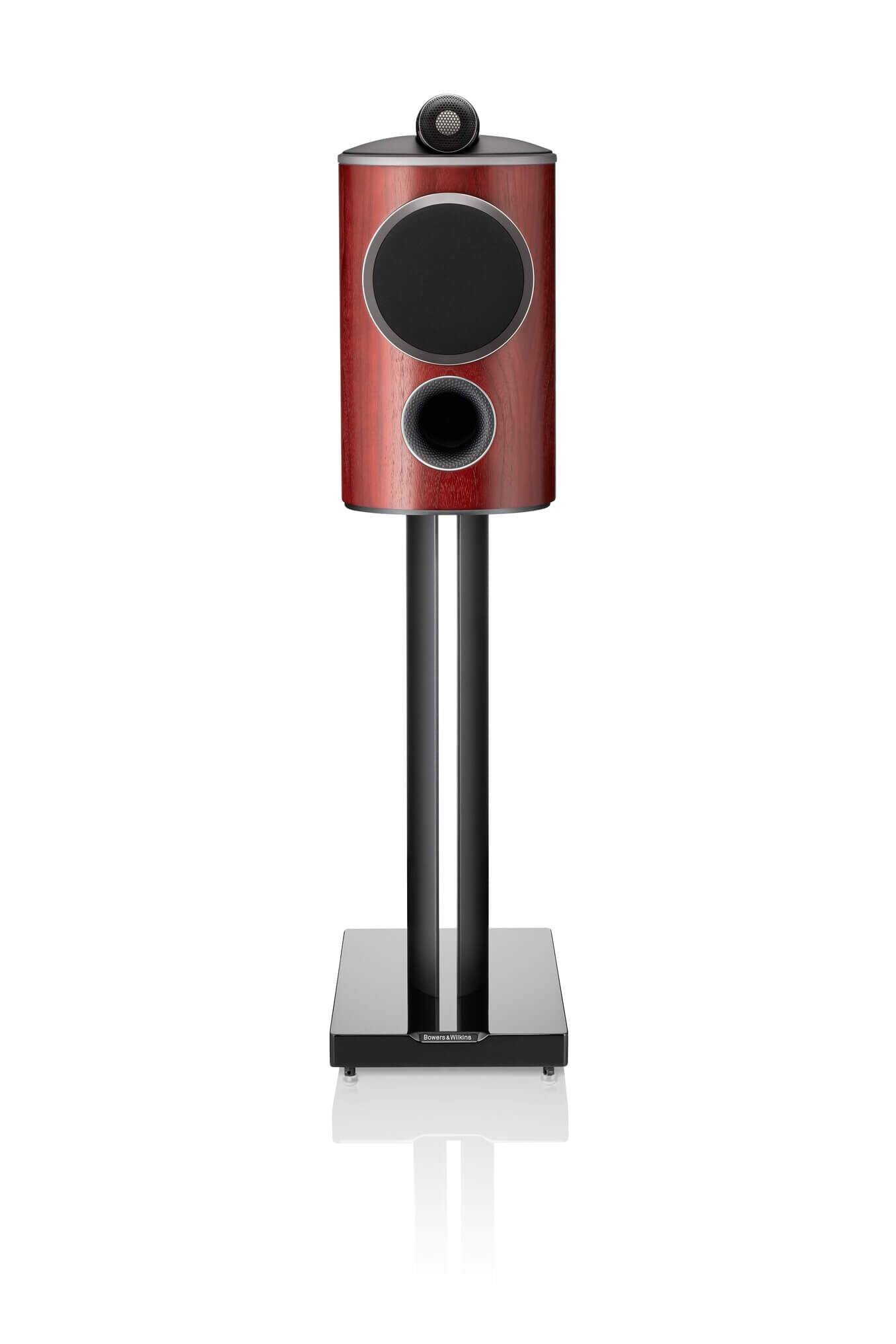

    • Satin Rosenut

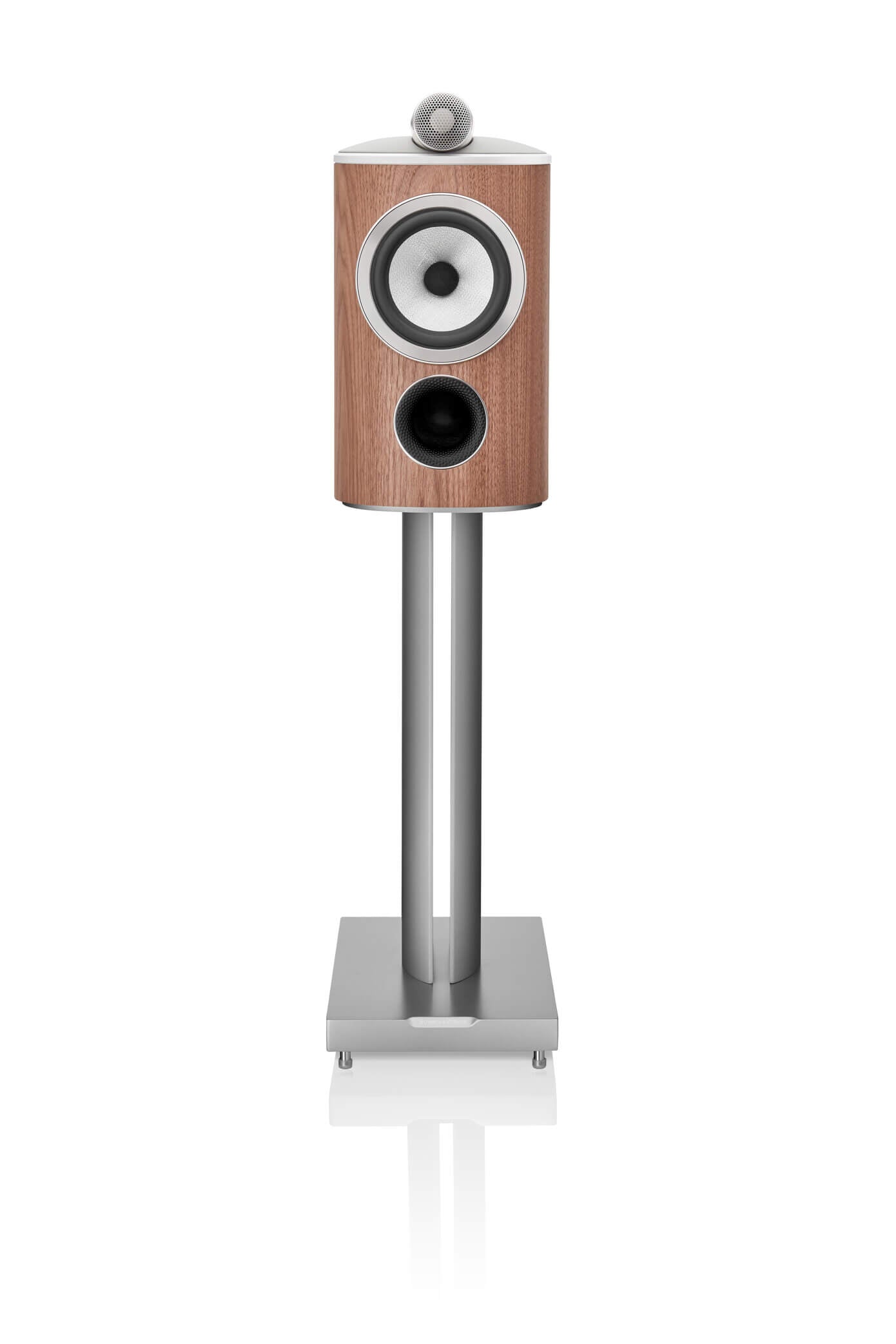

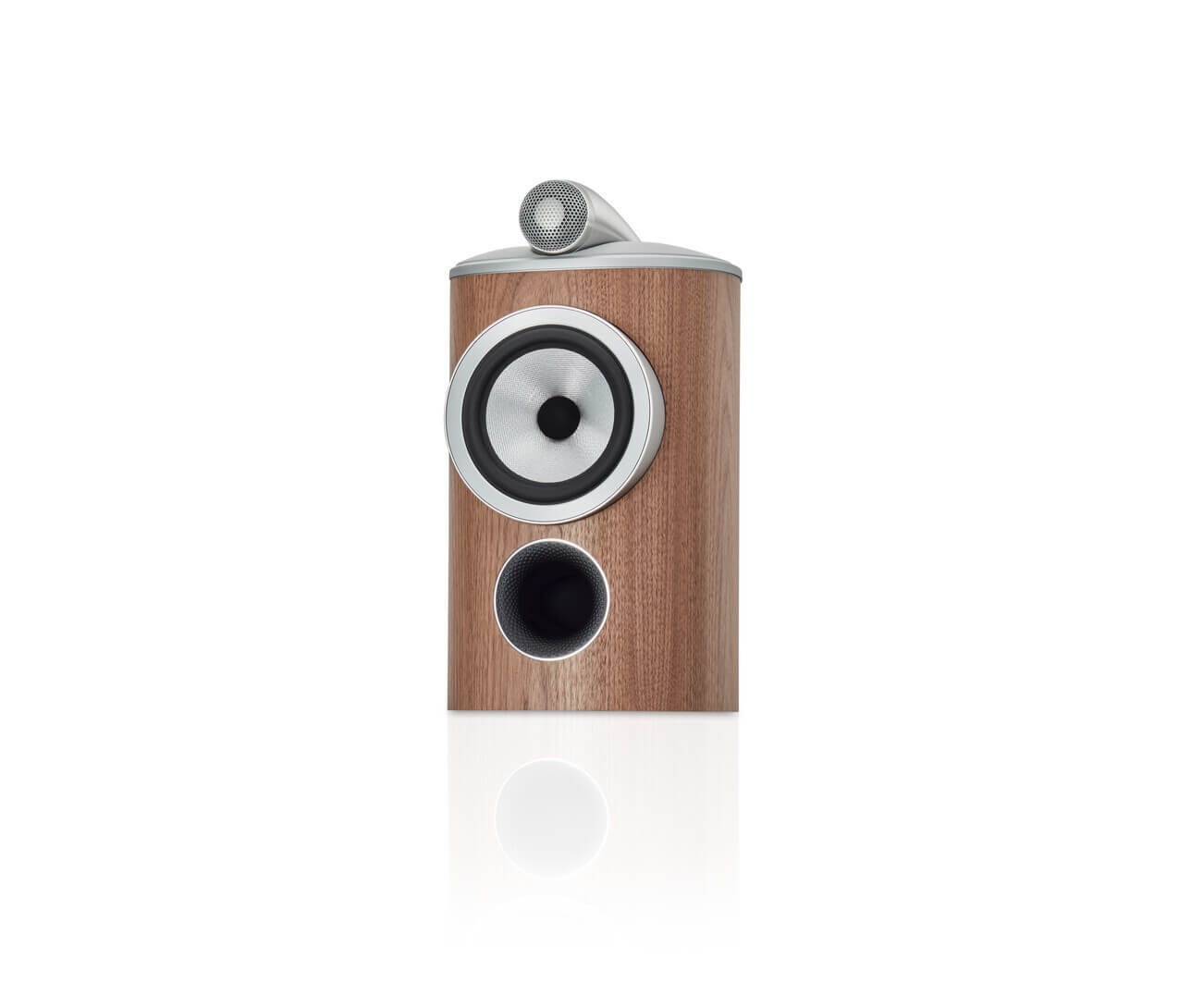

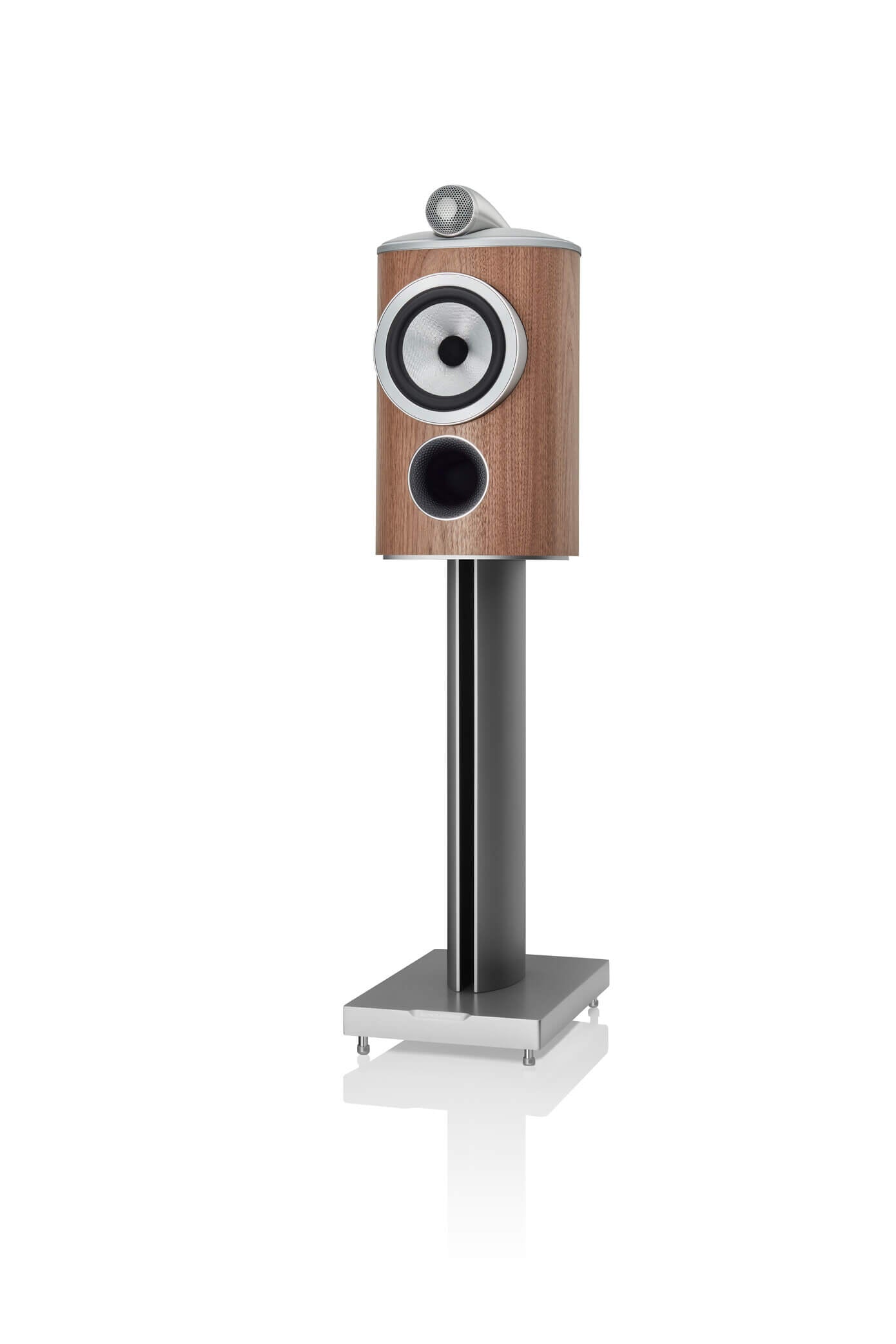

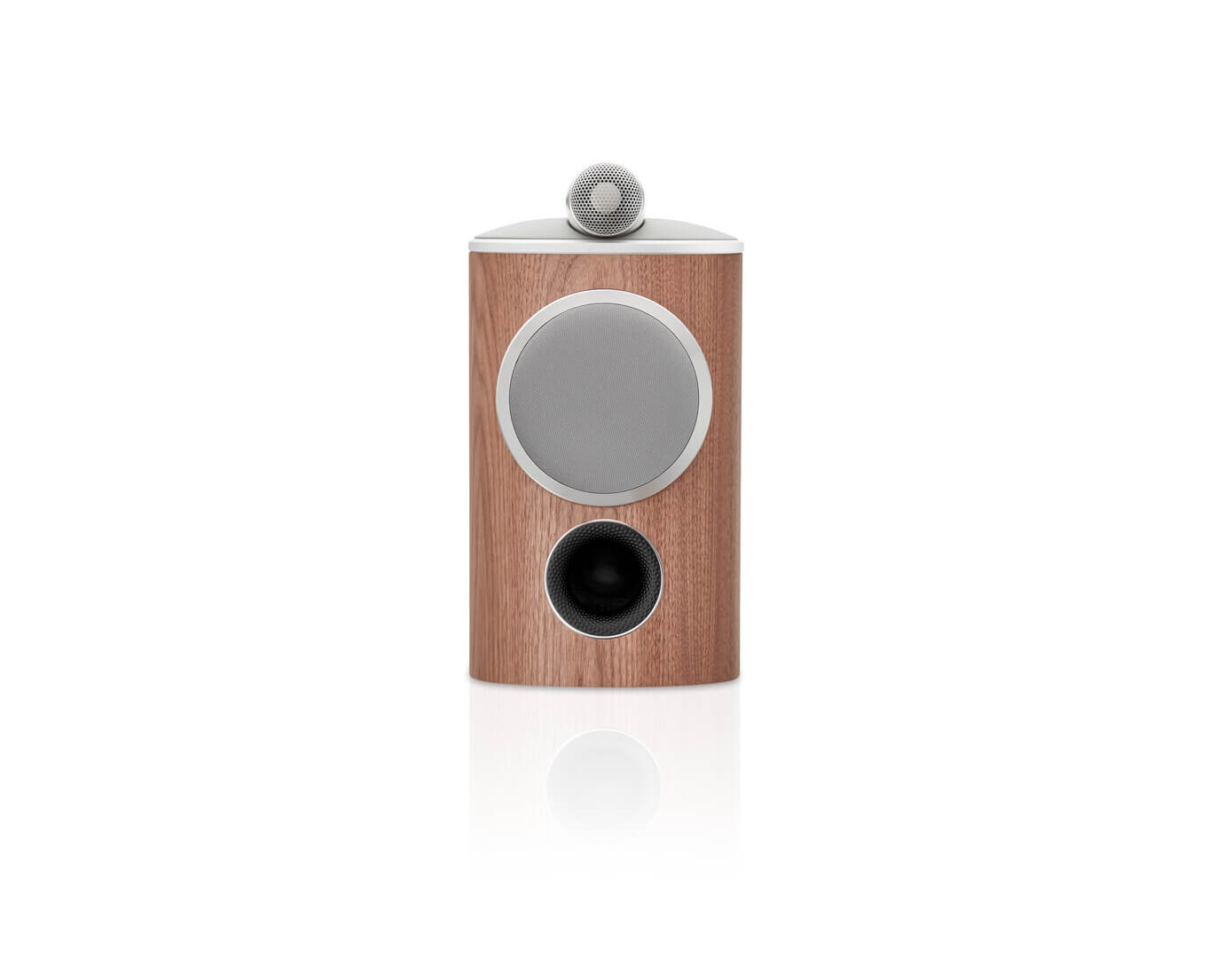

    • Satin Walnut
