B&W ASW608

Our price
£349.00 Enquire About This
Image of B&W ASW608

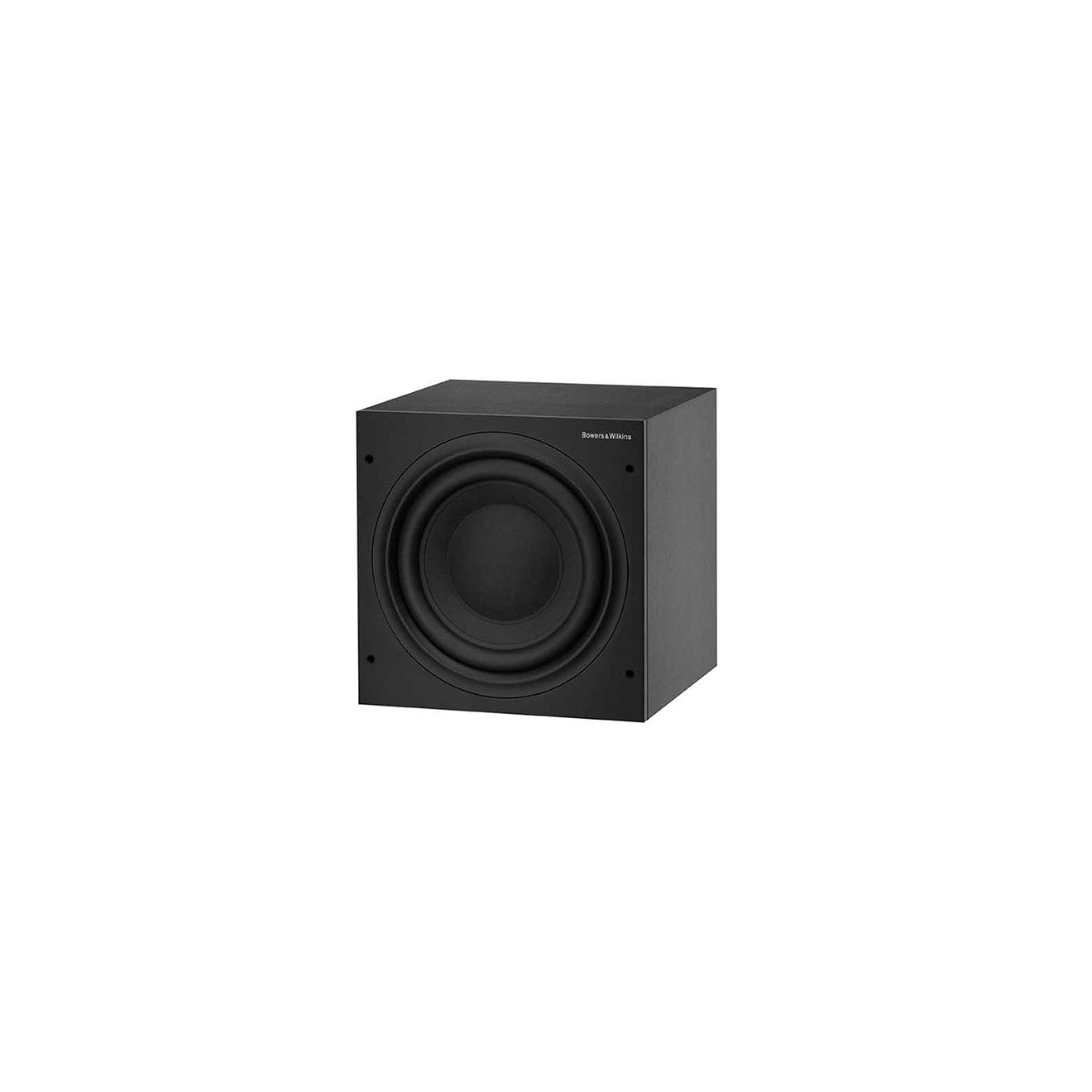

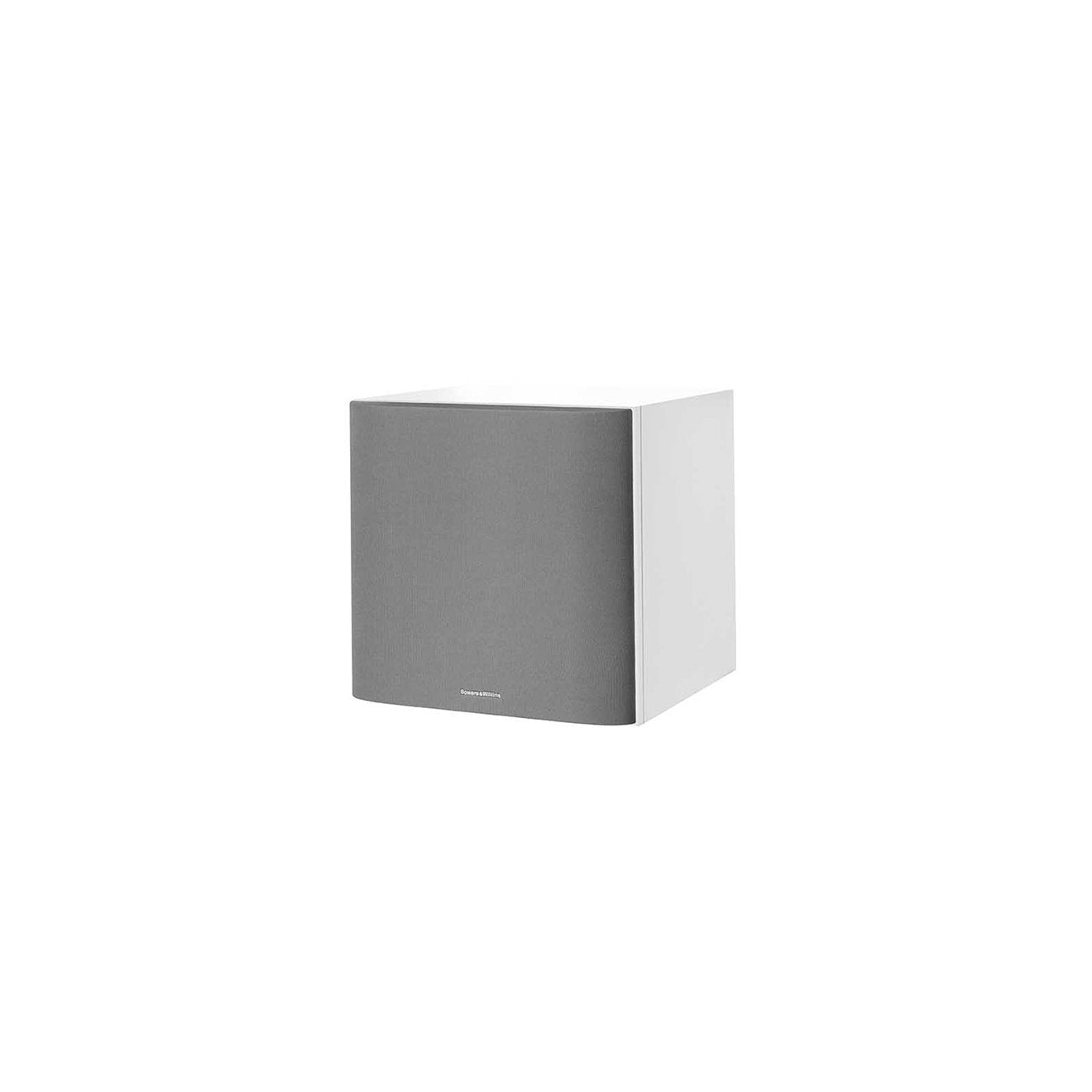

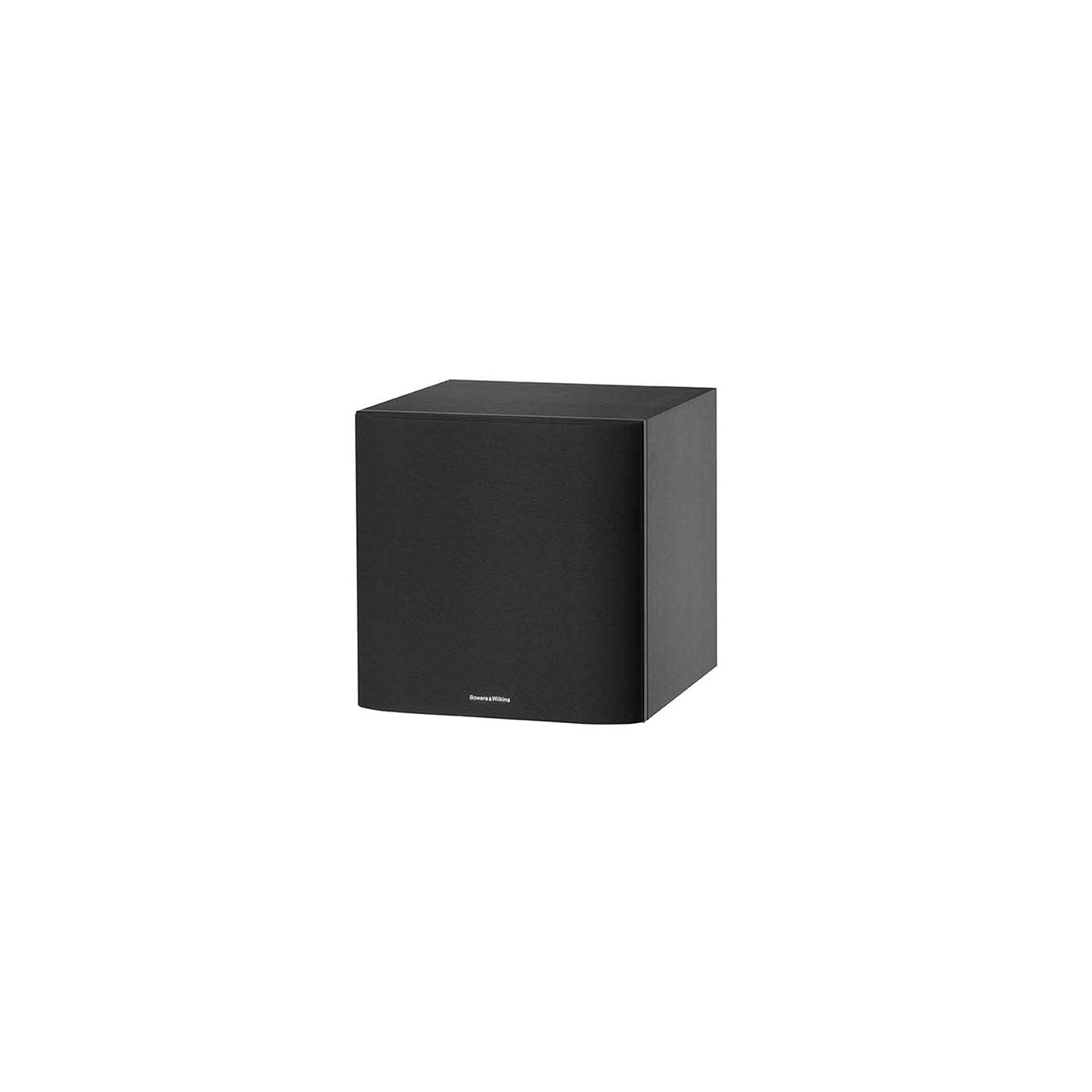

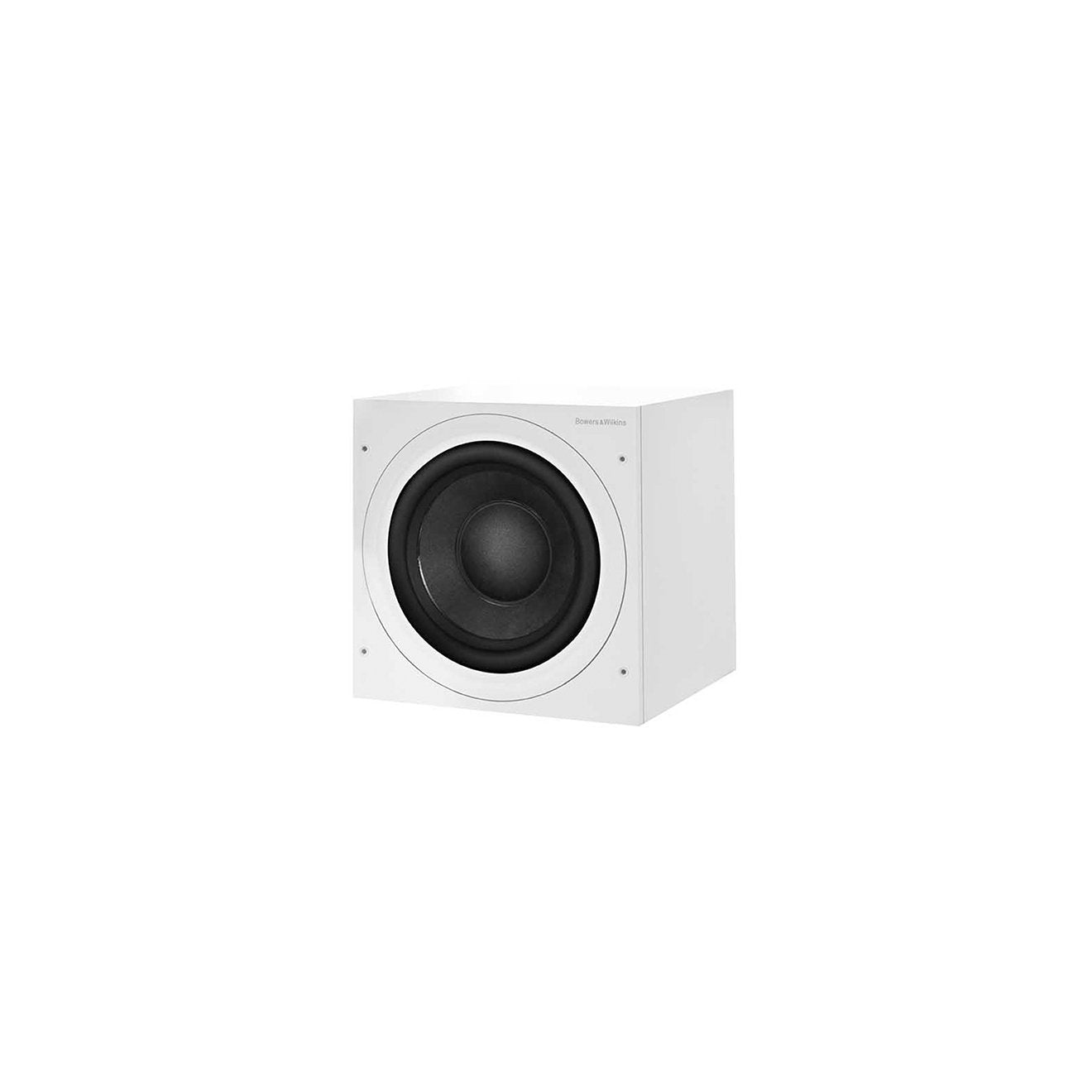

B&W ASW608


What HI FI 5 star award winner as part of the B&W 685 theatre package "Controlled, expansive and scrupulously detailed, it's a pacy listen that can deal with the trickiest rhythms

For big sound in smaller spaces, you can’t beat the ASW608, the most compact of the 600 Series subwoofers.

Its long-throw 200mm driver allows the ASW608 to move the large volumes of air needed for high-quality low-frequency output, and its
audiophile-standard 200W Class D amplifier keeps the unit running cool, even when the music or movie action is whipping up a storm.

In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.

Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.

"


Woven Kevlar

Crossover Tuning

Nautilus Tapering Tube

Flowport

Mushrooms

FST

Tweeter on Top

Matrix

Rohacell

Diamond Tweeters

Sphere / Tube Enclosure

De-Coupling

Nautilus

Description


Active closed-box subwoofer system

Drive unit


ø200mm (8 in) paper/Kevlar® cone long-throw

Frequency range


-6dB at 23Hz and 25/140Hz adjustable (EQ at A)

Frequency response


±3dB 32Hz – 40/140Hz adjustable (EQ at A)

Bass Extension


-6dB at 23Hz (position A)


-6dB at 28Hz (position B)


-6dB at 36Hz (position C)

Amplifier


Power output: 200W

Rated power consumption:


40W/ 0.5W standby

Input impedance:


33kW

Signal / noise:


>90dB

Functions:


Volume level – line in


Volume level – speaker in


Low-pass filter frequency – line in only


Low-pass filter bypass


Bass extension


Bass roll-off alignment


Auto sense on/standby


Phase switch

Inputs:


Line In (RCA Phono)


Speaker in (Binding post)


12v trigger (3.5mm jack)


Low-pass filter


Active 4th-order, variable cut-off frequency

Dimensions


Height: 260mm (10.2 in) not including feet


Width: 260mm (10.2 in)


Depth: 330mm (13 in) including grille and controls

Net weight


8.85kg (19.5 lb)

Finishes


Black Ash Vinyl


Red Cherry Vinyl



"
