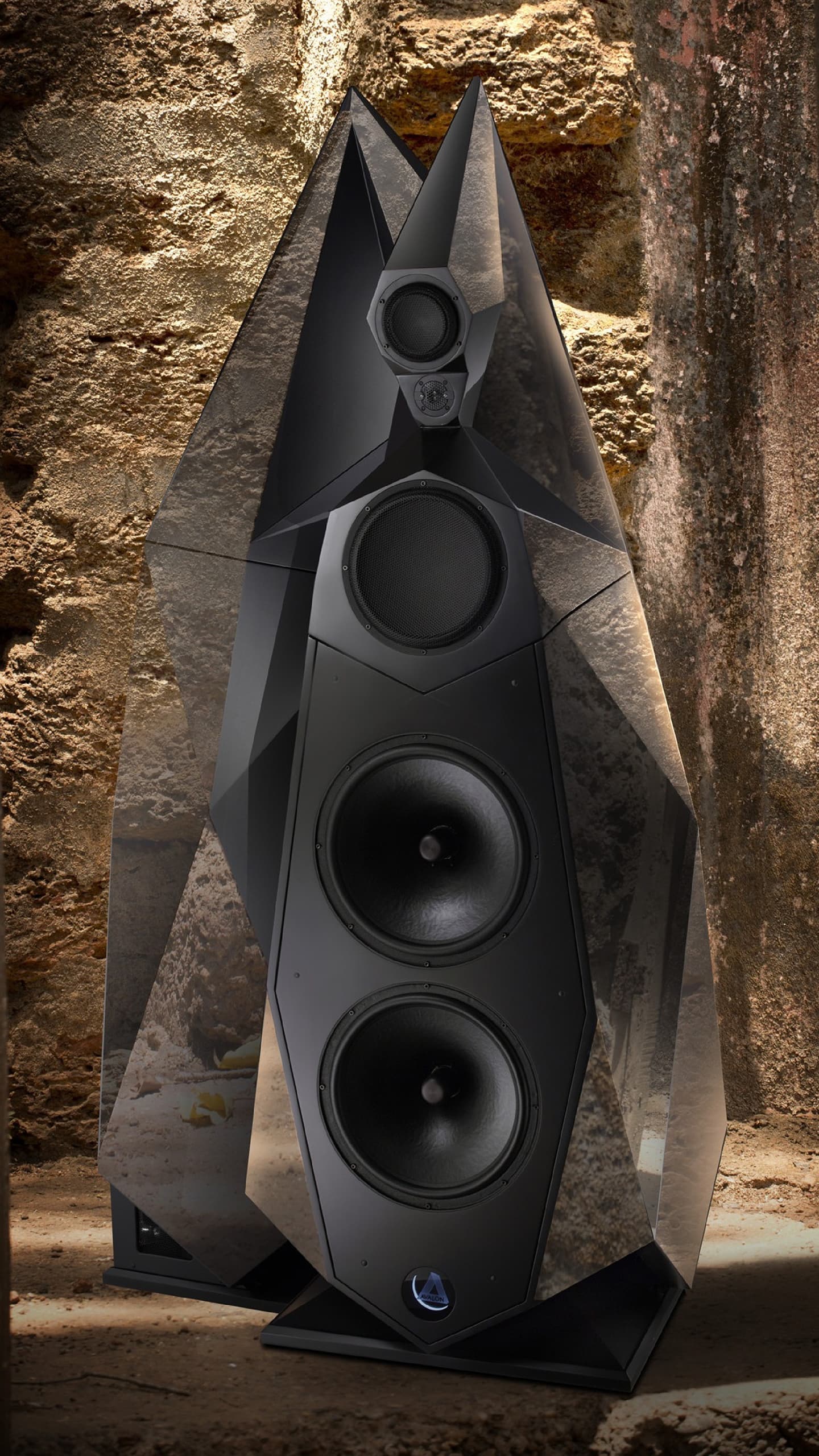

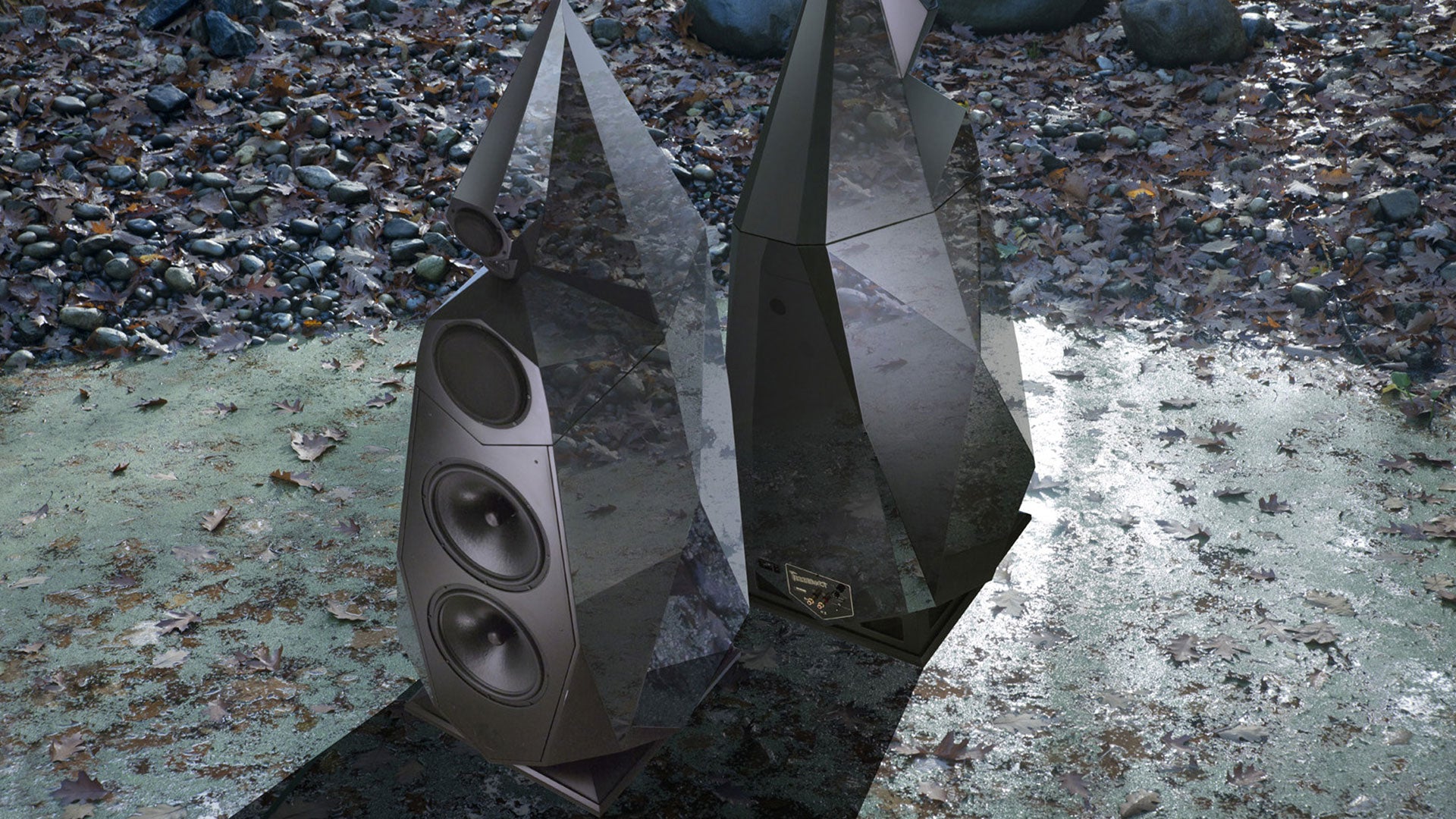

    Avalon Tesseract

    DESCRIPTION +

    TESSERACT represents the culmination of over 25 years of research into the subtleties of musical waveforms and the psychoacoustic perception of sounds in space. Our research into physical forms and how they react with ambient musical information has led us to two essential innovative concepts. First, it is possible to make a large full range system fully disappear sonically. Second, it is possible to create 3-dimensional images within a soundstage using conventional stereo recordings.

    Our Stealth Technology, the redirecting and diffusion of ambient room energy, makes the disappearing act possible. The use of tensor field mathematics, assigning a value and direction to expanding harmonic waves, along with enormous amounts of number crunching, has given us the ability to make reliable predictions regarding which physical forms will best disappear in space. Making an array which is over 7 feet tall disappear is quite a feat of practical mathematical prediction and actual form fabrication.



    SPECIFICATION +

    System Performance:

    • Response: 16 Hz to 70 kHz (+/- 0.5 dB anechoic, +/- 1 dB in room response typical)
    • In room low frequency response: (-1.5 dB @ 16Hz, -3 dB @ 13Hz typical, dependent upon room volume)
    • Efficiency: 93.5 dB (1 watt @ 1 meter)
    • Harmonic distortion: 0.30 % throughout the bandwidth at rated efficiency
    • Inter-driver phase deviation: 3 degrees within all cross bands
    • Noise floor: 68 dB from signal level (maximum noise level), 76dB Typical
    • Group delay distortion: 3 milliseconds 100 Hz to 16 Hz. 1 millisecond 100 Hz to 20 KHz.
    • Impedance: 6 ohms nominal (4 ohms minimum @ 80 Hz)
    • Recommended amplifier power: 15 to 500 Watts



    Powered Isobaric Transmission Line Specs:

    • Power: 3.2 Kilowatts per channel
    • Automatic signal sensing and gain matching
    • Master Gain: +/- 2.5 dB (fixed resistor elements of 0.25 dB increments)
    • Toggle switch for selecting low frequency contouring: Maximum extension or Transient Speed
    • Tempered-scale aperiodic tuning
    • Fully Analog symmetrical circuitry
    • No digital signal conversion or manipulation



    Driver Complement (Per Channel):

    • 4 x 15" low Q high force factor sub-woofers
    • 1 x 11" ceramic/honeycomb underhung voice-coil midbass
    • 1 x 4.5" ceramic underhung voice-coil midrange
    • 1 x .78 " diamond underhung voice-coil tweeter



    Physical Parameters:

    • Four independent cabinets, two per channel vertically integrated
    • Overall Height: 87" (221 cm)
    • Width: 29" (74 cm)
    • Depth: 32" (82 cm)
    • Weight: 827 lbs. per channel (375 kilos), 1653 lbs. total (750 Kilos)
    • Shipping weight: 2002 lbs. (908 kilos)
