Arcam PA720 Seven-Channel Power Amplifier
Arcam PA720 Seven-Channel Power Amplifier
Available to Order
Arcam PA720 Seven-Channel Power Amplifier
Seven channels of amplification in a single chassis is a practical requirement for anyone running a full surround system — front left, centre, front right, two surrounds, and two height channels all need driving, and they all need driving properly. The PA720 is Arcam's answer to that requirement: a dedicated seven-channel power amplifier built around Class G amplification, with enough power per channel to handle whatever an AV processor sends it.
At 100W per channel with all seven channels driven simultaneously, the PA720 does not compromise on power to achieve its channel count. That figure — all channels driven, not a cherry-picked two-channel measurement — is the honest one, and it is a meaningful statement about the PA720's power supply engineering.
Class G Amplification
Class G is Arcam's preferred amplifier topology across their HDA range, and the PA720 demonstrates why. A conventional Class A/B amplifier operates from fixed supply rails — the full voltage is always present, whether the signal demands it or not. Class G uses multiple supply rails at different voltages, switching between them according to the signal level. Low-level signals draw from the lower rail, where efficiency is high and distortion is low. Only when the signal demands it does the amplifier draw from the higher rail.
The practical result is an amplifier that runs cooler, wastes less energy, and operates in a lower-distortion region for the vast majority of programme material, since most music and film soundtracks spend most of their dynamic range well below peak levels. The first 20W of the PA720's output operate in Class A, covering the signal levels where the ear is most discriminating.
Power Supply
The PA720's power supply is built around a toroidal transformer — a design choice that minimises electromagnetic interference radiated into the chassis compared with conventional laminated transformers. The chassis is acoustically damped, and the output stages use paralleled transistors to distribute thermal load and increase current delivery.
Inputs

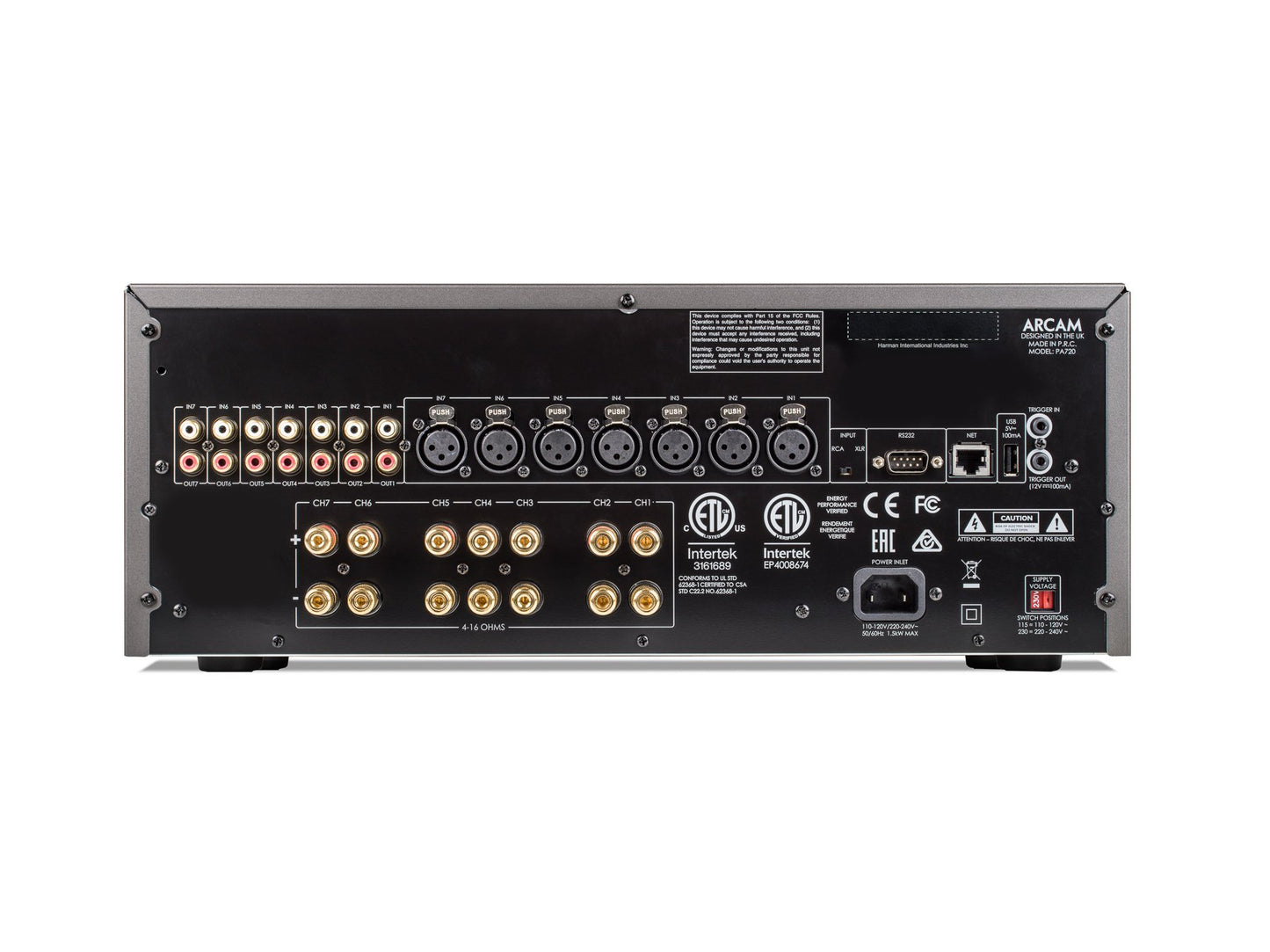

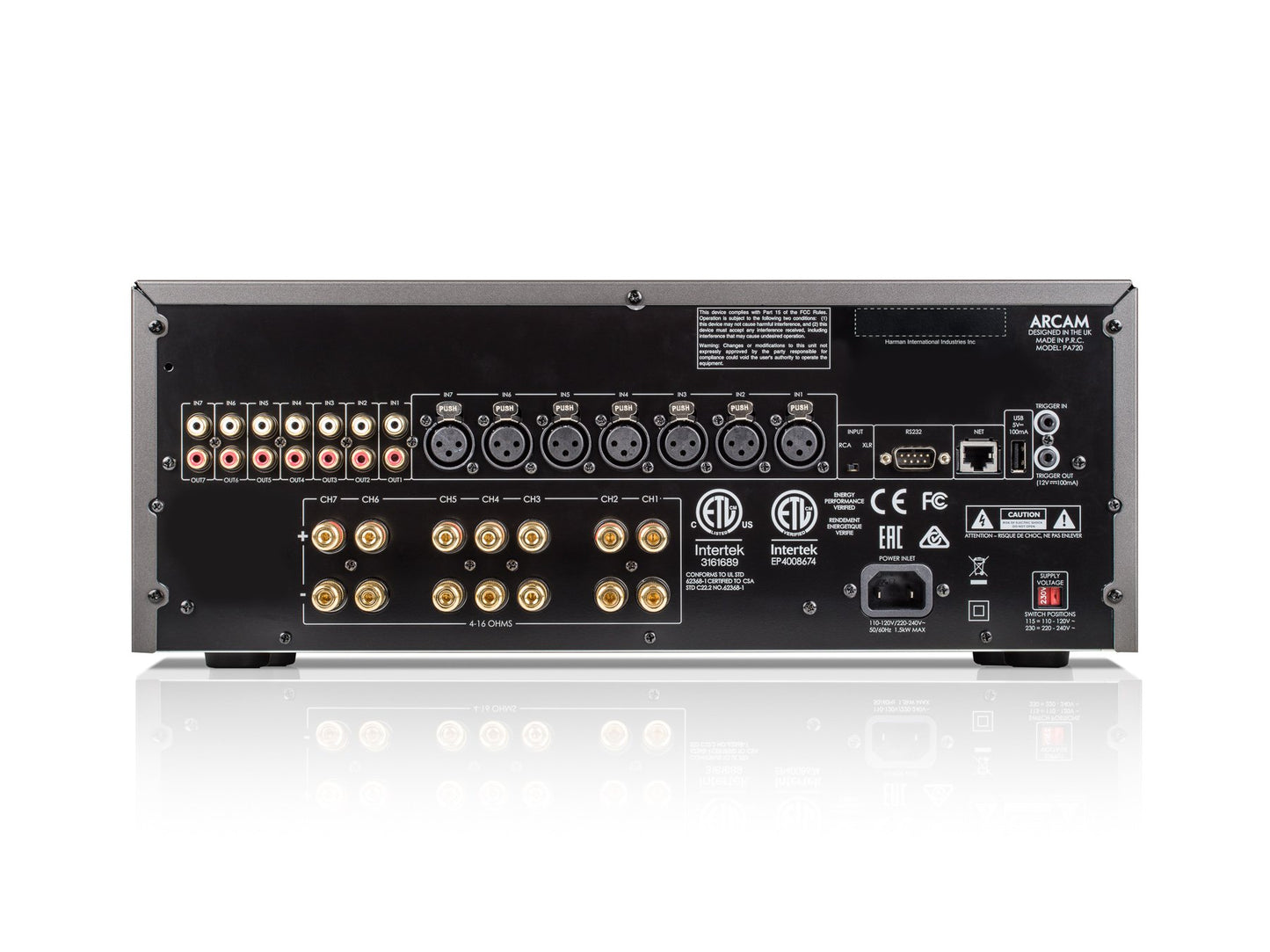

The PA720 accepts both RCA and balanced XLR inputs, switchable. For a dedicated AV installation fed from a processor with balanced outputs — such as the Arcam AVR31 — the balanced connection is the correct choice, rejecting common-mode noise across the cable run between processor and amplifier. For systems using unbalanced interconnects, the RCA input is provided without compromise.
Control and Integration
Ethernet and RS232 control ports are provided for custom installation and automation systems. The PA720 is designed to integrate into a wider AV system — whether a dedicated home cinema room with a full control system, or a simpler setup where the processor handles source switching and the PA720 handles amplification cleanly.
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 7 |
| Power output | 7 × 100W, Class G (8Ω, 20Hz–20kHz, 0.2% THD) |
| Amplifier class | Class G, with 20W Class A operation |
| Power supply | Toroidal transformer |
| Inputs | Switchable RCA or balanced XLR |
| Control | Ethernet, RS232 |
Who Is It For?
The PA720 is for the serious home cinema installation where a single receiver's built-in amplifier stages are no longer sufficient — either because the loudspeakers demand more current than a receiver can provide, or because separating the amplification from the processing is the correct engineering decision. Paired with the Arcam AVR31 or the Arcam AVR11, it forms the core of a system where every channel is driven with the same commitment to quality.
It is not the right choice for those who want a simple all-in-one solution — the AVR11 covers that requirement. The PA720 is for those who have outgrown it.
