Arcam PA410 Four-Channel Power Amplifier

Most AV receivers amplify five, seven, or nine channels internally. What they rarely do is amplify all of them well simultaneously under sustained load. The PA410 exists to address that directly: four channels of dedicated Class AB amplification in a separate chassis, with a toroidal transformer and power supply built for nothing else. At 70 watts per channel with all four channels driven, 0.003% THD at 80% power, and a signal-to-noise ratio of 105dB, it adds genuine amplification quality to any AV system that needs to expand beyond what the receiver handles on its own. At £1,499 it is a serious piece of engineering at a considered price point.

Where the PA410 Sits in the Arcam Power Amplifier Range

Arcam’s power amplifier range covers three models. The PA240 is a two-channel Class G design at 225W per channel with 50W of Class A operation — substantial power for a stereo pair of demanding speakers or two cinema channels. The PA410 sits in the middle: four channels of Class AB amplification at a more practical power level for the surround and height channels that most home cinema systems need to cover. Above it, the PA720 delivers seven channels of Class G amplification at 100W, designed primarily as the main channel solution in an AV41-based system.

The PA410’s role in a typical system is to handle the additional channels that the main amplifier — whether a receiver or the PA720 — does not cover. In a Dolby Atmos 7.1.4 configuration paired with the AV41, for example, the PA720 handles the seven main channels and the PA410 takes the four height channels. This division of labour is a cleaner engineering solution than asking a single chassis to drive eleven channels simultaneously.

Sound and Performance

Class AB amplification in the PA410 means there is always a portion of each output transistor’s operation in Class A — the region where the device is conducting continuously rather than switching. This eliminates the crossover distortion that pure Class B designs are susceptible to, and it is the reason Class AB remains the standard for quality audio amplification. The 0.003% THD figure at 80% power into 8Ω at 1kHz is the performance consequence: a distortion level inaudible in any practical listening context.

The paralleled transistor output stages and acoustically damped chassis both address the same goal from different directions: reducing noise that is not in the signal. Paralleled output stages lower source impedance and thermal noise at the output. Acoustic damping of the chassis reduces vibration-induced noise that enters the signal path through mechanical coupling. These are refinements that do not show up in headline specifications but contribute to what the amplifier actually sounds like on sustained listening.

With 700W maximum consumption for four channels, the PA410 is not under-specified for its power output. The headroom in the power supply means the amplifier does not compress under dynamic peaks — the kind of transient events in film soundtracks and orchestral music that reveal the limitations of a marginal power supply.

Build Quality and Design

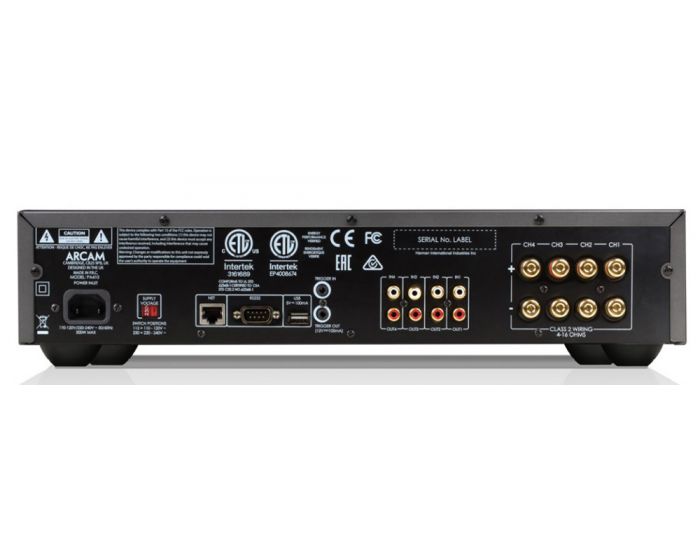

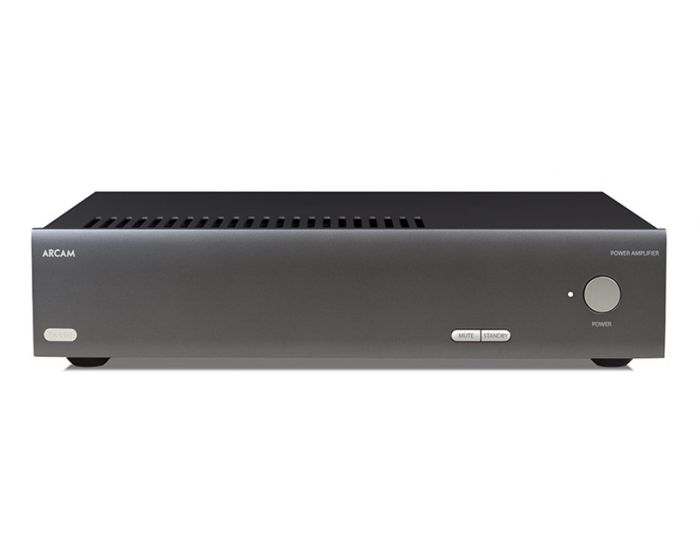

The PA410 matches the PA720 and PA240 in physical approach: toroidal transformer, substantial chassis, and a footprint designed to stack neatly in a rack alongside an Arcam processor or receiver. At 433 × 325 × 105mm and 10kg, it occupies a single standard rack unit height. RS232 and Ethernet control ports support professional installation and integration with third-party control systems.

Both balanced XLR and unbalanced RCA inputs are fitted and switchable, which matters in practice: the AV41 processor outputs balanced XLR, so the PA410 can connect directly without adapters. For systems using a receiver with unbalanced pre-outs, the RCA input handles that equally cleanly.

Connectivity and System Matching

The PA410 connects directly to the pre-outputs of the AV41 processor or the AVR5 receiver via balanced XLR or unbalanced RCA. In an AV41 + PA720 + PA410 system, the PA410 takes height channel duty while the PA720 covers the seven main channels — a clean split for a full 7.1.4 Atmos installation.

Speaker sensitivity and impedance requirements depend on the speakers connected to the PA410’s outputs rather than any limitation of the amplifier itself. At 70W into 8Ω with four channels driven simultaneously, it will handle any height speaker at a practical listening level without difficulty. The input sensitivity of 600mV RMS for 50W into 8Ω means it works directly with any standard processor output without level mismatch.

Technical Specifications

Who Is the PA410 For?

The PA410 suits anyone expanding a home cinema system beyond the channels their receiver amplifies directly — most commonly for Dolby Atmos height speakers in a 5.1.4 or 7.1.4 configuration. It is also a straightforward upgrade path for anyone running an AVR5 who wants to move dedicated amplification for surround channels into a separate chassis. If you need seven channels from a single unit, the PA720 is the answer. If you need two channels at higher power, the PA240 is worth considering.
