} KEF Reference 3 Meta available at Martins Hi-Fi

    KEF Reference 3 Meta

    £11,480.00
    Tax included. Shipping calculated at checkout.
    DESCRIPTION +

    KEF Reference 3 Meta

    The benchmark of HiFi speakers, condensed



    The floorstanding Reference 3 Meta is capable of delivering a sensational sound stage for a wide range of listeners. At its heart sits the 12th generation Uni-Q® driver array with MAT™, the latest technological development from KEF, and one which puts you solidly at the heart of the action.

    The Reference are loudspeakers for serious audiophiles who aspire to the perfect enjoyment of music and movies. Whether used in a traditional two-channel HiFi or a multi-channel home theatre, listeners will be able to experience the realistic, immersive sound with breath-taking dynamics, and levels of accuracy that reveal details never noticed before.

     A class apart

    The Reference range encompasses two three-way floorstanding speakers, a formidable three-way standmount speaker, and two three-way centre speakers that can be used as Left-Centre-Right (LCR) speakers. The Reference combines phenomenal high-fidelity performance with complete multi-channel versatility.

    And now new technological advances make The Reference range even more impressive. At the heart of The Reference range now sits a bespoke 12th generation Uni-Q with MAT driver array. This new addition truly puts The Reference range in a class of its own.

    Summary of features

    • Metamaterial Absorption Technology eliminates 99% of high-frequency distortion for pure, natural sound
    • Bespoke 12th generation Uni-Q with MAT driver array for exceptional acoustic accuracy
    • Enhanced crossover design fine-tuned the signal path for maximum clarity
    • Optimised cabinet design for best acoustic performance
    • Five models: Reference 1 Meta, Reference 3 Meta, Reference 5 Meta, Reference 2 Meta, Reference 4 Meta
    • Available in 5 finishes
    • With mounting inserts to secure on KEF S-RF1 Floor Stand (available as separate item)
    • The Reference Series Grille set for each model is available as separate item

    Revolutionary sound absorption with MAT

    A truly revolutionary tool in the KEF acoustic armoury, Metamaterial Absorption Technology (MAT) is a highly complex maze-like structure, where each of the intricate channels efficiently absorbs a specific frequency.

    When combined, the channels act as an acoustic black hole, absorbing 99% of the unwanted sound that comes from the rear of the tweeter, eliminating the resulting distortion and providing a purer, more natural acoustic performance.

    A result of joint development with the Acoustic Metamaterials Group, using MAT breaks completely new ground in loudspeaker design, and once again demonstrates KEF’s unrelenting passion for developing new technologies to improve your listening experience. Metamaterials are specially developed structures that use existing materials in such a way that they exhibit new, desirable properties that are simply not found in naturally occurring substances.

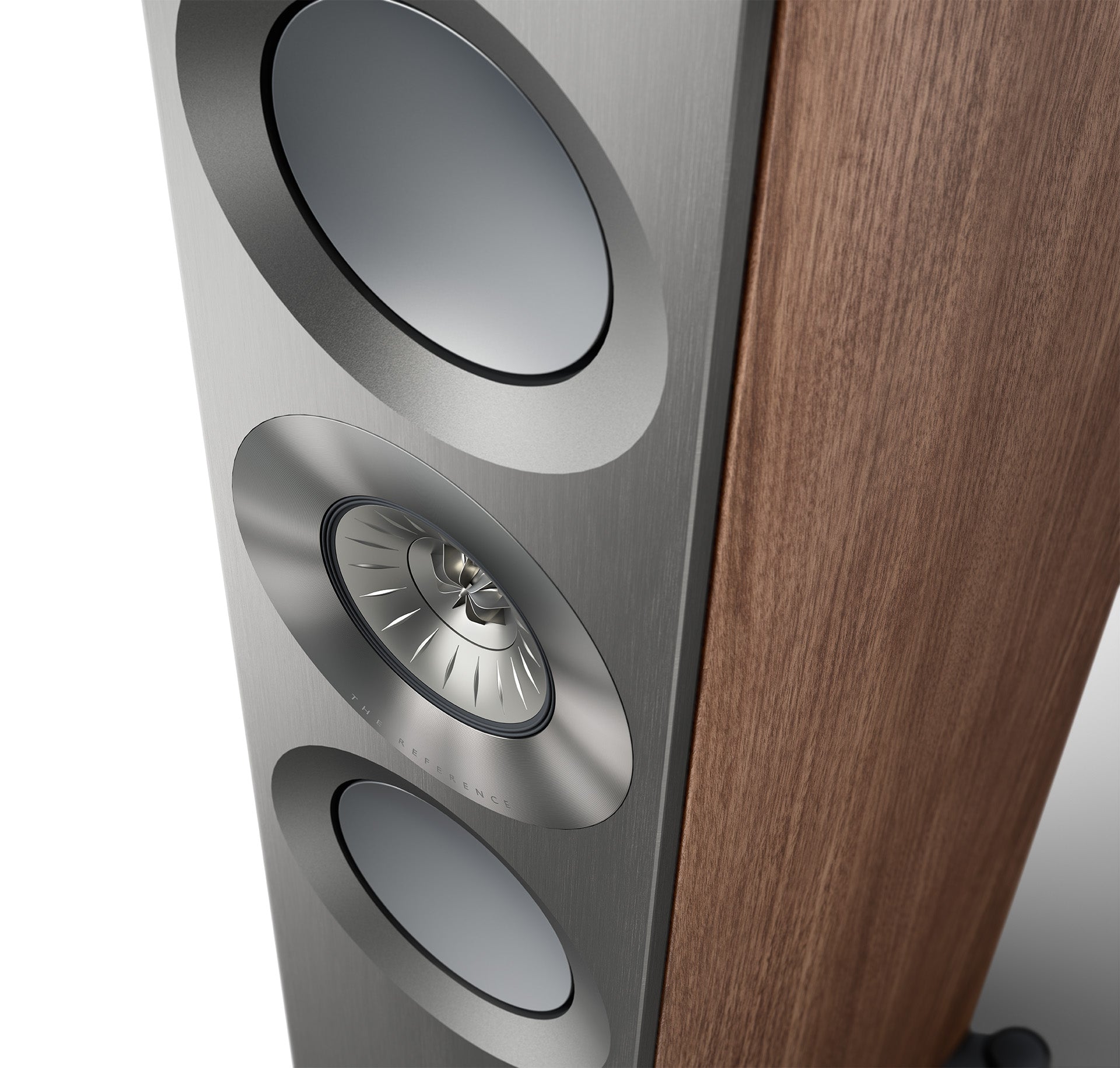

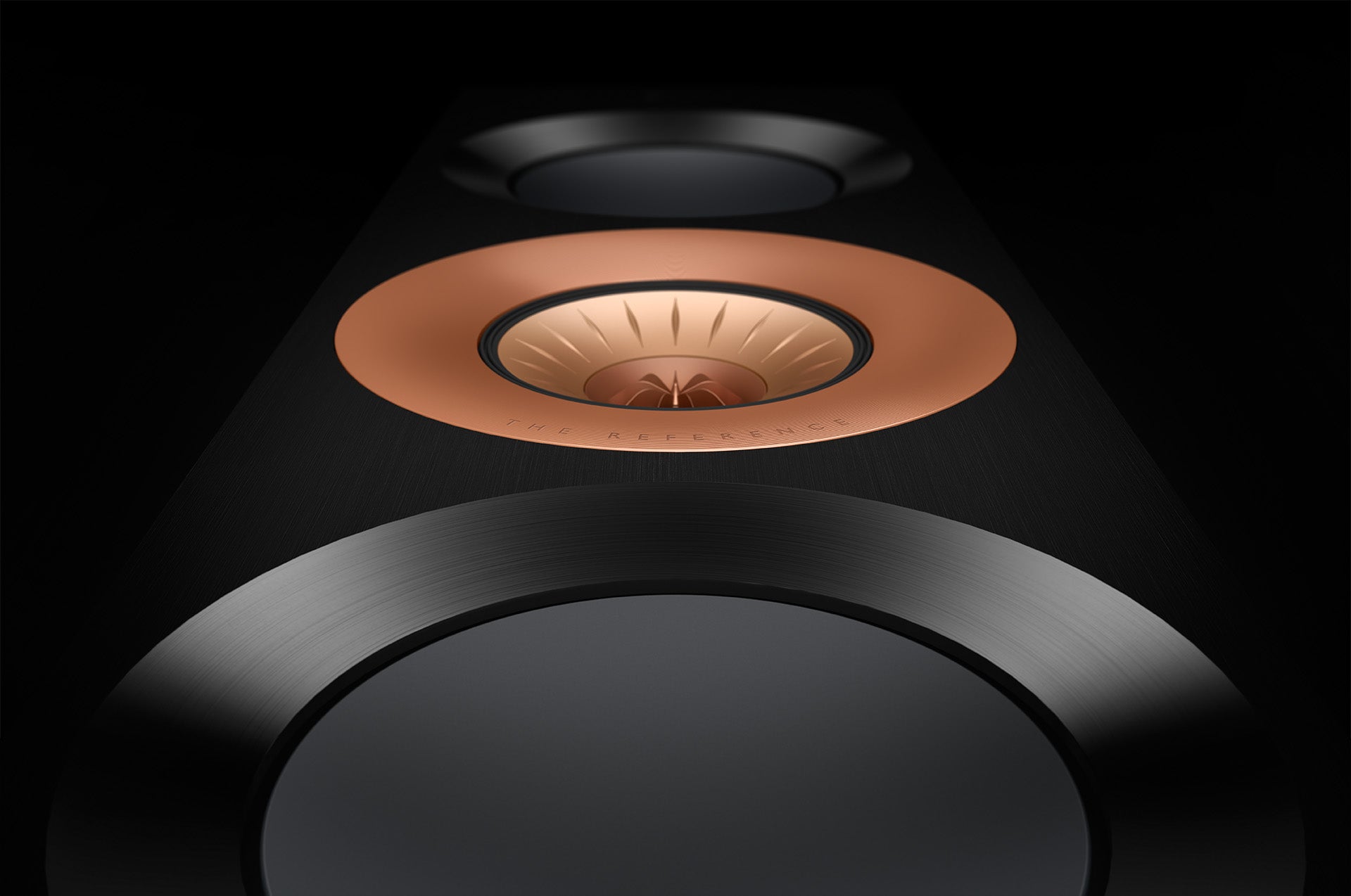

     12th Generation Uni-Q with MAT™ delivers

    The 12th generation Uni-Q with MAT in The Reference is a bespoke driver array engineered to deliver pristine performance across this exceptional range of loudspeakers. It’s the result of decades of accumulated in-house knowledge and the application of cutting-edge simulation and analysis tools. The developments are many and all play a part in The Reference’s pristine performance.

    As a starting point, KEF engineers re-engineered the tweeter gap damper to maximise the space at the back of the tweeter for the new metamaterial absorber. Optimising the cavity shape and strategically placing two rings of porous material effectively tame the resonances and imperfections, thus greatly improving detail and clarity.

    A new ultra-low distortion midrange motor design uses a copper ring embedded into the motor gap to minimise inductance and variation of inductance with coil position. This lowers the midrange THD and reduces thermal compression, leading to improved efficiency.

    The Uni-Q driver array is fully decoupled to prevent unwanted vibrations from muddying the sound. A new flexible decoupling chassis is designed to reduce vibration and remove coloration. It ensures that any vibration generated by the mid and high-frequency motor system is not transmitted to the loudspeaker cabinet.

    The new driver surround is designed to allow longer excursion without causing diffraction and extending the frequency range of the mid-frequency. Plus, the contours of the dome, midrange horn and surround are all computer-optimised to ensure a perfectly smooth transition to the cabinet.

    KEF’s patented tangerine waveguide technology manages the airflow to recreate the wide, even spread of a natural sound field, dispersing the astonishingly pure high-frequency imaging throughout the room.

    The result of these innovations and developments is that this bespoke 12th generation Uni-Q with MAT offers a sound that is more transparent and life-like than previously possible.

     Reference quality bass

    High and mid-range frequencies are only part of the story though, and The Reference is also blessed with clean, rich, highly articulate bass. That’s because The Reference’s 165mm (6.5 inch) low frequency driver perfectly complements the new 12th generation Uni-Q with MAT driver array. Smart engineering and meticulous attention to design detail enables the bass to blend seamlessly with the immaculate midrange and treble response.

    The Reference’s bass driver also benefits from a massive, vented magnet assembly, a large aluminium voice coil and an exceptionally light and stiff alloy cone. As a result of all these technologies volume, dynamics and power handling are superb.

    Engineered to be flexible

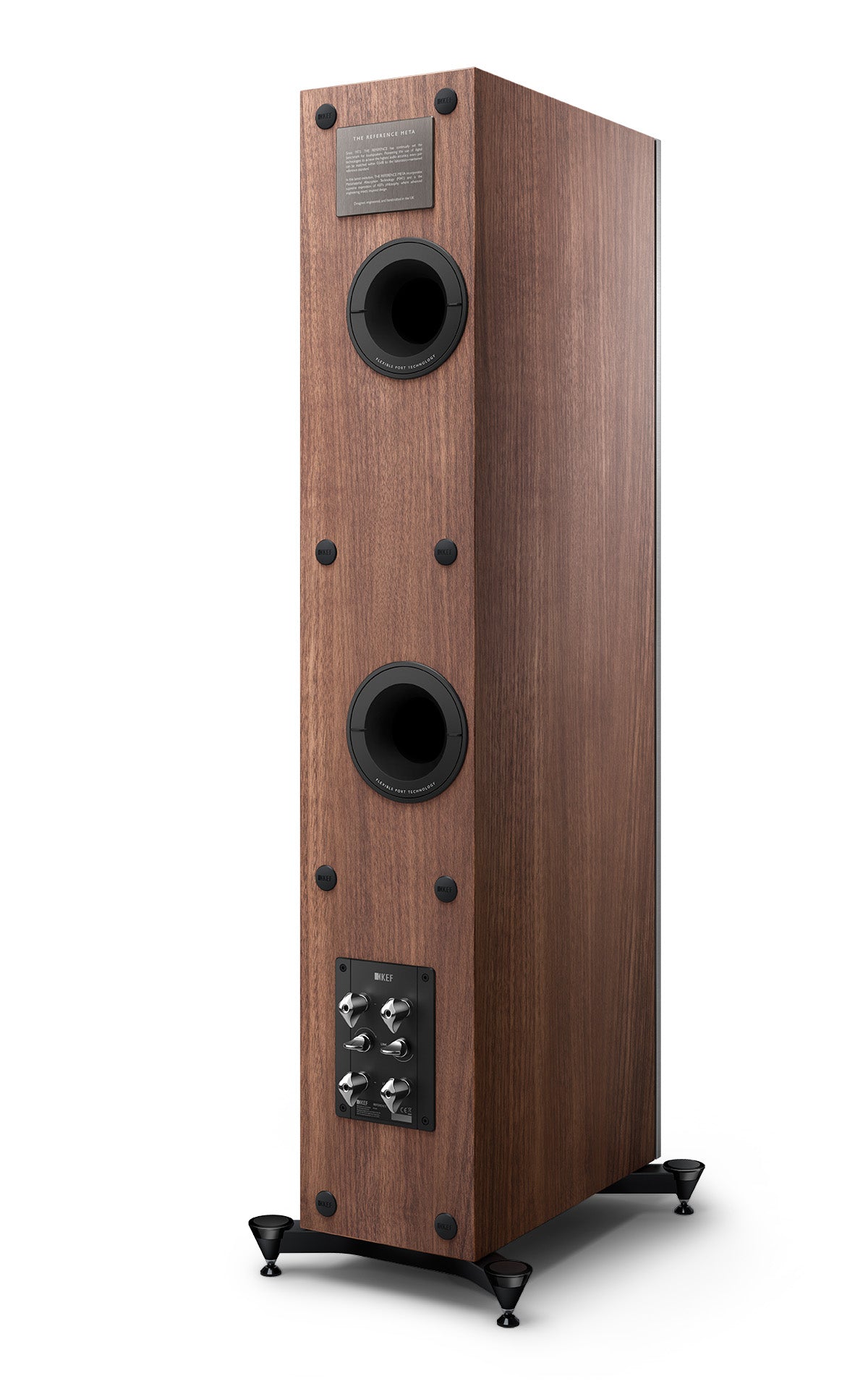

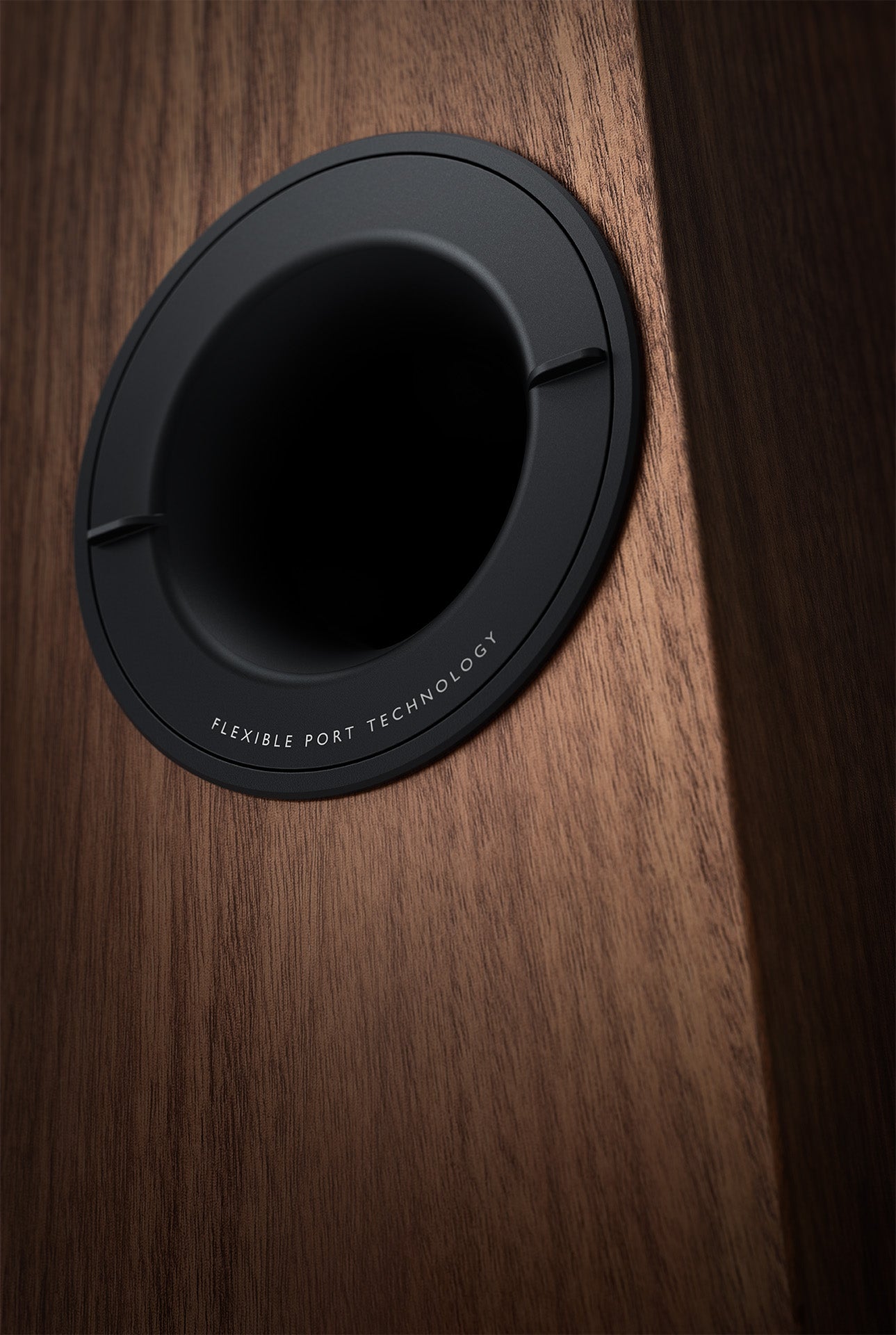

    The speakers in The Reference range are also welcomingly undemanding in terms of positioning, and are easy to fine-tune for your listening area by using KEF’s innovative Flexible Port Technology, which can reduce port resonance. There are two options of port tubes, allowing users to modify the sound to suit their room. Plus, the flare and profile of each port has been calculated by computational fluid dynamics to avoid turbulent air noise that might colour the sound, another part of the complex jigsaw that is The Reference’s breath-taking performance.

     Total attention to detail

    Every speaker in The Reference range exudes the sense of sheer quality that comes from being hand-built by KEF’s master craftsmen in Maidstone, Kent, UK. They are designed to be acoustically exceptional, attractive to look at, and each speaker is meticulously built to KEF’s exceptional standards.

    All the cabinets are designed using finite element analysis to determine the ideal shape and bracing geometry to minimise secondary radiation from the sides, with Constrained Layer Damping applied to turn what little vibration is left into heat.

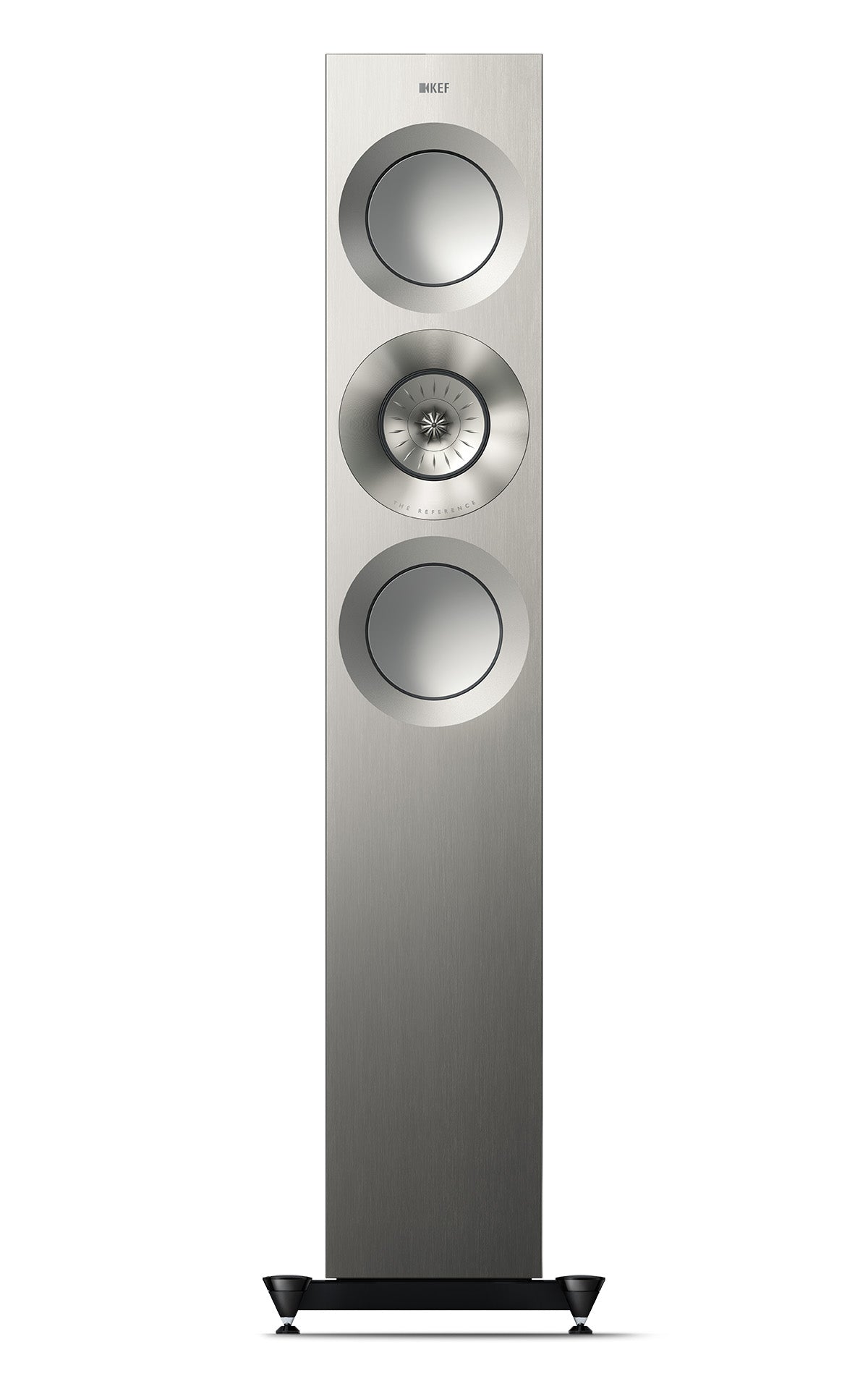

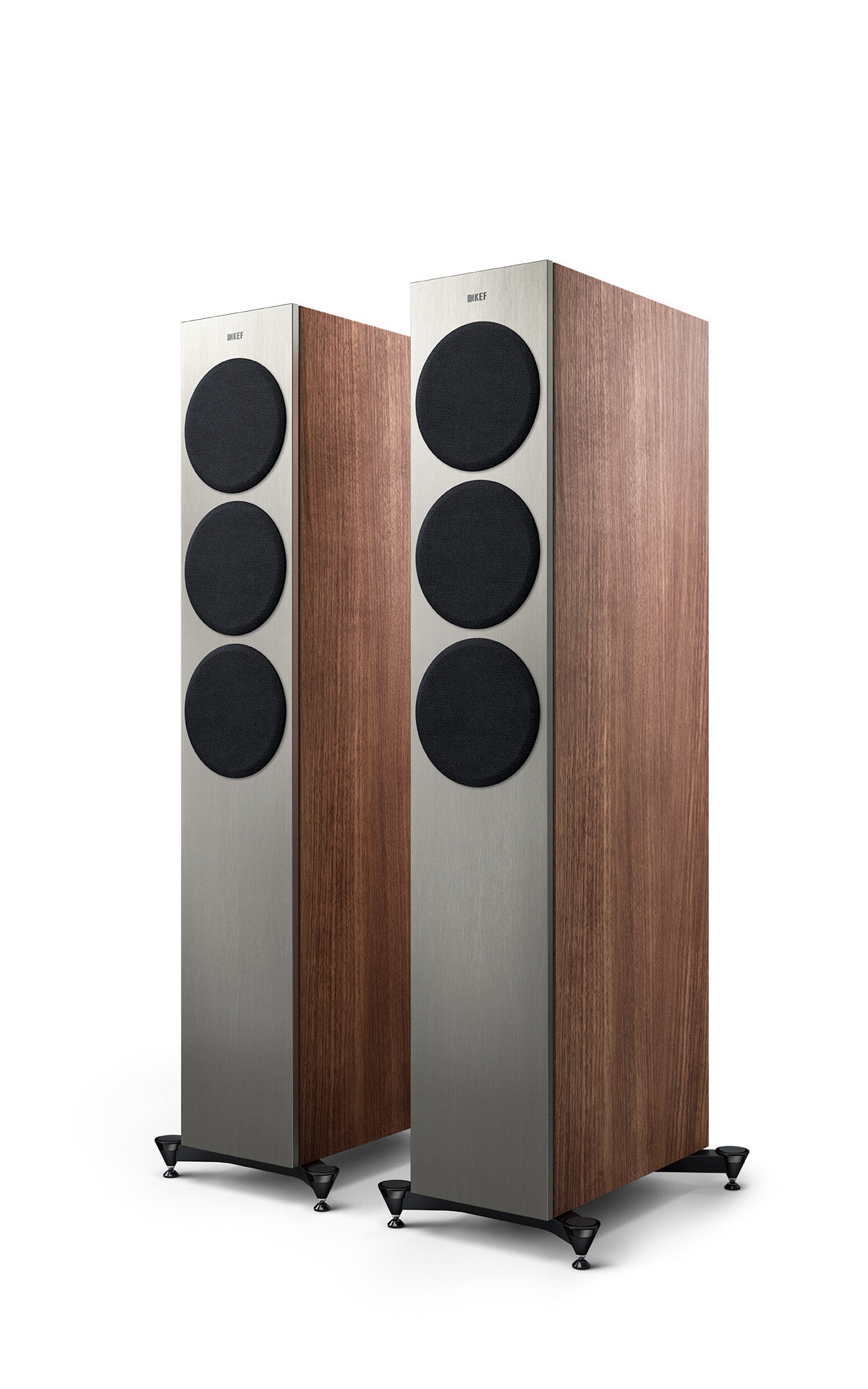

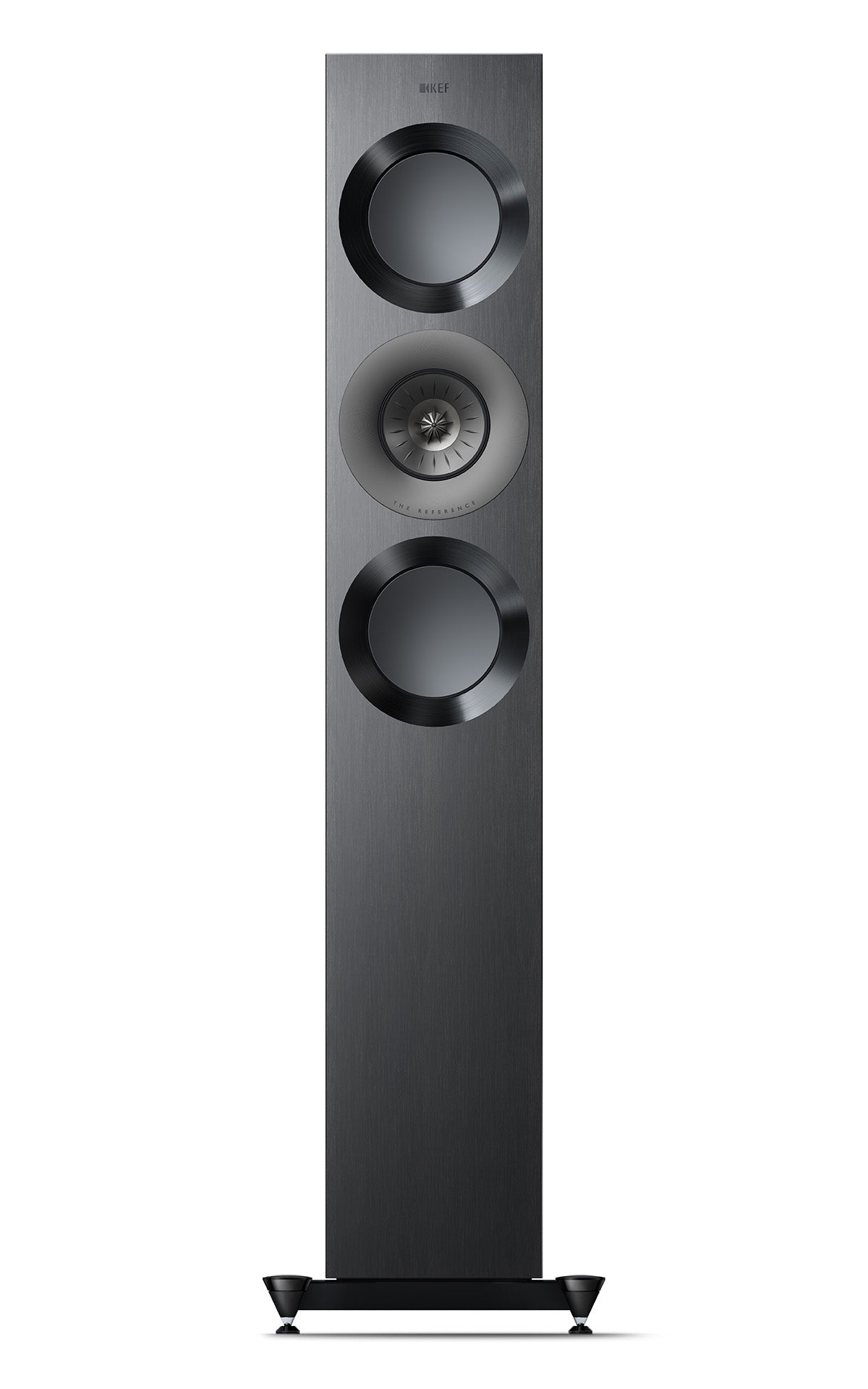

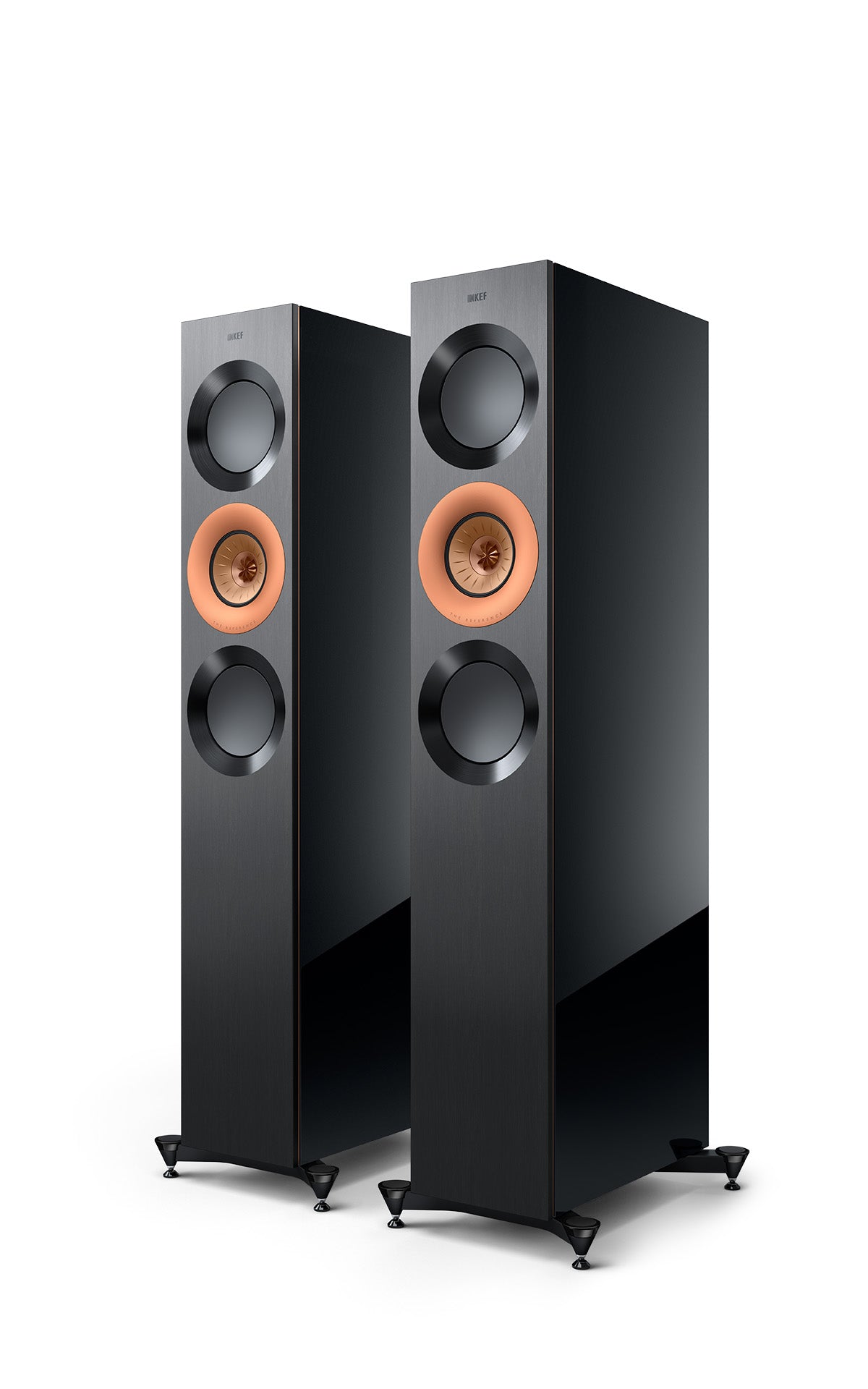

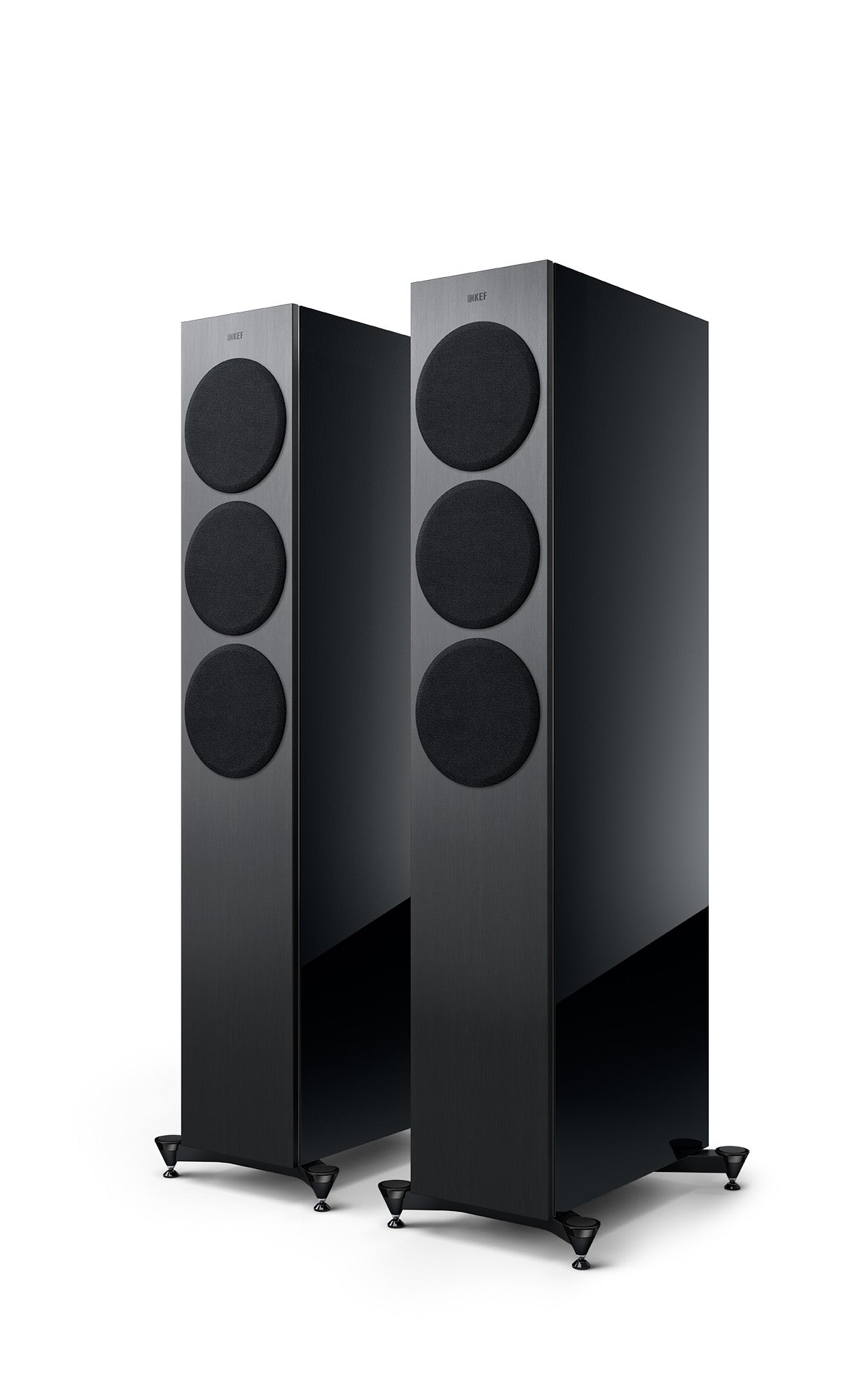

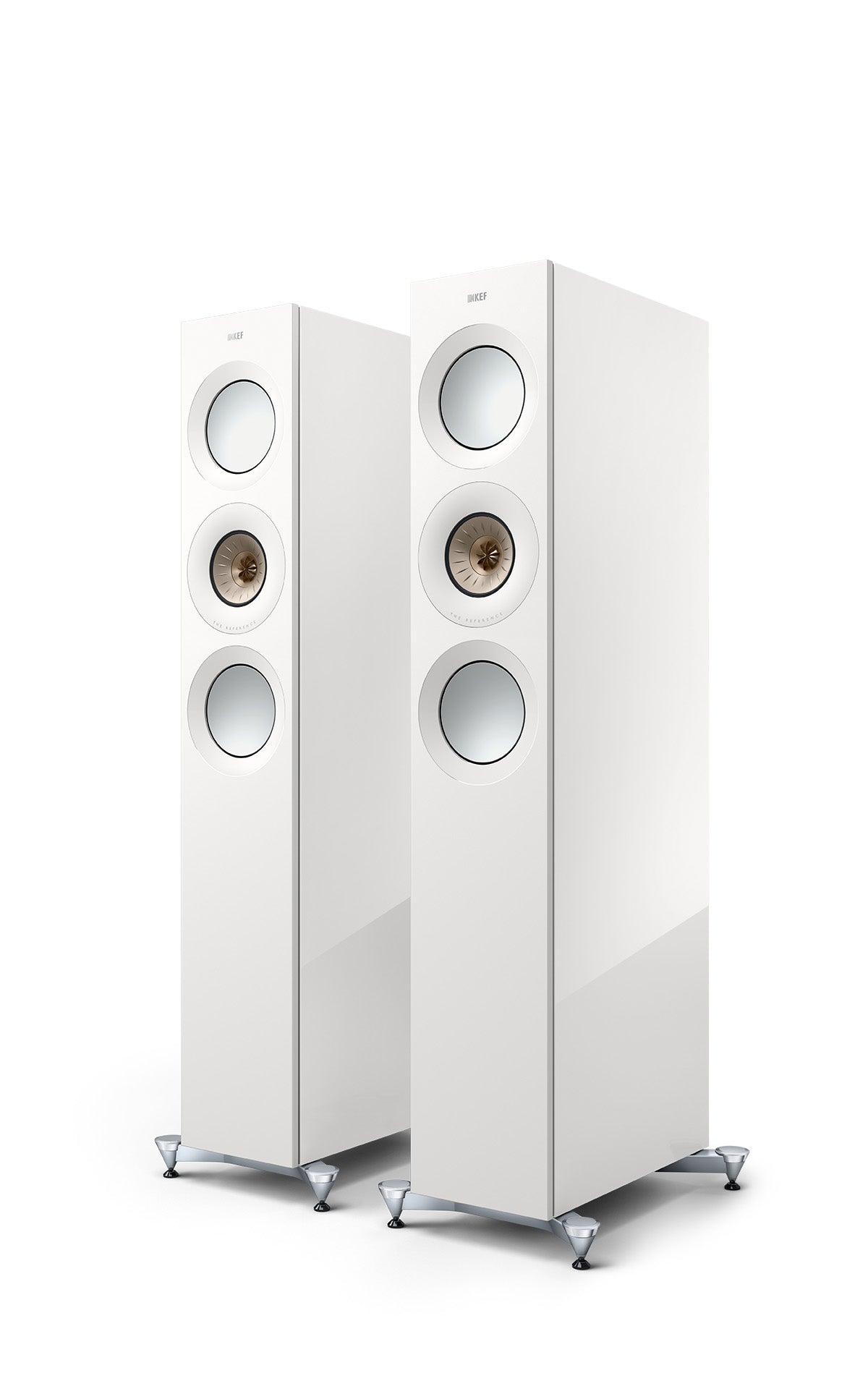

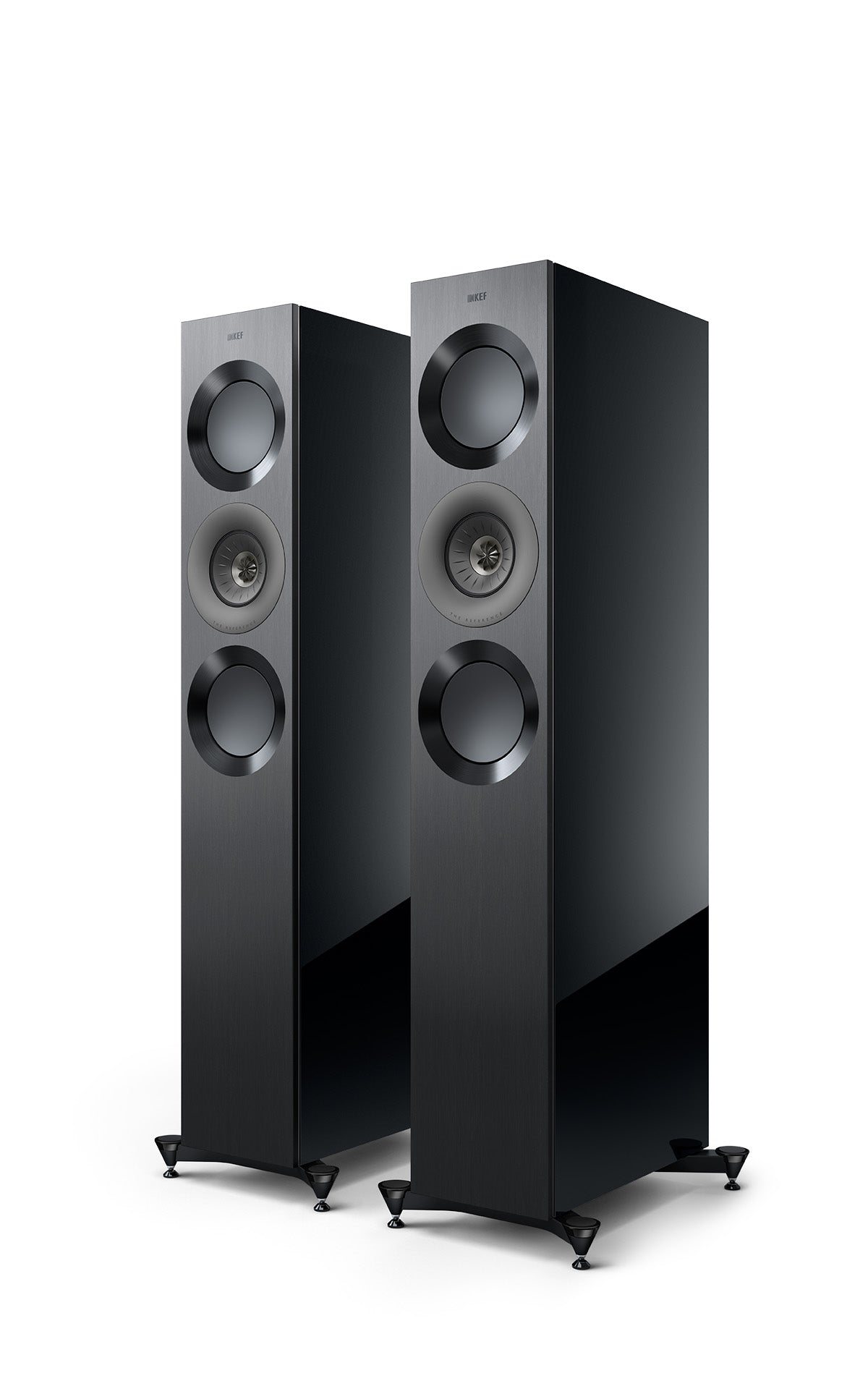

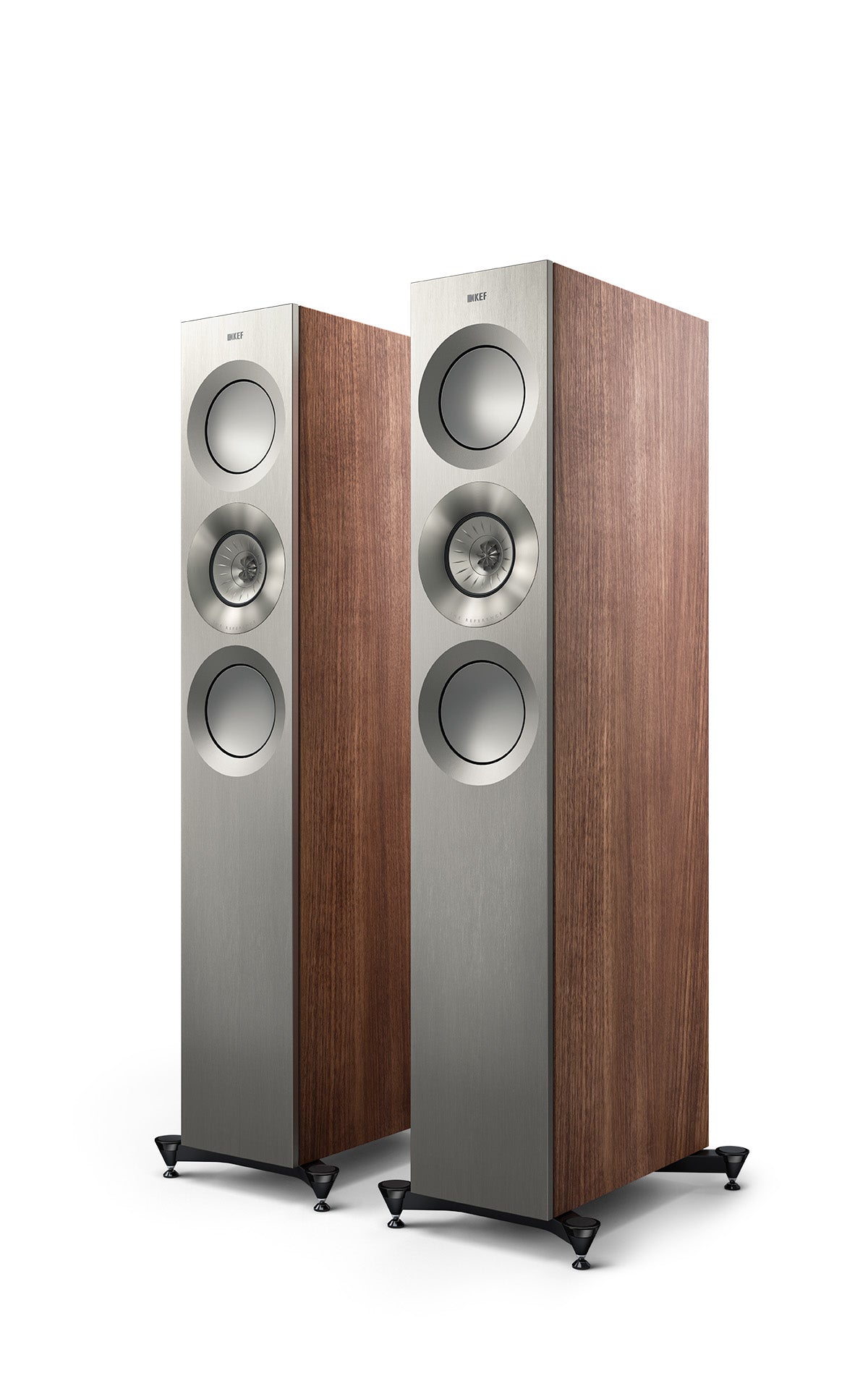

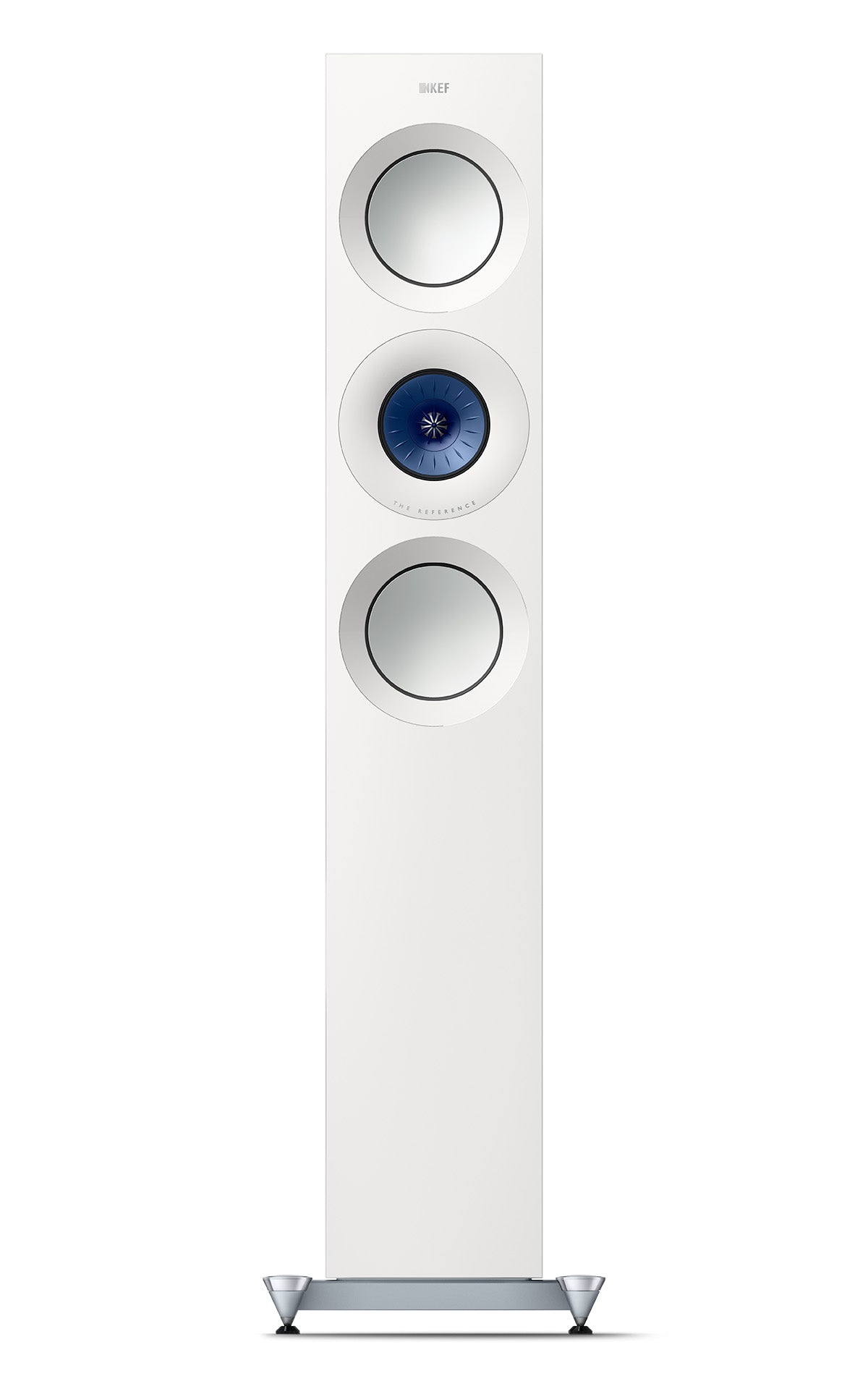

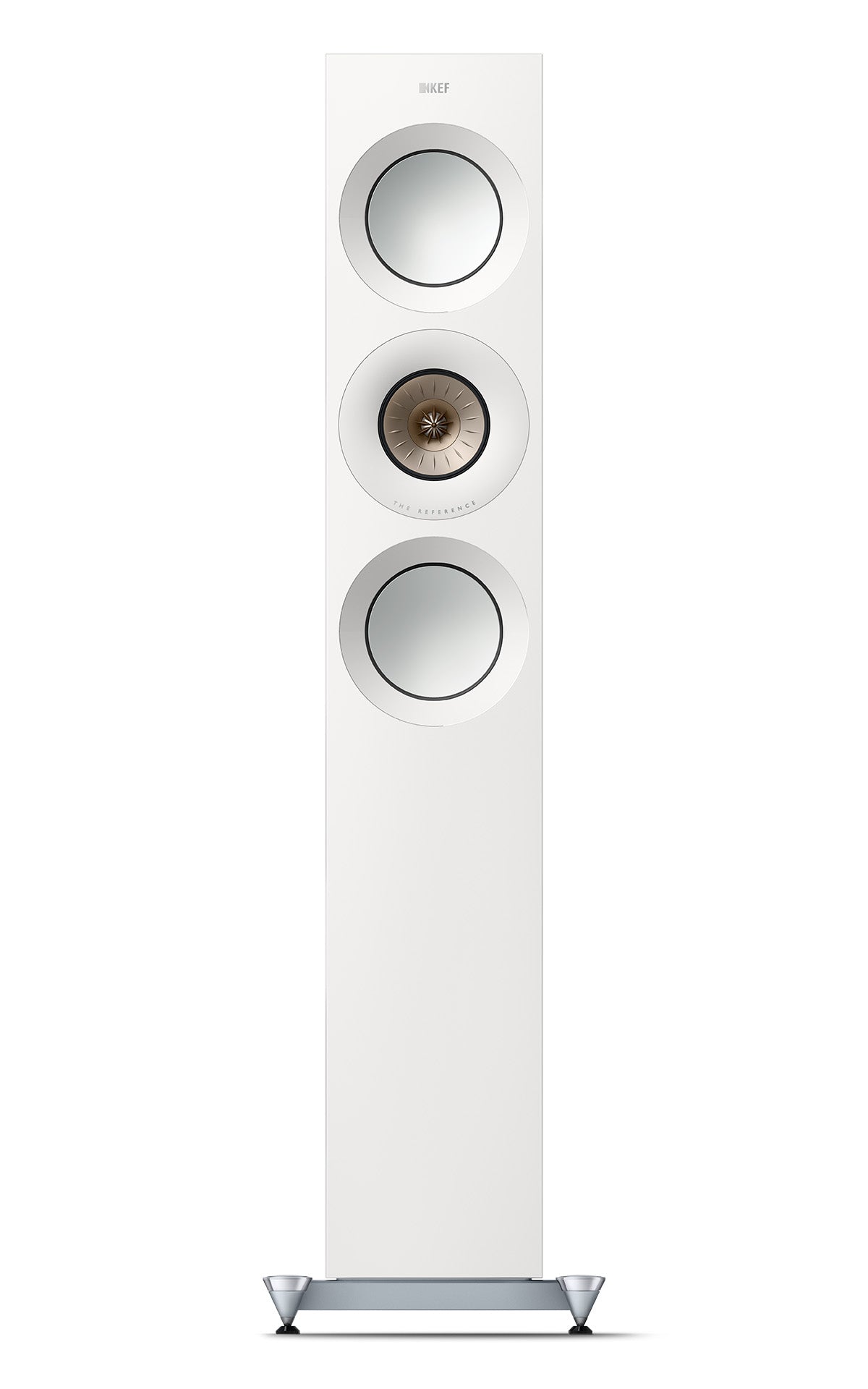

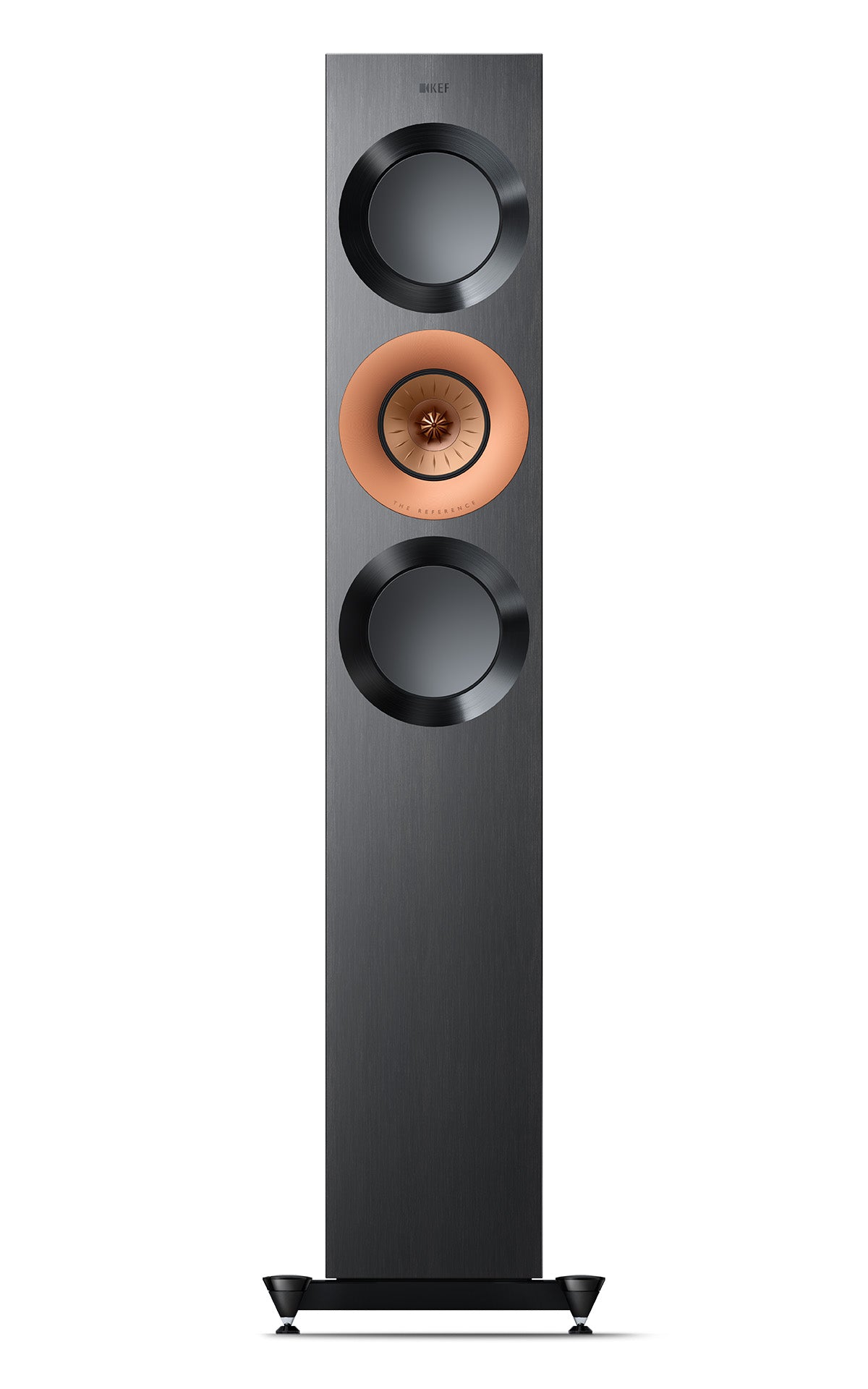

    Furthermore, the expertly engineered cabinets are finished in a sumptuous high-gloss or richly detailed, pair- matched wood veneers to complement the strikingly distinctive front baffle, which is designed to eliminate anomalies caused by diffraction. Five finishes are available, a combination of three cabinet finishes and five drive unit colours: Satin Walnut/Silver, High-Gloss White/Blue, High-Gloss White/Champagne, High-Gloss Black/Grey, High-Gloss Black/Copper.

    SPECIFICATION +



    CABINET FINISH

    Silver satin walnut, Copper black aluminium, Blue ice white, Deep piano black, Satin American walnut, Luxury gloss rosewood




    WEIGHT

    51.3kg (113.1lbs)



    DIMENSION (H X W X D)

    H x W x D with grille and terminal :
    1155 x 205 x 470 mm (44.5 x 8.1 x 18.5 in.)

    H x W x D with grille, terminal & plinth :
    1202 x 349 x 470 mm (47.3 x 13.7 x 18.5 in.)



    DESIGN

    Three-way bass reflex



    IMPEDANCE

    8 Ohms (min.3.2 Ohms)



    UNIT MEASUREMENT

    Pair



    FREQUENCY RANGE

    Typical in room bass response: 28Hz (-6dB)
    Free Field - Short port: 38Hz - 45kHz (-6dB)
    Free Field - Long port: 35Hz - 45kHz (-6dB)

    CROSSOVER FREQUENCIES

    350Hz, 2.8kHz


    FREQUENCY RESPONSE

    43Hz - 35kHz (±3dB)



    HARMONIC DISTORTION

    2nd & 3rd harmonics (90dB, 1m)
    <0.5% 40Hz – 100kHz
    <0.2% 200Hz – 10kHz



    MAXIMUM OUTPUT

    113.5 dB (peak sound pressure level at 1m with pink noise)



    AMPLIFIER CLASS

    50-300W



    NOMINAL IMPEDANCE

    8Ohms (min.3.2Ohms)



    SENSITIVITY

    87.5dB (2.83V/1m)


    DRIVE UNITS

    Uni-Q driver array:
    HF: 25mm (1in.) vented aluminium dome
    MF: 125mm (5in.) aluminium
    Bass units:
    LF: 2 x165mm (6.5in.) aluminium



    CROSSOVER FREQUENCIES

    400Hz, 2.9kHz
